Product Introduction

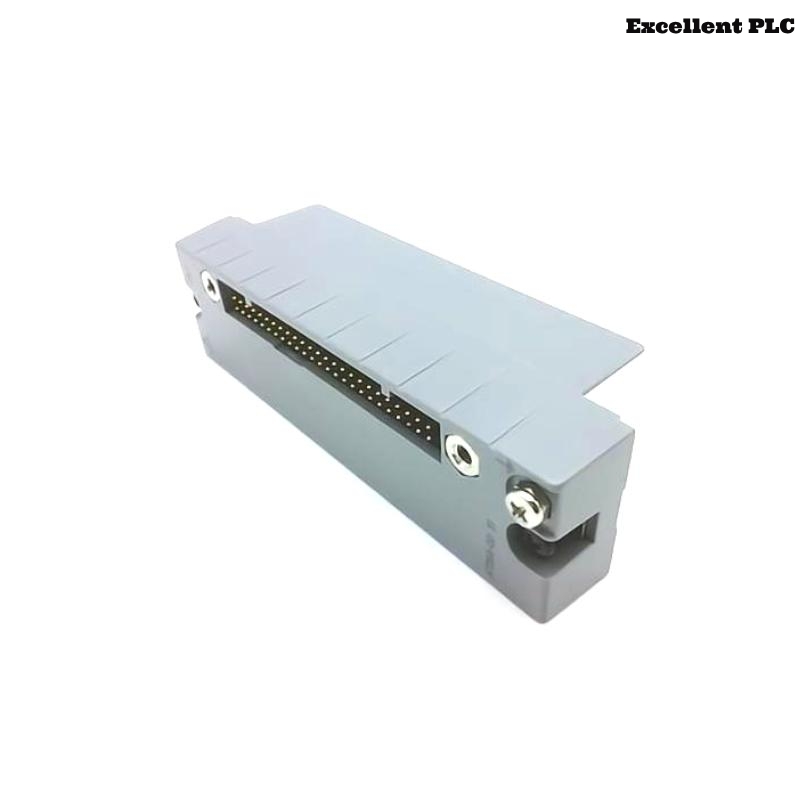

The Yokogawa ATK4A-00/S1 KS Cable Interface Adapter is a high-performance connectivity solution designed for seamless integration with Yokogawa’s industrial automation and control systems. This adapter facilitates reliable communication between field devices and control systems, ensuring stable signal transmission in harsh industrial environments.
As part of Yokogawa’s extensive lineup of industrial communication accessories, the ATK4A-00/S1 is widely used in process automation, factory automation, and distributed control systems (DCS). It is engineered for durability, precision, and ease of installation, making it a preferred choice for engineers and system integrators.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | ATK4A-00/S1 KS |
| Type | Cable Interface Adapter |
| Compatibility | Yokogawa DCS, PLCs, and Field Instruments |
| Connector Type | KS-Series (Industry-Standard) |
| Signal Transmission | Analog & Digital Signals |
| Operating Voltage | 24V DC (Standard) |
| Current Rating | 1A (Max per Channel) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity Range | 5% to 95% (Non-condensing) |
| Ingress Protection | IP20 (Panel-Mounted Use) |
| Dimensions (L x W x H) | 114 x 38.8 x 32.6 mm |
| Weight | 0.1 kg |
| Material | Flame-Retardant Plastic (UL94 V-0) |
| Certifications | CE, RoHS, UL Listed |
| Wiring Type | Screw Terminal or Spring Clamp (Depending on Model) |
| Isolation Voltage | 500V AC (Channel-to-Channel) |
Applications
The Yokogawa ATK4A-00/S1 KS Cable Interface Adapter is used in various industrial applications, including:
- Process Control Systems – Integration with Yokogawa CENTUM VP, CENTUM CS 3000, and other DCS platforms.
- Factory Automation – Connection between PLCs and field devices (sensors, actuators).
- Power Plants – Signal conditioning for turbine control and monitoring systems.
- Oil & Gas – Reliable communication in hazardous environments.
- Chemical & Petrochemical – Secure signal transmission in corrosive conditions.
- Water & Wastewater Treatment – Remote I/O interfacing for pumps and valves.
Product Advantages
High Reliability – Ensures stable signal transmission in industrial environments.
Wide Compatibility – Works seamlessly with Yokogawa DCS and third-party systems.
Compact & Lightweight – Easy to install in control panels and junction boxes.
Robust Construction – Flame-retardant housing (UL94 V-0) for safety.
Flexible Wiring Options – Supports screw terminals or spring clamps for quick installation.
Certified for Industrial Use – CE, RoHS, and UL compliance.
Low Maintenance – Durable design reduces downtime and servicing needs.
Latest News & Updates
“Yokogawa Enhances KS-Series Adapters for Faster Industrial IoT Integration” – Industrial Automation News, 2024
“New Firmware Update Improves ATK4A-00/S1 Signal Stability in High-Noise Environments” – Process Engineering Journal, 2024
Frequently Asked Questions (FAQ)
1. What types of industrial control systems is this adapter designed for?
The ATK4A-00/S1 is specifically engineered for integration with Yokogawa’s CENTUM series DCS and other Yokogawa control platforms, though it can interface with compatible third-party systems.
2. How does this adapter ensure reliable signal transmission?
It features 500V AC channel-to-channel isolation and robust shielding to prevent signal interference in electrically noisy industrial environments.
3. What maintenance procedures are required for this adapter?
The unit is designed for minimal maintenance – periodic visual inspections and terminal tightness checks are recommended, with no regular calibration needed.
4. Can this adapter be used in outdoor installations?
No, the IP20 rating means it’s only suitable for protected indoor environments like control panels and enclosures.
5. What is the expected service life of this adapter?
Under normal operating conditions, the adapter has a typical service life of 10+ years due to its high-quality materials and construction.
6. Are there any special tools required for installation?
Standard electrical tools are sufficient – a small flathead screwdriver for terminal connections and basic cable preparation tools.
7. How does this adapter compare to wireless connection options?
While wireless solutions offer mobility, this wired adapter provides more reliable, interference-free connections critical for mission-critical control signals.
8. What documentation is included with the adapter?
The unit ships with installation instructions, specifications sheet, and compliance certificates (CE, RoHS).
9. Can the adapter be used in safety instrumented systems?
This particular model is not certified for safety systems – Yokogawa offers specially certified versions for SIL-rated applications.
10. What should be checked if the adapter isn’t functioning properly?
First verify power supply (24V DC), check all terminal connections, inspect for physical damage, and confirm compatibility with connected devices before contacting support.
