Product Overview

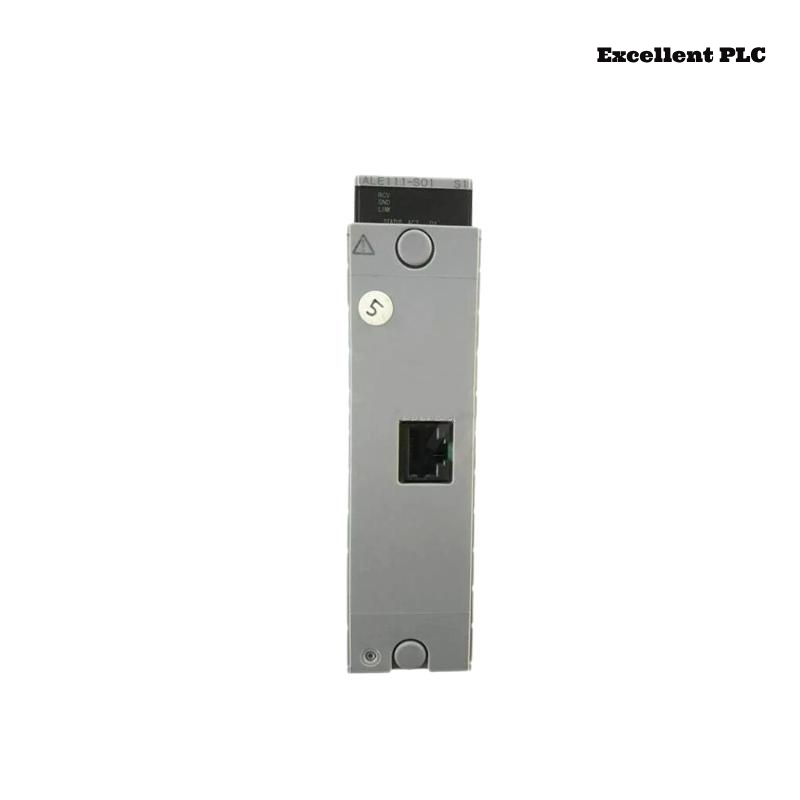

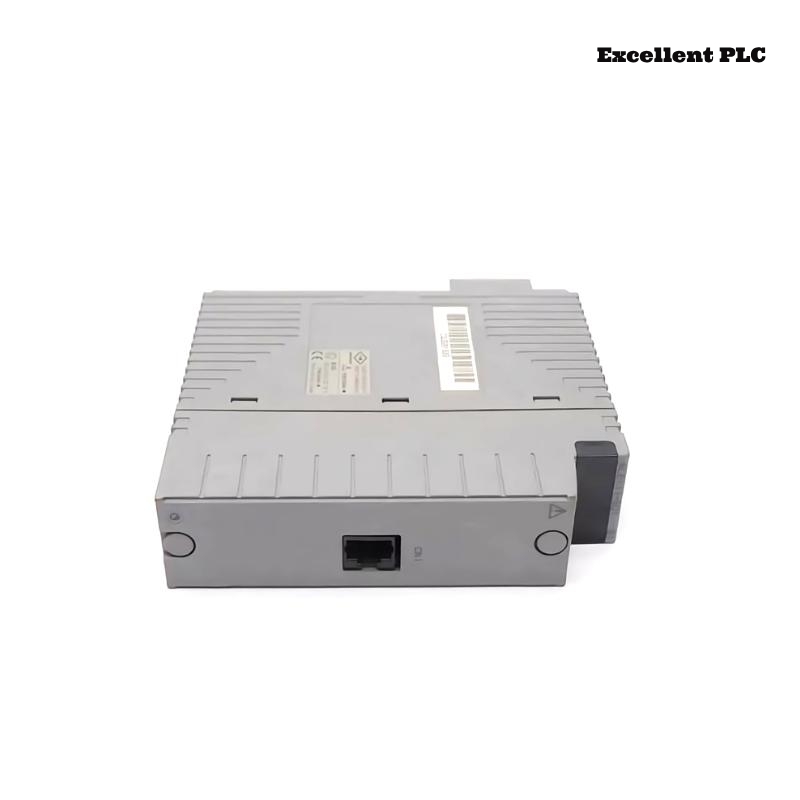

The Yokogawa ALE111-S01 is a high-performance Ethernet communication module engineered to facilitate seamless data exchange between Yokogawa’s field control units (FCUs) and various subsystems over Ethernet networks. Designed for industrial automation environments, this module ensures reliable and efficient communication, enhancing the integration of control systems with external devices such as SCADA systems, HMIs, and PLCs.
Key Features
-
Ethernet Connectivity: Enables Yokogawa FCUs to connect seamlessly to Ethernet networks, supporting protocols like Modbus TCP/IP and DNP3.
-
Robust Communication: Supports half-duplex transmission at speeds up to 10 Mbps, ensuring efficient data transfer.
-
Industrial Compatibility: Designed to withstand harsh industrial environments with an operating temperature range of -20°C to 60°C (-4°F to 140°F).
-
Flexible Installation: Compatible with various Yokogawa units, including ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, and AFV40.
-
Standard Compliance: Adheres to IEEE802.3 10BASE-T standards, ensuring broad compatibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Product Number | ALE111-S01 |
| Communication Interface | Ethernet |
| Supported Protocols | Modbus TCP/IP, DNP3 |
| Transmission Speed | 10 Mbps |
| Connector Type | RJ-45 |
| Transmission Method | Half-duplex |
| Physical Layer Interface | IEEE802.3 10BASE-T |
| Connection Method | Point-to-point |
| Transmission Distance | Up to 100 meters (328 feet) |
| Power Supply Voltage | 24 VDC |
| Current Consumption | 0.5 A |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 176°F) |
| Humidity Range | 10% to 95% RH (non-condensing) |
| Dimensions | 130 x 125.5 x 32.8 mm |
| Weight | 0.3 kg |
Applications
The Yokogawa ALE111-S01 Ethernet Communication Module is utilized across various industrial sectors, including:
-
Industrial Automation Systems: Facilitates integration of Yokogawa FCUs with SCADA systems for real-time process monitoring and control.
-
Manufacturing: Enables data acquisition and machine control by connecting Yokogawa devices within manufacturing networks.
-
Building Automation Systems: Allows communication between Yokogawa controllers and building management systems for efficient facility management.
-
Energy Management Systems: Supports data exchange in energy monitoring and control applications, enhancing system efficiency.
Advantages
-
Enhanced Connectivity: Provides reliable Ethernet communication, ensuring seamless data exchange between control units and subsystems.
-
Durability: Built to operate in harsh industrial environments with a wide temperature tolerance and high humidity resistance.
-
Flexibility: Compatible with multiple Yokogawa units, offering versatile installation options.
-
Compliance: Meets IEEE802.3 10BASE-T standards, ensuring compatibility with standard Ethernet networks.
Recent News Headlines
-
“Yokogawa Releases ALE111-S01 Module to Enhance Industrial Ethernet Communication”
-
“New ALE111-S01 Module Improves Connectivity in Yokogawa Control Systems”
-
“Yokogawa’s ALE111-S01: Bridging the Gap in Industrial Automation Networks”
Frequently Asked Questions (FAQ)
-
What is the primary function of the ALE111-S01 module?
-
The ALE111-S01 enables Yokogawa FCUs to connect to Ethernet networks, facilitating data exchange with other networked devices.
-
-
Which communication protocols are supported by the ALE111-S01?
-
The module supports communication with FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, and PLC-5/SLC500.
-
-
What is the transmission speed of the ALE111-S01?
-
It operates at a transmission speed of 10 Mbps.
-
-
What type of connector does the ALE111-S01 use?
-
The module utilizes an RJ-45 connector for Ethernet connectivity.
-
-
What is the maximum transmission distance supported by the ALE111-S01?
-
It supports a maximum transmission distance of 100 meters (328 feet).
-
-
Which Yokogawa units are compatible with the ALE111-S01?
-
The module can be mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, or AFV40 units.
-
-
What are the power requirements for the ALE111-S01?
-
It requires a 24 VDC power supply with a current consumption of 0.5 A.
-
-
What are the physical dimensions and weight of the ALE111-S01?
-
The module measures 130 x 125.5 x 32.8 mm and weighs 0.3 kg.
-
-
What is the operating temperature range of the ALE111-S01?
-
It operates within a temperature range of -20°C to 60°C (-4°F to 140°F).
-
-
Does the ALE111-S01 support half-duplex or full-duplex transmission?
-
The module supports half-duplex transmission.
-
