Product Overview

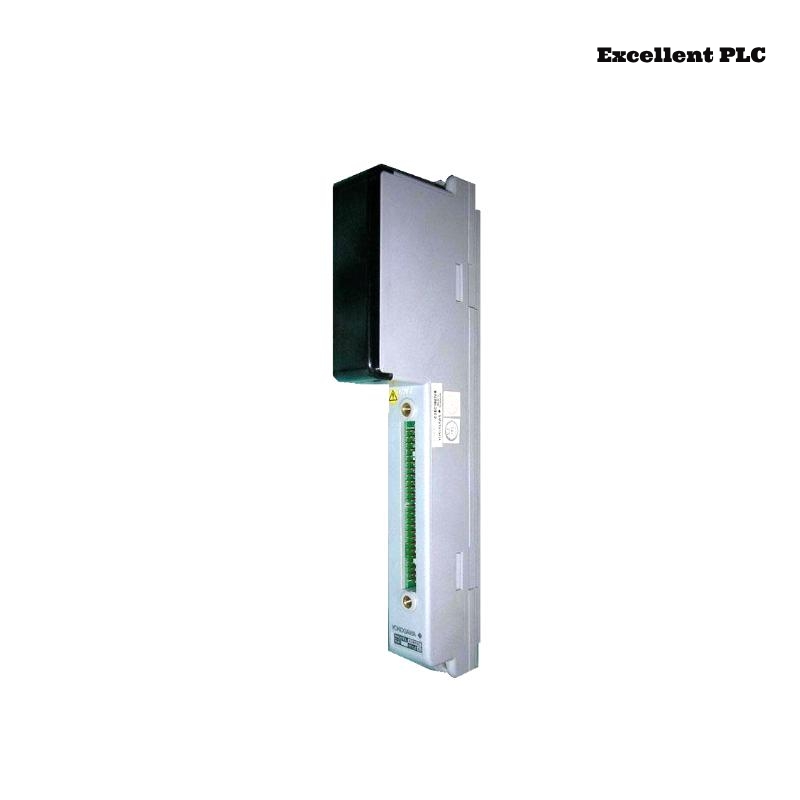

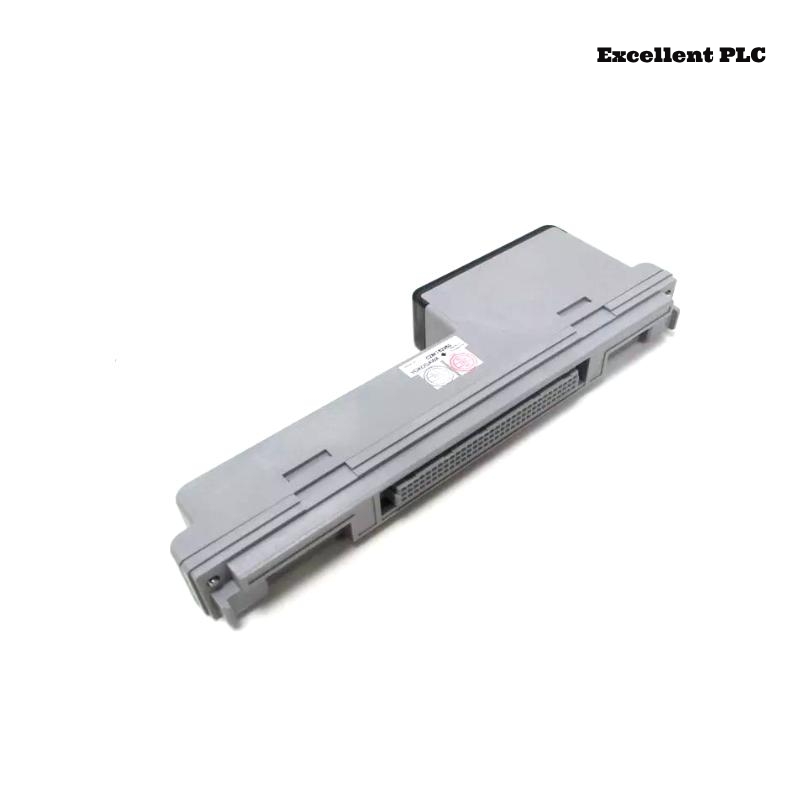

The Yokogawa ADM12C is a high-performance contact input module designed for industrial automation systems. It provides reliable monitoring and control capabilities through its 32 contact input points, making it suitable for applications such as process control, machine control, and robotics.
Product Specifications
The ADM12C’s specifications are detailed below:
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Number | ADM12C |
| Product Type | Contact Input Module |
| Number of I/O Points | 32 Points |
| Type | Connector Type |
| Contact Rating | 5 V DC, 20 mA minimum (external contact standard) |
| Pulse Width | 40 ms minimum |
| Pulse Period | 10 Hz maximum |
| Power Consumption | 600 mA maximum at 5.0 V DC |
| Signal Isolation | Common minus side every 16 points |
| Installation | Installed in the I/O module nest |
| Connection | KS9 or KS10 cable |
| Terminal Board | TE32 |
| Dimensions | 100 x 23 x 30 mm |
| Weight | 1.5 kg |
Product Applications
The ADM12C is versatile and reliable for various industrial applications, including:
-
Process Control: Monitoring and controlling industrial processes by receiving contact signals from external devices such as switches, sensors, and alarms.
-
Machine Control: Integrating with machinery to monitor status and ensure proper operation by processing digital input signals.
-
Robotics: Providing input capabilities for robotic systems to interact with other devices and control systems.
-
Alarm Systems: Receiving signals from alarm triggers and facilitating appropriate responses within the control system.
-
Data Acquisition Systems: Collecting digital input data from various sensors and devices for analysis and monitoring purposes.
-
Building Automation Systems: Monitoring and controlling building systems such as lighting, HVAC, and security through digital inputs.
Product Advantages
The ADM12C offers several advantages:
-
High Channel Density: Supports 32 contact input points, allowing for extensive monitoring capabilities within a compact module.
-
Reliable Performance: Designed for dependable operation in various industrial environments, ensuring consistent monitoring and control.
-
Easy Integration: Connector-type design and compatibility with KS9 or KS10 cables facilitate straightforward installation and integration into existing systems.
-
Efficient Power Consumption: Operates with a maximum power consumption of 600 mA at 5.0 V DC, optimizing energy usage.
-
Signal Isolation: Provides common minus side isolation every 16 points, enhancing signal integrity and reducing interference.
Frequently Asked Questions (FAQs)
-
What is the primary function of the Yokogawa ADM12C Contact Input Module?
The ADM12C is designed to receive contact signals from external devices such as switches, sensors, and alarms, facilitating monitoring and control within industrial automation systems.
-
How many input points does the ADM12C support?
The module supports 32 contact input points, allowing for extensive monitoring capabilities.
-
What are the power requirements for the ADM12C?
The ADM12C operates with a maximum power consumption of 600 mA at 5.0 V DC.
-
What type of cables are compatible with the ADM12C for connection?
The module is compatible with KS9 or KS10 cables for connection purposes.
-
What is the significance of signal isolation in the ADM12C?
Signal isolation, with a common minus side every 16 points, enhances signal integrity and reduces interference between input channels.
-
Can the ADM12C be used in building automation systems?
Yes, the ADM12C is suitable for building automation systems, enabling monitoring and control of systems like lighting, HVAC, and security through digital inputs.
-
What are the dimensions and weight of the ADM12C module?
The ADM12C measures 100 x 23 x 30 mm and weighs 1.5 kg.
-
Is the ADM12C compatible with other Yokogawa modules?
The ADM12C is designed to integrate seamlessly with Yokogawa’s industrial automation systems and is compatible with related modules.
-
What is the minimum pulse width that the ADM12C can detect?
The module can detect pulse widths of 40 ms or greater.
-
What is the maximum pulse period supported by the ADM12C?
The ADM12C supports a maximum pulse period of 10 Hz.
