Product Overview:

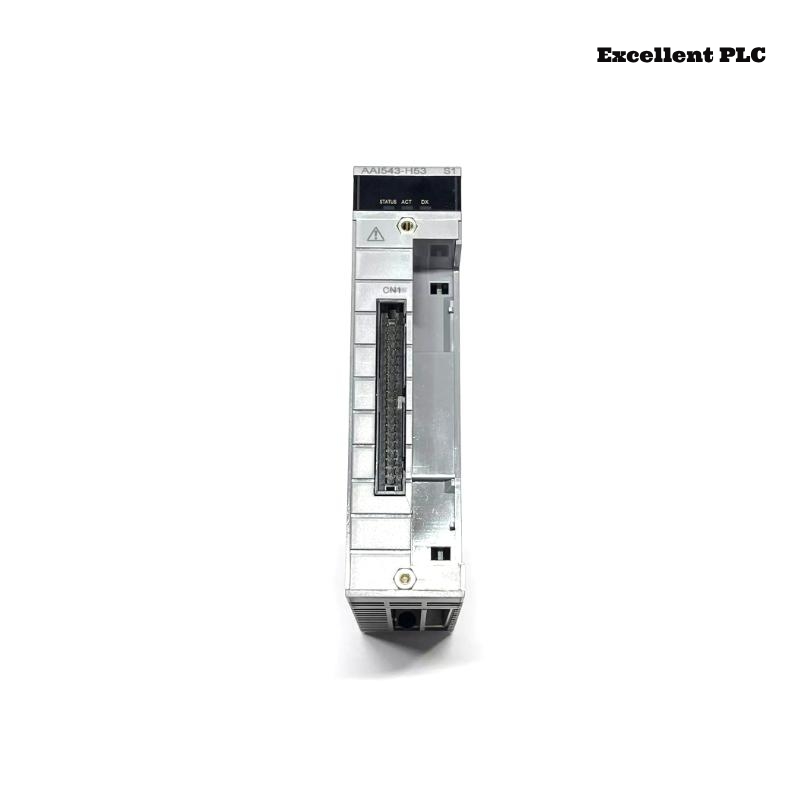

The Yokogawa AAI543-H53 Analog Output Module is designed to provide precise, high-performance analog signal output in industrial automation systems. It is part of the Yokogawa family of modular control solutions, offering users the ability to interface seamlessly with different field devices. The AAI543-H53 is particularly well-suited for use in environments where reliability and precision are essential, such as in process control, manufacturing, and other industrial applications.
This module delivers excellent accuracy, speed, and stability, making it a key component in distributed control systems (DCS). It supports a range of industry-standard signal outputs, including current and voltage signals, and can be easily integrated into existing Yokogawa systems, making it highly versatile for various control processes.
Product Specifications:
| Specification | Value |
|---|---|
| Model Number | AAI543-H53 |
| Type | Analog Output Module |
| Signal Output | 4-20 mA, 0-10 Vdc |
| Number of Channels | 4 Channels |
| Output Range | 0 to 20 mA, 0 to 10 Vdc |
| Resolution | 16-bit |
| Power Supply | 24 Vdc |
| Operating Temperature | -10°C to 60°C |
| Dimensions (L x W x H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Communication Protocol | Yokogawa proprietary communication |
| Mounting Type | DIN Rail |
| Response Time | 20 ms |
| Accuracy | ±0.1% FS |
Product Applications:
The Yokogawa AAI543-H53 Analog Output Module is utilized in numerous industrial control applications, offering high-quality analog output signals for various systems. Some of the primary applications include:
- Process Control Systems: Used in the control of variables such as pressure, temperature, and flow in industries like chemical processing, oil refining, and pharmaceuticals.
- Manufacturing Automation: In assembly lines and production facilities, where accurate control signals are required to drive machinery and equipment.
- Energy Management: In power generation plants for precise control of turbine speed, temperature regulation, and other energy parameters.
- HVAC Systems: To manage and control heating, ventilation, and air conditioning systems, particularly in large commercial buildings.
- Environmental Monitoring: Used to interface with environmental control systems that require constant adjustments to maintain safe operational conditions.
- Test and Measurement Equipment: Employed in laboratory and testing environments where accurate, reproducible signal outputs are necessary for equipment calibration and validation.
- Building Automation: For controlling lighting, climate, and security systems in commercial or industrial buildings.
Product Advantages:
- High Precision: The AAI543-H53 provides accurate analog output with a resolution of 16 bits, ensuring precise control and measurement in various applications.
- Flexible Output Ranges: Capable of outputting signals in both current (4-20 mA) and voltage (0-10 Vdc) formats, making it compatible with a wide range of field devices.
- Easy Integration: The module supports Yokogawa’s proprietary communication protocols, ensuring seamless integration with other Yokogawa DCS and control systems.
- Compact and Reliable Design: With a compact size of 107.5 × 32.8 × 130 mm and a robust design, the AAI543-H53 is durable and reliable for industrial use in harsh environments.
- Efficient Response Time: The module offers a fast response time of 20 ms, ensuring that control systems operate smoothly without delays.
- Versatile Applications: Its ability to handle multiple channels makes it versatile for a variety of industrial applications, from process control to automation systems.
- Stable Performance: The module ensures stable output under a wide range of environmental conditions, offering users peace of mind that the system will function reliably over time.
- Long Life Cycle: Built with high-quality components, the module is designed to provide a long operational life with minimal maintenance needs.
