Product Introduction

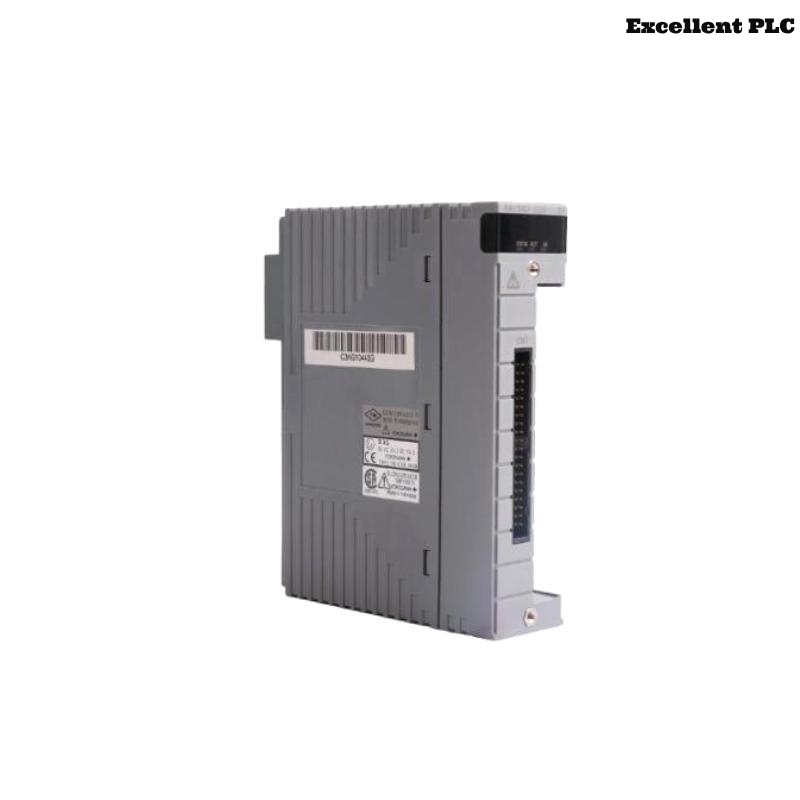

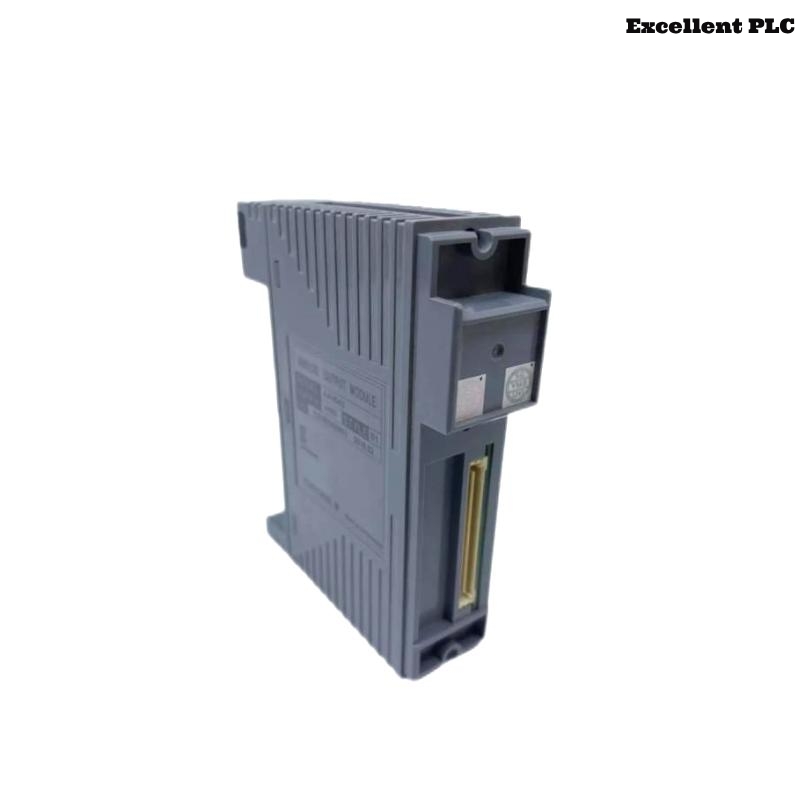

The Yokogawa AAI543-H50/K4A00 is an advanced analog output module designed for industrial control systems that require precise analog signal generation. This model is part of the AAI500 series, known for its robustness and high accuracy. The module is specifically engineered to provide stable and reliable analog outputs, essential for managing field devices such as actuators, controllers, and other systems requiring analog control signals.
The AAI543-H50/K4A00 supports various output types and is highly flexible in terms of integration with Yokogawa’s Distributed Control Systems (DCS). Its compact design ensures that it can fit easily into tight spaces within control cabinets while still offering powerful performance.
Product Parameters
The Yokogawa AAI543-H50/K4A00 Analog Output Module offers the following key specifications:
| Parameter | Specification |
|---|---|
| Model | AAI543-H50/K4A00 |
| Channels | 4 |
| Output Type | 0-20 mA, 0-10 V |
| Resolution | 16 bits |
| Dimensions (W x H x D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Power Supply | 24 V DC ± 20% |
| Input Impedance | 100 kΩ |
| Output Range | 0-20 mA, 0-10 V |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +75°C |
| Protection Class | IP20 |
Applications
The AAI543-H50/K4A00 analog output module is widely used in industrial automation environments where high-precision control and stable output are required. Typical applications include:
-
Process Control: For controlling processes such as temperature, pressure, flow, and other parameters, this module can generate precise control signals.
-
Instrumentation: It interfaces with various instruments, including those used in monitoring and feedback loops.
-
Factory Automation: Used in manufacturing plants where integration with programmable logic controllers (PLCs) or distributed control systems (DCS) is required to control field devices like valves, motors, and actuators.
-
Energy Management: It can be used to control energy-related systems where the regulation of output signals is critical for system stability.
Product Advantages
The Yokogawa AAI543-H50/K4A00 offers several advantages that make it a preferred choice for industrial control systems:
-
High Accuracy: With 16-bit resolution, the module ensures accurate analog signal generation, essential for precise control in critical applications.
-
Flexibility: It supports both current (0-20 mA) and voltage (0-10 V) output types, allowing it to interface with a wide range of field equipment.
-
Compact and Robust Design: The module’s compact size and IP20 protection class make it suitable for a wide variety of installation environments, including those with limited space.
-
Wide Operating Temperature Range: It can operate efficiently in temperatures ranging from -10°C to +60°C, making it suitable for harsh industrial environments.
-
Easy Integration: Being part of the AAI500 series, it integrates seamlessly with Yokogawa’s other control systems, offering compatibility with various industrial automation setups.
FAQs
-
What is the main function of the AAI543-H50/K4A00 module?
-
It provides analog output signals (0-20 mA, 0-10 V) to control various field devices, such as valves and actuators, in industrial systems.
-
-
How many output channels does the module have?
-
The AAI543-H50/K4A00 has 4 output channels.
-
-
What types of output signals can this module generate?
-
This module can generate both current (0-20 mA) and voltage (0-10 V) signals.
-
-
What is the resolution of the output signals?
-
The output resolution is 16 bits, ensuring high precision in the analog control signals.
-
-
What is the size of the AAI543-H50/K4A00 module?
-
The module measures 107.5 × 32.8 × 130 mm.
-
-
What is the weight of the module?
-
The weight of the module is 0.4 kg.
-
-
What is the operating temperature range for this module?
-
The module operates within a temperature range of -10°C to +60°C.
-
-
Can this module be used in outdoor environments?
-
This module has an IP20 protection rating, which makes it suitable for indoor environments but not for direct exposure to water or dust.
-
-
Is this module compatible with Yokogawa DCS systems?
-
Yes, the AAI543-H50/K4A00 is designed to integrate seamlessly with Yokogawa’s Distributed Control Systems (DCS).
-
-
What is the power supply requirement for this module?
-
The module requires a 24 V DC power supply with a tolerance of ± 20%.
-
Related Models from the Yokogawa AAI500 Series
| Model | Channels | Output Type | Resolution | Dimensions (W x H x D) | Weight |
|---|---|---|---|---|---|
| AAI543-H00 | 4 | 0-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.2 kg |
| AAI543-H01 | 8 | 0-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.3 kg |
| AAI543-H02 | 6 | 4-20 mA, 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.4 kg |
| AAI543-H03 | 4 | 0-20 mA | 16 bits | 160 mm x 100 mm x 120 mm | 1.2 kg |
| AAI543-H04 | 4 | 0-10 V | 16 bits | 160 mm x 100 mm x 120 mm | 1.2 kg |
| AAI543-H05 | 6 | 4-20 mA | 16 bits | 160 mm x 100 mm x 120 mm | 1.3 kg |
