Product Introduction:

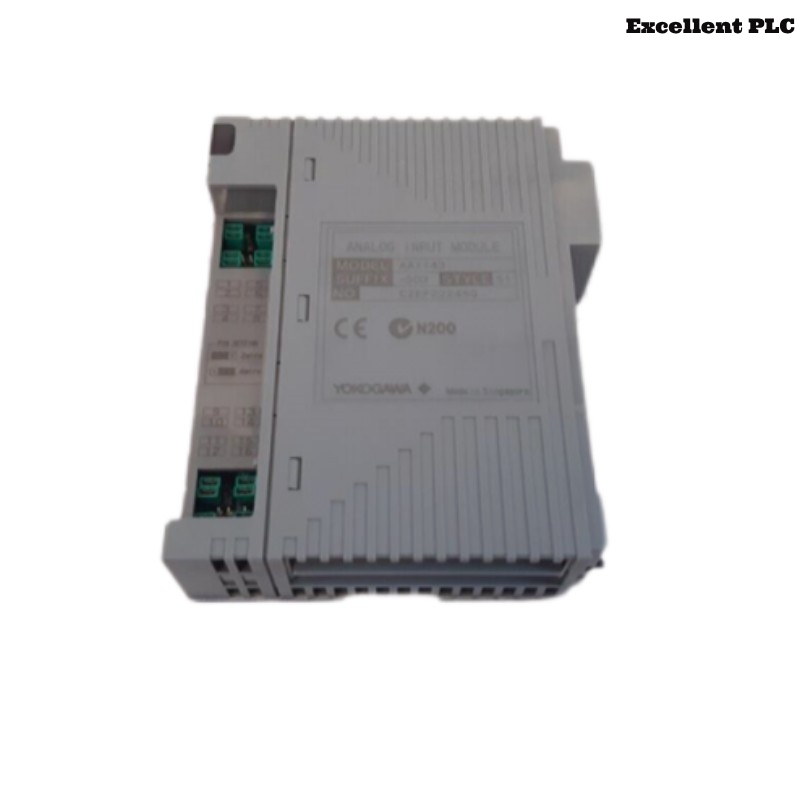

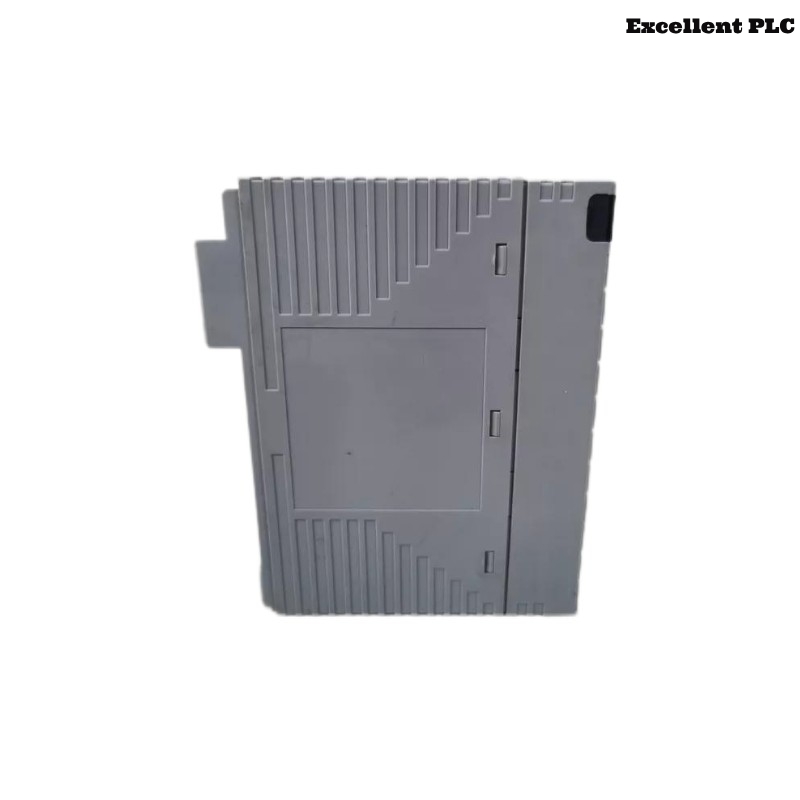

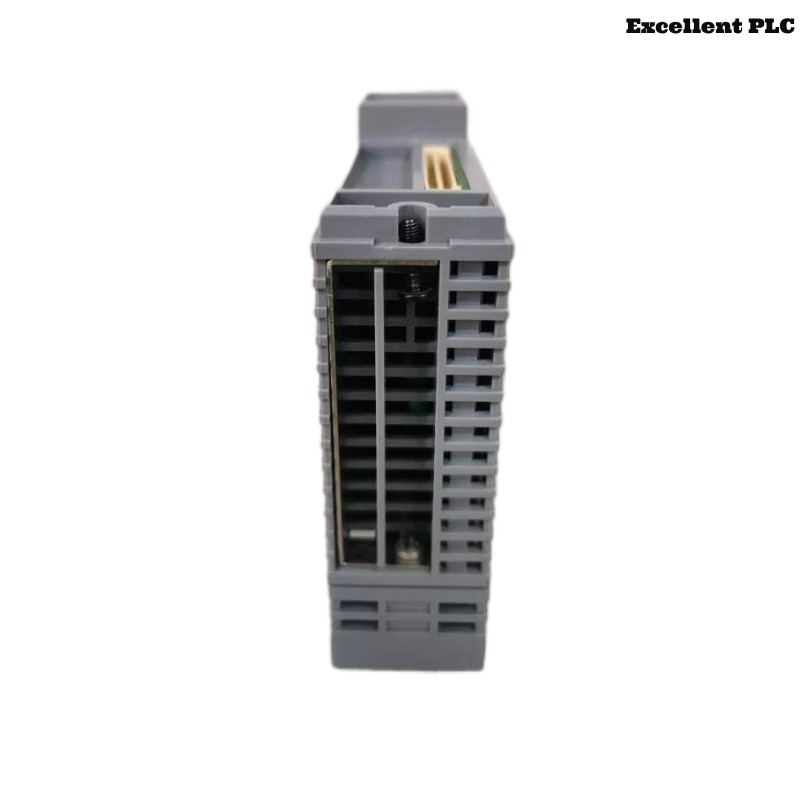

The Yokogawa AAI143-S53 is an advanced Analog Input Module designed for industrial automation and process control systems. Part of the Yokogawa’s AAI (Analog Active Input) series, this module is engineered to provide precise and reliable input processing for analog signals, converting them into digital values for effective monitoring and control. It is commonly used in systems such as Distributed Control Systems (DCS), Programmable Logic Controllers (PLC), and other industrial automation applications where high-performance analog data acquisition is required.
The AAI143-S53 module ensures seamless integration with Yokogawa’s existing systems and offers a robust solution for industries such as oil and gas, power plants, chemicals, and manufacturing. With a high degree of accuracy, reliability, and flexibility, this module is built to meet the demanding needs of modern industrial environments.
Product Specifications:
| Specification | Value |
|---|---|
| Model | AAI143-S53 |
| Type | Analog Input Module |
| Input Signal Type | Voltage, Current |
| Input Range | 0 to 10V, 4 to 20mA |
| Resolution | 16-bit |
| Sampling Rate | 200 ms |
| Accuracy | ±0.1% of full scale |
| Isolation | 1500 V AC |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Power Supply | 24 V DC ± 10% |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
| Mounting | DIN Rail |
| Certification | CE, UL, Ex (ATEX/IECEx options) |
| Status Indicators | LED for power, signal, and error |
Product Applications:
The Yokogawa AAI143-S53 Analog Input Module is primarily used in industries requiring precise analog signal conversion and transmission. Its key applications include:
-
Process Control: In continuous processes like chemical production, power generation, and petroleum refining.
-
Data Acquisition Systems: Used in systems that gather and monitor analog data from various sensors in the field.
-
Factory Automation: Ideal for use in systems that require the monitoring of machine health, temperature, pressure, and other critical parameters.
-
Environmental Monitoring: Applicable in controlling and monitoring pollution levels, water treatment, and other environmental metrics.
-
Building Automation Systems (BAS): Used for HVAC control, lighting, and other building management systems.
-
Energy Management: Essential in applications where accurate power consumption and load monitoring are required.
Product Advantages:
-
High Accuracy: The module offers high precision with a 16-bit resolution, providing a reliable means of handling critical measurements with minimal error.
-
Wide Input Range: Supports a broad input range of 0-10V and 4-20mA, allowing it to interface with a variety of field instruments and sensors.
-
Flexibility: The module is versatile, compatible with various Yokogawa systems, and offers an easy-to-use interface for integration in diverse industrial environments.
-
Robust and Reliable: Built for harsh industrial environments, it is designed to function reliably in challenging conditions such as extreme temperatures and fluctuating humidity levels.
-
Compact Design: The module’s small form factor (107.5 × 32.8 × 130 mm) makes it easy to mount on DIN rails, saving valuable space in control panels.
-
Fast Sampling Rate: The 200 ms sampling rate ensures that the module can quickly respond to changes in the input signal, which is crucial for time-sensitive applications.
-
Advanced Isolation: With 1500 V AC isolation, it ensures protection against electrical noise and transients, improving the safety and longevity of the system.
-
Easy Integration: Seamlessly integrates with existing Yokogawa systems, minimizing the time and effort required for setup and configuration.
-
Wide Temperature Range: Operates efficiently across a wide temperature range of -20°C to +60°C, making it suitable for diverse industrial applications.
-
Compliance with Standards: Meets CE, UL, and ATEX/IECEx certifications, ensuring it complies with international safety and quality standards.
FAQ:
1.What type of signals can the AAI143-S53 handle?
The module handles voltage and current signals, typically within the ranges of 0-10V and 4-20mA.
2.Can the AAI143-S53 be used in outdoor environments?
Yes, the module can operate in a temperature range from -20°C to +60°C, making it suitable for many outdoor applications, provided it is housed in a protective enclosure.
3.What is the power supply requirement for the AAI143-S53?
It requires a 24 V DC power supply with a tolerance of ±10%.
4.How does the AAI143-S53 ensure accurate readings?
The module offers 16-bit resolution and ±0.1% full scale accuracy, ensuring precise data collection.
5.What certifications does the AAI143-S53 have?
The module is certified for CE, UL, and has optional ATEX/IECEx certifications for hazardous environments.
6.How does the AAI143-S53 handle signal isolation?
The module provides 1500 V AC isolation, protecting the system from electrical noise and transients.
7.What are the dimensions of the AAI143-S53 module?
The dimensions are 107.5 × 32.8 × 130 mm.
8.Can the AAI143-S53 be mounted on a standard DIN rail?
Yes, it is designed for easy mounting on DIN rails.
9.What is the module’s response time?
The AAI143-S53 has a sampling rate of 200 ms, ensuring fast response to changes in input signals.
10.Is the AAI143-S53 compatible with Yokogawa’s DCS systems?
Yes, the module is designed to integrate seamlessly with Yokogawa’s Distributed Control Systems (DCS) and other industrial automation systems.
