Product Introduction

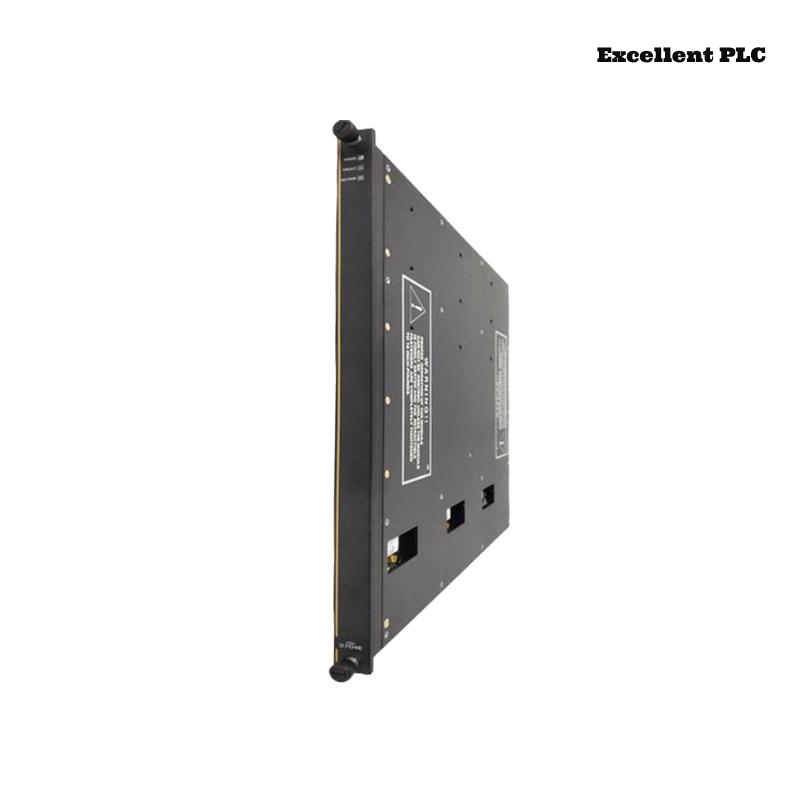

The Triconex 3704E Analog Input Module is an advanced industrial control module designed to provide high-precision analog signal acquisition in safety-critical applications. This module is a crucial component of the Triconex Tricon safety system, which is widely recognized for its reliability and fault-tolerant design. It is engineered to handle demanding environments, ensuring optimal performance in sectors such as oil and gas, power generation, and chemical processing.
The 3704E module features a triple-redundant architecture, which enhances system safety by providing continuous monitoring and fault detection. With its robust design, this module offers superior resistance to electrical noise,
temperature variations, and harsh operating conditions.
Product Specifications
The technical specifications of the Triconex 3704E Analog Input Module are outlined in the following table:
| Specification | Details |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 3704E |
| Module Type | Analog Input Module |
| Input Channels | 16 (independent channels) |
| Input Range | 0-5V, 1-5V, 0-10V, ±10V, 4-20mA |
| Resolution | 12-bit |
| Accuracy | ±0.1% of full scale |
| Update Rate | 10ms per channel |
| Redundancy | Triple Modular Redundancy (TMR) |
| Communication | Tricon System Bus |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 30G peak acceleration |
| Vibration Resistance | 2G RMS (10-500Hz) |
| Dimensions | 273 x 213 x 25 mm |
| Weight | 1.29 kg |
| Power Consumption | 5W |
Product Applications
The Triconex 3704E Analog Input Module is widely used in industries that require highly reliable and safe data acquisition systems. Some key application areas include:
-
Oil & Gas Industry – Used in offshore and onshore platforms for monitoring pressure, temperature, and flow parameters.
-
Power Plants – Ensures safe operation by collecting and analyzing analog signals from generators, turbines, and transformers.
-
Chemical Processing – Provides accurate data acquisition for chemical reactions, pressure control, and process optimization.
-
Petrochemical Industry – Monitors and controls critical processes in refining and gas processing plants.
-
Water Treatment Plants – Ensures reliable monitoring of water quality, pH levels, and other parameters.
-
Manufacturing & Automation – Used for precision control and monitoring in large-scale production lines.
-
Pharmaceutical Industry – Guarantees accuracy in temperature and pressure control for drug manufacturing.
-
Nuclear Facilities – Provides fail-safe operation in radiation monitoring and safety systems.
Product Advantages
The Triconex 3704E Analog Input Module offers several key benefits:
-
Triple Modular Redundancy (TMR) – Ensures high availability and fault tolerance.
-
High Accuracy & Resolution – Provides precise data acquisition with a 12-bit resolution and ±0.1% full-scale accuracy.
-
Rugged & Reliable Design – Engineered to operate in extreme environments with high vibration, temperature variations, and electrical noise resistance.
-
Fast Response Time – 10ms update rate per channel ensures real-time data acquisition.
-
Easy Integration – Seamlessly integrates into Triconex safety systems for process automation.
-
Extended Operating Temperature Range – Performs well in harsh industrial settings.
-
Built-in Diagnostics – Detects and isolates faults in real-time to maintain system reliability.
-
Proven Safety Record – Widely used in mission-critical applications across multiple industries.
