Product Overview

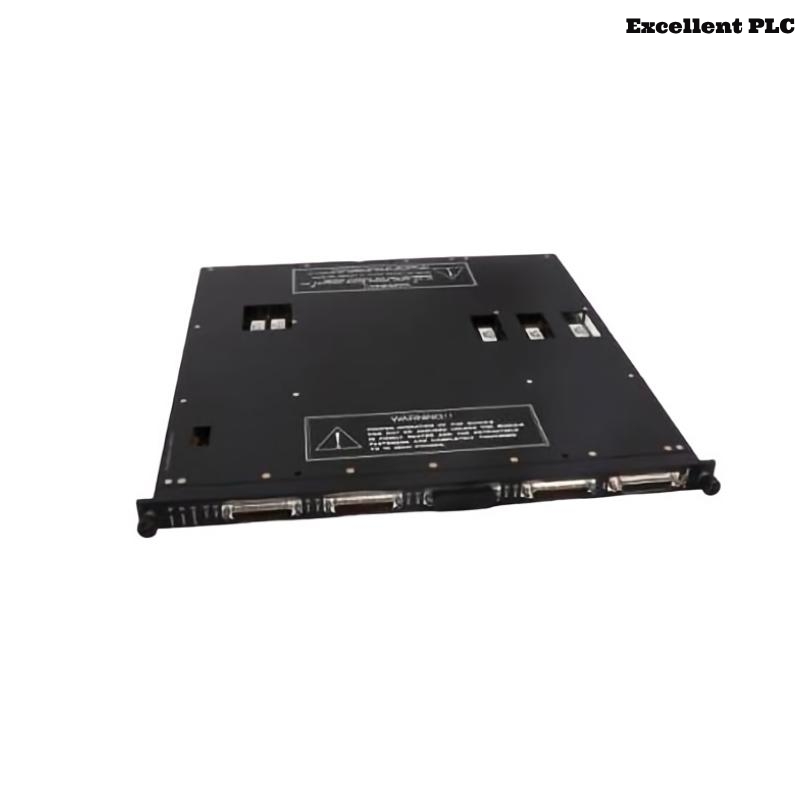

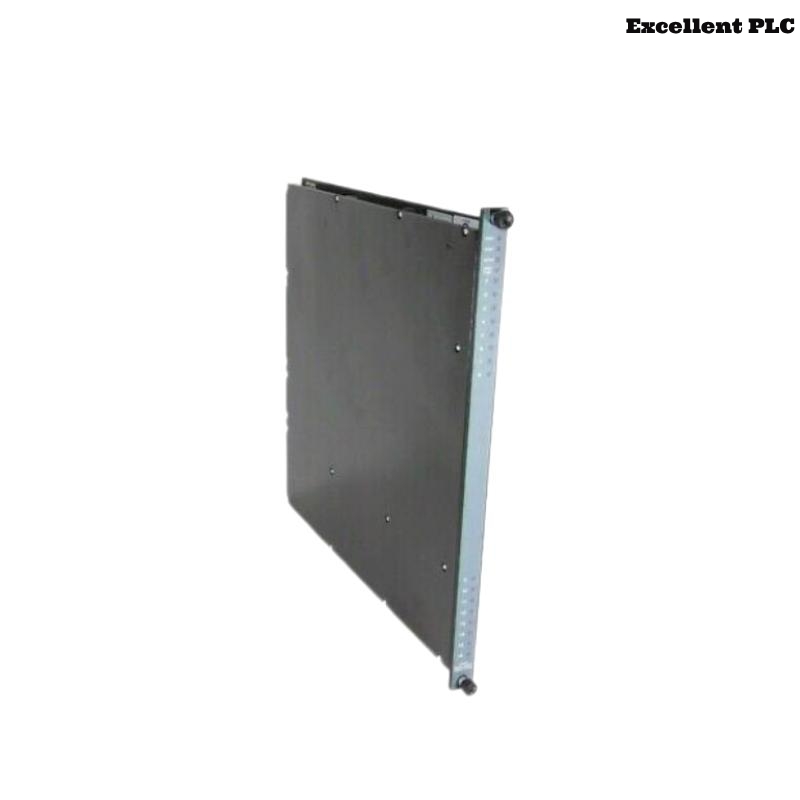

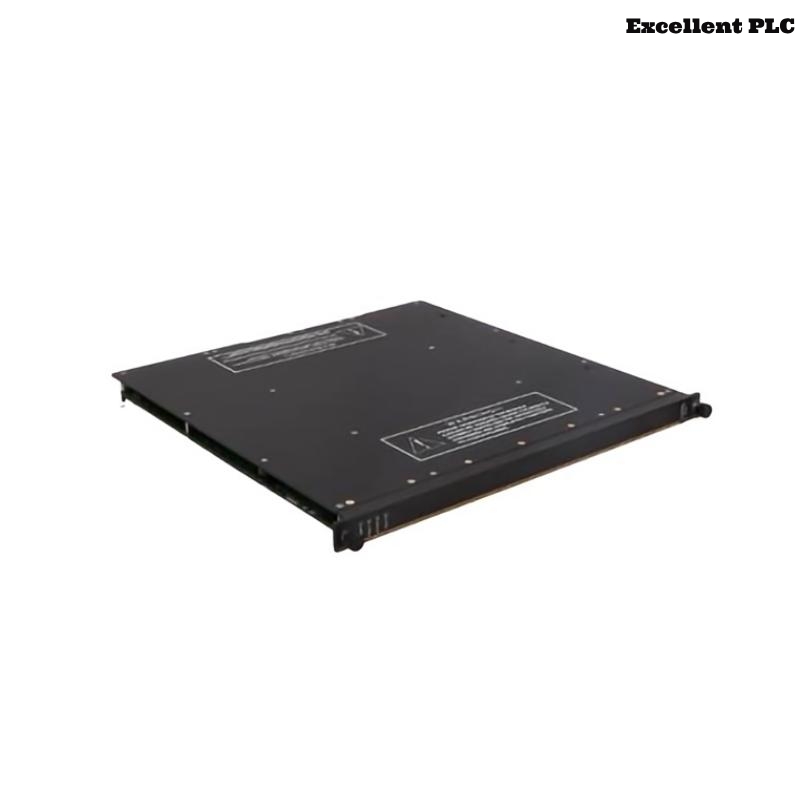

The Triconex 3601T Digital Output Module is a high-performance component designed for industrial control systems, particularly within safety-critical applications. It is part of the Triconex Safety System, renowned for its robustness, reliability, and ability to handle complex control operations in hazardous environments. The 3601T module provides efficient and reliable control of digital outputs in distributed control systems, serving industries such as oil and gas, petrochemical, energy, and chemical processing.
The module is equipped with advanced features that ensure precise output handling, along with fail-safe mechanisms to ensure the highest standards of operational integrity. It supports multiple output types, has a high-density design, and offers superior flexibility, making it suitable for applications that demand continuous performance under demanding conditions.
Product Specifications
The following table outlines the specifications of the Triconex 3601T Digital Output Module:
| Specification | Details |
|---|---|
| Product Type | Digital Output Module |
| Model Number | 3601T |
| Input Type | N/A (Digital Output Only) |
| Output Type | 16 Digital Outputs |
| Output Voltage | 24 VDC |
| Output Current | 1 A per channel (maximum) |
| Isolation | 2500 VDC isolation between channels and system |
| Mounting Type | Rack-Mounted |
| Communication Protocol | Triconex Communication Protocol |
| Power Consumption | 5 W (Typical) |
| Operating Temperature | -20°C to 60°C |
| Dimensions | 200 x 150 x 50 mm |
| Weight | 1.2 kg |
| Certifications | SIL 3 Certified, CE, UL, FM, CSA |
| Environmental Rating | IP20 |
Product Applications
The Triconex 3601T Digital Output Module is designed for use in a wide variety of safety-critical and industrial control applications. Some of its key uses include:
-
Process Control: Used in environments where precise control of outputs is crucial, such as in chemical processing, power plants, and oil rigs.
-
Safety Instrumented Systems (SIS): Integrated into safety instrumented systems to ensure the correct operation of critical safety functions.
-
Distributed Control Systems (DCS): For integration into complex control systems in industries like petrochemicals, pharmaceuticals, and food and beverage processing.
-
Machine Control: It is suitable for controlling automated machinery and process equipment that require fail-safe operations.
Advantages
-
High Reliability and Safety: Certified for SIL 3 applications, the Triconex 3601T module guarantees high safety standards, ensuring it meets stringent industrial safety requirements.
-
Flexible Output Configuration: The module allows for flexible configuration of digital outputs, supporting a variety of devices and systems.
-
Compact Design: Its compact form factor helps to reduce space in the control panel, enabling more efficient use of space.
-
Superior Isolation: The 2500 VDC isolation ensures that the module can handle high-voltage spikes and maintain operational integrity in noisy environments.
-
Wide Operating Temperature Range: With an operating temperature range of -20°C to 60°C, it can function effectively in both extreme hot and cold environments.
-
User-Friendly Integration: Easy to integrate into existing Triconex systems, ensuring seamless communication and control within distributed systems.
Frequently Asked Questions (FAQs)
-
What is the main function of the Triconex 3601T Digital Output Module?
-
The module is primarily used to control 16 digital outputs in industrial safety systems, ensuring accurate and fail-safe operation.
-
-
What is the maximum current per output channel?
-
The maximum current per output channel is 1 A.
-
-
Is the Triconex 3601T module suitable for use in hazardous environments?
-
Yes, it is suitable for hazardous environments and meets SIL 3 certification, making it ideal for safety-critical applications.
-
-
Can the 3601T module be used with other Triconex products?
-
Yes, the module is fully compatible with other Triconex safety and control products, offering easy integration into Triconex systems.
-
-
What is the temperature range for the module’s operation?
-
The module operates in temperatures ranging from -20°C to 60°C.
-
-
What certifications does the Triconex 3601T module have?
-
The module is SIL 3 certified, UL, FM, CE, and CSA approved.
-
-
What is the typical power consumption of the module?
-
The typical power consumption is 5 W.
-
-
What type of isolation does the Triconex 3601T provide?
-
The module provides 2500 VDC isolation between the channels and the system.
-
-
How is the module mounted?
-
The Triconex 3601T is mounted on a rack.
-
-
Can this module be used for remote control applications?
-
Yes, it can be used for remote control in distributed systems where digital outputs need to be controlled from a central point.
-
