Product Introduction

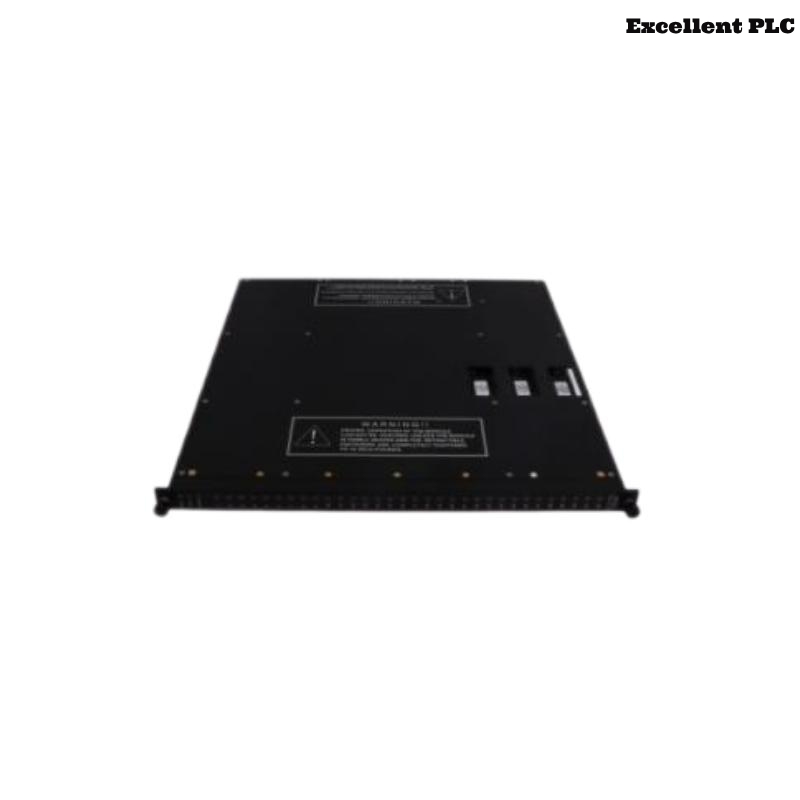

The Triconex 3503E is a high-reliability Digital Input Module designed for critical safety and control systems. Manufactured by Triconex, a Schneider Electric brand renowned for its robust safety instrumented systems (SIS), the 3503E is part of the Tricon™ fault-tolerant controller family. This module is engineered to collect discrete input signals from field devices such as limit switches, push buttons, and contact relays and convert them into digital signals that can be processed by the controller.
What sets the 3503E apart is its triple modular redundancy (TMR) architecture, ensuring that the module continues operating accurately even in the event of a component failure. It is ideal for safety-critical applications where downtime is not an option, such as in oil & gas, power generation, chemical processing, and other industrial sectors.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Triconex (Schneider Electric) |
| Model Number | 3503E |
| Product Type | Digital Input Module |
| Channels | 32 Digital Input Channels |
| Input Voltage Range | 0–60 VDC (nominal), compatible with dry contact inputs |
| Input Current | < 2 mA |
| Input Signal Type | Discrete/Digital |
| Isolation | Channel-to-logic and channel-to-channel isolation |
| Redundancy | Triple Modular Redundancy (TMR) |
| Update Time | < 1 ms |
| Diagnostics | Continuous self-checks and line monitoring |
| Hot-Swappable | Yes |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Shock Resistance | 30 g |
| Vibration Resistance | 1 g (10–150 Hz) |
| Mounting Type | DIN rail or chassis-mounted |
| Dimensions (W x H x D) | 180 x 200 x 60 mm |
| Weight | 4 kg |
| Certifications | CE, TÜV, ATEX, GOST, SIL 3 (IEC 61508) compliant |
Applications of Triconex 3503E
The Triconex 3503E module is specifically designed for mission-critical environments where operational integrity and safety are paramount. It plays a central role in:
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Detection Systems (F&G)
-
Burner Management Systems (BMS)
-
High Integrity Pressure Protection Systems (HIPPS)
-
Power Generation and Distribution Monitoring
-
Oil and Gas Upstream, Midstream, and Downstream Operations
-
Nuclear and Thermal Power Plants
-
Petrochemical and Chemical Processing Facilities
Advantages of Triconex 3503E
-
Unmatched Reliability: With TMR architecture, the 3503E ensures continuous operation even in the event of hardware failure.
-
Fast Response Time: Ultra-low input latency guarantees timely event logging and real-time control.
-
Industrial-Grade Durability: Engineered to withstand harsh conditions such as high temperature, vibration, and humidity.
-
Plug-and-Play Design: Fully hot-swappable without affecting the system’s operation.
-
High Diagnostic Coverage: Integrated self-testing and diagnostics for proactive failure detection.
-
Global Compliance: Certified to meet stringent global safety standards including SIL 3.
-
Seamless Integration: Designed for compatibility with Triconex systems and standard I/O racks.
-
Efficient Maintenance: Minimal downtime due to smart diagnostics and modular construction.
Frequently Asked Questions (FAQ) – Triconex 3503E
-
What is the function of the 3503E module in a Triconex system?
The 3503E is a digital input module that reads signals from field devices and communicates them to the Tricon controller. -
How many input channels does the 3503E support?
It supports up to 32 discrete input channels. -
Can the 3503E be used in SIL 3 safety systems?
Yes, it is SIL 3 certified according to IEC 61508 standards. -
Is the 3503E hot-swappable?
Yes, you can replace the module without shutting down the system. -
What kind of devices can be connected to the 3503E?
Any digital or dry contact field device such as push buttons, limit switches, or relay outputs. -
What happens if one part of the module fails?
Due to its TMR design, the module can continue operating correctly even if one part fails. -
What environmental conditions can the 3503E withstand?
It can operate in temperatures from -20°C to +60°C and in up to 95% humidity (non-condensing). -
Does the module support diagnostic functions?
Yes, it includes self-checking features and line diagnostics to detect issues early. -
Is it compatible with older Triconex systems?
Yes, the 3503E is backward-compatible with many legacy Tricon systems. -
What maintenance procedures are required?
Minimal maintenance is needed. Periodic diagnostics checks and firmware updates are recommended.
