Product Introduction

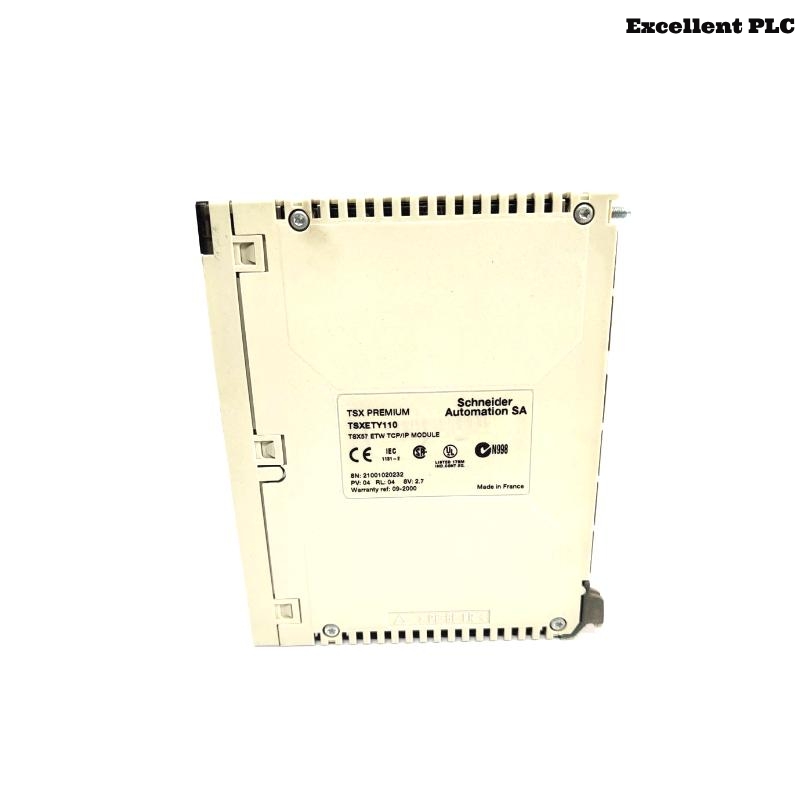

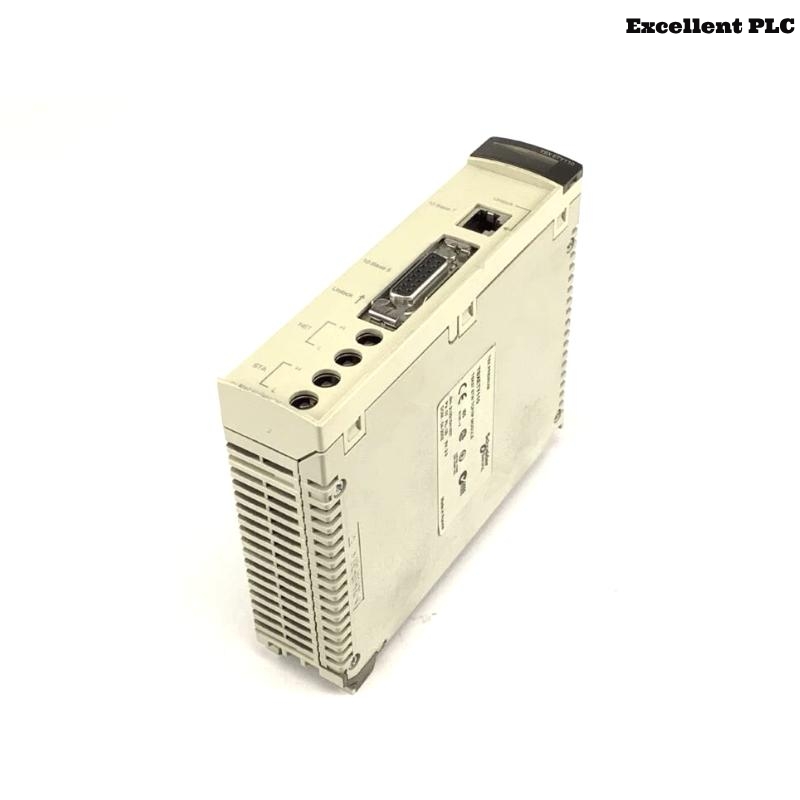

The Schneider Electric TSXETY110 is an Ethernet TCP/IP communication module designed for the Modicon TSX Premium PLC series. It facilitates seamless integration of PLCs into Ethernet networks, enabling real-time data exchange and remote monitoring. This module supports multiple protocols, including Modbus TCP, Ethway, and Uni-Telway, ensuring compatibility with various industrial communication standards.
Technical Specifications
| Parameter | Description |
| Product Model | TSXETY110 |
| Product Type | Ethernet TCP/IP Communication Module |
| Supported Protocols | Modbus TCP, Ethway, Uni-Telway |
| Maximum Connections | 64 |
| Web Server | Transparent Ready Class C10 |
| Data Rate | 10 Mbps |
| Power Consumption | 800 mA at 5 VDC |
| Connector Type | RJ45 |
| Mounting Type | Rack-mounted (TSX Premium Series) |
| Dimensions (L x W x H) | 55 × 180 × 260 mm |
| Weight | 0.5 kg |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -25°C to +85°C |
| Certifications | CE, UL, CSA, RoHS |
Applications
The TSXETY110 module is widely used across various industries that require reliable Ethernet communication, including:
-
Manufacturing Automation: Integrating PLCs with SCADA systems for real-time monitoring and control.
-
Process Industries: Facilitating data exchange between control systems and field devices.
-
Building Management Systems: Enabling centralized control of HVAC, lighting, and security systems.
-
Water and Wastewater Treatment: Monitoring and controlling treatment processes remotely.
-
Energy Management: Collecting and analyzing data from various energy meters and devices.
Product Advantages
-
Multi-Protocol Support: Ensures compatibility with various industrial communication standards.
-
High Connection Capacity: Supports up to 64 simultaneous connections, facilitating extensive network integration.
-
Integrated Web Server: Allows for remote diagnostics and monitoring via standard web browsers.
-
Robust Design: Built to withstand industrial environments with a wide operating temperature range.
-
Seamless Integration: Easily integrates into existing TSX Premium PLC systems without extensive modifications.
