Product Introduction

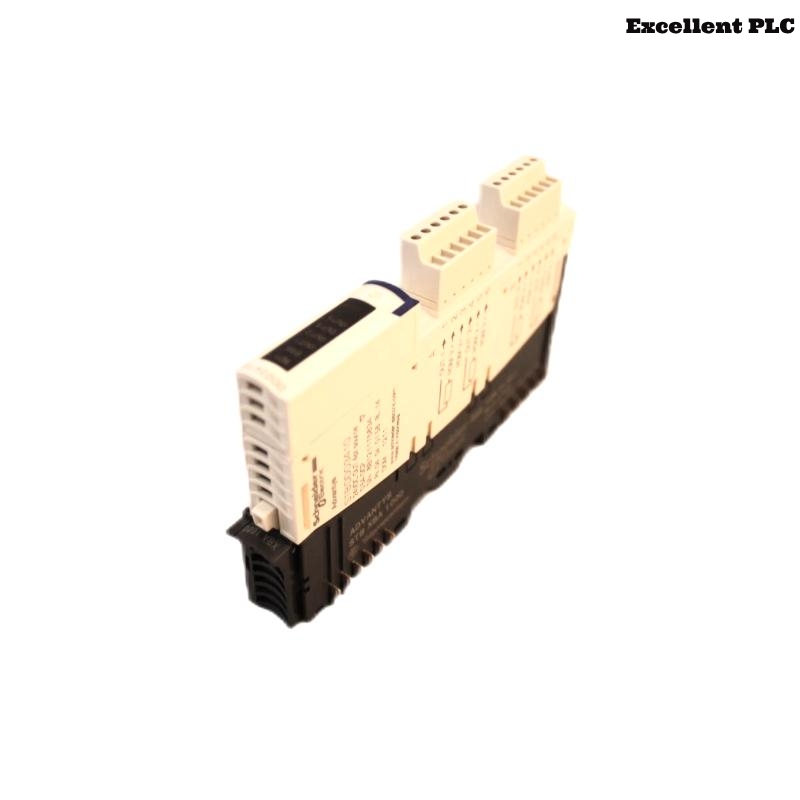

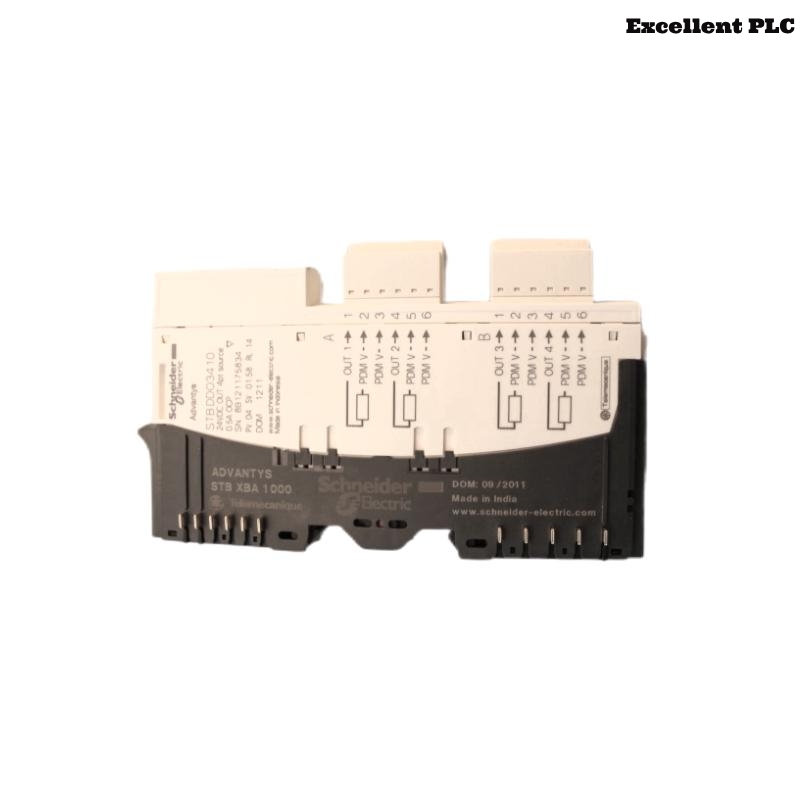

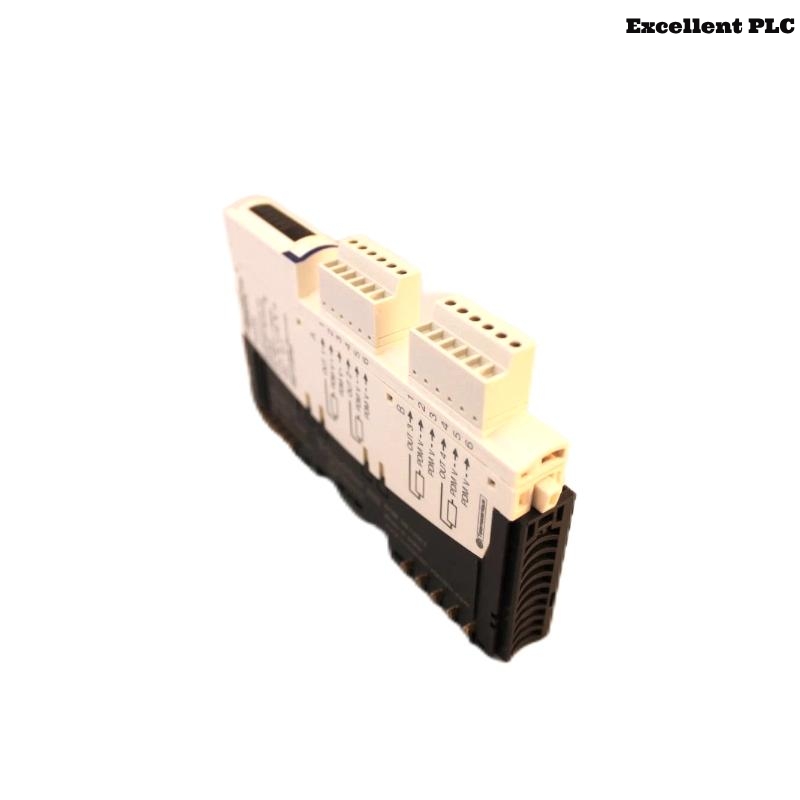

The Schneider STBDDO3410 is a Standard Digital Output Module designed for use within Schneider Electric’s Modicon STB distributed I/O system. It serves as a reliable interface between a control system (e.g., PLC or other automation devices) and various field devices requiring digital output control.
This module is engineered to provide 24 V DC positive logic (source) outputs, commonly used for switching actuators, relays, solenoids, or other digital devices in industrial automation systems. The STBDDO3410 is ideal for applications that demand high-density outputs in a compact form factor. It is widely used in industries such as manufacturing, automotive, energy, and water treatment.
With its rugged construction, simple integration into Schneider Electric’s modular I/O systems, and high operational reliability, the STBDDO3410 offers seamless performance for controlling various industrial processes.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Digital Output Module |
| Model Number | STBDDO3410 |
| Number of Channels | 10 |
| Output Type | 24 V DC Positive Logic (Source) |
| Rated Output Voltage | 24 V DC |
| Output Current (Per Channel) | 0.5 A (Max) |
| Total Current Output | 5 A (Max) |
| Response Time | <5 ms (typical) |
| Diagnostics | LED indicators for each channel |
| Mounting | DIN rail mounted within STB I/O island |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Index | IP20 |
| Dimensions (H x W x D) | 13.9 x 70 x 128.3 mm |
| Weight | 0.11 kg |
| Power Consumption | 0.4 W (Typical) |
| Certifications | CE, UL, CSA |
| Communication Interface | STB Bus interface (via base or interface module) |
Applications
The STBDDO3410 module is designed to handle a variety of industrial tasks where reliable digital output control is needed. Its applications span across several sectors, including:
-
Industrial Automation: Switching of relays, solenoids, or control valves in automated manufacturing processes.
-
Energy Management: Control of actuators, breakers, and switches in power generation or distribution systems.
-
Water Treatment: Managing pump stations, motor control, and valve actuations.
-
Building Automation: Activation of alarms, HVAC systems, lighting, or motorized equipment in buildings.
-
Transportation: Control of switches, signals, and barriers in transportation networks.
-
OEM Equipment: Integration into machine control systems for OEMs requiring a modular and reliable I/O solution.
Product Advantages
-
High-Quality Output Control: Provides 24 V DC positive logic digital output with up to 0.5 A per channel, offering flexibility for a variety of output devices.
-
Space-Saving Design: With 10 output channels in a compact 12 mm wide module, it maximizes space in control cabinets.
-
Modular Integration: Seamlessly integrates with Schneider Electric’s Modicon STB I/O system for flexible, scalable automation solutions.
-
Rugged and Durable: Designed for tough industrial environments with a wide operating temperature range and high immunity to environmental factors.
-
Easy Diagnostics: Status LEDs on each channel help with quick troubleshooting and ensure smooth maintenance operations.
-
High-Speed Response: Fast switching time of <5 ms, providing high-speed control for critical industrial applications.
-
Low Power Consumption: With only 0.4 W typical power consumption, it’s energy-efficient for continuous operation.
-
Global Certifications: Compliant with CE, UL, and CSA standards, ensuring the module meets global safety and performance requirements.
Frequently Asked Questions (FAQ)
-
How many channels does the STBDDO3410 module provide?
The module provides 10 digital output channels. -
What is the output voltage for each channel?
Each channel provides 24 V DC positive logic output. -
Can this module be used with inductive loads?
Yes, but appropriate protection (such as flyback diodes) should be used for inductive loads like motors or solenoids. -
What is the maximum current rating per channel?
Each channel can handle up to 0.5 A of output current. -
How is the module mounted?
The STBDDO3410 module mounts directly to a DIN rail as part of the STB I/O island system. -
What diagnostic features does the module offer?
The module provides LED indicators on each channel to show the operational status and help with troubleshooting. -
What is the operating temperature range?
The module operates in temperatures from 0°C to 60°C. -
How much power does the module consume?
The STBDDO3410 typically consumes 0.4 W of power. -
Is it compatible with other Schneider Electric I/O modules?
Yes, it is fully compatible with Schneider Electric’s Modicon STB I/O system and integrates seamlessly with other modules. -
Can I use this module for controlling devices in hazardous environments?
For hazardous environments, additional protection may be required, but the module itself is not intrinsically safe.
