Product Introduction

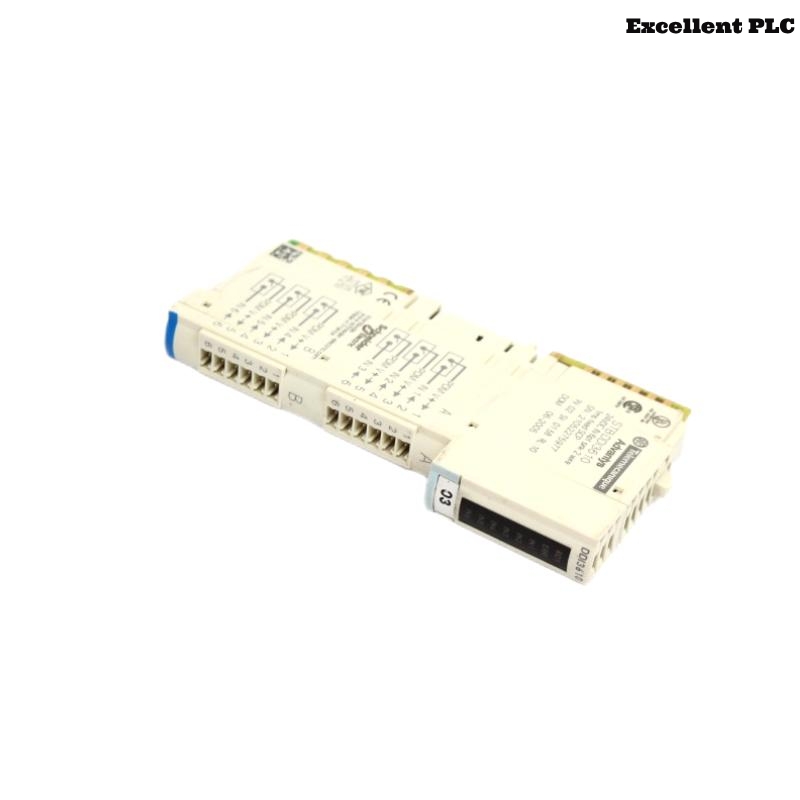

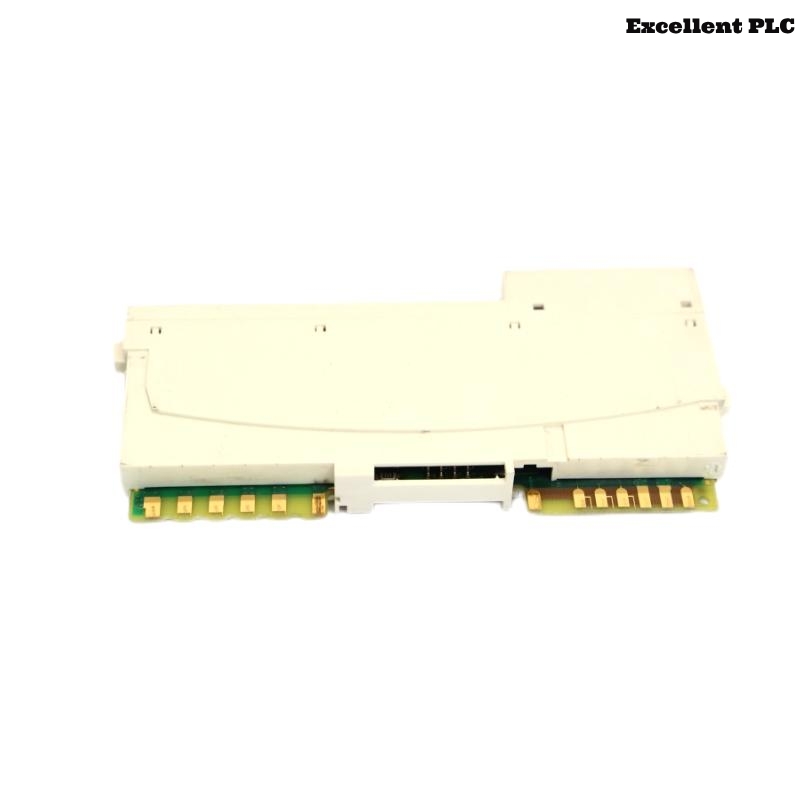

The Schneider STBDDI3610 Standard Digital Input Module is an essential component designed for use in industrial automation systems. This module facilitates the seamless integration of digital input signals into control systems, making it ideal for monitoring and controlling field devices in various applications. Whether for discrete sensors, limit switches, or other digital devices, the STBDDI3610 ensures that input signals are accurately processed, enabling smooth operation within control systems such as PLCs (Programmable Logic Controllers) or DCSs (Distributed Control Systems).

Engineered with reliability and ease of integration in mind, the STBDDI3610 offers significant advantages in terms of performance, safety, and versatility. It can be used in a variety of industries, from manufacturing and energy to transportation and process control. With robust construction and high durability, this module provides excellent protection against electrical faults, ensuring long-lasting service in demanding environments.

---

Product Specifications

---

Applications

The Schneider STBDDI3610 Standard Digital Input Module is highly versatile and suitable for a range of industrial applications, where it plays a crucial role in interfacing with digital input devices. Its ability to handle up to 16 input channels makes it ideal for systems with high input requirements. Common applications include:

1. Industrial Automation
   The STBDDI3610 is used to interface with digital devices like sensors, relays, limit switches, and encoders. In manufacturing and assembly lines, it enables control systems to gather real-time data for process management and decision-making.

2. Process Control Systems
   In industries such as chemicals, pharmaceuticals, and food & beverage, the module is used to connect safety interlocks, machine controls, and other critical devices to the control system, helping maintain safe and efficient operations.

3. Building Automation Systems
   The module is used in BMS (Building Management Systems) for integrating various building systems such as HVAC, lighting, and security. The module provides essential monitoring and control by connecting sensors and switches to the automation system.

4. Energy and Power Distribution
   In power generation and electrical distribution networks, the STBDDI3610 is used to monitor the status of electrical equipment like circuit breakers and relays, providing the necessary input to protection systems for fault detection and system reliability.

5. Transportation and Rail Control
   The module is widely used in rail systems and transportation networks for monitoring switches, signals, and control devices. It ensures that input signals are processed accurately, enabling timely and safe responses within the control system.

6. Machine and Equipment Control
   The STBDDI3610 is used in various machinery and equipment control systems, where it collects inputs from limit switches, push buttons, and other control devices to maintain the desired state of operations and safety.

---

Advantages

1. High Reliability
   The STBDDI3610 is built to operate reliably over long periods, even in challenging industrial environments. Its robust design ensures that it can withstand electrical faults and harsh operating conditions.

2. Wide Input Voltage Range
   The module supports a wide input voltage range of 0-24 VDC, making it compatible with a wide range of field devices and suitable for use in different types of systems.

3. Compact Design
   The module’s compact dimensions (65.1 x 18.4 x 125 mm) allow for easy integration into tight spaces, ensuring that control panels and cabinets remain organized and efficient in their layout.

4. Enhanced Protection Features
   Built-in short circuit and overcurrent protection mechanisms ensure that the module is safe to use and can continue to operate without risk of damage due to electrical faults.

5. High Isolation Capability
   With 1500 VDC isolation between channels, the STBDDI3610 protects the control system from potential voltage spikes, providing an added layer of safety and reliability.

6. Easy Mounting
   The DIN rail mounting design simplifies installation, allowing the module to be easily incorporated into standard industrial control panels, reducing installation time and effort.

7. Real-Time Monitoring with LEDs
   The 16-channel status LEDs provide clear and real-time feedback on the operational state of the inputs. This feature helps operators quickly diagnose faults or issues during system operation and maintenance.

8. Versatility in Logic Types
   The module supports both sinking and sourcing input logic, providing flexibility to work with a wide range of field devices and making it adaptable to diverse industrial applications.

---

FAQ (Frequently Asked Questions)

1. What is the voltage range for the digital inputs on the STBDDI3610?
   The digital input voltage range is 0-24 VDC.

2. How many channels does the STBDDI3610 module have?
   The module has 16 channels.

3. What types of input signals can the STBDDI3610 process?
   It processes digital (discrete) input signals from devices like switches, sensors, and relays.

4. What is the isolation between channels in the STBDDI3610?
   The module offers 1500 VDC isolation between channels.

5. Can the STBDDI3610 be used in outdoor environments?
   The module is designed for industrial environments and should be housed in a control panel to protect it from outdoor conditions.

6. Is the STBDDI3610 module suitable for use in high-temperature environments?
   Yes, it operates within a temperature range of -20°C to +60°C.

7. How is the STBDDI3610 mounted?
   It is DIN rail mountable, which makes it easy to install in most industrial control cabinets.

8. What is the weight of the STBDDI3610 module?
   The weight of the module is 0.112 kg.

9. Does the STBDDI3610 support sinking and sourcing input logic?
   Yes, the module supports both sinking and sourcing logic.

10. What protection features does the STBDDI3610 have?
    The module has built-in short circuit and overcurrent protection, ensuring safety during operation.

---
