Product Introduction

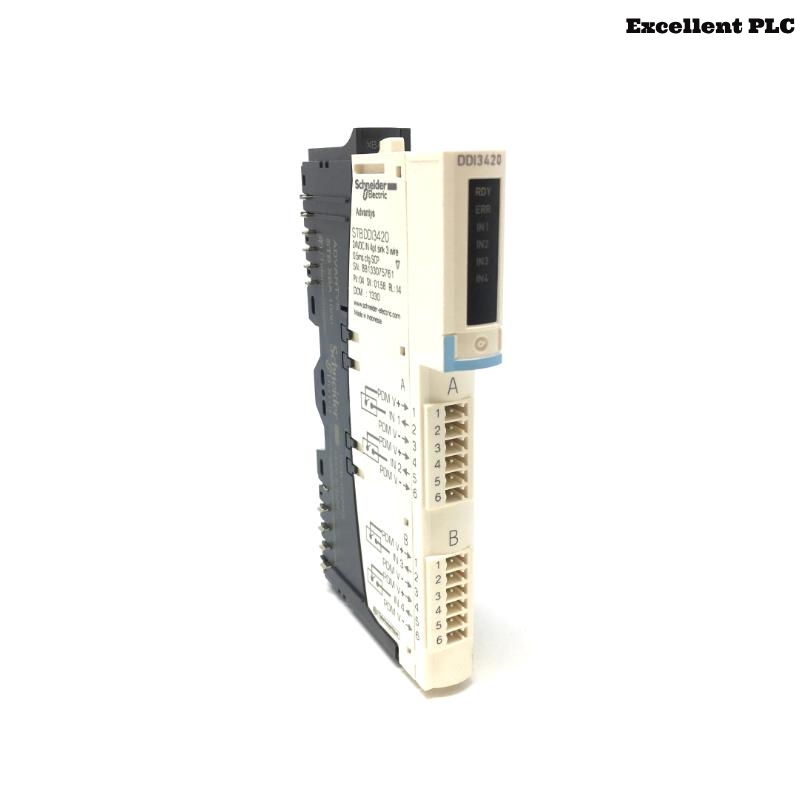

The Schneider STBDDI3420 Standard Digital Input Module is a reliable and versatile module designed for industrial automation and control systems. It plays a crucial role in interfacing digital input signals from external devices, such as sensors, switches, and relays, into the control system. This module is part of Schneider Electric’s robust automation solutions, providing efficient signal conversion and seamless integration into programmable logic controllers (PLCs) or distributed control systems (DCS).

The STBDDI3420 is designed for use in a wide variety of industrial applications where precise and reliable digital signal input is required. With a focus on efficiency and durability, this module helps to optimize industrial processes and ensures that the connected system functions smoothly and without interruptions. The STBDDI3420 is engineered to meet the high standards of industrial control systems and offers exceptional reliability in harsh operating conditions.

---

Product Specifications

---

Applications

The Schneider STBDDI3420 Standard Digital Input Module is ideal for a variety of industrial applications where reliable digital inputs are required for system monitoring, control, and automation. Some common uses of this module include:

1. Industrial Automation
   The module is commonly used in PLCs or DCSs for interfacing with sensors, limit switches, or control devices that generate digital signals. These systems are often used in manufacturing, material handling, and other automated processes.

2. Process Control
   In process industries such as chemicals, pharmaceuticals, and food & beverage, the STBDDI3420 is used to monitor discrete signals from machines, safety interlocks, or critical control devices.

3. Building Automation Systems
   The module is widely used in building management systems (BMS) for controlling and monitoring equipment like HVAC, lighting, and security systems. It provides critical feedback from input devices to ensure optimal operation.

4. Energy and Power Distribution
   In electrical substations and power plants, the STBDDI3420 is used to interface with monitoring and protection equipment. It helps collect digital inputs for protection relays, circuit breakers, and other power distribution equipment.

5. Transportation Systems
   The module finds its application in transportation systems, particularly for monitoring traffic signals, control systems for railways, and even intelligent traffic management systems, where digital inputs are key to ensuring safety and system functionality.

6. Machine and Equipment Control
   In machinery applications, the STBDDI3420 is used for collecting status signals from limit switches, proximity sensors, and other input devices, ensuring that equipment operates according to predefined conditions.

---

Advantages

1. High Reliability
   The STBDDI3420 is designed to provide consistent, high-quality performance in industrial environments. Its robust construction ensures that it performs reliably over the long term, even in harsh conditions.

2. Wide Input Voltage Range
   The module supports a wide input voltage range of 0-24 VDC, offering flexibility in its use across various systems and devices that operate within this voltage range.

3. Easy Integration
   Designed to be easily integrated into existing control systems, the STBDDI3420 simplifies the installation process. It can be mounted on a standard DIN rail, ensuring compatibility with most industrial control panels.

4. Compact and Space-Saving
   With its compact design (65.1 x 18.4 x 125 mm), the module saves valuable space in control cabinets, allowing for more efficient use of limited panel space in industrial settings.

5. Enhanced Protection
   The STBDDI3420 is built with built-in short circuit and overcurrent protection mechanisms, ensuring that the module remains safe during operation even in the event of electrical faults or surges.

6. High Isolation
   The module features 1500 VDC isolation between channels, which enhances the safety and protection of the entire control system by preventing voltage spikes from transferring across input channels.

7. Status Indicators
   The built-in 8-channel status LEDs provide real-time feedback about the input signals, making troubleshooting and diagnostics easier during both installation and maintenance.

8. Flexible Logic
   It supports both sinking and sourcing logic, which means it can work with a wide range of digital devices that utilize different input types, making it adaptable to various field devices.

---

FAQ (Frequently Asked Questions)

1. What is the voltage range for the digital inputs of the STBDDI3420?
   The input voltage range for the STBDDI3420 is 0-24 VDC.

2. How many channels does the STBDDI3420 module have?
   The STBDDI3420 module has 8 channels.

3. What type of input signal does the STBDDI3420 accept?
   The module accepts digital (discrete) input signals from devices like sensors, switches, and relays.

4. What is the operating temperature range of the STBDDI3420?
   The module operates within a temperature range of -20°C to +60°C.

5. Is the STBDDI3420 protected against electrical faults?
   Yes, the module has built-in short circuit and overcurrent protection.

6. Can the STBDDI3420 be used in outdoor environments?
   The module is designed for industrial environments and should be housed in a control panel to ensure protection against extreme outdoor conditions.

7. How is the STBDDI3420 mounted?
   The module is DIN rail mountable, making installation quick and easy in control panels.

8. What is the isolation rating of the STBDDI3420 between channels?
   The module offers 1500 VDC isolation between channels.

9. Does the module support both sinking and sourcing logic?
   Yes, the STBDDI3420 supports both sinking and sourcing logic, making it compatible with a wide range of digital devices.

10. What is the weight of the STBDDI3420 module?
    The weight of the STBDDI3420 is 0.111 kg.

---
