Schneider BMXDRA1605 Discrete Output Module

Schneider/

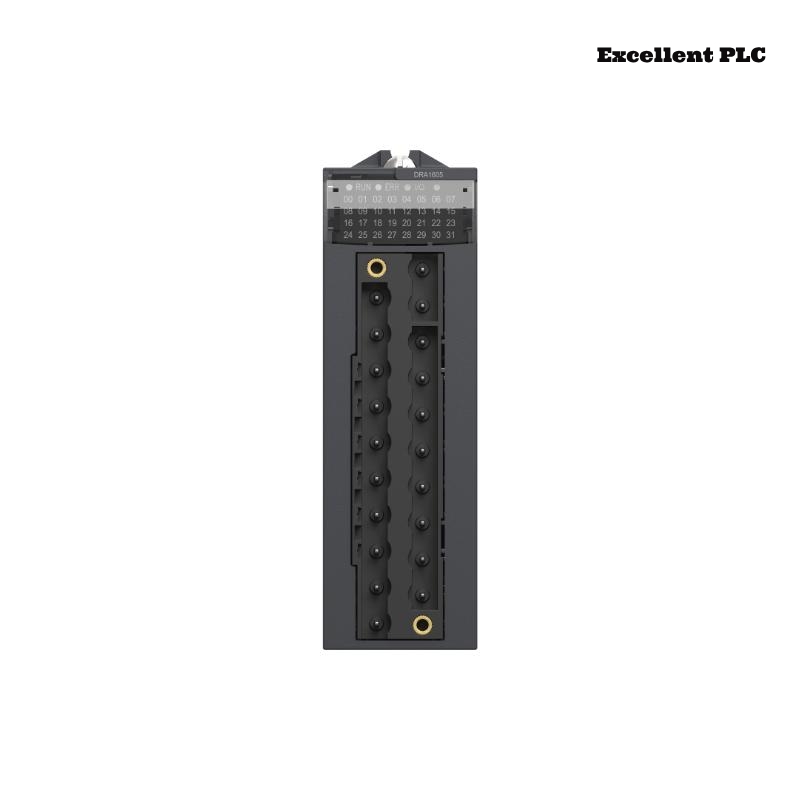

Schneider BMXDRA1605 Discrete Output Module

Manufacturer:Schneider

Product Number:BMXDRA1605

Product Type:Discrete Output Module

Origin:France

Dimensions:160 x 100 x 35 mm

Weight:0.15 kg

Views:16

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
Company Information
E-mail [email protected]
Mobile +8613666084105
Whatsapp +8613666084105
WeChat 13666084105
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Schneider BMXDRA1605 is a 16-channel discrete relay output module designed for use with Modicon X80 I/O systems. This module provides versatile and reliable relay switching for industrial automation applications, supporting both AC and DC loads. It is particularly well-suited for applications requiring high electrical isolation and flexible switching capabilities, such as industrial manufacturing, energy systems, water treatment, and building automation.

Built to meet the demanding requirements of modern industrial control systems, the BMXDRA1605 integrates seamlessly with Modicon M340 and M580 PLCs, providing scalability and efficient control. Its compact design, high relay endurance, and robust build quality make it a preferred choice for engineers and system integrators.


Technical Specifications

Specification Details
Manufacturer Schneider Electric
Series Modicon X80
Model BMXDRA1605
Type Discrete Relay Output Module
Number of Outputs 16 (Relay Outputs)
Output Type Normally Open (NO)
Operating Voltage 24VDC / 115-230VAC
Maximum Output Current 2A per output (AC), 2A per output (DC)
Response Time 10 ms (ON), 10 ms (OFF)
Relay Type Electromechanical
Electrical Isolation 2500V between channels and logic ground
Status Indicators LED indicators for each output
Wiring Connection Removable screw terminal block
Module Dimensions 160 x 100 x 35 mm
Weight 0.15 kg
Power Consumption 3.0 W
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Certifications CE, UL, CSA, RoHS

Applications

The Schneider BMXDRA1605 module is used in a variety of industrial automation and control applications, including:

  • Manufacturing Automation – Controls actuators, solenoids, and small motors in production lines.

  • Building Management Systems (BMS) – Operates HVAC controls, lighting systems, and security devices.

  • Water and Wastewater Treatment – Manages pumps, valves, and treatment processes.

  • Power and Energy Systems – Supervises circuit breakers, generators, and load switching.

  • Material Handling and Logistics – Integrates with conveyor belts, robotic arms, and sorting systems.

  • Transportation and Traffic Control – Used in railway signaling, automated toll gates, and traffic light control.


Advantages of Schneider BMXDRA1605

  • Versatile Voltage Support – Works with both DC (24V) and AC (115-230V) loads, increasing application flexibility.

  • High Output Current Capacity – Each output can handle 2A per channel, supporting medium-power loads.

  • Robust Relay Performance – Uses high-quality electromechanical relays for reliable operation and long lifespan.

  • Quick Response Time – With a 10 ms switching speed, it minimizes delay in control applications.

  • Superior Electrical Isolation2500V isolation ensures safety and reliability in high-voltage environments.

  • Built-in Status Indicators – Each output is equipped with an LED indicator for easy troubleshooting.

  • Compact and Durable Design – The module is rugged and compact, allowing easy installation in industrial control panels.

  • Seamless PLC Integration – Designed specifically for Modicon M340 and M580 PLCs, ensuring smooth communication.


Latest News and Updates

  • “Schneider Electric Expands Modicon X80 Series with New Relay Output Modules” – Industrial Automation Review

  • “BMXDRA1605: How It’s Revolutionizing Industrial Relay Switching” – Manufacturing Today

  • “Enhancing Energy Efficiency with Modicon X80 Series I/O Modules” – Smart Factory Insights

  • “Top Industrial I/O Modules for 2025: BMXDRA1605 in Focus” – Automation Engineering Magazine


Frequently Asked Questions (FAQ)

  1. What is the maximum output current for each channel on the BMXDRA1605?

    • Each output can handle up to 2A for both AC and DC loads.

  2. Can this module be used for both AC and DC circuits?

    • Yes, the BMXDRA1605 is compatible with 24VDC and 115-230VAC applications.

  3. What type of relay contacts does this module use?

    • It features Normally Open (NO) electromechanical relays.

  4. Does this module provide electrical isolation?

    • Yes, the module provides 2500V isolation between output channels and logic ground.

  5. How does the module indicate output status?

    • Each output is equipped with an LED status indicator for easy monitoring.

  6. Which PLC systems is this module compatible with?

    • It is fully compatible with Modicon M340 and M580 PLC systems.

  7. What is the relay switching speed?

    • The module has a 10 ms response time for both ON and OFF states.

  8. What type of wiring connection does this module use?

    • It uses a removable screw terminal block for secure connections.

  9. What is the operating temperature range?

    • The module operates between 0°C and 60°C (32°F to 140°F).

  10. Is the BMXDRA1605 certified for industrial use?

    • Yes, it carries CE, UL, CSA, and RoHS certifications.


Related Modicon X80 Series Models

Model Number of Outputs Voltage Range Max Current per Output Features
BMXDRA0815 8 24VDC / 115-230VAC 3A (AC), 2A (DC) Relay output, NO contacts
BMXDDO1602 16 24VDC 0.5A Transistor output module
BMXDDO3202 32 24VDC 0.1A High-density digital output
BMXDRA1605 16 24VDC / 115-230VAC 2A Relay output with isolated channels
BMXAMI0800 8 Analog N/A Analog input module
BMXCPS2000 Power Supply 24VDC 20W Modicon X80 power module
BMXEIA0100 Communication Module Ethernet N/A Ethernet/IP connectivity
BMXART0414 4 Analog N/A Analog output module

Popular Schneider Electric Models

Model Type Voltage Range Features
TM241CE24T Logic Controller 24VDC Compact PLC for machine automation
TM241C40R Logic Controller 100-240VAC Large I/O PLC with relay outputs
ATS48D32Q Soft Starter 230-415V Motor soft start with torque control
Altivar 320 Variable Frequency Drive 380-480V AC motor speed control
Modicon M580 PLC Controller 24VDC High-performance industrial controller
Zelio SR3B101BD Smart Relay 12-24VDC Compact programmable relay
LXM32MD72N4 Servo Drive 480V Motion control for automation
BMXDDI1603 Discrete Input Module 24VDC 16-channel digital input

Frequently Asked Questions (FAQ)

  1. What is the maximum output current for each channel on the BMXDRA1605?

    • Each output can handle up to 2A for both AC and DC loads.

  2. Can this module be used for both AC and DC circuits?

    • Yes, the BMXDRA1605 is compatible with 24VDC and 115-230VAC applications.

  3. What type of relay contacts does this module use?

    • It features Normally Open (NO) electromechanical relays.

  4. Does this module provide electrical isolation?

    • Yes, the module provides 2500V isolation between output channels and logic ground.

  5. How does the module indicate output status?

    • Each output is equipped with an LED status indicator for easy monitoring.

  6. Which PLC systems is this module compatible with?

    • It is fully compatible with Modicon M340 and M580 PLC systems.

  7. What is the relay switching speed?

    • The module has a 10 ms response time for both ON and OFF states.

  8. What type of wiring connection does this module use?

    • It uses a removable screw terminal block for secure connections.

  9. What is the operating temperature range?

    • The module operates between 0°C and 60°C (32°F to 140°F).

  10. Is the BMXDRA1605 certified for industrial use?

    • Yes, it carries CE, UL, CSA, and RoHS certifications.

Related Modicon X80 Series Models

Model Number of Outputs Voltage Range Max Current per Output Features
BMXDRA0815 8 24VDC / 115-230VAC 3A (AC), 2A (DC) Relay output, NO contacts
BMXDDO1602 16 24VDC 0.5A Transistor output module
BMXDDO3202 32 24VDC 0.1A High-density digital output
BMXDRA1605 16 24VDC / 115-230VAC 2A Relay output with isolated channels
BMXAMI0800 8 Analog N/A Analog input module
BMXCPS2000 Power Supply 24VDC 20W Modicon X80 power module
BMXEIA0100 Communication Module Ethernet N/A Ethernet/IP connectivity
BMXART0414 4 Analog N/A Analog output module

Popular Schneider Electric Models

Model Type Voltage Range Features
TM241CE24T Logic Controller 24VDC Compact PLC for machine automation
TM241C40R Logic Controller 100-240VAC Large I/O PLC with relay outputs
ATS48D32Q Soft Starter 230-415V Motor soft start with torque control
Altivar 320 Variable Frequency Drive 380-480V AC motor speed control
Modicon M580 PLC Controller 24VDC High-performance industrial controller
Zelio SR3B101BD Smart Relay 12-24VDC Compact programmable relay
LXM32MD72N4 Servo Drive 480V Motion control for automation
BMXDDI1603 Discrete Input Module 24VDC 16-channel digital input
