Schneider 140ERT85410 Multifunction Input Module

Schneider/

Schneider 140ERT85410 Multifunction Input Module

Manufacturer:Schneider

Product Number:140ERT85410

Product Type:Multifunction Input Module

Origin:France

Dimensions:103.9 × 40.3 × 250 mm

Weight:0.45 kg

Views:3

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
Company Information
E-mail [email protected]
Mobile +8613666084105
Whatsapp +8613666084105
WeChat 13666084105
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

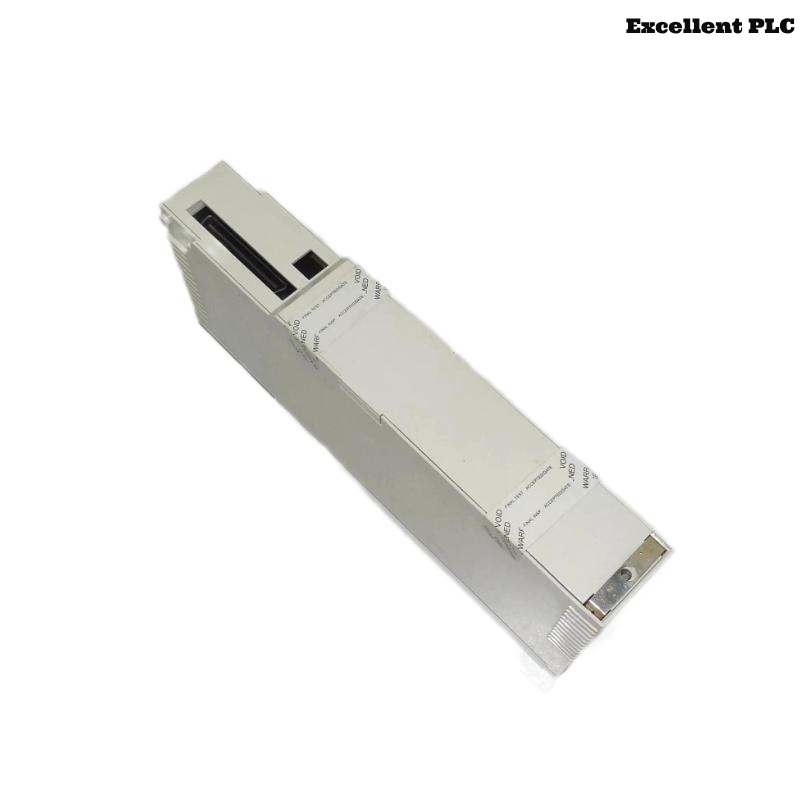

The Schneider 140ERT85410 is a high-performance multifunction input module designed for Modicon Quantum automation systems. This module provides a reliable solution for acquiring a variety of discrete input signals, specifically tailored for fast-response or high-frequency applications. The 140ERT85410 is engineered to accommodate edge detection, pulse counting, and time stamping, making it ideal for real-time control scenarios where timing precision and operational reliability are paramount.

With the capability to process up to 8 high-speed input channels, the 140ERT85410 facilitates seamless integration into advanced automation networks, especially in energy, manufacturing, and process industries. It supports multiple modes including counter, timer, and frequency measurement, giving users exceptional flexibility.


Product Specifications

Parameter Details
Product Name Schneider 140ERT85410
Product Type Multifunction Input Module
Brand Schneider Electric
Series Modicon Quantum
Input Type Discrete (High-Speed, Edge Detection)
Number of Channels 8
Input Voltage Range 24 VDC (typical), signal compatible
Input Signal Types Counter, Timer, Frequency, Edge detection
Isolation Yes (channel-to-bus and channel-to-channel)
Timestamp Resolution 1 microsecond
Mounting Type Rack-mounted (Quantum backplane)
Bus Type Modicon Quantum Backplane
Diagnostic Functions Yes
LED Indicators Channel Status / Module Status
Environmental Standards IEC 61131, CE, UL, CSA
Operating Temperature Range 0°C to 60°C
Storage Temperature Range -40°C to +85°C
Relative Humidity 5% to 95% non-condensing
Shock/Vibration Resistance IEC 60068-2 compliant
Power Consumption < 1.2 W
Dimensions (H x W x D) 103.9 × 40.3 × 250 mm
Weight 0.45 kg

Product Applications

The 140ERT85410 module is widely used in various industries that require accurate and high-speed digital signal acquisition and processing. Common applications include:

  • Industrial Automation: Real-time machinery control where fast feedback is critical.

  • Energy & Utilities: Pulse counting from meters, generator synchronization, and event logging.

  • Manufacturing Lines: Precise time stamping for quality assurance and synchronization tasks.

  • Transport Systems: Train or conveyor belt speed measurement and frequency detection.

  • OEM Equipment: High-speed digital signal acquisition for embedded industrial solutions.

  • Power Plants: Monitoring of turbine rotation and other fast-acting mechanical processes.


Product Advantages

  • High-Speed Performance: Supports 1μs time-stamping and real-time counting, ensuring precision.

  • Multifunction Flexibility: Combines counter, timer, and edge-detection functions in a single unit.

  • Robust Diagnostics: Inbuilt self-diagnostics and channel health indicators enhance maintenance efficiency.

  • Isolation Protection: Enhanced protection between channels and system bus improves reliability.

  • Quantum System Integration: Seamlessly integrates into Modicon Quantum backplanes with minimal configuration.

  • Compact and Durable: Despite offering advanced features, the module maintains a small footprint and industrial-grade durability.


Frequently Asked Questions (FAQ)

  1. Q: What is the maximum input frequency supported by the 140ERT85410?
    A: The module supports input frequencies up to 20 kHz depending on the configuration.

  2. Q: Can the module perform event time stamping?
    A: Yes, it supports 1µs resolution time stamping for each input channel.

  3. Q: Is the module hot-swappable in a Quantum rack?
    A: Yes, it can be replaced without shutting down the entire system if the rack supports hot-swap.

  4. Q: Does the 140ERT85410 require external power supply?
    A: No, it draws power directly from the Quantum backplane.

  5. Q: What types of counters are supported?
    A: Up, down, quadrature, and frequency counters are supported.

  6. Q: Is this module compatible with Unity Pro and EcoStruxure software?
    A: Yes, it can be configured and monitored via both platforms.

  7. Q: Can it be used in safety-critical applications?
    A: While not a certified safety module, it is used in many time-sensitive control applications with reliability.

  8. Q: How are faults indicated on the module?
    A: Faults are indicated via onboard diagnostic LEDs and can also be monitored via software.

  9. Q: Does it support channel-specific configuration?
    A: Yes, each of the 8 channels can be individually configured for different modes.

  10. Q: What is the warranty period for the module?
    A: We provide one year warranty.


Related Models (Same Series or Functionality)

Model Description Input Channels Functions
140ERT85420 Multifunction Input Module with 16 Channels 16 Time stamping, counters
140ERT84210 Digital Input Module (High-Speed) 8 Frequency measurement
140ERT85100 Counter Module 8 Pulse count, edge detect
140EHC10500 High-Speed Counter Module 4 Pulse/Frequency capture
140DRA84000 Relay Output Module 8 Relay actuation
140NOE77101 Ethernet TCP/IP Communication Module N/A Network Interface
