Product Introduction:

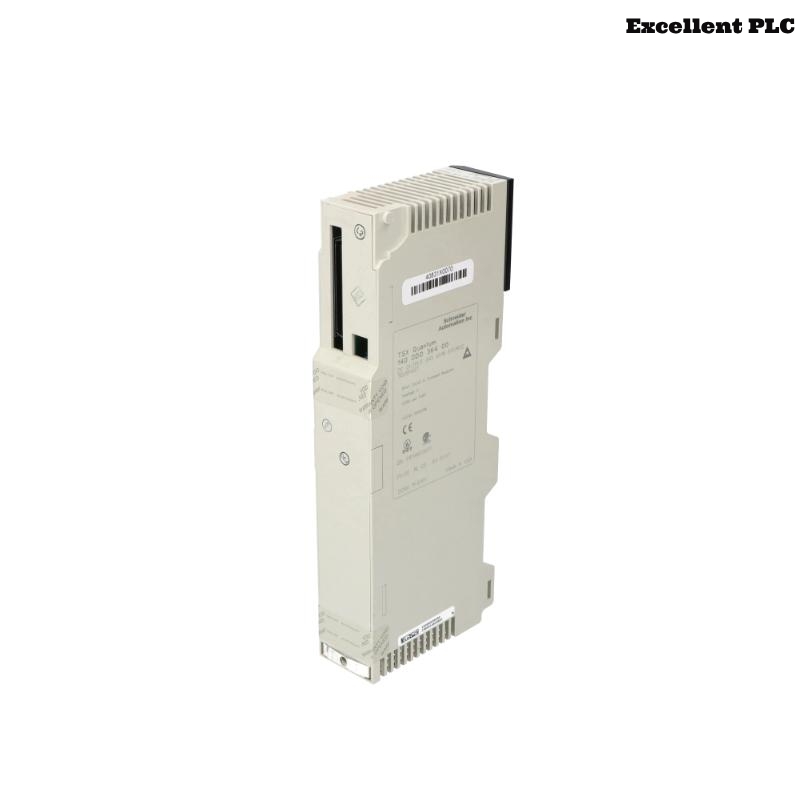

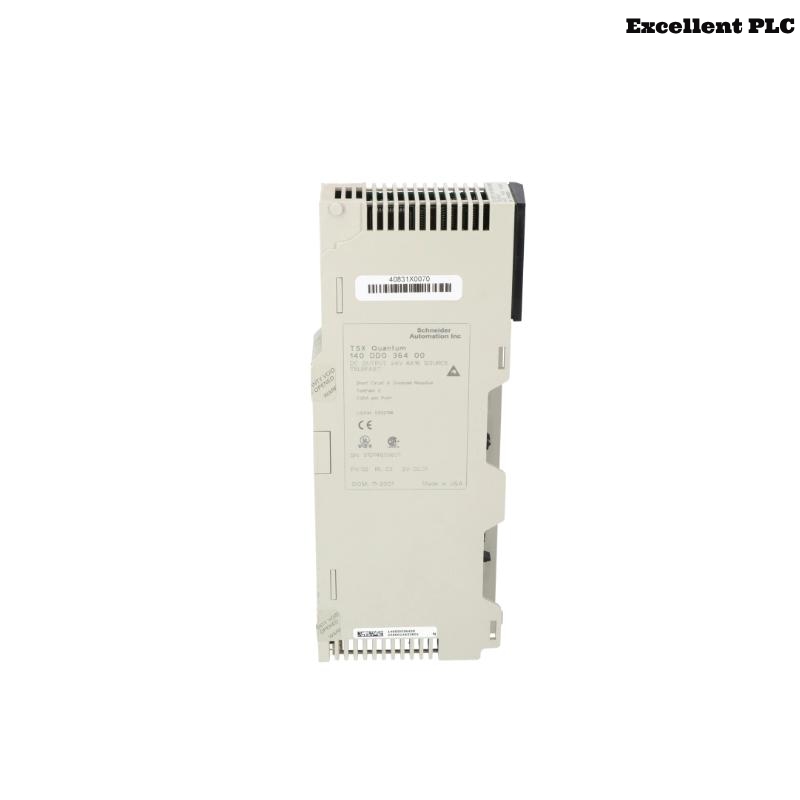

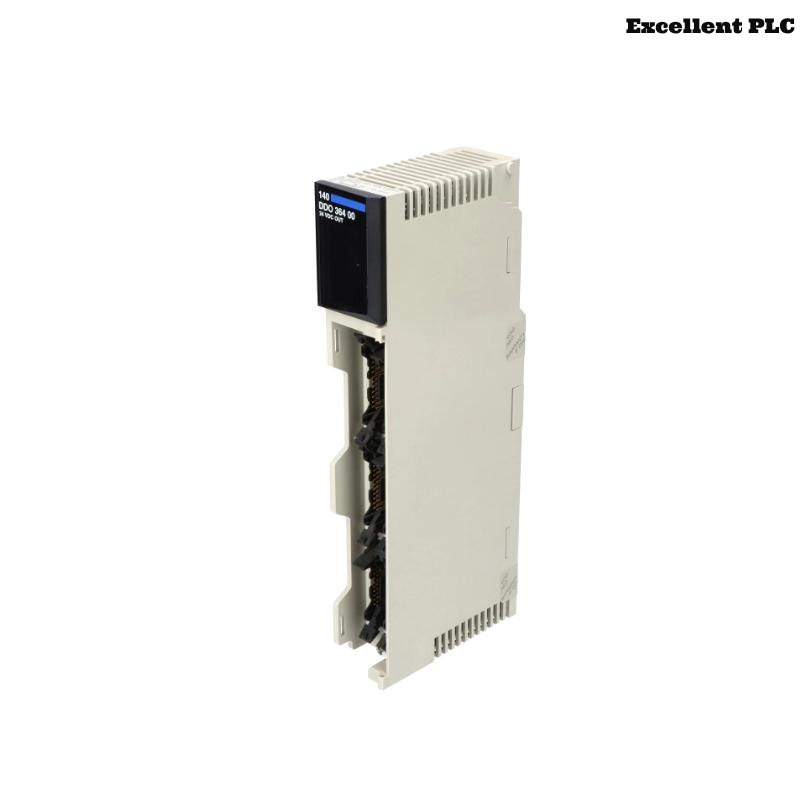

The Schneider 140DDO36400 Discrete Output Module is an essential component of the Modicon Quantum PLC system. It plays a critical role in industrial automation by enabling the control of various field devices like relays, solenoids, and actuators. With 64 output channels, this module offers a reliable solution for systems requiring a high-density, high-performance digital output.

This module is designed for industrial applications where discrete output signals are necessary for controlling electrical devices in automated systems. It offers robust performance, easy integration with Modicon Quantum racks, and flexible output options, making it suitable for diverse sectors, including manufacturing, energy, and process control industries.

---

Product Parameters:

The key specifications for the Schneider 140DDO36400 Discrete Output Module are outlined in the following table:

---

Applications:

The Schneider 140DDO36400 Discrete Output Module is suited for various industrial automation applications where reliable control of field devices is essential. Some of its common applications include:

1. Factory Automation: The module is ideal for controlling machines, conveyors, and other equipment that require simple on/off control, such as motors, actuators, and relays.

2. Energy Management: It is used to manage energy distribution systems by controlling circuit breakers, load controllers, and other energy management devices.

3. Process Control: The module is used for controlling process-related equipment like solenoids, valves, and pumps in chemical, pharmaceutical, and oil and gas industries.

4. Packaging and Sorting: It is essential for automated packaging lines and sorting systems, providing control for various machines and sorting devices.

5. Material Handling Systems: The module supports the operation of robotic arms, conveyors, and automated guided vehicles (AGVs) in material handling systems.

6. Test and Measurement Systems: It plays a key role in controlling test equipment in automated testing environments, ensuring fast and accurate results.

---

Advantages:

1. High-Density Output: The 140DDO36400 module offers 64 digital output channels, making it a high-density solution that saves space in large automation systems.

2. Flexibility in Output Types: With support for both NPN and PNP transistor outputs, the module offers flexibility in connecting to various types of field devices.

3. Compact and Robust Design: The module’s compact design and robust build quality make it well-suited for industrial environments, ensuring reliable operation even in harsh conditions.

4. Wide Operating Temperature Range: The module operates in a temperature range from -20°C to +60°C, making it suitable for use in both cold and hot environments.

5. Seamless Integration: As part of the Modicon Quantum series, this module integrates seamlessly into the Modicon platform, reducing configuration complexity and enhancing system reliability.

6. Clear Diagnostics: With 64 LED indicators, the module provides clear status updates for each output, simplifying troubleshooting and maintenance.

7. Certified for Safety: The module complies with CE, UL, and CSA certifications, ensuring it meets international safety standards for industrial automation applications.

8. Energy Efficient: The module is designed with energy-efficient components, reducing overall power consumption while maintaining high-performance standards.

9. Durability: The module’s solid construction and compliance with EMC standards make it highly durable, ensuring long-term performance in industrial environments.

10. Cost-Effective Solution: The 140DDO36400 offers a cost-effective solution for systems requiring numerous digital outputs, providing excellent value for its price.

---

Frequently Asked Questions (FAQ):

1. How many outputs does the 140DDO36400 module provide?

   • The 140DDO36400 module provides 64 digital outputs.

2. What is the nominal voltage of the outputs on the 140DDO36400?

   • The module operates with a 24V DC output voltage.

3. Can I use both NPN and PNP devices with this module?

   • Yes, the module supports both NPN and PNP transistor outputs, providing flexibility for various field devices.

4. What is the maximum current per output channel?

   • Each output channel can handle a maximum current of 0.5A.

5. What is the power consumption of the 140DDO36400 module?

   • The typical power consumption is 6W.

6. What are the dimensions of the 140DDO36400 module?

   • The module measures 103.9 × 40.3 × 250 mm.

7. What certifications does the 140DDO36400 module hold?

   • The module is CE, UL, and CSA certified, ensuring it meets international safety and quality standards.

8. Is this module suitable for outdoor use?

   • While the module is rugged, it is recommended to install it in a controlled environment or enclosure if used outdoors to protect it from environmental factors.

9. What type of connectors are used on the 140DDO36400?

   • The module uses spring-clamp terminal blocks for easy and secure connections.

10. What is the operating temperature range of the module?

    • The operating temperature range of the module is from -20°C to +60°C.

---

Recommended Models:

Here are six related models or modules from the same series that can be used for similar or complementary functions:

Popular Schneider Electric Models:

Here are six popular models from Schneider Electric, offering similar or expanded functionality for industrial automation:
