Product Introduction:

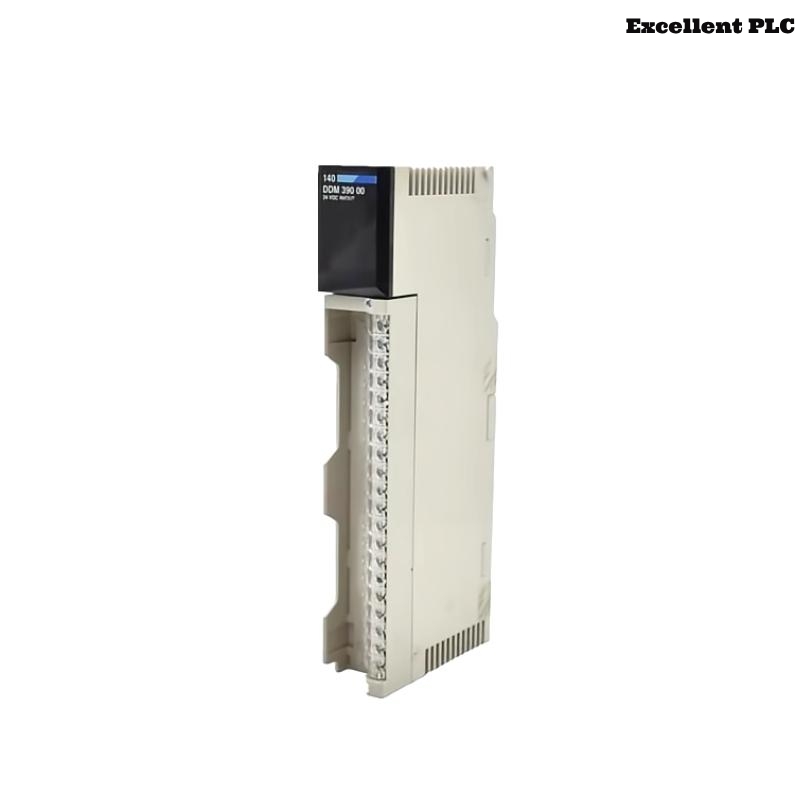

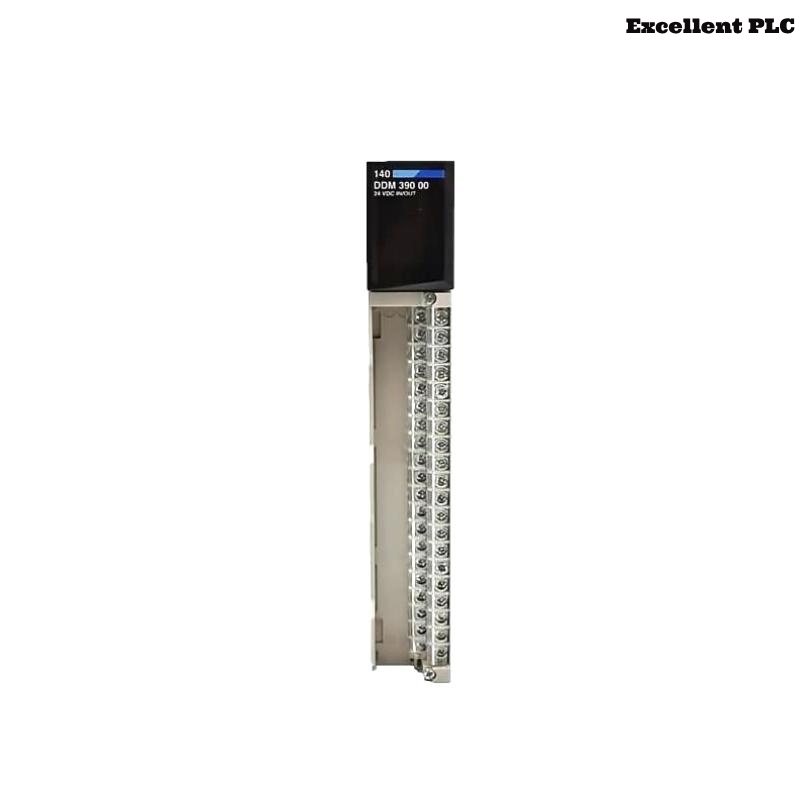

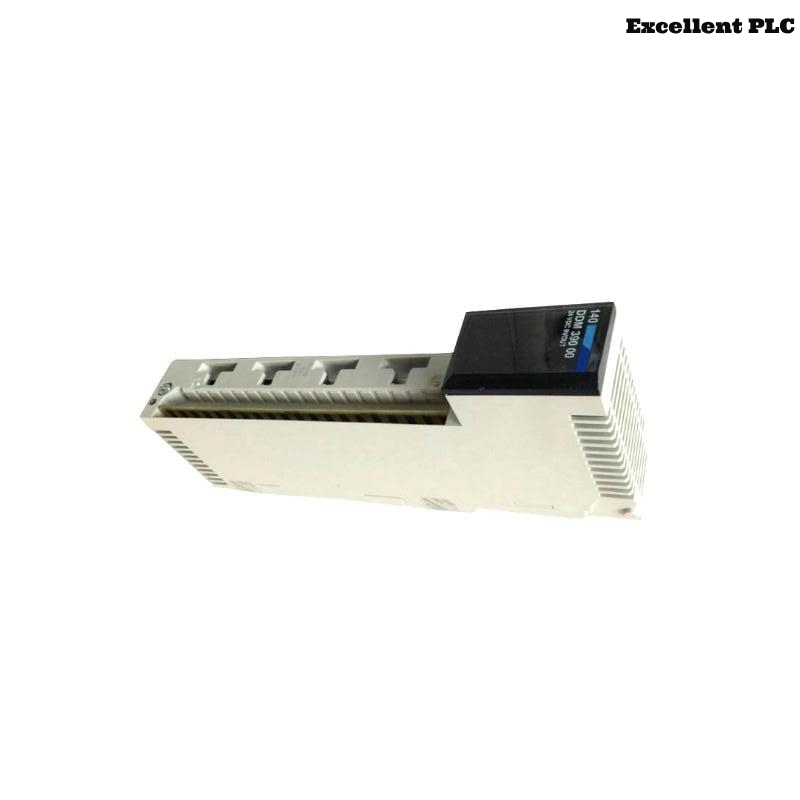

The Schneider 140DDM39000 Discrete I/O Module is part of the Schneider Electric Modicon Quantum series, designed to provide efficient and reliable input/output connections for industrial automation systems. This module is widely used in various automation applications where fast and accurate processing of digital signals is required. It allows for the connection of digital devices such as switches, sensors, and actuators to the PLC, facilitating the control and monitoring of industrial processes.
The 140DDM39000 module is known for its robustness and high performance. It offers high-speed data transfer and flexible configuration options, making it ideal for both simple and complex systems. Its modular design ensures easy integration and scalability, enabling users to expand their systems as needed. The module is specifically designed to work with the Modicon Quantum platform, ensuring seamless communication with other modules in the system.
Product Parameters:
Below is a detailed table outlining the key specifications of the Schneider 140DDM39000 Discrete I/O Module:
| Parameter | Description |
|---|---|
| Module Type | Discrete I/O Module |
| Input/Output Type | Digital (Discrete) |
| Number of Inputs | 16 Digital Inputs |
| Number of Outputs | 16 Digital Outputs |
| Input Voltage | 24V DC (Nominal) |
| Output Voltage | 24V DC (Nominal) |
| Input Type | Sink or Source Inputs (configurable) |
| Output Type | Transistor outputs (NPN or PNP) |
| Digital Input Current | 10mA (maximum per input) |
| Digital Output Current | 0.5A (maximum per output) |
| Operating Temperature Range | -20°C to +60°C |
| Mounting Type | Rack-mounted |
| Communication Type | Modbus, proprietary communication protocol |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Status Indicators | 32 LED Indicators (16 inputs, 16 outputs) |
| Power Consumption | 4W (typical) |
| Connector Type | Removable spring-clamp terminal block |
| EMC Protection | Compliant with IEC standards |
| Certification | CE, UL, CSA |
Applications:
The 140DDM39000 Discrete I/O Module is highly versatile and can be used in various industrial automation applications. Some of the key areas where it is deployed include:
-
Factory Automation: The module is used to monitor and control machines, devices, and processes that require digital on/off signals such as sensors, switches, and actuators.
-
Process Control: It provides reliable connections between the PLC and discrete field devices in process industries such as chemical, oil and gas, and food processing.
-
Packaging Systems: In packaging lines, the module is used to control conveyors, sorting mechanisms, and other machines that use discrete digital signals.
-
Material Handling Systems: The module enables precise control of material handling systems, including robotic arms, automated guided vehicles (AGVs), and lifts.
-
Energy Management: It plays an important role in controlling devices such as energy meters, breakers, and relays within energy management systems.
-
Automated Testing Systems: The module is used to control and monitor test equipment in automated testing systems, ensuring high-speed signal processing and accurate results.
Advantages:
-
High Speed and Performance: The 140DDM39000 provides fast and accurate processing of digital signals, making it ideal for real-time control applications that require high-speed data handling.
-
Flexible Configuration: The module allows for flexible configuration of inputs and outputs, supporting both sinking and sourcing digital devices, and offering multiple output types such as NPN and PNP transistor outputs.
-
Compact Design: With its compact dimensions, the 140DDM39000 is ideal for applications where space is limited while still providing full functionality.
-
Easy Integration: The module is designed to integrate seamlessly into the Schneider Electric Modicon Quantum system, allowing for easy expansion and upgrades within the system.
-
Durable and Reliable: Built with industrial-grade components, the 140DDM39000 is capable of operating in harsh environments with a wide operating temperature range and compliance with EMC protection standards.
-
User-Friendly Diagnostics: The module features 32 LED indicators that provide clear and instant feedback on the status of both inputs and outputs, simplifying troubleshooting and diagnostics.
-
Energy Efficiency: With a typical power consumption of just 4W, the module is energy-efficient, helping to reduce the overall power consumption of the control system.
Frequently Asked Questions (FAQ):
-
What type of digital devices can be connected to the 140DDM39000 module?
-
The module supports both sinking and sourcing digital devices, including sensors, switches, and actuators.
-
-
How many inputs and outputs does the 140DDM39000 module have?
-
The module has 16 digital inputs and 16 digital outputs.
-
-
Can the module be used with other Schneider Electric PLC systems?
-
The 140DDM39000 is designed for use with the Modicon Quantum series but may be compatible with other Schneider Electric PLC systems depending on the configuration.
-
-
What is the input voltage range for the 140DDM39000?
-
The module operates with a nominal input voltage of 24V DC.
-
-
What is the output type of the module?
-
The module features transistor outputs that can be configured for NPN or PNP operation.
-
-
Is the 140DDM39000 module suitable for use in extreme temperatures?
-
Yes, the module operates within a temperature range of -20°C to +60°C, making it suitable for a variety of industrial environments.
-
-
What communication protocols are supported by the module?
-
The module supports Modbus communication and Schneider Electric’s proprietary communication protocol.
-
-
How is the 140DDM39000 module mounted?
-
The module is designed to be mounted on a rack, making it easy to integrate into existing systems.
-
-
What certifications does the 140DDM39000 module have?
-
The module is CE, UL, and CSA certified, ensuring compliance with international safety and quality standards.
-
-
What type of connectors are used for wiring the 140DDM39000 module?
-
The module uses removable spring-clamp terminal blocks for easy wiring and maintenance.
-
