Product Introduction:

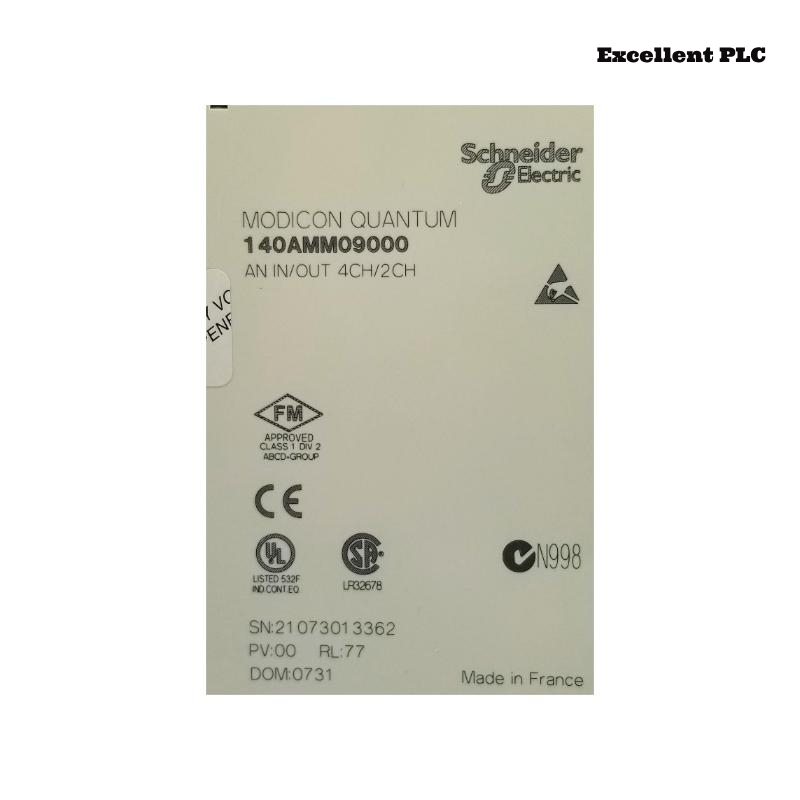

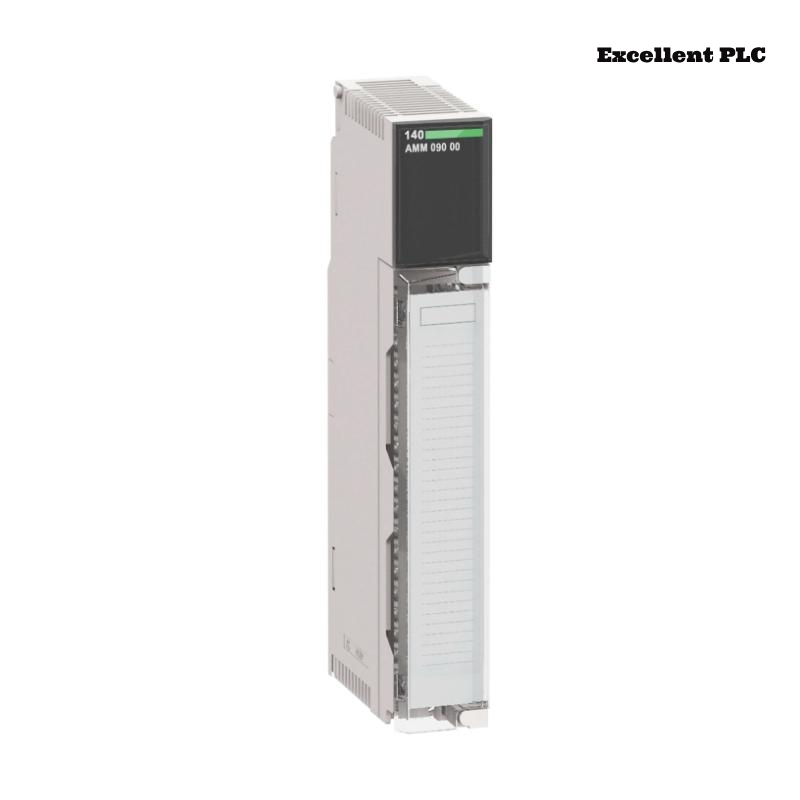

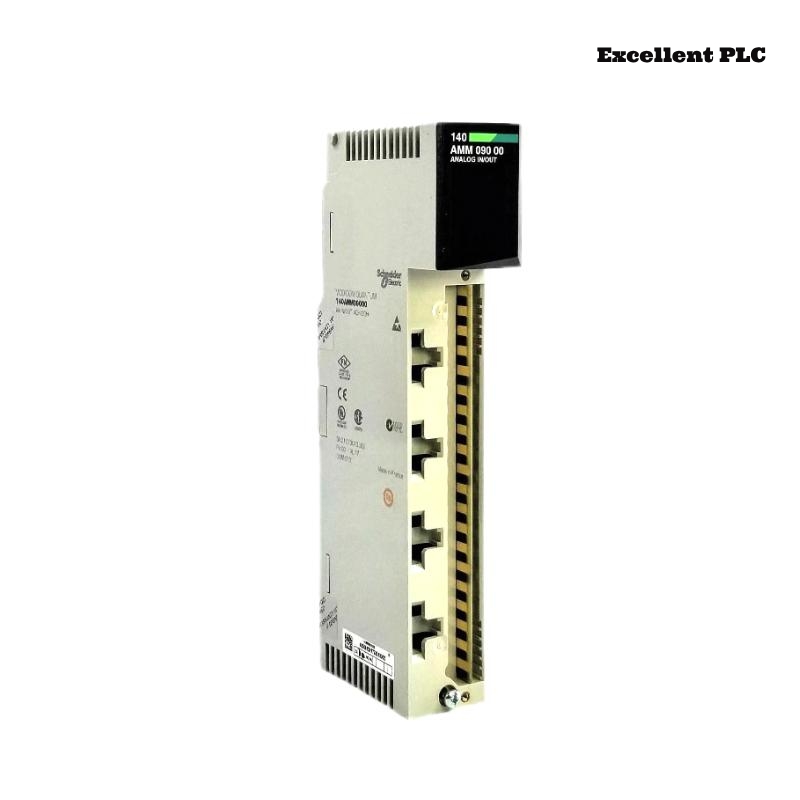

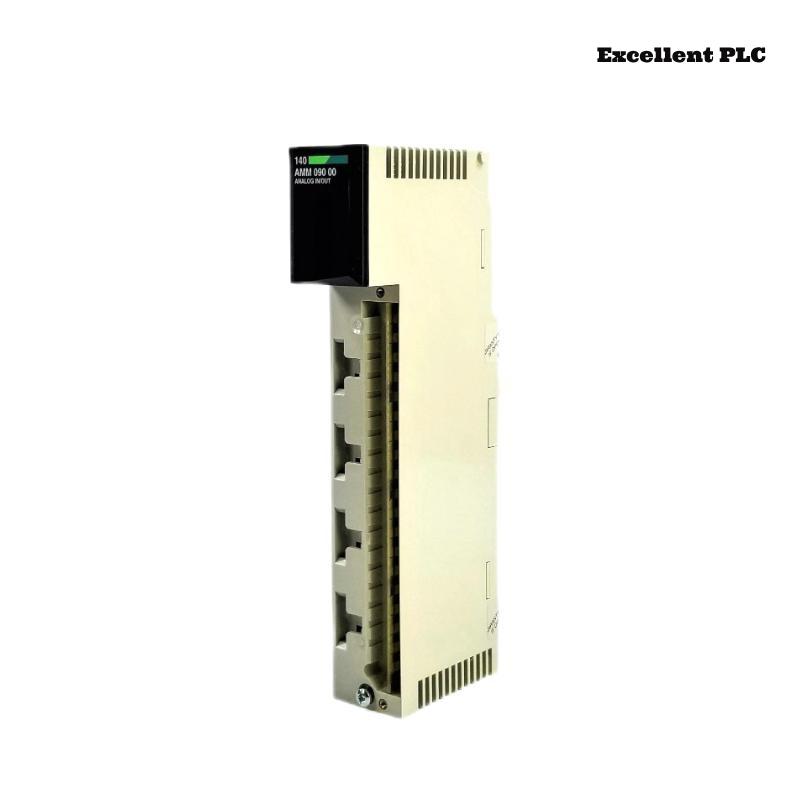

The Schneider 140AMM09000 Analog Input/Output Module is part of the Modicon series, known for its high performance and reliability in industrial automation applications. This module is designed to handle both analog input and output signals, providing versatile solutions for a range of process control systems. It integrates seamlessly into Schneider Electric’s Modicon PLC systems, ensuring effective communication and control of field devices, such as sensors and actuators, across various industries.
The 140AMM09000 module supports multiple input and output configurations, including voltage and current signals, and is particularly useful for applications in industrial processes requiring precise analog signal processing. It is well-suited for manufacturing, energy, and infrastructure sectors, among others, offering a robust and flexible solution for analog control and monitoring.
Product Specifications:
| Specification | Details |
|---|---|
| Model | 140AMM09000 |
| Type | Analog Input/Output Module |
| Input/Output Type | Voltage (0-10V), Current (4-20mA) |
| Number of Channels | 8 Inputs, 8 Outputs |
| Resolution | 16-bit |
| Sampling Rate | 100 ms |
| Communication Protocol | Modbus RTU |
| Mounting Type | Rack Mount |
| Power Supply | 24V DC ±20% |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | 0.3 kg |
| Dimensions (L x W x H) | 103.9 × 40.3 × 250 mm |
Applications:
The 140AMM09000 module is ideal for applications where precise control and monitoring of analog signals are required. It is commonly used in:
- Industrial Automation: To interface with sensors, controllers, and actuators in manufacturing and process industries.
- Energy Management: For monitoring voltage and current in power systems, helping to optimize energy usage and ensure safety.
- Building Automation: Integration with HVAC systems, lighting, and other building management controls for energy efficiency and automated operations.
- Environmental Control: Used in systems for air quality, water treatment, and other environmental control processes where analog signals are critical for monitoring parameters such as pressure, temperature, or flow.
Advantages:
- Versatile Input/Output Support: The module handles both voltage and current signals, making it adaptable to various industrial processes.
- Compact Design: It is designed for easy integration into existing Modicon PLC systems, allowing space-efficient installation in tight environments.
- High Precision: With 16-bit resolution, it ensures precise and reliable analog signal processing for critical industrial applications.
- Wide Temperature Range: The module is capable of operating in harsh industrial environments with an extensive temperature range, making it ideal for demanding conditions.
- Modular System: Being part of the Schneider Modicon system, it offers easy scalability and integration with other modules, providing a flexible and cost-effective solution.
Latest News Headlines:
- “Schneider Electric Introduces Advanced Analog Modules for Process Control Applications”
- “Enhancing Industrial Automation with Schneider’s New 140AMM09000 Analog I/O Modules”
- “Schneider’s Modicon Series Expands with High-Precision Analog I/O Modules”
- “140AMM09000 Revolutionizes Signal Processing in Manufacturing and Energy Systems”
- “Schneider Electric’s Latest Analog I/O Modules Offer Unmatched Versatility and Precision”
- “Modicon PLCs Now Equipped with New Analog I/O Modules for Greater Control”
- “Schneider Electric Leads Innovation in Analog Control for Industrial Applications”
- “Empowering Industrial Control with Schneider Electric’s New Analog Input/Output Module”
- “Schneider Electric’s 140AMM09000 Module Enhances Safety and Efficiency in Critical Processes”
- “Upgrade Your Process Control with Schneider Electric’s Latest Analog I/O Technology”
FAQs for Schneider 140AMM09000:
-
What is the 140AMM09000 module used for?
- The module is used for processing analog input and output signals in industrial automation systems.
-
How many channels does the module have?
- It has 8 input channels and 8 output channels for analog signals.
-
What types of analog signals does it support?
- It supports voltage (0-10V) and current (4-20mA) analog signals.
-
What is the resolution of the module?
- The module offers 16-bit resolution for high precision.
-
What is the operating temperature range of the module?
- The operating temperature range is from -20°C to +60°C.
-
What is the power supply requirement for this module?
- The module requires a 24V DC power supply with a tolerance of ±20%.
-
How does the module communicate with other devices?
- It communicates using the Modbus RTU protocol, which is widely supported in industrial applications.
-
Is this module compatible with all Modicon PLC systems?
- Yes, the 140AMM09000 is designed to integrate with Schneider Electric’s Modicon PLC systems.
-
What is the weight and size of the module?
- The module weighs 0.3 kg and has dimensions of 103.9 × 40.3 × 250 mm.
-
Can the module be used in outdoor environments?
- While it can handle a wide temperature range, it is recommended for indoor use or in controlled environments.
