Product Introduction

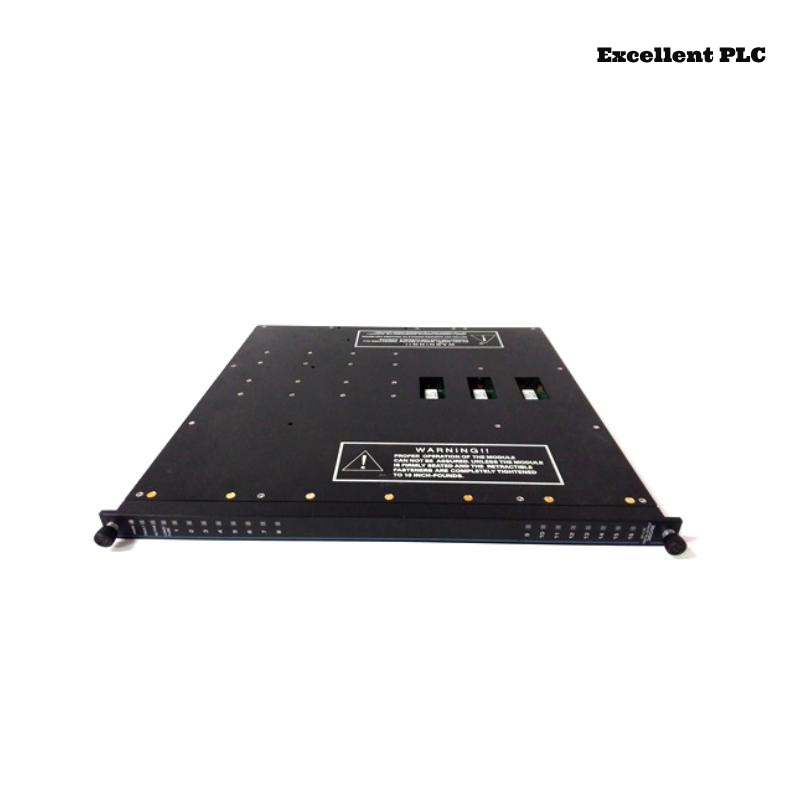

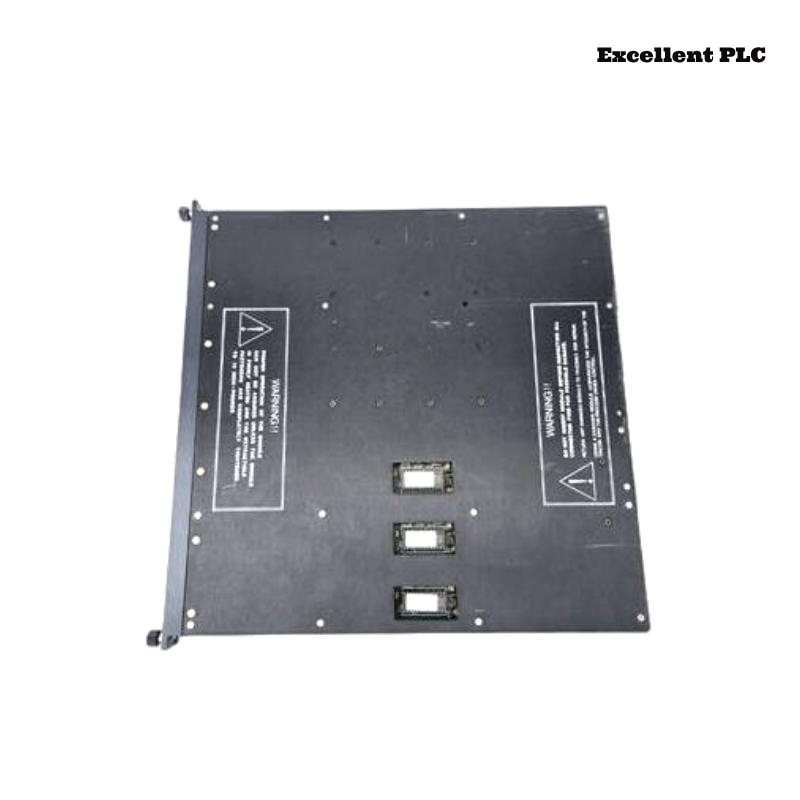

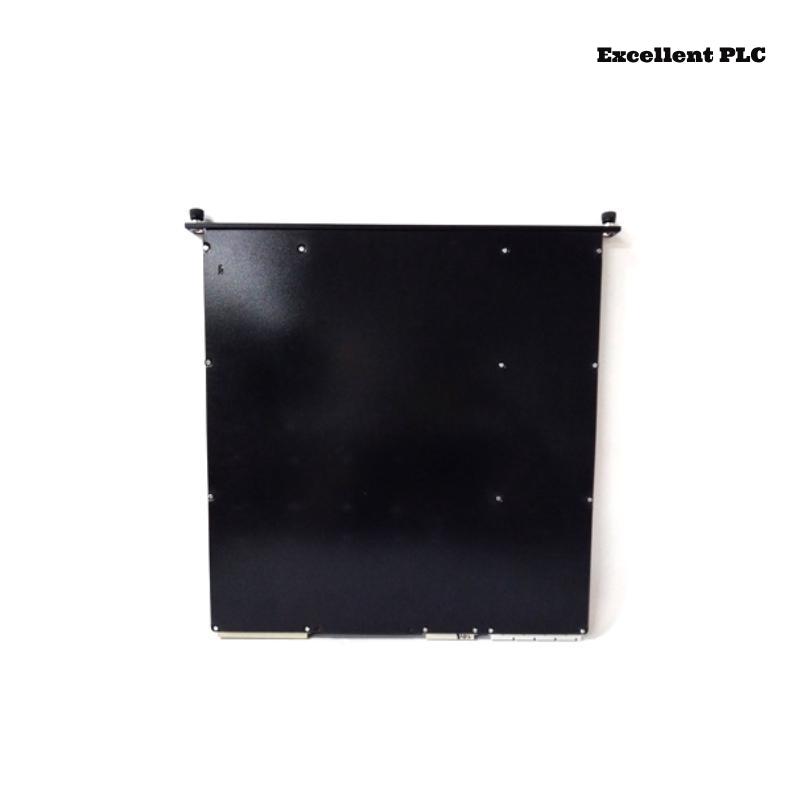

The Invensys Triconex 3604A Digital Output Module is a high-performance, safety-certified module designed for critical industrial automation applications. It is an integral component of the Triconex safety instrumented system (SIS), ensuring high availability and reliability in safety-critical environments. With fault-tolerant architecture, triple modular redundancy (TMR), and real-time diagnostics, the 3604A module is widely used in industries such as oil & gas, power generation, and chemical processing.
This module provides secure digital output control, ensuring fast response times and accurate actuation of connected devices like solenoids, relays, and other process actuators. It is designed to handle harsh industrial conditions, making it a robust and reliable choice for mission-critical operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | Invensys Triconex 3604A |
| Type | Digital Output Module |
| Channels | 32 independent digital output channels |
| Output Type | Discrete DC output |
| Voltage Rating | 24V DC |
| Current Rating | 0.5A per channel |
| Response Time | <10ms |
| Communication | Triconex proprietary bus |
| Redundancy | Triple Modular Redundancy (TMR) |
| Diagnostic Features | Real-time fault detection & reporting |
| Isolation | Optical isolation between channels |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5% – 95% (non-condensing) |
| Shock Resistance | 30g peak acceleration |
| Vibration Resistance | 2g at 10-150Hz |
| Compliance | SIL 3 (Safety Integrity Level 3), IEC 61508 |
| Dimensions | 270 x 100 x 40 mm |
| Weight | 0.249 kg |
Applications
The Triconex 3604A Digital Output Module is widely used in safety-critical and process automation industries, including:
- Oil & Gas: Emergency shutdown systems (ESD), burner management systems (BMS)
- Power Generation: Turbine control, generator protection systems
- Chemical & Petrochemical: Process control, safety interlock systems
- Manufacturing & Industrial Automation: Conveyor systems, machine automation
- Water Treatment Plants: Pump control, monitoring, and alarm systems
This module provides precise and reliable control over digital output signals, ensuring the safe operation of actuators and control devices in high-risk environments.
Key Advantages
Triple Modular Redundancy (TMR): Ensures maximum safety and fault tolerance
High-Speed Output Switching: Supports fast response times for critical control applications
Real-Time Diagnostics: Monitors and reports faults instantly for improved system reliability
Robust Industrial Design: Operates in harsh environments with strong resistance to shock, vibration, and extreme temperatures
Optically Isolated Outputs: Protects against electrical disturbances and enhances signal integrity
SIL 3 Certified: Complies with IEC 61508 standards for safety-critical applications
Scalable and Compatible: Easily integrates with other Triconex modules and SIS architectures
