Product Introduction

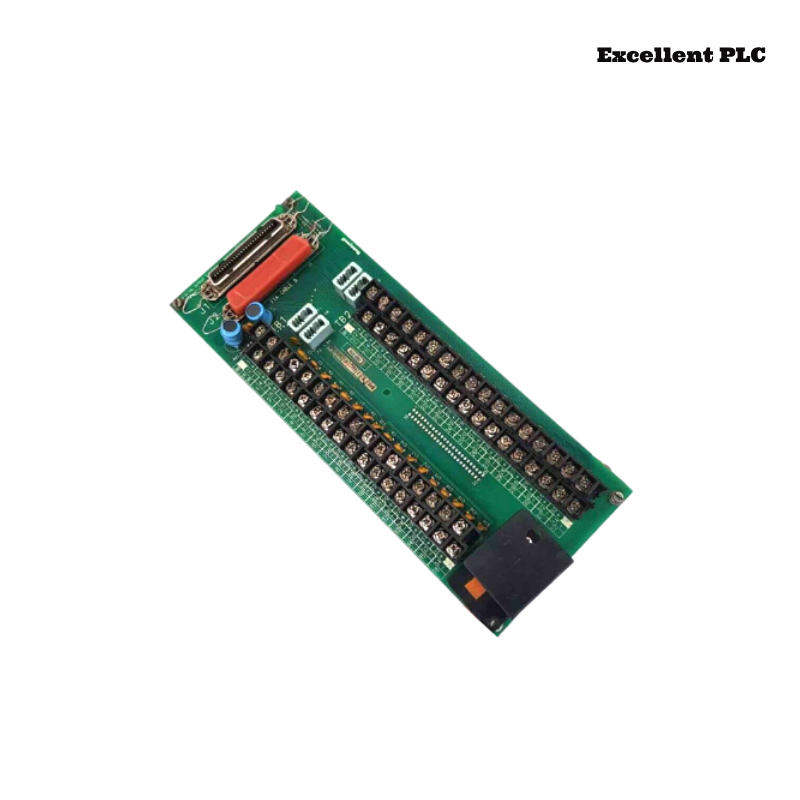

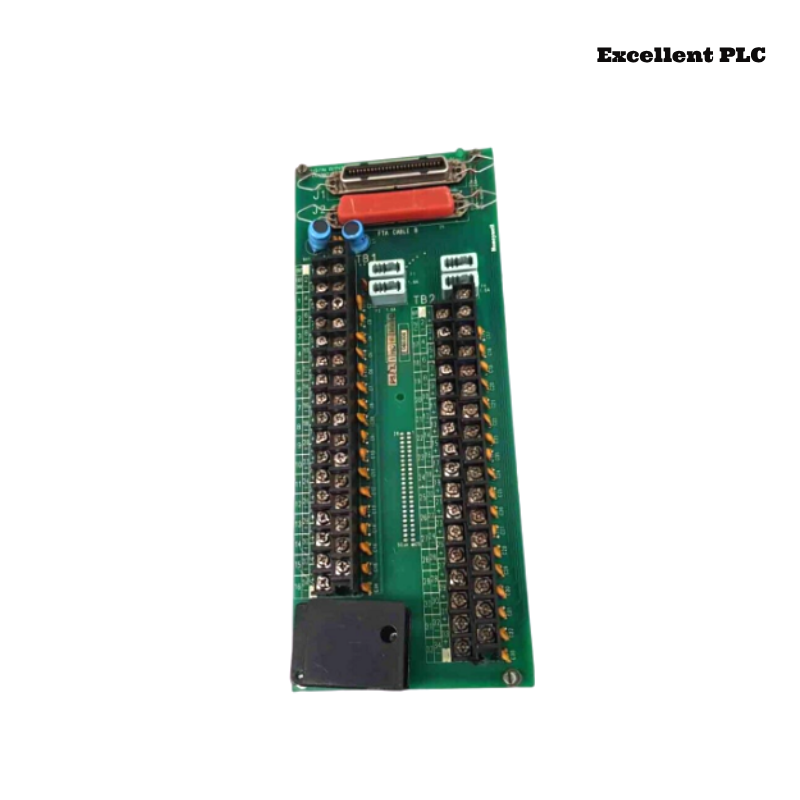

The Honeywell MU-TDOY23 51204166-125 Digital Output Relay is engineered for precise control applications in industrial environments, offering high reliability and rapid response times. It is particularly suitable for integration into complex systems requiring accurate electrical switching.
Product Specifications:
| Specification | Details |
|---|---|
| Operating Voltage | 24 VDC |
| Current Rating | 10 A |
| Contact Rating | 1 Form A |
| Relay Life Expectancy | 100,000 cycles |
| Operating Temperature Range | -40°C to +85°C |
| Contact Resistance | ≤ 10 mΩ |
| Response Time | ≤ 10 ms |
| Load Capacity | AC/DC, up to 24 V |
| Insulation Resistance | ≥ 10⁹ Ω at 500 VDC |
| Housing Material | Polycarbonate |
| Enclosure Type | IP20 |
| Relay Type | Solid State Relay |
| Dimensions | 304.8 x 81.3 x 12.7 mm |
| Weight | 0.18 kg |
Product Details:
The Honeywell MU-TDOY23 51204166-125 Digital Output Relay is designed to endure the demands of industrial settings, ensuring dependable operation even under extreme conditions. Its solid-state construction provides enhanced durability and reduces maintenance compared to traditional mechanical relays. The compact and sturdy polycarbonate housing makes it ideal for applications where space is limited while offering excellent protection against environmental factors. Equipped with advanced circuitry for swift and accurate switching, this relay is suitable for automation systems, process control, and safety circuits. Its compatibility with both AC and DC loads adds versatility, facilitating integration with various power supplies and control systems, thereby enhancing system flexibility and efficiency.
Product Applications:
-
Industrial Automation: Controls machinery and processes in manufacturing environments.
-
Process Control Systems: Manages operations in industries like chemical processing and oil refining.
-
Building Automation: Regulates systems such as lighting, heating, and ventilation.
-
Energy Management Systems: Optimizes energy consumption in industrial and commercial settings.
-
Safety Systems: Ensures secure operation of equipment and processes.
Product Advantages:
-
High Reliability: Solid-state design minimizes mechanical failures, ensuring consistent performance.
-
Fast Response Time: Quick switching capabilities enhance control precision.
-
Compact Design: Space-saving form factor allows for easy integration into existing systems.
-
Versatile Load Compatibility: Supports both AC and DC loads, increasing application flexibility.
-
Robust Construction: Durable housing withstands harsh industrial environments.
Recent News Headlines:
-
“Honeywell Introduces Advanced Digital Output Relay for Industrial Automation”
-
“Enhancing Process Control: Honeywell’s Latest Relay Technology”
-
“Honeywell MU-TDOY23 51204166-125: A Game Changer in Safety Systems”
Frequently Asked Questions (FAQs):
-
What is the primary function of the Honeywell MU-TDOY23 51204166-125 Digital Output Relay?
-
It is designed to control the on/off state of external devices or equipment in industrial applications.
-
-
Can this relay operate in extreme temperatures?
-
Yes, it functions effectively within a temperature range of -40°C to +85°C.
-
-
Is the relay suitable for both AC and DC loads?
-
Yes, it supports AC/DC loads up to 24 V, offering versatile application options.
-
-
What is the life expectancy of this relay?
-
It has a life expectancy of 100,000 cycles, ensuring long-term reliability.
-
-
What type of enclosure does the relay have?
-
It features an IP20-rated polycarbonate housing, providing protection against solid objects.
-
-
How fast is the relay’s response time?
-
The response time is ≤ 10 milliseconds, facilitating precise control operations.
-
-
What are the dimensions and weight of the relay?
-
The relay measures 304.8 x 81.3 x 12.7 mm inches and weighs 0.4 pounds.
-
-
Is the relay resistant to environmental factors?
-
Yes, its robust construction ensures durability in harsh industrial environments.
-
-
Does the relay require regular maintenance?
-
Its solid-state design reduces the need for frequent maintenance compared to mechanical relays.
-
-
Can this relay be integrated into existing automation systems?
-
Yes, its versatile design allows for seamless integration into various control systems.
-
