Product Introduction

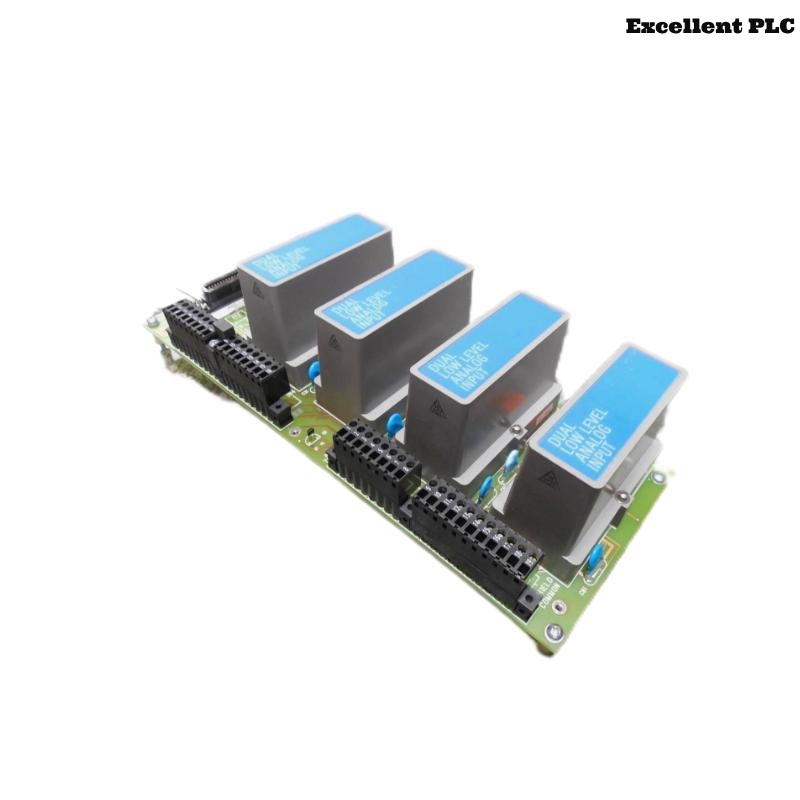

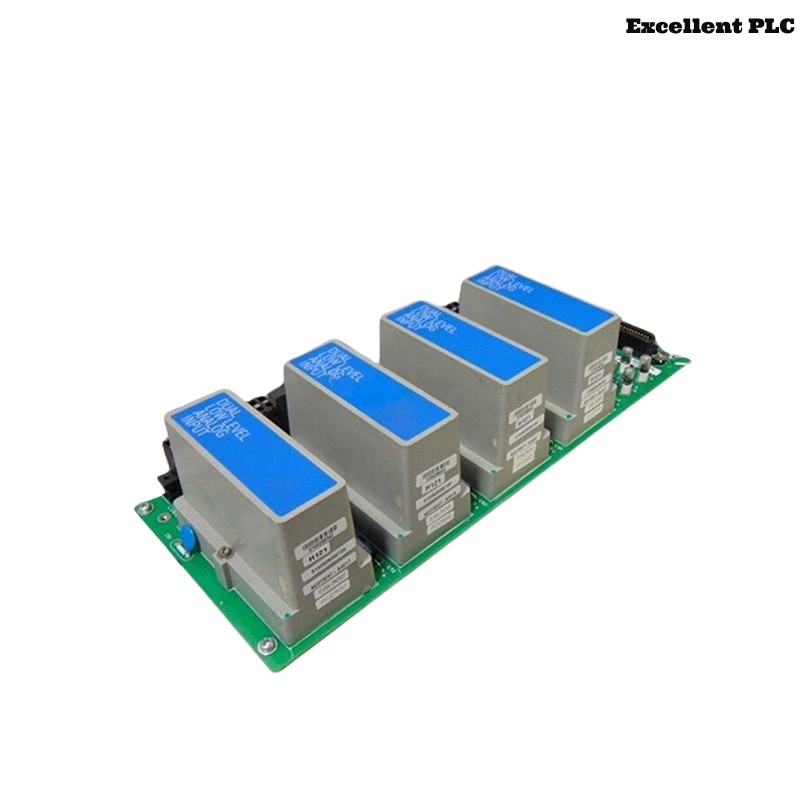

The Honeywell MU-TAIL02 is a Low-Level Analog Input Module designed to integrate seamlessly into Honeywell’s advanced control systems. Specifically built for industrial environments requiring precise low-level analog signal acquisition, it is engineered for high-performance monitoring in critical applications. This module ensures reliable and accurate signal transmission, enabling efficient process control and automation.

The MU-TAIL02 module supports the integration of low-level analog signals (e.g., 4-20 mA, 0-5V) from field devices, providing essential input for measurement and monitoring tasks. With robust design and reliability, it meets stringent operational standards, ensuring long-term stability even in demanding industrial environments.

---

Product Specifications

Parameter	Details
Model Number	MU-TAIL02
Part Number	51304437-100
Input Type	Low-Level Analog Input (e.g., 4-20 mA, 0-5V)
Number of Channels	8
Input Range	0-5V, 4-20 mA
Resolution	16-bit resolution for high accuracy
Input Isolation	Galvanic isolation for safe operation
Accuracy	±0.1% of full-scale input for precision
Power Supply Voltage	24V DC
Power Consumption	Approximately 200 mA
Operating Temperature	-20°C to +60°C
Module Dimensions	114 x 305 x 44 mm
Weight	0.75 kg (1.65 lbs)
Mounting Type	DIN rail or panel mountable
Compliance	UL, CE, RoHS certified



---

Product Applications

The Honeywell MU-TAIL02 Low-Level Analog Input Module is widely used in industries where precision measurement and data acquisition are critical. Below are some key applications:

1. Process Control Systems: It is ideal for applications that require the accurate measurement of low-level signals for process monitoring and control.

2. Industrial Automation: Often used in automation systems for controlling and monitoring equipment like pumps, motors, and sensors that operate with low-level analog signals.

3. Temperature and Pressure Monitoring: Used for acquiring analog signals from temperature sensors or pressure transmitters.

4. Chemical Plants and Refineries: Especially suited for environments where high reliability and data integrity are paramount for process safety.

5. Water Treatment: Employed in the measurement and control of water levels, flow, and other vital parameters in water treatment facilities.

---

Product Advantages

1. High Precision and Accuracy: With 16-bit resolution, the MU-TAIL02 ensures highly accurate data acquisition, which is critical for maintaining control in industrial processes.

2. Versatile Input Range: It supports both 0-5V and 4-20mA inputs, making it compatible with a wide range of field devices, offering flexibility in industrial setups.

3. Easy Integration: The module is designed to seamlessly integrate with Honeywell’s control systems, making it easy to incorporate into existing processes and systems.

4. Robust Design for Harsh Environments: The MU-TAIL02 is built to withstand the rigors of industrial environments, including extreme temperatures and challenging operating conditions.

5. Reliable Performance: With galvanic isolation, the module ensures safe operation, preventing ground loops and electrical interference, which is essential in mission-critical applications.

6. Compact and Flexible: The compact design allows for flexible mounting, whether on a DIN rail or directly on a panel, and does not occupy too much space in the control cabinet.

---

Frequently Asked Questions (FAQ)

1. What is the primary function of the MU-TAIL02 module?

   • The primary function of the MU-TAIL02 is to acquire low-level analog signals (e.g., 4-20 mA, 0-5V) from field devices and convert them into digital signals for processing and control.

2. How many channels does the MU-TAIL02 support?

   • The MU-TAIL02 supports 8 channels for analog signal input.

3. What types of input signals are supported by the MU-TAIL02?

   • The module supports 4-20 mA and 0-5V analog inputs, making it compatible with a wide range of industrial devices.

4. What is the accuracy of the MU-TAIL02?

   • The accuracy of the module is ±0.1% of the full-scale input, providing precise signal acquisition.

5. How is the MU-TAIL02 powered?

   • The module operates with a 24V DC power supply.

6. Can the MU-TAIL02 be mounted on a DIN rail?

   • Yes, the module can be mounted on a DIN rail or directly on a panel, offering flexible installation options.

7. What is the operating temperature range for the MU-TAIL02?

   • The operating temperature range is between -20°C and +60°C, making it suitable for a wide range of industrial environments.

8. What is the weight of the MU-TAIL02?

   • The module weighs 0.75 kg (1.65 lbs).

9. What certifications does the MU-TAIL02 have?

   • The module is UL, CE, and RoHS certified, ensuring it meets global safety and environmental standards.

10. Is the MU-TAIL02 suitable for hazardous locations?

• While the MU-TAIL02 is designed for industrial environments, please consult Honeywell’s technical specifications for compatibility with hazardous locations.

---

Frequently Asked Questions (FAQ)

1. What is the primary function of the MU-TAIL02 module?

   • The primary function of the MU-TAIL02 is to acquire low-level analog signals (e.g., 4-20 mA, 0-5V) from field devices and convert them into digital signals for processing and control.

2. How many channels does the MU-TAIL02 support?

   • The MU-TAIL02 supports 8 channels for analog signal input.

3. What types of input signals are supported by the MU-TAIL02?

   • The module supports 4-20 mA and 0-5V analog inputs, making it compatible with a wide range of industrial devices.

4. What is the accuracy of the MU-TAIL02?

   • The accuracy of the module is ±0.1% of the full-scale input, providing precise signal acquisition.

5. How is the MU-TAIL02 powered?

   • The module operates with a 24V DC power supply.

6. Can the MU-TAIL02 be mounted on a DIN rail?

   • Yes, the module can be mounted on a DIN rail or directly on a panel, offering flexible installation options.

7. What is the operating temperature range for the MU-TAIL02?

   • The operating temperature range is between -20°C and +60°C, making it suitable for a wide range of industrial environments.

8. What is the weight of the MU-TAIL02?

   • The module weighs 0.75 kg (1.65 lbs).

9. What certifications does the MU-TAIL02 have?

   • The module is UL, CE, and RoHS certified, ensuring it meets global safety and environmental standards.

10. Is the MU-TAIL02 suitable for hazardous locations?

• While the MU-TAIL02 is designed for industrial environments, please consult Honeywell’s technical specifications for compatibility with hazardous locations.

Related Models from the Same Series

Model Number	Description	Function
MU-TAIH02	High-Level Analog Input Module	16-channel analog input module for field devices
MU-TAMR03	Analog Multiplexer Module	Provides multiplexing capabilities for analog signals
MU-TDPR02	Digital Input Module	Handles digital signals with redundancy
MU-TAIH52	High-Level Analog Input Terminal Assembly	Similar module with higher signal input range
MU-TDIP02	Digital Input Redundant Module	Redundant digital input with failover functionality
MU-TLPA02	Low Power Analog Input Module	Designed for low-power analog signal applications

Popular Honeywell Models

Model Number	Description	Function
CC-PAIH01	Analog Input Module	16-channel analog input for C300 controller
CC-PDOB01	Digital Output Module	32-channel digital output module for C300 controller
CC-PDIL01	Digital Input Module	32-channel digital input for C300 controller
CC-TAOX01	Analog Output Module	8-channel analog output for C300 controller
CC-TDIL01	Digital Input Module	16-channel digital input for C200 controller
CC-TAIH01	High-level Analog Input Module	8-channel high-level analog input for C300 controller
