Product Introduction

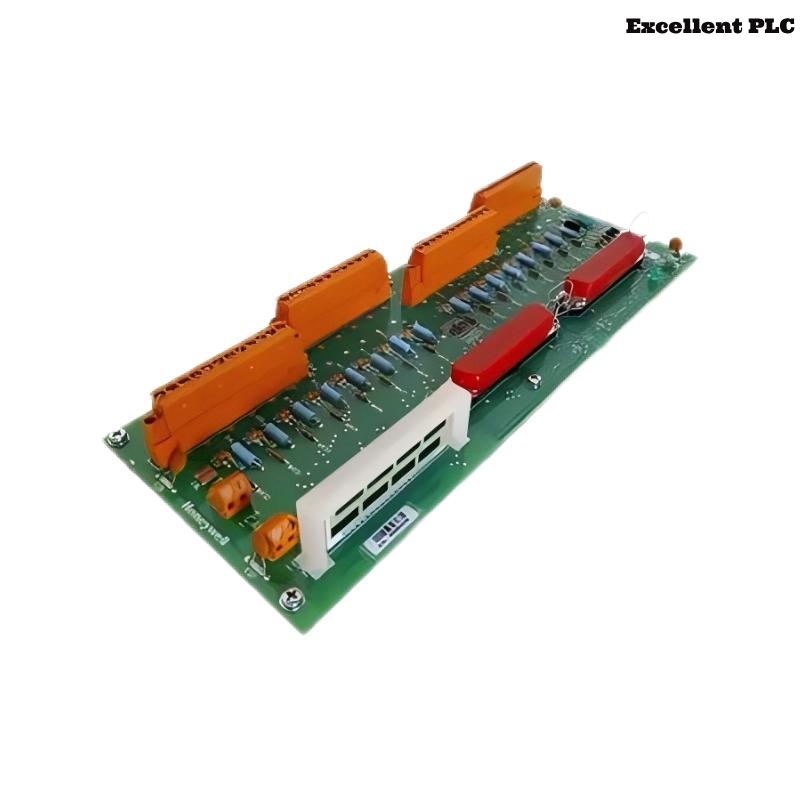

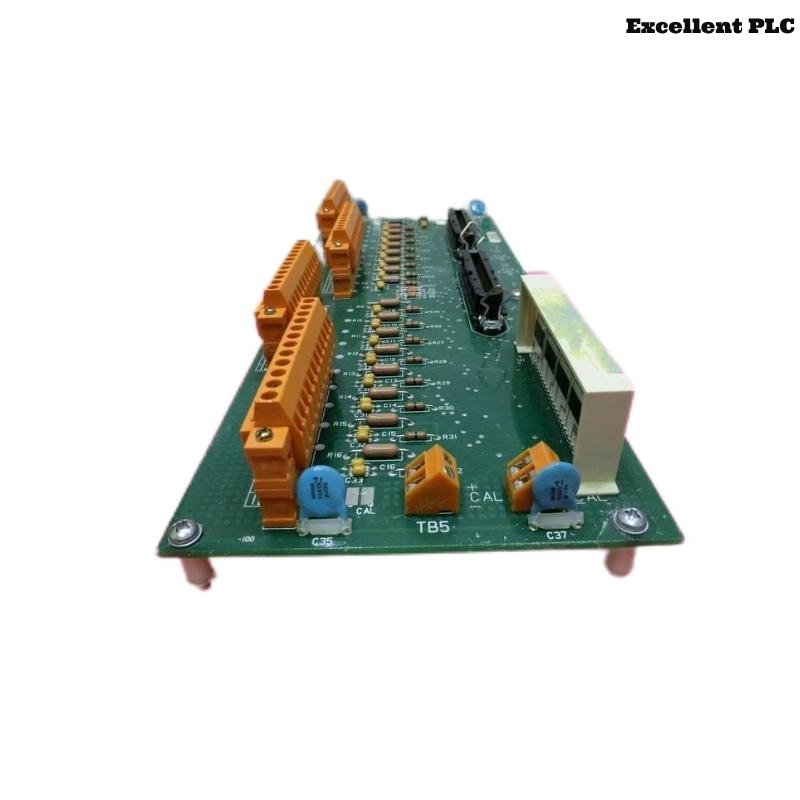

The Honeywell MC-TAIH12 51304337-150 High-Level Analog Input Module is designed to provide exceptional signal processing for high-level analog inputs, ensuring accurate and reliable data acquisition for industrial automation and control systems. This module is commonly used in applications where precise analog input signals are required from field devices, such as sensors and transmitters that monitor process variables like temperature, pressure, and flow.
Ideal for integration with Honeywell’s Distributed Control Systems (DCS), this module is a vital component in industries like chemical processing, oil and gas, power generation, and water treatment. It supports high-precision measurement and control, enabling process optimization and ensuring operational safety and efficiency.
The MC-TAIH12 51304337-150 offers superior accuracy and flexibility, making it a preferred choice for complex industrial processes that require advanced signal conditioning and monitoring.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | MC-TAIH12 51304337-150 |
| Module Type | High-Level Analog Input Module |
| Channels | 12 Analog Input Channels |
| Input Type | 4-20 mA, 0-10 V |
| Input Range | 4-20 mA, 0-10 V |
| Accuracy | ±0.05% of Full Scale |
| Input Impedance | > 10 MΩ |
| Signal Conditioning | Linearization, Filtering, Amplification |
| Dimensions (H x W x D) | 137 x 51 x 151 mm |
| Weight | 0.54 kg |
| Power Supply | 24 V DC ±10% |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN Rail |
| Compliance | CE, UL, RoHS |
| Certifications | Ex-rated versions available upon request |
| Response Time | < 10 ms |
Product Applications
The Honeywell MC-TAIH12 51304337-150 High-Level Analog Input Module is used in a variety of industrial applications that require high-accuracy signal acquisition from analog devices. Some of the key applications include:
-
Process Control: It is widely used in chemical plants, refineries, and power plants to collect data from field devices such as pressure sensors, temperature transmitters, and flow meters. The module supports high-level analog inputs, providing the necessary data for automated control systems.
-
Industrial Automation: The module integrates seamlessly with control systems to process inputs from different types of analog field instruments, including pressure, level, temperature, and flow measurement devices.
-
Energy Management Systems: In energy generation and distribution plants, it helps monitor key variables like steam pressure, turbine temperature, and water flow to ensure efficient plant operation.
-
Water and Wastewater Treatment: Used to gather data from level sensors, chemical dosing systems, and flow meters, the module plays an essential role in maintaining proper water treatment operations.
-
Oil & Gas: The MC-TAIH12 is also ideal for the oil and gas industry, where it monitors critical parameters such as pipeline pressure, tank levels, and flow rates in both upstream and downstream operations.
-
HVAC Systems: In building automation systems, the module is used to measure temperature and humidity, ensuring optimal HVAC system performance.
Product Advantages
-
High Accuracy: The module offers outstanding accuracy of ±0.05% of full scale, making it ideal for critical measurements in high-precision processes.
-
Multiple Input Types: The MC-TAIH12 can process both 4-20 mA and 0-10 V analog inputs, providing flexibility in connecting with a variety of field devices.
-
Flexible Signal Conditioning: Built-in signal conditioning features, such as linearization, filtering, and amplification, ensure optimal signal processing for accurate data representation.
-
High Channel Density: With 12 channels in a single module, it offers high channel density, which is cost-effective and efficient for managing multiple inputs.
-
Rugged and Reliable: Designed to work in industrial environments, the module operates within a wide temperature range of -20°C to +60°C, ensuring long-term reliability in harsh conditions.
-
Ex-rated Versions Available: The Ex-rated versions of this module are certified for use in hazardous environments, ensuring safety and compliance with industry regulations.
-
Easy Installation: It can be easily mounted on DIN rails, simplifying installation in control panels and providing flexibility in system configuration.
-
Low Latency: The module’s response time of less than 10 ms allows for real-time data processing and control.
-
Minimal Maintenance: Built for durability and reliability, the MC-TAIH12 minimizes downtime and reduces maintenance costs in critical industrial systems.
Frequently Asked Questions (FAQ)
-
Q: What is the purpose of the Honeywell MC-TAIH12 51304337-150 module?
A: The module is designed to process high-level analog inputs from field devices, providing accurate data for integration into industrial control systems. -
Q: What types of input signals can the module handle?
A: The MC-TAIH12 can process 4-20 mA and 0-10 V input signals. -
Q: How many channels does the module support?
A: The module supports 12 analog input channels. -
Q: What is the accuracy of the module?
A: The MC-TAIH12 offers an accuracy of ±0.05% of full scale. -
Q: Can the module be used in hazardous areas?
A: Yes, the MC-TAIH12 is available in Ex-rated versions for use in hazardous environments. -
Q: What is the operating temperature range of the module?
A: The module operates within a temperature range of -20°C to +60°C. -
Q: How is the module mounted?
A: The MC-TAIH12 module can be mounted on DIN rails, making installation easy and flexible. -
Q: What is the power supply requirement for the module?
A: The module requires a 24 V DC power supply with a tolerance of ±10%. -
Q: What is the response time of the module?
A: The response time of the module is less than 10 ms, ensuring fast signal processing. -
Q: What are the dimensions and weight of the Honeywell MC-TAIH12?
A: The module has dimensions of 137 x 51 x 151 mm and weighs 0.54 kg.
Related or Similar Models (Same Series/Function)
| Model Number | Description | Channels | Input Type | Compatible Systems |
|---|---|---|---|---|
| 51304337-100 | High-Level Analog Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C200 Series |
| 51304337-200 | High-Level Analog Input Module with Enhanced Accuracy | 12 | 4-20 mA, 0-10 V | Honeywell C300 Series |
| 51304337-250 | Multi-Channel High-Level Analog Input Module | 16 | 4-20 mA, 0-10 V | Honeywell C500 Series |
| 51304337-300 | Universal High-Level Analog Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C100 Series |
| 51304337-350 | Multi-Channel Signal Acquisition Module | 12 | 4-20 mA, 0-10 V | Honeywell C500 Series |
| 51304337-400 | High-Level Input Module with Advanced Filtering | 8 | 4-20 mA, 0-10 V | Honeywell C400 Series |
Popular Models from Honeywell Brand
| Model Number | Description | Channels | Input Type | Compatible Systems |
|---|---|---|---|---|
| 51204168-250 | Universal Analog Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C300 Series |
| 51204170-150 | High-Performance Analog Input Module | 16 | 4-20 mA, 0-10 V | Honeywell DCS Systems |
| 51204169-250 | Multi-Channel Analog Input Module | 16 | 4-20 mA, 0-10 V | Honeywell C200 Series |
| 51204171-150 | High-Level Signal Input Module | 8 | 4-20 mA, 0-10 V | Honeywell C500 Series |
| 51204177-250 | Analog Signal Conditioning Module | 8 | 4-20 mA, 0-10 V | Honeywell Control Systems |
| 51204178-250 | High-Level Signal Acquisition Module | 8 | 4-20 mA, 0-10 V | Honeywell Process Systems |
