Product Introduction

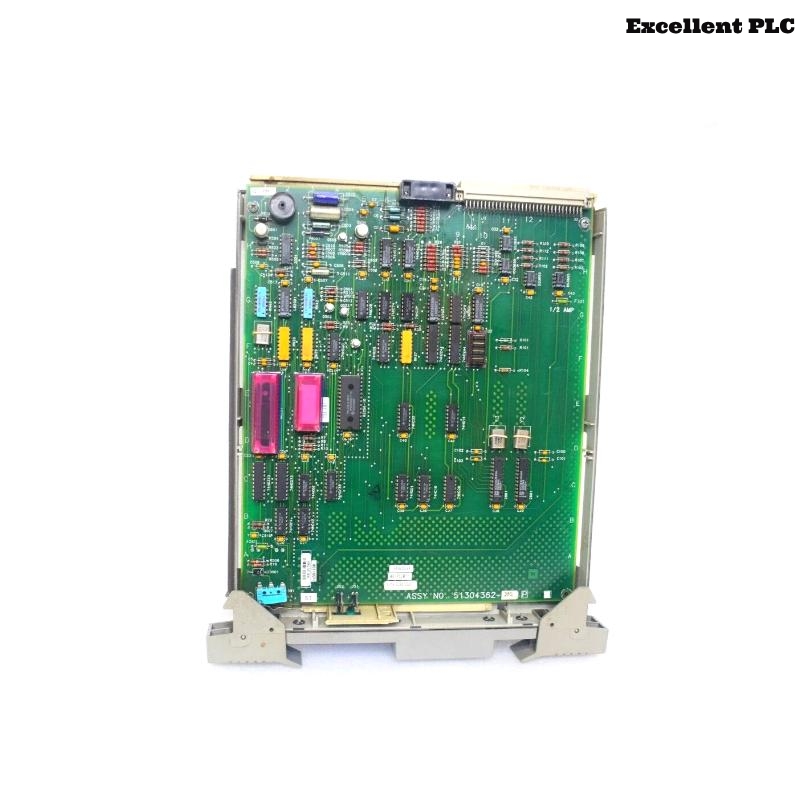

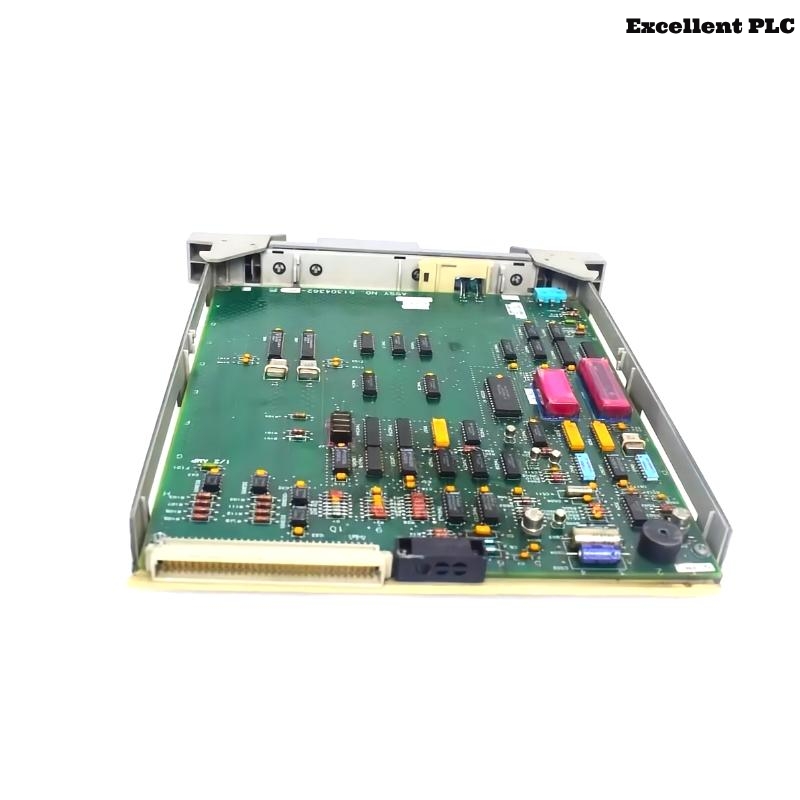

The Honeywell MC-PSIM11 51304362-350 Serial Interface I/O Processor is a high-performance module designed to facilitate seamless communication between Honeywell’s Universal Control Network (UCN) systems and various serial devices. Equipped with two RS-232 ports, it enables reliable data exchange with devices such as printers, barcode scanners, and programmable logic controllers (PLCs). This module is integral to Honeywell’s TDC 3000 and Experion Process Knowledge System (PKS), ensuring efficient and dependable serial communication within industrial automation environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model | MC-PSIM11 |
| Part Number | 51304362-350 |
| Manufacturer | Honeywell International Inc. |
| Function | Serial Interface I/O Processor |
| Number of Ports | 2 |
| Port Type | RS-232 |
| Baud Rate | Up to 115,200 bps |
| Data Bits | 7 or 8 |
| Parity | None, Odd, Even |
| Stop Bits | 1 or 2 |
| Flow Control | Hardware or Software |
| Power Supply | 24 VDC |
| Operating Temperature | 0°C to +60°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting | DIN rail or panel mounting |
| Dimensions (W x H x D) | 25 x 239 x 159 mm |
| Weight | 0.58 kg |
| Compliance Standards | CE, UL, CSA |
| Warranty | 12 months |
Product Applications
The MC-PSIM11 module is suitable for various industrial applications requiring reliable serial communication:
-
Oil & Gas: Facilitating data exchange between control systems and field devices.
-
Chemical Processing: Enabling communication with laboratory instruments and process analyzers.
-
Power Generation: Integrating with turbine control systems and monitoring equipment.
-
Pharmaceutical Industry: Connecting to environmental monitoring systems and production equipment.
-
Water Treatment: Interfacing with flow meters and quality analysis instruments.
-
Food & Beverage: Communicating with packaging machines and quality control devices.
Product Advantages
-
High-Speed Communication: Supports baud rates up to 115,200 bps for efficient data transfer.
-
Versatile Connectivity: Equipped with two RS-232 ports to interface with a variety of serial devices.
-
Robust Design: Built to operate reliably in industrial environments with wide temperature and humidity ranges.
-
Easy Integration: Compatible with Honeywell’s TDC 3000 and Experion PKS systems for seamless integration.
-
Compact Size: Space-saving dimensions facilitate installation in control panels and enclosures.
-
Compliance with Standards: Meets CE, UL, and CSA standards for safety and performance.
Frequently Asked Questions (FAQ)
-
What devices can the MC-PSIM11 interface with?
It can communicate with devices such as printers, barcode scanners, and PLCs via RS-232 ports. -
Is the module compatible with Honeywell’s Experion PKS system?
Yes, it is designed for integration with both TDC 3000 and Experion PKS systems. -
What is the maximum baud rate supported?
The module supports baud rates up to 115,200 bps. -
Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting options. -
What are the power requirements for the MC-PSIM11?
It operates on a 24 VDC power supply. -
Does the module support flow control?
Yes, it supports both hardware and software flow control methods. -
What are the dimensions and weight of the module?
The module measures 25 x 239 x 159 mm and weighs 0.58 kg. -
Is the module compliant with international standards?
Yes, it meets CE, UL, and CSA standards. -
What is the operating temperature range?
The module operates within a temperature range of 0°C to +60°C. -
What warranty does Honeywell provide for this module?
We provide one year warranty.
