Product Introduction

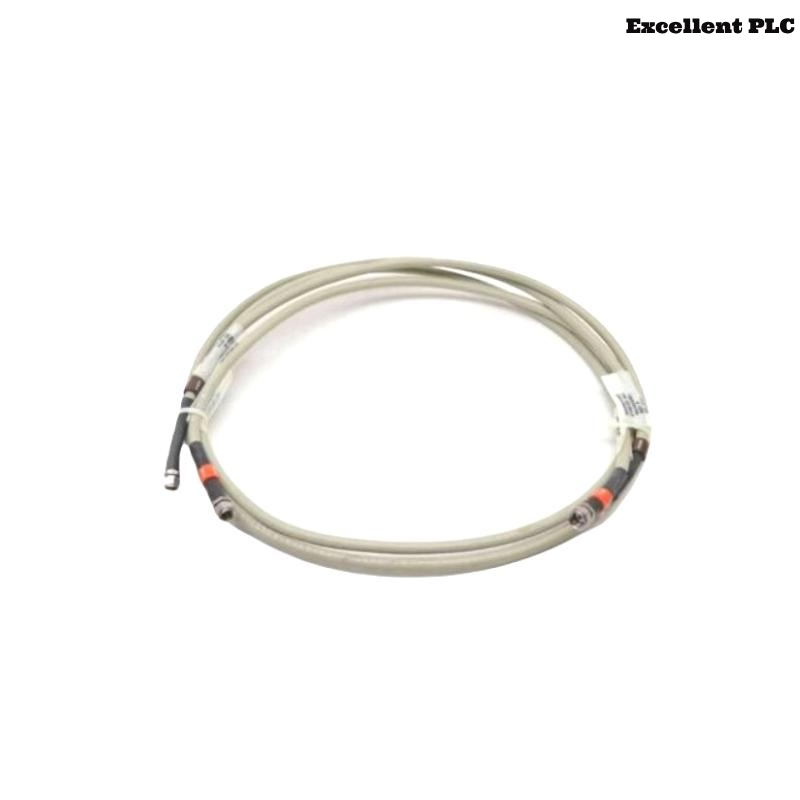

The Honeywell FS-CCI-HSE-30 is a 3 m shielded Ethernet cable designed for high-speed data transmission in industrial environments. It connects high-speed Ethernet channels of the Universal Safety Interface (USI-0001 or USI-0002) to a galvanically isolated Ethernet interface, such as an approved switch. This cable ensures reliable and efficient communication in demanding industrial settings.
Product Specifications
| Parameter | Specification |
| Cable Type | Shielded Twisted Pair (STP) |
| Length | 30 meters |
| Connector Type | RJ45 |
| Cable Jacket Material | PVC (Polyvinyl Chloride) |
| Conductor Material | Copper |
| Wire Gauge | 24 AWG |
| Data Transfer Rate | Up to 1 Gbps |
| Impedance | 100 Ohms |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Bend Radius | 5 times the outer diameter of the cable |
| Compliance | TIA/EIA-568-B.2, ISO/IEC 11801, EN 50173 |
| Cable Length | 3 m |
| Weight | 0.2 kg |
Product Applications
-
Industrial Automation: Connecting sensors, actuators, and other devices in factories and process plants.
-
Building Automation: Connecting control panels, thermostats, and other devices in smart buildings.
-
Security Systems: Connecting security cameras, alarms, and other devices in surveillance systems.
-
Data Acquisition: Connecting data loggers and other devices to sensors and measuring equipment.
Product Advantages
-
Reliable Data Transmission: Shielded, twisted-pair construction ensures consistent and reliable data transfer.
-
Fire-Resistant and Plenum-Rated: Safe for use in air handling spaces, meeting fire safety standards.
-
Durable Construction: Resistant to chemicals, oils, and abrasion, suitable for harsh industrial environments.
-
Flexible Installation: Designed for easy installation, even in tight spaces.
-
High-Speed Performance: Supports various data protocols and communication standards for efficient operation.
Latest News Titles
-
Honeywell Introduces FS-CCI-HSE-30 for Enhanced Industrial Connectivity
-
FS-CCI-HSE-30 Cable Set Gains Popularity in Automation Applications
-
New High-Speed Ethernet Cable Released for Safety Manager Systems
-
Honeywell’s Latest Cable Set Meets Demands of Harsh Industrial Environments
-
FS-CCI-HSE-30: A Reliable Solution for Industrial Communication Needs
Frequently Asked Questions (FAQ)
-
What is the primary use of the FS-CCI-HSE-30 cable?
It connects high-speed Ethernet channels of USI modules to isolated Ethernet interfaces in industrial systems. -
Is the cable suitable for outdoor use?
While durable, it’s primarily designed for indoor industrial environments. -
Does the cable support Gigabit Ethernet?
Yes, it supports data transfer rates up to 1 Gbps. -
Can the cable be used in plenum spaces?
Yes, it’s fire-resistant and plenum-rated for safe use in air handling spaces. -
What is the bend radius of the cable?
The minimum bend radius is five times the outer diameter of the cable. -
Is the cable resistant to chemicals and abrasion?
Yes, it’s designed to withstand harsh industrial conditions. -
What standards does the cable comply with?
It complies with TIA/EIA-568-B.2, ISO/IEC 11801, and EN 50173 standards. -
What is the operating temperature range?
The cable operates between -20°C and +60°C. -
What is the storage temperature range?
It can be stored between -40°C and +80°C. -
What is the weight of the cable?
0.2 kg for the 3 meters length.
Related Models (Same Series or Functionality)
| Model Number | Description | Length | Application |
| FS-CCI-HSE-01 | High-Speed Ethernet Cable Set for USI-0001 | 1 m | Short cable for USI module connectivity |
| FS-CCI-HSE-02 | Ethernet Cable Set for USI-0002 | 2 m | General-purpose Ethernet connection in USI systems |
| FS-CCI-HSE-05 | Industrial STP Ethernet Cable | 5 m | Mid-range applications for process control systems |
| FS-CCI-HSE-10 | Ethernet Cable for Safety Manager Systems | 10 m | Used for Honeywell Safety Manager interconnections |
| FS-CCI-HSE-15 | Shielded High-Speed Ethernet Cable | 15 m | Suitable for field installation in harsh conditions |
| FS-CCI-HSE-20 | Long-distance Communication Cable | 20 m | Extended range Ethernet connectivity |
| FS-CCI-HSE-50 | Extended-Length Industrial Ethernet Cable | 50 m | Large plant or distributed network setups |
| FS-CCI-HSE-EX | Explosion-Proof Ethernet Cable (Optional variant) | Varies | Hazardous area installation |
