Product Introduction

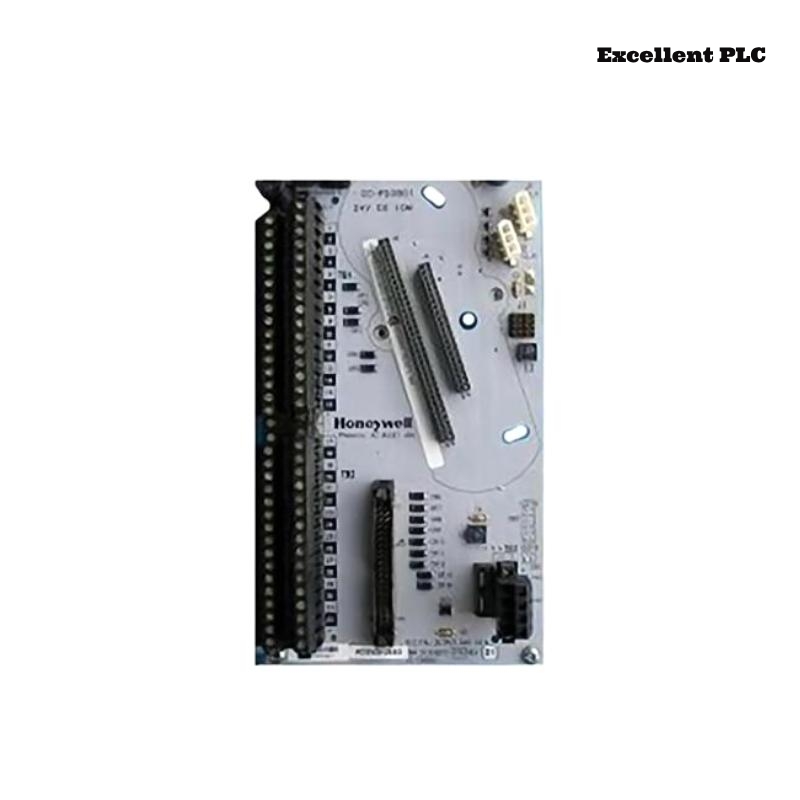

The Honeywell CC-GDIL11 (part number 51306315-175) is a Digital Input GI/IS IOTA (Input Output Termination Assembly) module designed to accommodate up to 32 high-level 24V DC digital input signals. It supports redundancy and allows for galvanically isolated inputs from various isolators, ensuring reliable and safe operation in industrial environments.
Product Specifications:
| Specification | Details |
|---|---|
| Part Number | CC-GDIL11 |
| Manufacturer | Honeywell |
| Product Type | Digital Input GI/IS IOTA Module |
| Input Channels | 32 |
| Input Voltage | 24V DC |
| Supported Isolators | MTL4516, MTL4517 , MTL4599 |
| Redundancy Support | Yes |
| Dimensions | 110 x 130 x 60 mm |
| Weight | 0.45 kg |
| Operating Temperature Range | -20°C to +60°C |
| Isolation Voltage | 1500V AC |
| Power Consumption | 5W max |
Product Applications:
The CC-GDIL11 module is utilized in various industrial applications, including:
-
Process Control Systems: Integrates with control systems to monitor and manage industrial processes.
-
Building Automation: Facilitates the automation of building systems for enhanced efficiency.
-
Industrial Automation: Enables the automation of manufacturing and production lines.
-
Power Generation: Monitors and controls inputs in power generation facilities.
-
Oil and Gas Industry: Ensures safe and reliable operation in hazardous environments.
Product Advantages:
-
High Channel Density: Accommodates up to 32 input channels, allowing for efficient use of space and resources.
-
Redundancy Support: Enhances system reliability by supporting redundant configurations.
-
Galvanic Isolation: Provides isolation between input signals, reducing the risk of interference and enhancing safety.
-
Compatibility with Multiple Isolators: Supports various isolators, offering flexibility in system design.
-
Compact and Lightweight Design: Facilitates easy installation and integration into existing systems.
Honeywell CC-GDIL11 – FAQ (Frequently Asked Questions)
-
What type of input signals does the CC-GDIL11 support?
The CC-GDIL11 is designed for high-level 24V DC digital input signals, typically sourced from galvanically isolated isolators. -
Can this module be used in redundant configurations?
Yes, the CC-GDIL11 supports full redundancy. This allows for parallel operation with a second module for increased system reliability. -
Which isolators are compatible with the CC-GDIL11?
It supports MTL4516 and MTL4517 isolators for input signal conditioning and fault detection. MTL4599 can be used as a dummy for unused channels. -
Is this module suitable for use in hazardous or classified areas?
Absolutely. When paired with the appropriate isolators, the CC-GDIL11 can be used to monitor field devices in hazardous zones. -
How many input channels are available on the CC-GDIL11?
This module offers 32 input channels, allowing a high-density input configuration within compact space constraints. -
Is there galvanic isolation between channels or between field and system sides?
Yes, galvanic isolation is provided to separate input signals from the system side, protecting control electronics from field-side faults. -
What type of wiring or terminal connections are required?
The module uses standard IOTA wiring conventions. Terminal blocks are provided for each channel, and the isolators connect directly to the IOTA. -
How is diagnostics handled in this module?
When used with compatible isolators like MTL4517, the CC-GDIL11 can detect line faults, short circuits, or open conditions. LEDs indicate channel health. -
What is the expected installation environment for this product?
The module is rated for industrial environments, with an operating temperature range typically from -20°C to +60°C, and suitable for control cabinets or marshalling panels. -
Is there any special maintenance or calibration required?
Routine checks for terminal tightness and isolator health are recommended. The module itself does not require calibration or regular service under normal operation.
