Product Overview

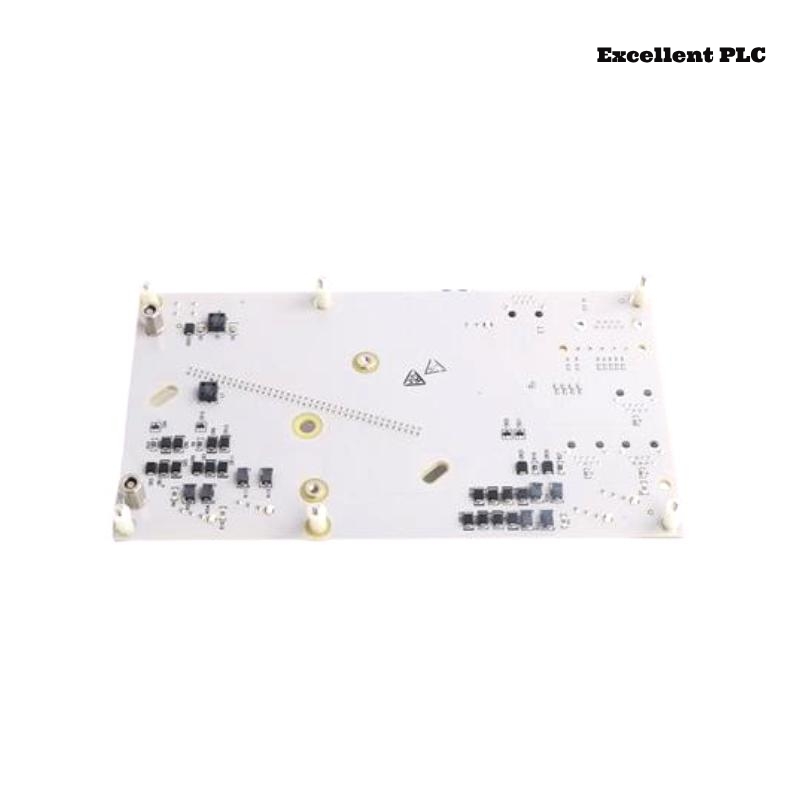

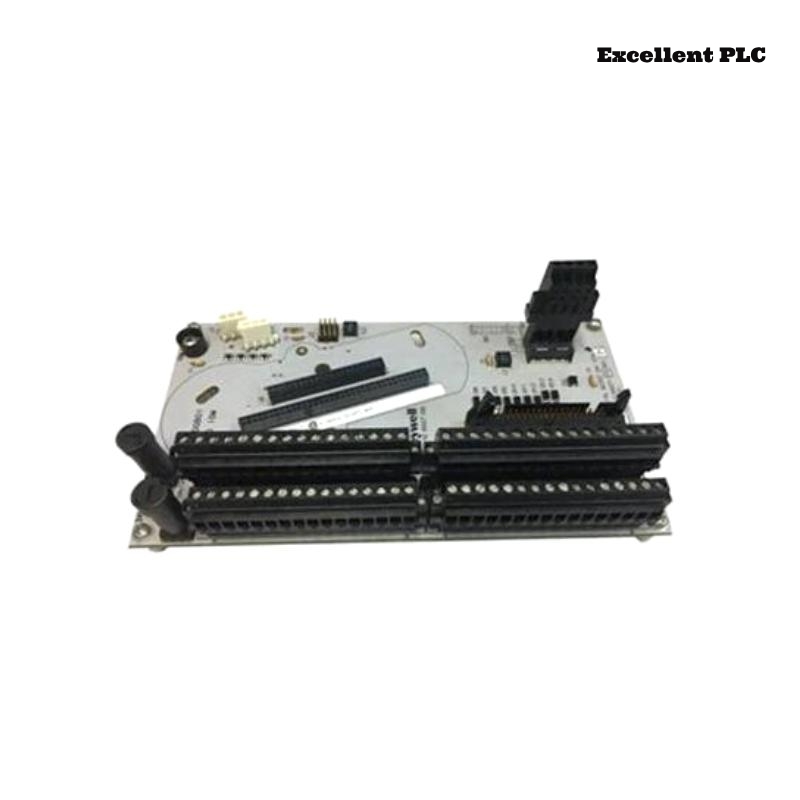

The Honeywell CC-GAOX21 is a Gas Insulated/Intrinsically Safe (GI/IS) Analog Output Module meticulously engineered for deployment in hazardous environments. It delivers a 4-20mA analog output signal proportional to the measured process variable, ensuring precise control and monitoring in industrial applications. This module is compatible with a range of Honeywell transmitters, including those for pressure, temperature, and flow measurements.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Honeywell |
| Product Number | CC-GAOX21 |
| Input Signal | 4-20mA DC |
| Output Signal | 4-20mA DC |
| Accuracy | ±0.5% of full scale |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Humidity Range | 0% to 95% RH, non-condensing |
| Enclosure Rating | IP66 |
| Dimensions | 63.5 x 124.46 x 307.34 mm |
| Weight | 1 kg |
Applications
The Honeywell CC-GAOX21 module is versatile and suitable for various industrial applications, including:
-
Industrial Safety: Provides reliable analog output signals for monitoring and controlling safety systems in hazardous environments.
-
Environmental Monitoring: Facilitates accurate data transmission for environmental sensors measuring variables like gas concentrations.
-
HVAC Systems: Ensures precise control in heating, ventilation, and air conditioning systems by delivering consistent analog signals.
-
Process Control: Integral in process industries for transmitting accurate control signals to actuators and control systems.
Advantages
-
Intrinsically Safe Design: Engineered for use in hazardous locations, minimizing the risk of ignition.
-
High Accuracy: Delivers output with an accuracy of ±0.5% of full scale, ensuring precise process control.
-
Robust Construction: IP66-rated enclosure offers protection against dust and powerful water jets, suitable for harsh environments.
-
Wide Operating Range: Functions effectively in extreme temperatures ranging from -40°C to 80°C.
-
Compatibility: Seamlessly integrates with various Honeywell transmitters, including pressure, temperature, and flow devices.
Recent News Headlines
-
“Honeywell’s CC-GAOX21 Module Enhances Safety in Hazardous Industries”
-
“Innovative Analog Output Solutions: Spotlight on Honeywell’s CC-GAOX21”
-
“Honeywell CC-GAOX21: Advancing Process Control in Extreme Environments”
-
“New Developments in Intrinsically Safe Modules: Honeywell Leads the Way”
-
“Industry Leaders Adopt Honeywell CC-GAOX21 for Enhanced Reliability”
Frequently Asked Questions (FAQ)
-
What is the primary function of the Honeywell CC-GAOX21 Analog Output Module?
-
The module provides a 4-20mA analog output signal proportional to a measured process variable, facilitating accurate control and monitoring in industrial applications.
-
-
Is the CC-GAOX21 suitable for hazardous environments?
-
Yes, it features a Gas Insulated/Intrinsically Safe design, making it ideal for use in hazardous locations.
-
-
What types of transmitters are compatible with the CC-GAOX21?
-
It is compatible with various Honeywell transmitters, including those measuring pressure, temperature, and flow.
-
-
What is the accuracy of the CC-GAOX21 module?
-
The module offers an accuracy of ±0.5% of full scale, ensuring precise signal transmission.
-
-
What are the operating temperature limits for the CC-GAOX21?
-
It operates effectively within a temperature range of -40°C to 80°C (-40°F to 176°F).
-
-
What is the enclosure rating of the CC-GAOX21?
-
The module has an IP66 rating, indicating it is dust-tight and protected against powerful water jets.
-
-
How much does the CC-GAOX21 weigh?
-
The module weighs 1 kg.
-
-
What is the humidity tolerance of the CC-GAOX21?
-
It can operate in environments with 0% to 95% relative humidity, non-condensing.
-
-
Is the CC-GAOX21 easy to install and maintain?
-
Yes, it is designed for straightforward installation and maintenance.
-
-
What is the warranty period for the CC-GAOX21 module?
-
The module typically comes with a 12-month warranty.
-
Related Models to Honeywell CC-GAOX21 (Same Series or Functionality)
| Model Number | Description | Key Features |
|---|---|---|
| CC-GAOX11 | Analog Output Module (standard version) | 4-20 mA output, basic IOTA functionality |
| CC-GAOX22 | Analog Output Module with diagnostics | Advanced diagnostics, extended accuracy |
| CC-GAOX23 | Dual-Channel Analog Output Module | Two analog output channels, redundancy supported |
| CC-TAOX01 | Analog Output I/O Module | Standard I/O integration, 4-20 mA support |
| CC-TAOX11 | Redundant Analog Output Module | Designed for redundant process output pathways |
| CC-PUIO01 | Process Universal I/O Module | Supports both analog and digital I/O |
| CC-GAIH01 | High-Level Analog Input Module | Precision input processing, supports critical process readings |
| CC-GAIX21 | Analog Input Module (GI/IS type) | Intrinsically safe analog input for hazardous environments |
