Product Introduction

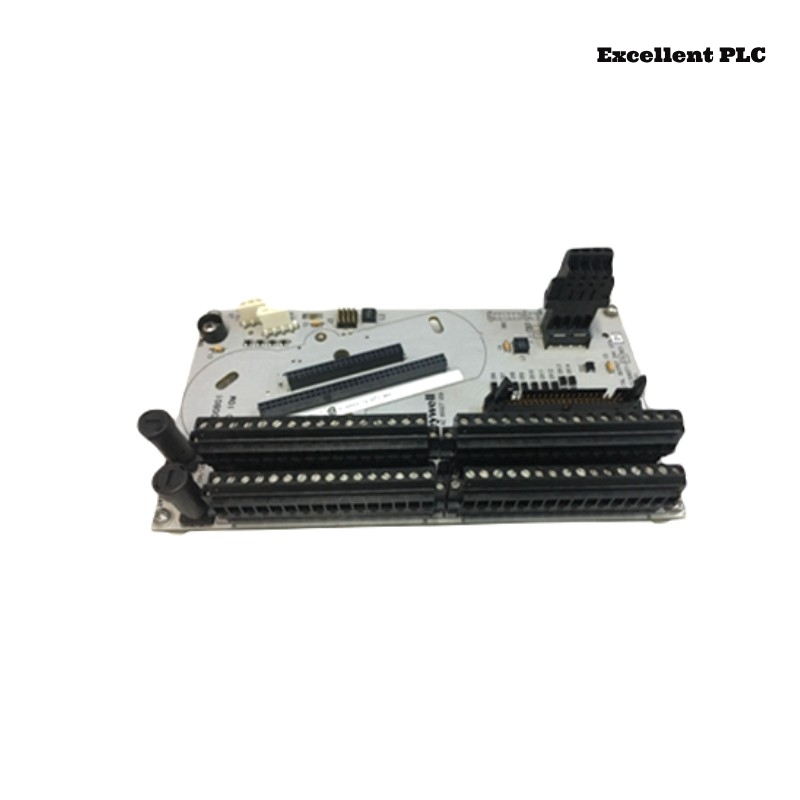

The Honeywell CC-GAIX21 is a high-performance analog input module that integrates seamlessly with Honeywell’s Experion® Process Knowledge System (PKS). It is specifically engineered to handle a wide range of industrial input signals, providing reliable data acquisition and processing capabilities. Its modular design ensures ease of maintenance and flexibility in various industrial settings.
Product Specifications
Here are the detailed specifications of the CC-GAIX21 module:
| Parameter | Specification |
|---|---|
| Model Number | CC-GAIX21 (Part Number: 51306309-175) |
| Input Channels | 4 isolated analog input channels |
| Input Types | Voltage (0 to 10 VDC) or Current (4 to 20 mA) |
| Input Range | -20 to 100 VDC |
| Accuracy | ±0.05% of full scale |
| Noise Level | <100 µV |
| Communication | Supports RS485, RS232, and CAN interfaces |
| Dimensions (L x W x H) | 63.5 x 124.46 x 307.34 mm |
| Weight | 1 kg |
| Operating Temperature | -40°C to 70°C |
| Protection Rating | IP65 (suitable for harsh environments) |
| Mounting | DIN rail mounting system supported |
| Power Supply | Customizable regenerative switch mode power supply with low-voltage output |
| Approvals | CE and RoHS certified |
| Warranty | 12 months |
Applications
The CC-GAIX21 module is versatile and can be utilized in various industrial applications, including:
-
Industrial Automation: Collecting sensor data for process monitoring and control.
-
Process Control: Managing parameters such as temperature, pressure, flow, and level in industries like chemical, oil and gas, and power generation.
-
Safety Systems: Implementing in hazardous environments where explosion-proof and intrinsically safe designs are required.
-
Data Acquisition: Gathering analog signals from field instruments for analysis and decision-making.
Advantages
The CC-GAIX21 module offers several key advantages:
-
High Accuracy: Ensures precise measurement with an accuracy of ±0.05% of full scale.
-
Wide Input Range: Accommodates a broad input range from -20 to 100 VDC, enhancing flexibility.
-
Low Noise Operation: Maintains signal integrity with a noise level below 100 µV.
-
Robust Communication Support: Compatible with multiple communication protocols (RS485, RS232, CAN) for seamless integration.
-
Durable Design: Built to withstand harsh industrial environments with an IP65 rating and operational temperature range of -40°C to 70°C.
-
Modular and Maintainable: Designed for easy maintenance and upgrades, reducing downtime and operational costs.
-
Safety Compliance: Meets international safety standards, making it suitable for use in hazardous areas.
Latest News Titles
-
“Honeywell Introduces Advanced Analog Input Module for Industrial Automation”
-
“CC-GAIX21 Module Enhances Data Acquisition in Harsh Environments”
-
“New Honeywell Module Offers High Precision for Process Control Applications”
-
“Honeywell’s CC-GAIX21: A Game-Changer in Safety System Integration”
-
“Exploring the Features of Honeywell’s Latest Analog Input Module”
-
“CC-GAIX21 Module: Bridging the Gap Between Field Sensors and Control Systems”
-
“Honeywell’s Innovative Approach to Signal Conditioning with CC-GAIX21”
-
“Enhancing Industrial Automation with Honeywell’s CC-GAIX21 Module”
Frequently Asked Questions (FAQ)
-
What type of signals can the Honeywell CC-GAIX21 module accept?
-
The module can accept analog signals from voltage (0 to 10 VDC) and current (4 to 20 mA) sensors.
-
-
How many input channels does the CC-GAIX21 have?
-
It features 4 isolated analog input channels for measuring multiple parameters simultaneously.
-
-
What is the operating temperature range of the module?
-
The module operates within a temperature range of -40°C to 70°C, making it suitable for extreme industrial environments.
-
-
What communication protocols are supported by the CC-GAIX21?
-
The module supports RS485, RS232, and CAN communication protocols for seamless integration with different systems.
-
-
What is the accuracy of the analog inputs on the module?
-
The module provides high accuracy, with a tolerance of ±0.05% of full scale, ensuring precise measurements.
-
-
Can the CC-GAIX21 module be used in hazardous areas?
-
Yes, the module is designed with an IP65 protection rating, making it suitable for use in hazardous and harsh industrial environments.
-
-
How is the Honeywell CC-GAIX21 module mounted?
-
The module can be easily mounted on a DIN rail, simplifying installation and maintenance.
-
-
What is the warranty period for the Honeywell CC-GAIX21 module?
-
The module comes with a 12-month warranty, offering peace of mind and reliable customer support.
-
-
Can the CC-GAIX21 be used for industrial automation applications?
-
Yes, it is ideal for applications in industrial automation, process control, and data acquisition systems.
-
-
What kind of protection does the Honeywell CC-GAIX21 offer against environmental factors?
-
The module is built to withstand harsh conditions with an IP65 rating, which ensures it is dust-tight and protected from water jets.
-
