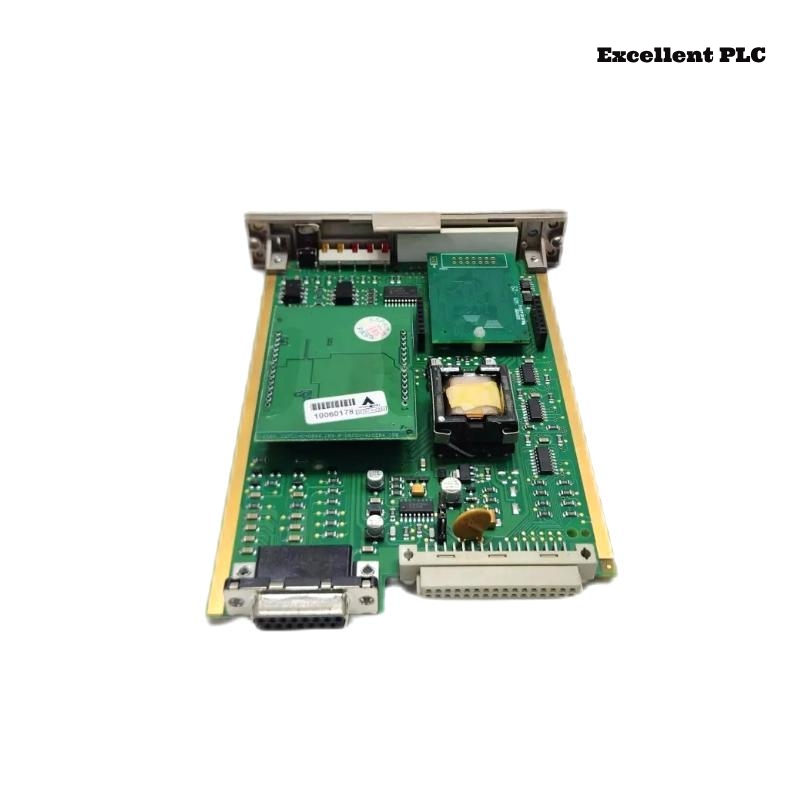

Honeywell 05701-A-0302 – Detailed Product Overview
Product Specifications:
| Specification | Details |
|---|---|
| Model | 05701-A-0302 |
| Type | Single Channel Control Card |
| Input Range | -50°C to +200°C |
| Output Range | 4-20 mA |
| Power Supply | 12-36 V DC |
| Accuracy | ±0.1% of Span |
| Display Type | LCD Display |
| Mounting Type | Panel Mount |
| Enclosure Type | IP65 |
| Dimensions (LxWxH) | 170 x 25 x 112 mm |
| Weight | 0.55 kg |
| Environmental Rating | NEMA 4X, IP65 |
| Operating Temperature | -50°C to +200°C |
| Humidity | 0-95% RH (non-condensing) |
Product Introduction:
The Honeywell 05701-A-0302 Single Channel Control Card is designed for precise temperature measurement in a wide range of industrial applications. With a wide operating temperature range from -50°C to +200°C, this device provides reliable performance in challenging environments. It features an easy-to-read LCD display and is equipped with a standard 4-20 mA output, which makes it easy to integrate into process control systems. The transmitter is housed in a rugged, IP65-rated enclosure, ensuring it is protected against dust and water, making it ideal for harsh industrial environments.
Product Applications:
- Industrial Process Control: The 05701-A-0302 is ideal for use in industries such as chemical, oil, and gas for monitoring temperature in various stages of production.
- HVAC Systems: Used in heating, ventilation, and air conditioning systems to maintain precise temperature control.
- Power Plants: Perfect for monitoring temperatures in power generation systems to ensure operational safety and efficiency.
- Environmental Monitoring: Suitable for tracking environmental conditions, especially in weather stations and outdoor applications.
- Food and Beverage Industry: Helps in controlling temperatures during manufacturing and processing, ensuring optimal product quality.
Product Advantages:
- Wide Temperature Range: The 05701-A-0302 can measure temperatures between -50°C and +200°C, making it suitable for a wide variety of applications.
- High Accuracy: With an accuracy of ±0.1% of span, the transmitter provides highly precise temperature readings.
- Durable Construction: The IP65-rated enclosure ensures that the device is resistant to dust and water, allowing it to function in harsh environments.
- Easy Integration: The 4-20 mA output is compatible with most control and monitoring systems, facilitating seamless integration.
- LCD Display: The built-in LCD display provides real-time readings, making it easy to monitor temperature on-site.
- Low Maintenance: With a robust and reliable design, the Honeywell 05701-A-0302 requires minimal maintenance.
Latest News:
- March 2025: Honeywell has expanded the functionality of the 05701-A-0302, improving its integration with smart systems in industrial IoT setups, enhancing remote monitoring capabilities.
- February 2025: The 05701-A-0302 continues to be widely adopted in various industries, including chemical and petrochemical, due to its exceptional performance in temperature control.
Frequently Asked Questions (FAQs):
-
What is the maximum operating temperature for the Honeywell 05701-A-0302?
- The maximum operating temperature is +200°C.
-
How accurate is the Honeywell 05701-A-0302 temperature transmitter?
- The accuracy is ±0.1% of span.
-
What is the power supply requirement for this device?
- The device requires a DC supply voltage ranging from 12V to 36V.
-
Can this transmitter be used in hazardous environments?
- Yes, with its IP65-rated enclosure, the device can be used in harsh industrial environments, but it may need additional certifications for specific hazardous locations.
-
What type of output does the Honeywell 05701-A-0302 provide?
- It provides a standard 4-20 mA analog output signal.
-
What are the dimensions of the Honeywell 05701-A-0302 transmitter?
- The dimensions are 170 x 25 x 112 mm.
-
What is the weight of the Honeywell 05701-A-0302 transmitter?
- The weight is 0.165 kg.
-
Can the Honeywell 05701-A-0302 be mounted in a panel?
- Yes, it is designed for panel mounting.
-
What is the humidity range of the Honeywell 05701-A-0302?
- The humidity range is 0-95% RH (non-condensing).
-
Is this transmitter easy to install and operate?
- Yes, the device is easy to install with panel-mounting capability and features an intuitive LCD display for easy operation.
