Product Introduction

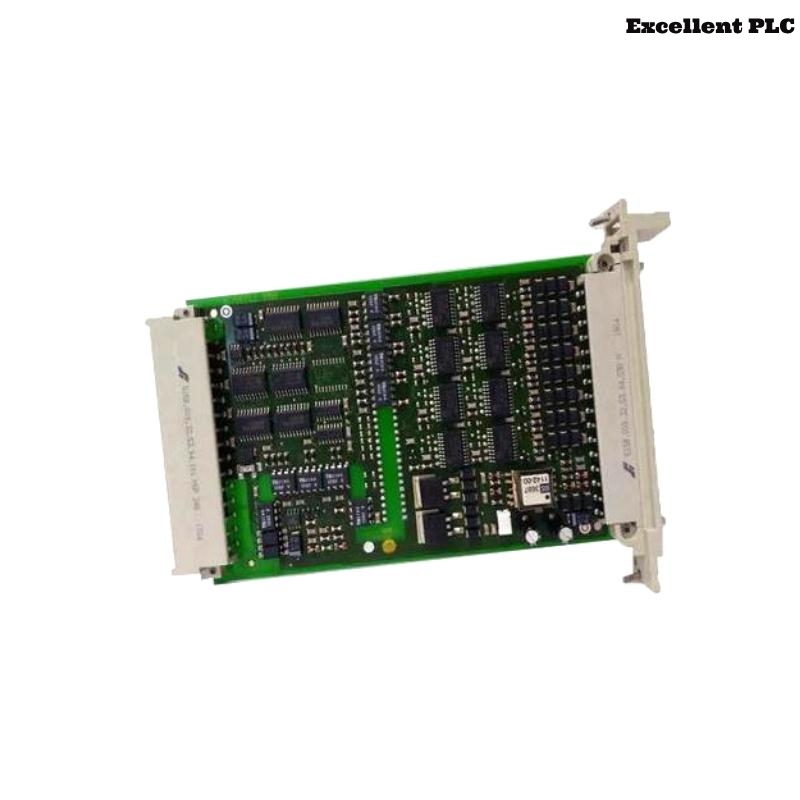

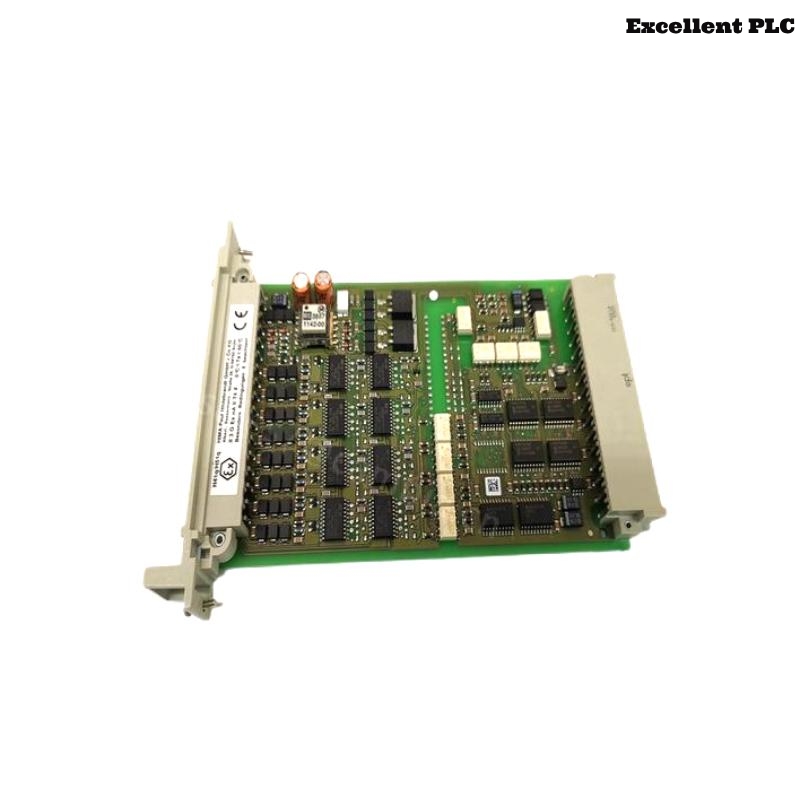

The HIMA F3300 8-Channel Output Module is a high-performance industrial automation component designed to provide reliable output control in process safety systems. This module is part of the F3300 series from HIMA, known for its robustness, high availability, and compliance with international safety standards. The F3300 8-Channel Output Module ensures safe and efficient control in critical process environments where failure-free operation is crucial.
The output module is equipped with 8 channels, each capable of delivering a reliable output signal for controlling actuators, valves, and other industrial equipment. With high integration and compatibility, this module supports a wide range of applications in industries such as oil and gas, chemical processing, power generation, and other sectors requiring stringent safety standards.
The HIMA F3300 series modules are typically used in safety-critical applications where system integrity and reliability are paramount. Their redundant design and compliance with SIL 3 (Safety Integrity Level 3) standards make them ideal for safety systems requiring high fault tolerance.
Product Specifications
| Parameter | Details |
|---|---|
| Model | HIMA F3300 8-Channel Output Module |
| Number of Channels | 8 |
| Output Type | Digital (Relay) / 24V DC |
| Voltage Range | 24 V DC ±20% |
| Current Rating per Channel | 2A max |
| Relay Type | SPDT (Single Pole Double Throw) |
| Power Consumption | 24V DC, 1.2W max per channel |
| Temperature Range | -40°C to +70°C |
| Dimensions (HxWxD) | 120 x 50 x 120 mm |
| Weight | 0.5 kg |
| Redundancy | Yes (redundant power supply) |
| Certifications | SIL 3, IEC 61508, IEC 61511, UL, CE |
| Installation | DIN rail mountable |
Applications
The HIMA F3300 8-Channel Output Module is primarily designed for safety instrumented systems (SIS) in various industries that require high levels of safety, reliability, and performance. The module can be used for:
-
Process Control: Controlling actuators, valves, and pumps in chemical plants, refineries, and other process industries.
-
Safety Shutdown Systems (ESD): Ensuring immediate and safe shutdown in case of critical system failure, such as in oil & gas production facilities.
-
Fire and Gas Systems: Activating safety measures like alarms, isolation valves, or fire suppression systems.
-
Shutdown/Interlock Systems: In nuclear, petrochemical, or pharmaceutical industries to prevent accidents and minimize risk exposure.
The module’s ability to handle critical safety functions makes it especially suited for industries that cannot afford downtime or system malfunctions, and where compliance with international safety standards is essential.
Advantages
-
High Reliability: The F3300 8-Channel Output Module offers an extremely reliable design that ensures safety and continuity of operations. Its redundancy features protect against failures in critical applications.
-
Compliance with SIL 3 Standards: SIL 3 certification ensures that the module can be used in high-risk safety applications, providing guaranteed functional safety.
-
Efficient Performance: Each channel can handle high current outputs (up to 2A), making it suitable for a variety of industrial equipment and applications.
-
Space-Saving Design: With a compact design (120 mm x 50 mm x 120 mm), the F3300 output module can be easily integrated into existing control cabinets without occupying much space.
-
Wide Temperature Range: The module operates in extreme conditions, ranging from -40°C to +70°C, which makes it versatile and adaptable to various environments.
-
Ease of Installation: The module is designed for easy DIN rail mounting, making installation and maintenance straightforward.
FAQ
1.What is the purpose of the HIMA F3300 8-Channel Output Module?
The module is used to control actuators and other output devices in safety-critical industrial processes.
2.What industries benefit from using this module?
It is widely used in the oil and gas, chemical, power generation, and pharmaceutical industries.
3.How does the HIMA F3300 8-Channel Output Module ensure system safety?
The module is SIL 3 certified, providing high reliability and fault tolerance, essential for safety instrumented systems.
4.Can this module be used in high-temperature environments?
Yes, the module can operate in temperatures ranging from -40°C to +70°C, making it suitable for harsh environments.
5.How many channels does the module support?
The HIMA F3300 8-Channel Output Module has 8 channels, each capable of handling up to 2A.
6.What is the maximum current rating for each channel?
Each output channel can handle up to 2A of current.
7.How is the module mounted?
The module is designed to be mounted on a standard DIN rail for easy installation.
8.Does this module have redundancy features?
Yes, the module has redundant power supply capabilities, ensuring continuous operation in case of a failure.
9.What certifications does the module have?
It is certified for SIL 3, and complies with IEC 61508, IEC 61511, UL, and CE standards.
10.What is the weight of the HIMA F3300 8-Channel Output Module?
The module weighs 0.5 kg.
Related Models from the Same Series or Product Line
| Model | Description | Channels | Voltage Range | Certification |
|---|---|---|---|---|
| HIMA F3300 4-Channel Output Module | A smaller version with 4 output channels | 4 | 24V DC ±20% | SIL 3, IEC 61508 |
| HIMA F3300 8-Channel Input Module | 8-channel input version for input control | 8 | 24V DC ±20% | SIL 3, IEC 61508 |
| HIMA F3300 16-Channel Output Module | Extended version for larger applications | 16 | 24V DC ±20% | SIL 3, IEC 61508 |
| HIMA F3300 12-Channel Output Module | Another variant with 12 outputs for high-demand systems | 12 | 24V DC ±20% | SIL 3, IEC 61508 |
| HIMA F3300 8-Channel Digital Input Module | Digital input module for controlling devices | 8 | 24V DC ±20% | SIL 3, IEC 61508 |
| HIMA F3300 8-Channel Analog Output Module | Analog output module for precise control | 8 | 24V DC ±20% | SIL 3, IEC 61508 |
