Product Introduction

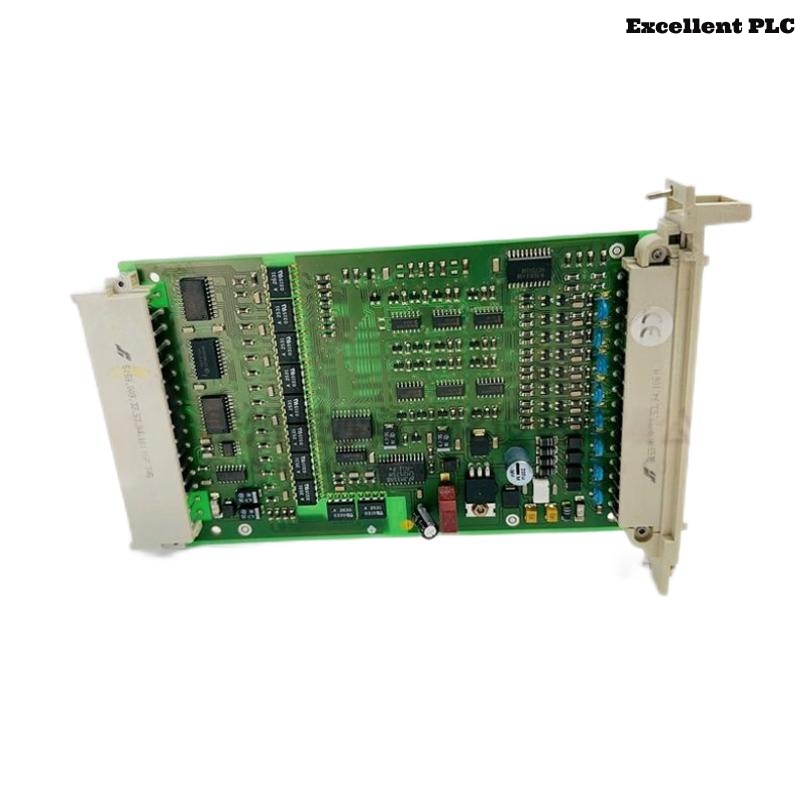

The HIMA F3113A is an 8-channel output amplifier module designed for safety and process control systems in demanding industrial environments. It serves as an integral part of the HIMA safety system, offering high reliability and performance. This output amplifier module is designed to control actuators, valves, and other field devices, ensuring precise operation in safety-critical applications. It is an essential module for industries such as chemical, petrochemical, oil & gas, and power generation.
Product Specifications
The HIMA F3113A 8-Channel Output Amplifier Module is built to provide both flexibility and reliability, ensuring that the system can maintain optimal performance even under extreme conditions. Below are the key specifications for the F3113A module:
| Specification | Details |
|---|---|
| Model | HIMA F3113A |
| Number of Channels | 8 Channels |
| Type | Output Amplifier Module |
| Power Supply | 24 V DC ± 20% |
| Output Current | 0.5 A per channel |
| Nominal Load Voltage | 24 V DC ± 20% |
| Dimensions (L x W x H) | 130 x 25 x 120 mm |
| Weight | 0.325 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Protection | IP20 |
| Mounting | DIN Rail |
| Certifications | SIL 3 Certified, CE, UL |
Product Applications
The HIMA F3113A 8-Channel Output Amplifier Module is ideal for a range of applications in industries requiring high safety and reliability. Some of the key applications include:
-
Process Control Systems: It controls output devices like valves and actuators, ensuring that the process operates within safe limits.
-
Safety Instrumented Systems (SIS): As part of the safety instrumented system, the module ensures that safety-related functions are executed reliably, even in emergency situations.
-
Oil & Gas Industry: In critical applications such as shutdown systems, it ensures smooth operation of safety controls, preventing hazardous conditions.
-
Chemical and Petrochemical Industry: Used in control loops that require high integrity and fail-safe operation.
-
Power Generation: It is used for controlling field devices that regulate processes in power plants and other energy systems.
Advantages of HIMA F3113A
The HIMA F3113A 8-Channel Output Amplifier Module offers several significant advantages that make it an ideal choice for industrial control and safety applications:
-
High Safety Integrity: Certified to SIL 3, the module meets the highest safety standards, ensuring reliable performance in safety-critical environments.
-
Flexible Integration: Designed to easily integrate with existing systems, the F3113A offers compatibility with various control systems and architectures.
-
Wide Temperature Range: With an operating temperature range of -20°C to +60°C, the module can be deployed in harsh industrial environments.
-
Compact Design: Despite its 8-channel capacity, the module is compact, making it easy to install in space-constrained control panels.
-
Durability: Built to last, it offers high resistance to environmental stresses and ensures continuous operation in demanding conditions.
-
User-Friendly Interface: The module is easy to configure and maintain, minimizing downtime and ensuring the smooth operation of control systems.
-
High Reliability: HIMA’s quality and testing processes ensure that the F3113A provides consistent, reliable performance over an extended lifespan.
Frequently Asked Questions (FAQ)
1.What is the purpose of the HIMA F3113A module?
The F3113A module is used to drive output devices like valves and actuators in safety-critical control applications, ensuring precise operation.
2.Which industries can benefit from the F3113A module?
Industries such as chemical, petrochemical, oil & gas, and power generation can benefit from its high reliability and safety performance.
3.What is the safety certification of the F3113A?
The F3113A is certified for Safety Integrity Level 3 (SIL 3), making it suitable for high-risk applications.
4.What is the power supply requirement for the module?
The F3113A requires a 24 V DC ± 20% power supply.
5.What is the weight of the F3113A module?
The module weighs 0.325 kg.
6.How many channels does the F3113A module have?
The module features 8 output channels.
7.What is the temperature range for operating the F3113A?
The module operates in temperatures ranging from -20°C to +60°C.
8.Can the module be mounted on a DIN rail?
Yes, the F3113A module is designed for DIN rail mounting.
9.What certifications does the F3113A have?
The F3113A is certified to SIL 3, CE, and UL standards.
10.What is the environmental protection rating of the F3113A?
The module has an IP20 rating, making it suitable for indoor installations.
Recommended Related Models
Here are six related models that are either part of the same HIMA series or have similar functionality within the safety and process control domain:
| Model | Number of Channels | Output Type | Safety Level | Power Supply | Certifications |
|---|---|---|---|---|---|
| F3103A | 8 Channels | Digital Output | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3121A | 12 Channels | Digital Output | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3112A | 4 Channels | Analog Output | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3130A | 6 Channels | Digital Output | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3101A | 4 Channels | Relay Output | SIL 3 | 24 V DC | SIL 3, CE, UL |
| F3140A | 8 Channels | Analog Output | SIL 3 | 24 V DC | SIL 3, CE, UL |
Popular HIMA Models
Here are six popular models from HIMA known for their reliability and performance in safety-critical applications:
| Model | Channels | Output Type | Power Supply | Safety Certification |
|---|---|---|---|---|
| F30A | 16 Channels | Digital Output | 24 V DC | SIL 3, CE, UL |
| F31A | 8 Channels | Analog Output | 24 V DC | SIL 3, CE, UL |
| F3320 | 8 Channels | Relay Output | 24 V DC | SIL 3, CE, UL |
| F3120 | 8 Channels | Digital Output | 24 V DC | SIL 3, CE, UL |
| F3110 | 4 Channels | Analog Output | 24 V DC | SIL 3, CE, UL |
| F3105 | 16 Channels | Digital Output | 24 V DC | SIL 3, CE, UL |
