Product Introduction

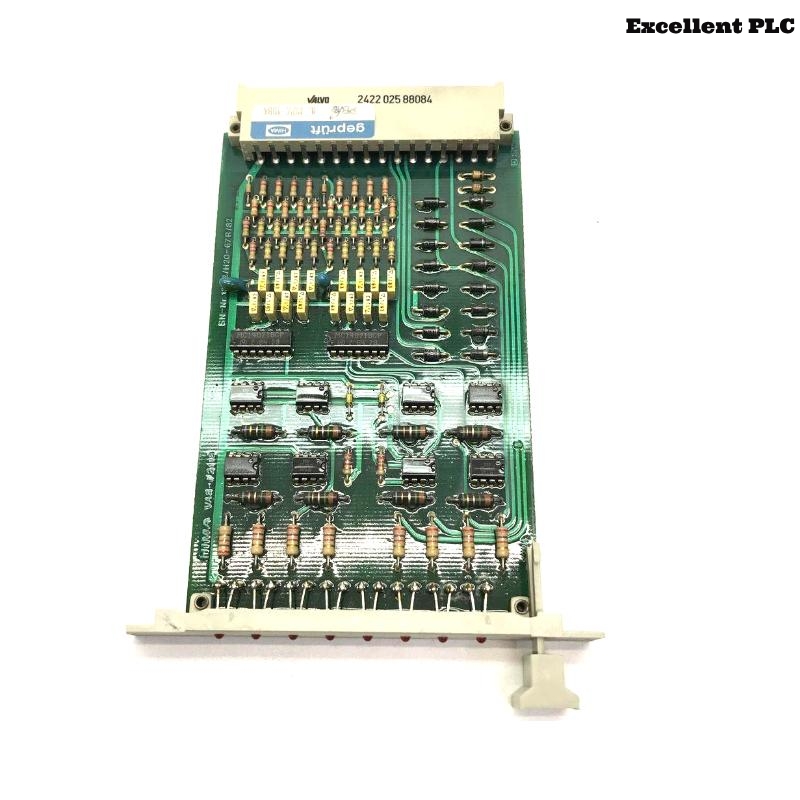

The HIMA F3113 is a high-performance 8-channel output amplifier module designed for industrial safety and automation systems. As part of HIMA’s renowned safety controller hardware ecosystem, this module is engineered to provide safe and reliable signal amplification for controlling final elements such as actuators, solenoids, or indicator lights in process control and factory automation environments.
The F3113 is widely used in emergency shutdown (ESD), fire & gas (F&G), and process control systems, particularly in industries where safety, reliability, and redundancy are critical, such as oil & gas, chemical processing, power generation, and railway automation. The module ensures electrical isolation, robust signal integrity, and compliance with SIL-rated safety requirements.
Product Specifications
| Parameter | Specification |
| Model Number | F3113 |
| Function | 8-Channel Output Amplifier |
| Number of Output Channels | 8 |
| Output Type | Amplified digital output |
| Nominal Supply Voltage | 24 VDC |
| Output Voltage | 18 VDC to 28 VDC |
| Output Current per Channel | Max 0.5 A |
| Channel Isolation | Electrically isolated |
| Internal Diagnostics | Built-in for fault detection |
| Redundancy Support | Yes, with appropriate system integration |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | DIN Rail mounting (standard) |
| Safety Compliance | SIL 3 (IEC 61508), ATEX, CE |
| Dimensions (H x W x D) | 130 x 25 x 120 mm |
| Weight | 0.32 kg |
| Housing Material | Industrial-grade polymer, fire-resistant |
| Connector Type | Pluggable terminal blocks |
| Status Indication | LED status indicators for each channel |
| Cooling Method | Natural convection |
Product Applications
The HIMA F3113 amplifier module is tailored for mission-critical applications where output signals must be amplified for control of external actuators or other field devices. Common applications include:
-
Emergency Shutdown Systems (ESD)
Amplifies output signals to trigger safety valves, shutdown relays, or solenoid-operated actuators. -
Fire and Gas Detection Systems (F&G)
Delivers energized outputs to alarm sirens, flashing lights, or interlocking safety mechanisms. -
Process Control Automation
Used to drive electromechanical devices in DCS or PLC-controlled systems. -
Safety Instrumented Systems (SIS)
Ensures safe state transitions with fault-tolerant signal handling and output diagnostics. -
Industrial Alarm and Indication Panels
Provides energized outputs to signal towers, status lights, or other HMI devices. -
Railway Automation and Signaling
Drives trackside equipment or signal relays with isolated outputs in redundant control environments.
Product Advantages
-
Eight Fully Independent Channels
Ideal for dense I/O configurations, allowing control of multiple field devices with a single module. -
Amplified and Isolated Output
Provides clean, strong signals with electrical isolation, minimizing interference and fault propagation. -
SIL 3 Certified Safety
Fully compliant with IEC 61508 for high-integrity safety applications. -
Built-in Diagnostics
Continuous self-monitoring for each channel ensures operational integrity and rapid fault detection. -
Compact DIN-Rail Design
Saves valuable panel space while maintaining ease of installation and maintenance. -
Versatile Output Range
Supports a wide range of output voltages suitable for diverse industrial devices. -
Seamless Integration
Fully compatible with HIMA HIMatrix and HIQuad systems for scalable, reliable automation.
FAQ – Frequently Asked Questions
1. What is the purpose of the F3113 module?
It functions as an 8-channel output amplifier, enhancing digital signals for controlling external actuators or indicators in safety-critical systems.
2. Is the F3113 suitable for safety-rated systems?
Yes, it is SIL 3 certified per IEC 61508 and suitable for use in certified safety instrumented systems (SIS).
3. What is the maximum current output per channel?
Each output channel can handle up to 0.5 A, which is sufficient for most industrial loads.
4. Can the F3113 be used in redundant configurations?
Yes, it supports redundant operation when integrated into a properly designed system using HIMA safety logic controllers.
5. What happens if one channel fails?
Each channel is independently monitored and isolated, so a failure in one will not affect the others.
6. Is the output signal isolated from the input control logic?
Yes, galvanic isolation is implemented to protect the control system and minimize interference.
7. What type of devices can the F3113 drive?
It can drive relays, solenoids, LED indicators, sounders, and other low-power actuators.
8. How is the F3113 mounted?
The module is designed for DIN rail mounting, making it easy to install into standard automation cabinets.
9. Are there LED indicators on the module?
Yes, each channel has status LEDs to provide real-time feedback on operation and diagnostics.
10. What are the environmental limits for this module?
It can operate between -20°C and +60°C, and be stored between -40°C and +85°C with up to 95% humidity.
Related Models (Same Series / Function Family)
| Model | Description |
| F3117 | 8-channel input module for digital input signals |
| F3114 | 4-channel analog output amplifier module |
| F3221 | Digital input module with high isolation |
| F8627X | 32-channel digital output module for HIQuad systems |
| F3236 | Pulse output module for frequency-controlled outputs |
| F8650E | CPU module with extended diagnostics and redundancy |
Popular HIMA Modules (Same Brand)
| Model | Description |
| F7126 | Analog input module for temperature sensors (RTD/TC) |
| F8650X | Redundant CPU module with high-speed processing |
| F7133 | High-speed digital output module |
| F8621A | 16-channel relay output module |
| F3237 | 16-channel digital output, isolated, failsafe |
| F7508 | Communication interface module for Ethernet/Profibus |
