Product Overview

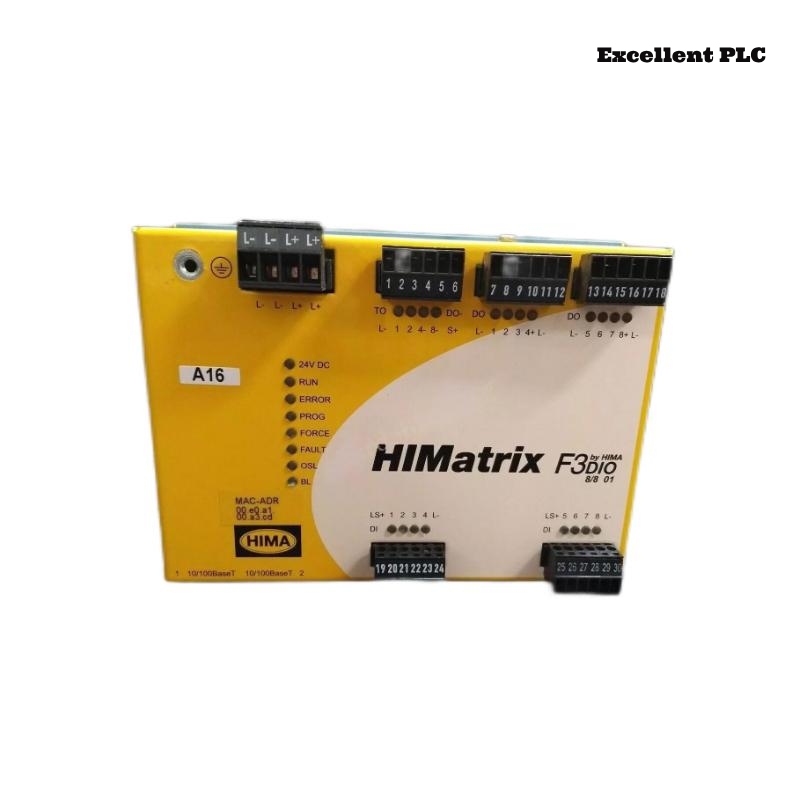

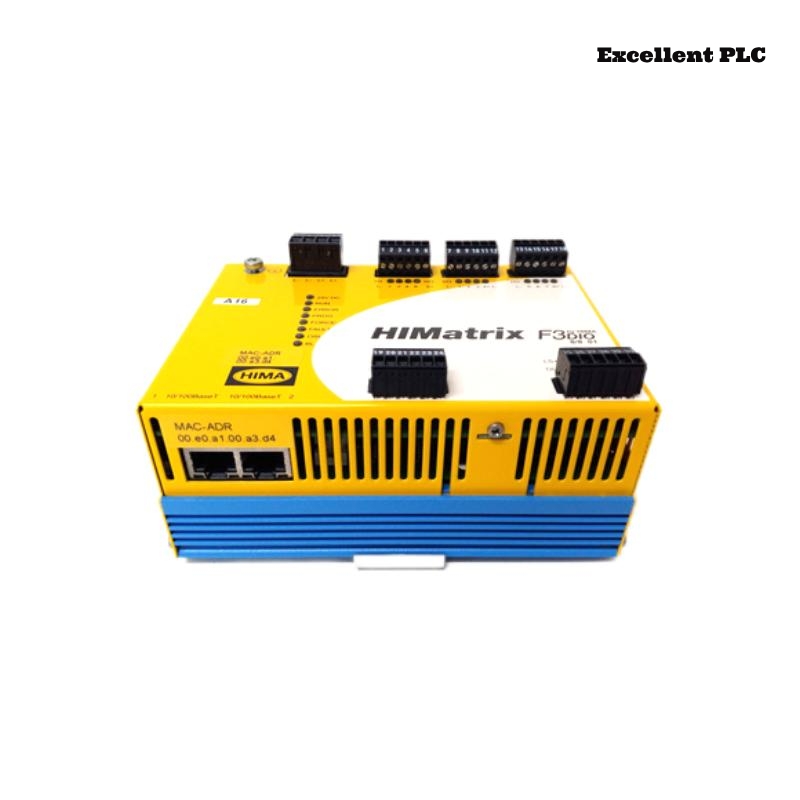

The HIMA F3 DIO 8/8 01 Remote I/O Module is a high-quality, reliable, and flexible digital input/output (I/O) solution designed for industrial automation, safety, and control systems. The module offers 8 digital inputs and 8 digital outputs, making it ideal for applications that require both monitoring and control of digital signals in safety-critical environments.
Part of HIMA’s F3 series, the F3 DIO 8/8 01 module is built for seamless integration into safety-related control systems, offering exceptional performance in harsh industrial conditions. The module is highly configurable, offering flexibility in wiring and ensuring compatibility with various types of external equipment. It is often used in industrial environments where high availability and fast reaction times are essential.
The F3 DIO 8/8 01 module supports a wide range of communication protocols, making it easy to integrate into HIMA’s broader safety systems, such as process control, emergency shutdown systems, and fire and gas detection systems. With its compliance to functional safety standards like IEC 61508 and ISO 13849, this module ensures that your industrial processes are not only efficient but also safe.
Product Parameters
| Feature | Details |
|---|---|
| Model | F3 DIO 8/8 01 |
| Input Channels | 8 Digital Inputs |
| Output Channels | 8 Digital Outputs |
| Voltage Rating | 24V DC |
| Input Voltage | 24V DC (with tolerance) |
| Output Voltage | 24V DC |
| Current Rating (Input) | 4 mA per input |
| Current Rating (Output) | 500 mA per output |
| Signal Type | Digital (On/Off) |
| Mounting Type | Rail Mount |
| Weight | 1 kg |
| Dimensions (L x W x H) | 152 x 114 x 66 mm |
| Temperature Range | -40°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Safety Certifications | IEC 61508, ISO 13849, SIL 3 |
| Communication Protocols | Modbus TCP/IP, Profibus DP, HIMA Redundant Communication |
Applications
The HIMA F3 DIO 8/8 01 Remote I/O Module is designed for use in a wide range of industrial applications where safety, reliability, and flexibility are critical. These applications include:
- Industrial Automation: Ideal for controlling machinery, monitoring processes, and ensuring seamless system operation.
- Emergency Shutdown Systems (ESD): Ensures safe, controlled shutdowns during emergency situations by providing a reliable input/output interface.
- Process Control: Used to monitor process variables and control external devices in various industrial processes, such as oil and gas, chemical plants, and power generation.
- Fire and Gas Detection: Connects to sensors and control alarms, ensuring prompt responses to potential safety hazards.
- Machine Safety Systems: Monitors safety devices and controls responses to avoid accidents or system malfunctions in industrial machinery.
Advantages
- Compact and Efficient Design: With a space-saving design, this module fits in tight spaces, making it ideal for use in compact control systems.
- High Reliability and Availability: The F3 DIO 8/8 01 module is designed for high availability and fault tolerance, ensuring that critical systems remain operational even under challenging conditions.
- Compliance with Safety Standards: Meets IEC 61508 and ISO 13849, ensuring it can be used in applications where functional safety is a requirement (SIL 3).
- Flexible Integration: The module supports multiple communication protocols, which ensures easy integration into various safety systems, including HIMA’s broader control solutions.
- Redundant System Capability: The module’s design enables its integration into redundant architectures, offering increased reliability in high-demand, mission-critical systems.
- Wide Operating Temperature Range: The module operates in temperatures ranging from -40°C to +70°C, making it suitable for use in extreme environmental conditions.
- Simple Installation and Maintenance: Featuring a rail-mounting design and spring-clamp terminals, the module is easy to install and maintain.
Latest News Headlines
- “HIMA F3 DIO 8/8 01 Module Sets New Standards in Industrial Safety”
- “Enhancing Safety and Automation with the HIMA F3 DIO Remote I/O Module”
- “HIMA’s New Digital I/O Module Revolutionizes Emergency Shutdown Systems”
- “F3 DIO 8/8 01: Providing Reliable I/O Solutions for Process Control”
- “HIMA F3 Series: Reliable, Flexible, and Safety-Certified Modules for Modern Automation”
- “Ensuring Safety in Harsh Environments with the HIMA F3 DIO 8/8 01”
- “HIMA Expands Safety Solutions with the F3 DIO 8/8 01 Remote I/O Module”
- “HIMA’s F3 DIO 8/8 01: A Modular I/O Solution for Critical Applications”
- “How the HIMA F3 DIO 8/8 01 Enhances Fire and Gas Detection Systems”
- “Industrial Control Gets Safer and Smarter with HIMA’s F3 DIO 8/8 01 Module”
FAQ
-
What is the primary function of the HIMA F3 DIO 8/8 01 Remote I/O Module?
- The module is designed for handling digital input and output signals in industrial automation, process control, safety systems, and emergency shutdown systems.
-
How many inputs and outputs does the HIMA F3 DIO 8/8 01 module have?
- The module provides 8 digital inputs and 8 digital outputs.
-
What is the voltage rating for this module?
- The module operates on 24V DC.
-
Can the F3 DIO 8/8 01 module be used in safety-critical applications?
- Yes, the module is compliant with IEC 61508 and ISO 13849, making it suitable for safety-critical applications (SIL 3).
-
What is the temperature range for the F3 DIO 8/8 01?
- The module operates within a temperature range of -40°C to +70°C, ensuring reliable performance even in extreme conditions.
-
What type of communication protocols are supported?
- The module supports Modbus TCP/IP, Profibus DP, and HIMA’s proprietary redundant communication protocols.
-
What is the maximum current rating for the outputs?
- The outputs can handle up to 500mA per output.
-
What type of mounting does the F3 DIO 8/8 01 use?
- The module is designed for rail mounting, which simplifies installation and maintenance.
-
What is the weight and size of the module?
- The module weighs 1 kg and its dimensions are 152 x 114 x 66 mm.
-
Can the module be integrated into a redundant system?
- Yes, the F3 DIO 8/8 01 module can be integrated into redundant architectures to enhance system reliability.
