Product Overview

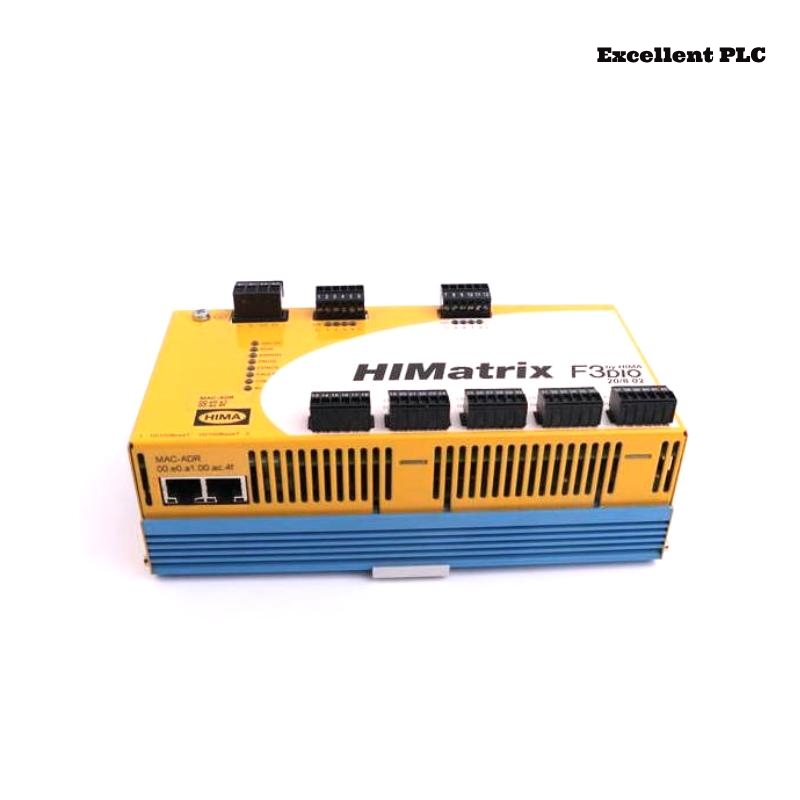

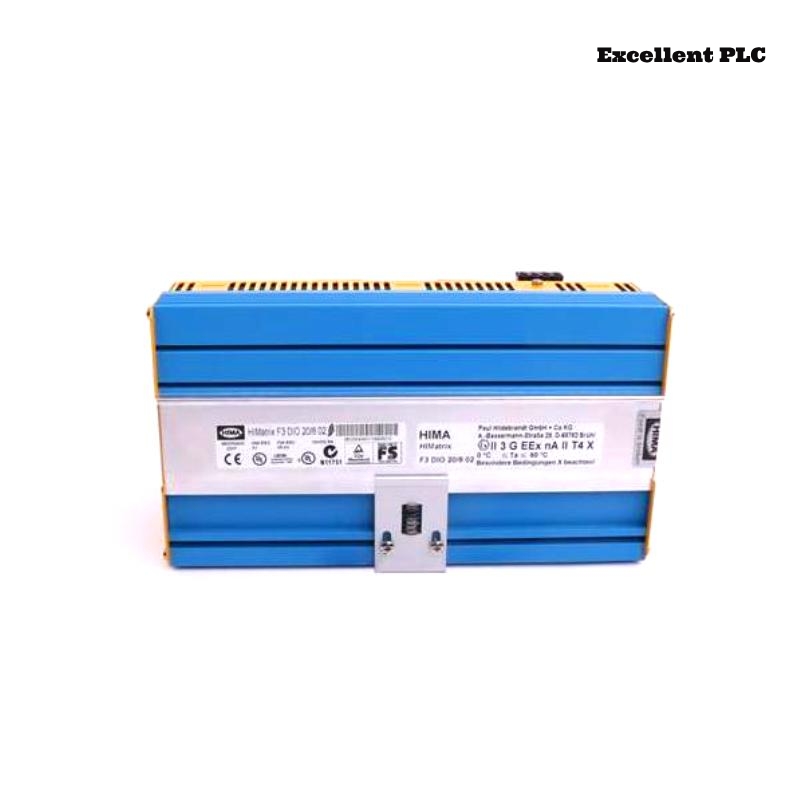

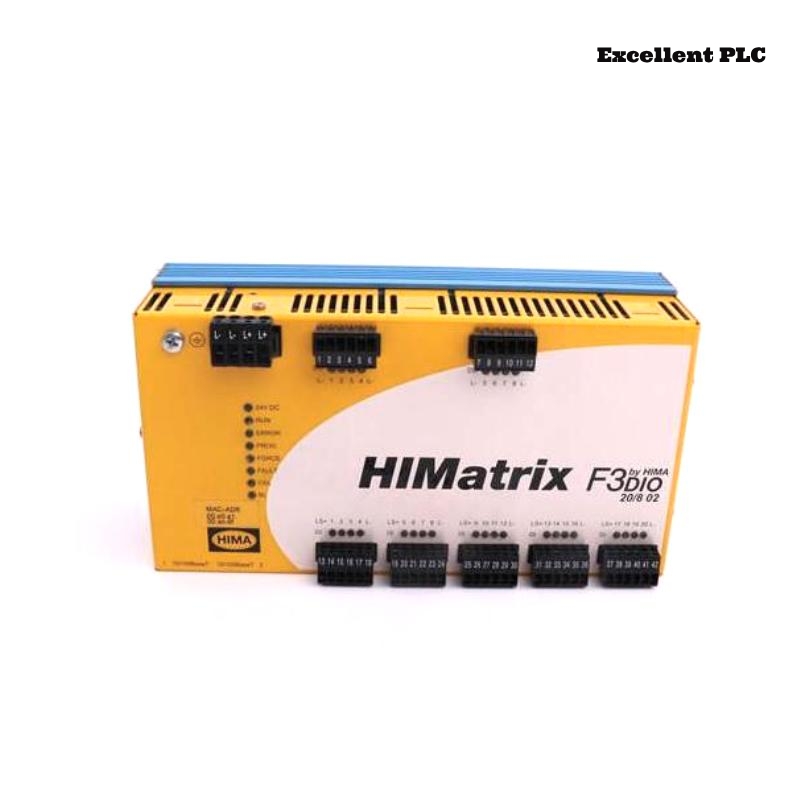

The HIMA F3 DIO 20/8 02 Remote I/O Module is a highly reliable, high-performance I/O module designed for industrial automation and safety systems. It is part of the HIMA F3 series, offering digital input and output functionalities. This module is used primarily in safety-critical applications, ensuring efficient and safe operation in harsh environments. The F3 DIO 20/8 02 is equipped with 20 digital inputs and 8 digital outputs, allowing it to handle a wide variety of control and monitoring tasks in industrial applications.
The module supports integration with HIMA’s safety and control systems, providing redundancy and fault tolerance. It is used for monitoring processes, controlling external devices, and providing safe system shutdowns, all while ensuring compliance with safety standards such as IEC 61508 and ISO 13849.
Product Parameters
| Feature | Details |
|---|---|
| Model | F3 DIO 20/8 02 |
| Input Channels | 20 Digital Inputs |
| Output Channels | 8 Digital Outputs |
| Voltage Rating | 24V DC |
| Current Rating (Input) | 4mA per input |
| Current Rating (Output) | 500mA per output |
| Signal Type | Digital (On/Off) |
| Safety Certifications | IEC 61508, ISO 13849, SIL 3 |
| Dimensions (L x W x H) | 207 x 114 x 66 mm |
| Weight | 1 kg |
| Mounting Type | Rail Mount |
| Connection Type | Spring-Clamp Terminals |
| Temperature Range | -40°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
Applications
The HIMA F3 DIO 20/8 02 Remote I/O Module is used in a wide range of applications where high reliability and safety are paramount. These applications include:
- Industrial Automation: Used to monitor and control industrial processes, ensuring optimal operation and safety.
- Process Control: In critical control systems, this module handles the digital signals required for controlling external machinery or processes.
- Emergency Shutdown Systems (ESD): This module is essential for ensuring the safe shutdown of systems during emergency situations.
- Fire and Gas Detection Systems: The module helps to interface with sensors and alarms, ensuring accurate and timely responses to hazardous situations.
- Machine Safety Systems: Used to monitor the status of safety devices and control the outputs of machine safety systems.
Advantages
- High Reliability: The module is designed for high availability and fault tolerance, making it suitable for mission-critical applications.
- Compliant with Safety Standards: It meets IEC 61508 and ISO 13849, making it ideal for safety-related applications.
- Easy Integration: The module integrates seamlessly into HIMA’s safety systems, making installation and configuration straightforward.
- Wide Temperature Range: With an operating temperature range of -40°C to +70°C, it can function in harsh environmental conditions.
- Flexible Input/Output Configuration: With 20 digital inputs and 8 digital outputs, it provides flexible options for various applications.
- Compact Design: The small form factor allows for easy installation in confined spaces.
Latest News Headlines
- “HIMA F3 DIO 20/8 02 Module: Revolutionizing Safety in Industrial Control”
- “New Digital I/O Module from HIMA Enhances Control System Reliability”
- “HIMA F3 Series: Leading the Way in Functional Safety for Critical Industries”
- “HIMA’s F3 DIO 20/8 02: Redefining Industrial Automation with Advanced Digital I/O”
- “Advanced Safety with the HIMA F3 Digital I/O Module for Industrial Systems”
- “HIMA Expands Product Line with Reliable and Flexible Digital I/O Solutions”
- “Digital I/O Modules: HIMA’s Contribution to Safer Industrial Operations”
- “HIMA F3 DIO 20/8 02: The Digital I/O Solution for Safety-Critical Applications”
- “Ensuring Safety in Automation with HIMA’s Latest I/O Modules”
- “HIMA’s F3 DIO Module: Driving Efficiency in Industrial Automation and Safety”
FAQ
-
What is the primary function of the HIMA F3 DIO 20/8 02 Digital I/O Module?
- The primary function is to provide digital input and output channels for controlling and monitoring processes in industrial applications, particularly those requiring high safety standards.
-
What is the input voltage range of the F3 DIO 20/8 02 module?
- The module operates on a 24V DC voltage range.
-
How many inputs and outputs does the F3 DIO 20/8 02 module have?
- The module has 20 digital inputs and 8 digital outputs.
-
Is the HIMA F3 DIO 20/8 02 module suitable for hazardous environments?
- Yes, it is designed to operate in a wide temperature range of -40°C to +70°C, making it suitable for harsh environments.
-
What safety certifications does the F3 DIO 20/8 02 module meet?
- The module meets IEC 61508, ISO 13849, and is certified for SIL 3 safety applications.
-
How does the HIMA F3 DIO 20/8 02 module ensure reliability?
- It features fault tolerance, redundancy, and a high degree of reliability, making it ideal for safety-critical applications.
-
Can the F3 DIO 20/8 02 be integrated with other HIMA products?
- Yes, it is designed to seamlessly integrate with other HIMA safety and control systems.
-
What is the weight of the F3 DIO 20/8 02 module?
- The module weighs 1 kg.
-
What is the typical use case for this module?
- It is typically used in process control, emergency shutdown systems, fire and gas detection, and machine safety systems.
-
What is the mounting type for the HIMA F3 DIO 20/8 02?
- The module is designed for rail mounting.
