Product Overview

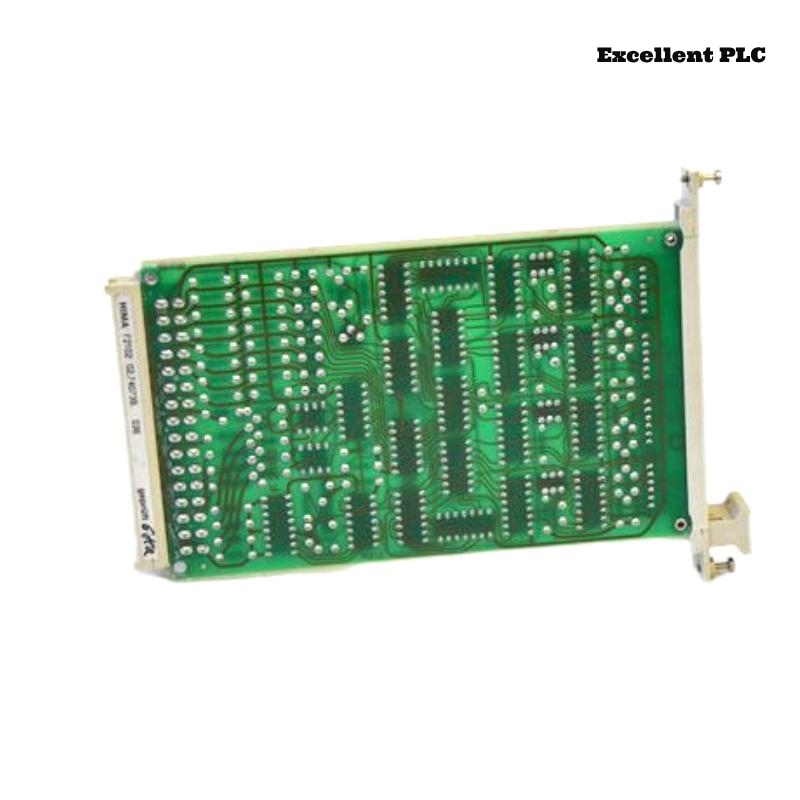

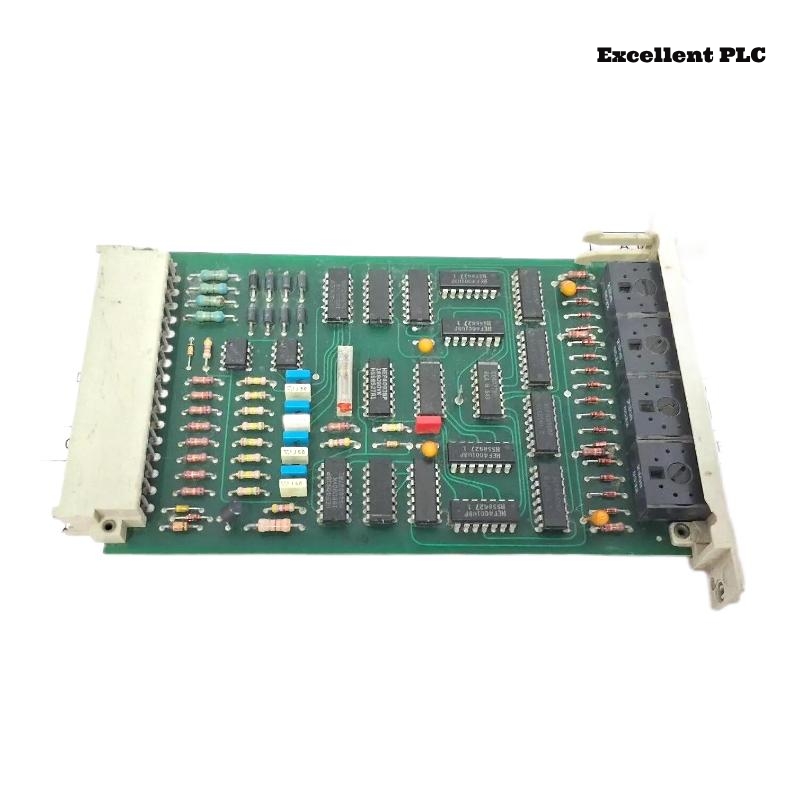

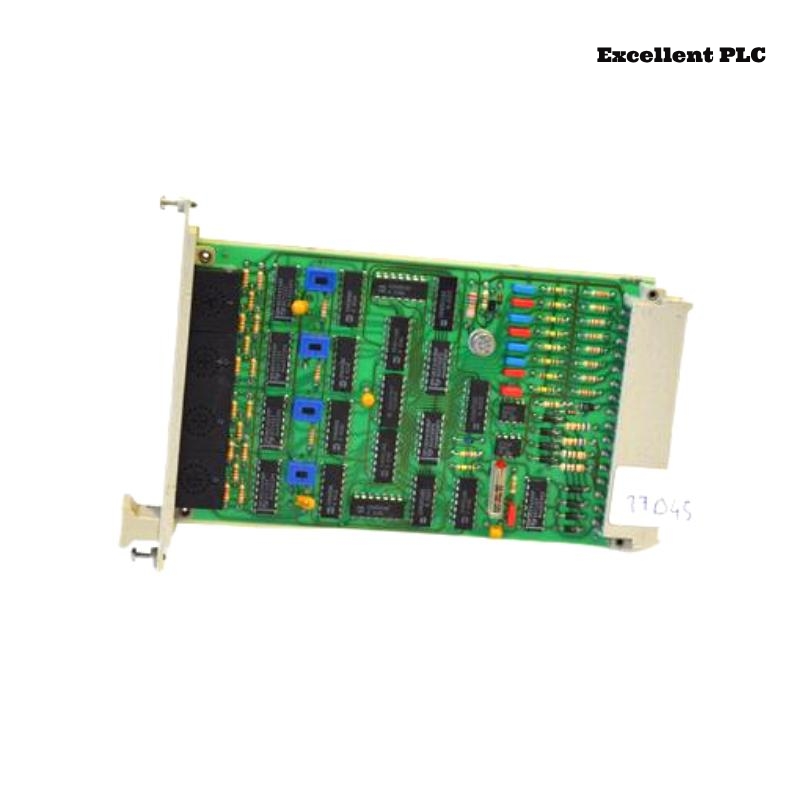

The HIMA F2102 Safety Related Application Module is an integral part of the HIMA F2000 series, specifically designed to meet the demands of safety-related applications within industrial automation systems. This module enhances system reliability by ensuring compliance with safety standards such as IEC 61508, ISO 13849, and others, making it suitable for applications where risk reduction and protection are paramount.
With the F2102 Safety Related Application Module, industrial control systems gain robust performance in managing safety signals, diagnostics, and fault tolerance. The module is equipped with advanced diagnostics, communication capabilities, and a flexible input-output configuration that integrates seamlessly into the HIMA F2000 system, ensuring high availability and safety in critical operations.
Product Specifications
Below is the detailed specification for the HIMA F2102 Safety Related Application Module:
| Parameter | Specification |
|---|---|
| Model Number | HIMA F2102 |
| Function | Safety-related application control module |
| Input/Output Channels | Configurable I/O channels |
| Relay Type | 4 x Form C (SPDT) relay outputs |
| Power Supply | 24V DC nominal (range: 20.4V – 28.8V DC) |
| Power Consumption | < 10W |
| Isolation | Input/output electrical isolation |
| Operating Temperature | -20°C to +60°C (Operating) |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Input Signal Type | 0/24 V DC logic inputs |
| Output Signal Type | 0/24 V DC relay outputs |
| Relay Contact Rating | 5A at 250 VAC, 5A at 30V DC |
| Dimensions | 255 x 114 mm |
| Weight | 2 kg |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, ATEX |
| Fault Diagnostics | Integrated advanced diagnostics and monitoring |
| Redundancy | Supports redundant configuration for critical applications |
Product Applications
The HIMA F2102 Safety Related Application Module is widely utilized in industries where safety and compliance with stringent standards are critical. Its applications span a wide range of sectors, including:
- Process Safety Systems (SIS): Essential for controlling emergency shutdowns and other safety-related functions in hazardous environments such as oil & gas and chemical plants.
- Industrial Automation: Used in industrial machinery, where safety and precision are essential for the protection of operators and machinery.
- Fire and Gas Detection Systems: The F2102 module ensures reliable control and activation of safety devices in response to fire or gas leaks, contributing to the protection of both personnel and assets.
- Shutdown and Safety Alarm Systems: Facilitates automatic shutdown procedures in response to system failures, helping to mitigate risk in critical systems.
- Control of Hazardous Materials: In applications involving hazardous substances, the F2102 ensures that safety protocols are followed without compromising operational efficiency.
- Redundant Systems: The F2102 supports redundant system configurations, ensuring continuous operation in the event of a failure in one part of the system.
- Safety Instrumented Systems (SIS): Integral for safety instrumented functions in industries like power generation, petrochemicals, and transportation.
Product Advantages
The HIMA F2102 Safety Related Application Module stands out due to its numerous features that enhance its value in safety-critical applications:
- High Reliability – Engineered to operate in harsh and hazardous environments, ensuring high system availability.
- Flexibility in Configuration – The module offers configurable I/O channels, allowing users to tailor it to specific application needs.
- Advanced Diagnostics – Equipped with integrated diagnostics that monitor system health and ensure timely interventions in case of faults or degradation.
- Compact and Robust Design – Small form factor that fits into space-constrained environments without compromising functionality.
- Redundancy Support – The F2102 supports redundancy, ensuring fail-safe operation in mission-critical systems.
- High-Quality Relay Outputs – Supports Form C relay contacts, providing flexibility in controlling safety devices.
- Compliance with Safety Standards – Meets international safety standards, including IEC 61508 and ISO 13849, ensuring conformance with industry safety regulations.
- Versatile Power Supply – Operates on a 24V DC supply, offering compatibility with various industrial systems.
- Protection and Isolation – Features high levels of electrical isolation between input and output, preventing signal interference and enhancing safety.
- Proven Technology – As part of the HIMA F2000 series, the F2102 benefits from a proven track record in high-integrity safety systems.
Latest Product News Titles
- HIMA F2102 Ensures Safety and Compliance for Critical Systems
- HIMA F2102 Module: A New Standard in Safety-Related Automation
- Optimizing Risk Management with the HIMA F2102 Safety Module
- F2102 Safety Module Powers Next-Generation Shutdown Systems
- HIMA F2102: The Ultimate Solution for Safety in Hazardous Environments
- Advanced Diagnostics in the New HIMA F2102 Safety Application Module
- HIMA F2102 Brings Redundancy and Fault Tolerance to Industrial Systems
- Safety First: HIMA F2102 Enhances Process Safety with Advanced Features
- HIMA F2102 Module Revolutionizes Safety Instrumented Systems (SIS)
- New HIMA F2102 Module Offers Unmatched Performance in Safety Controls
Frequently Asked Questions (FAQs)
-
What is the function of the HIMA F2102 Safety Related Application Module?
- The F2102 module is designed to manage and control safety-related functions in industrial automation, ensuring compliance with stringent safety standards.
-
How many I/O channels does the F2102 module support?
- The F2102 offers configurable I/O channels, which can be adjusted to meet specific application requirements.
-
What type of relay outputs are supported by the F2102?
- The module supports Form C relay outputs (SPDT), which allows both normally open and normally closed contacts.
-
What is the power supply requirement for the F2102?
- The module operates on a 24V DC nominal power supply with a voltage range of 20.4V to 28.8V DC.
-
Does the F2102 module support redundant configurations?
- Yes, the F2102 supports redundant configurations, ensuring continuous operation in case of system failure.
-
What certifications does the HIMA F2102 module hold?
- The F2102 is certified for CE, UL, CSA, and ATEX standards, making it suitable for use in hazardous environments.
-
What is the operating temperature range for the F2102 module?
- The module operates within a temperature range of -20°C to +60°C.
-
Can the F2102 module be used in explosive environments?
- Yes, the F2102 is ATEX certified, making it suitable for explosive atmospheres.
-
What is the weight and size of the F2102?
- The module has dimensions of 255 x 114 mm and weighs 2 kg.
-
How is fault diagnostics handled in the F2102?
- The F2102 is equipped with advanced diagnostics to monitor the health of the system and provide real-time alerts for fault detection.
