Product Introduction

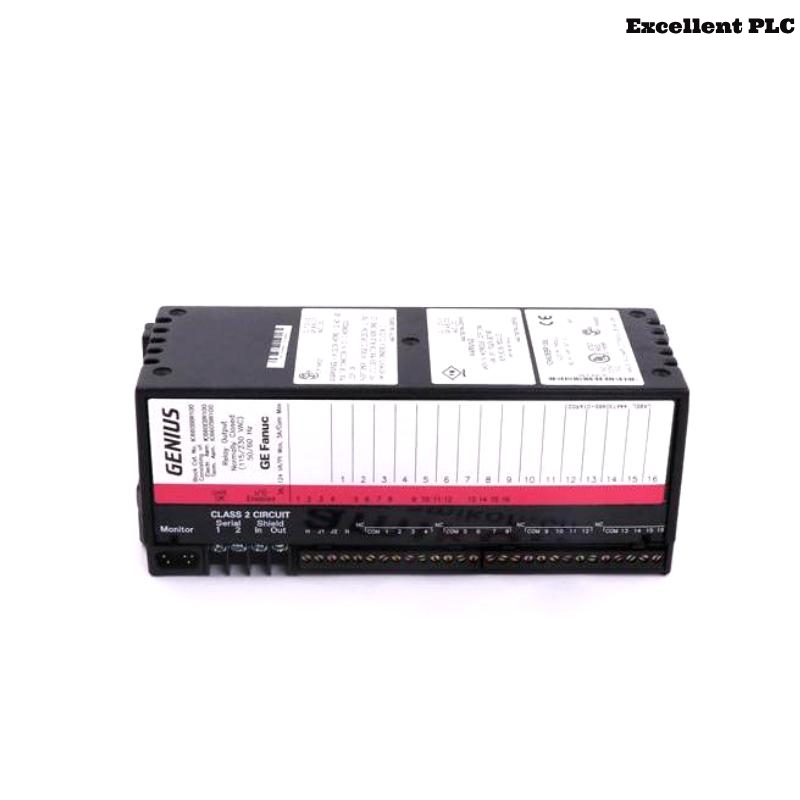

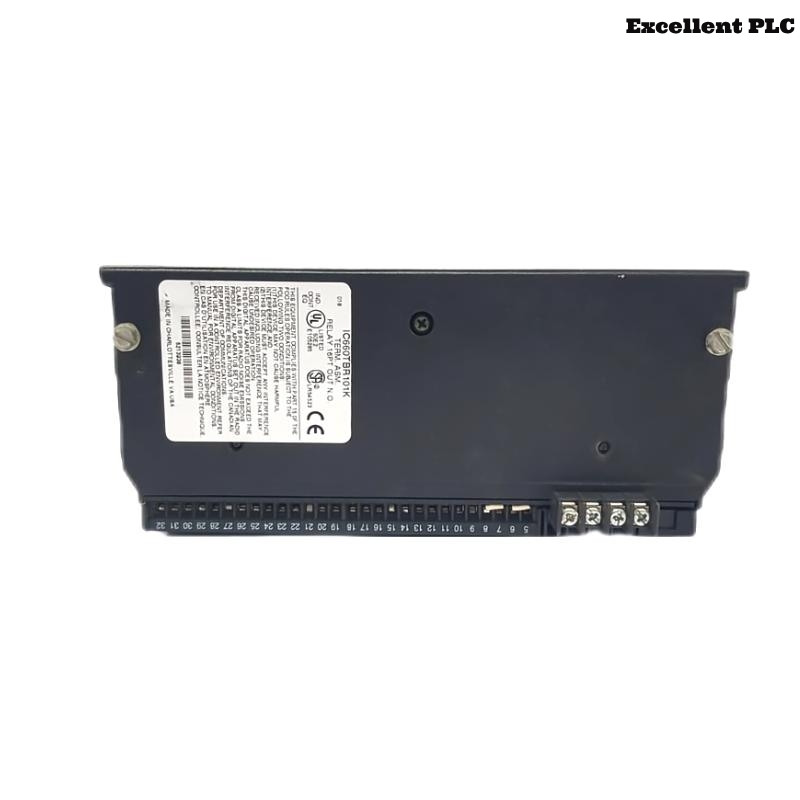

The GE IC660BBR100 is a robust, industrial-grade Relay Output Module designed as part of the GE Fanuc Genius I/O family. This module is engineered to provide normally closed (N.C.) contact outputs for automation control systems in harsh industrial environments. It is particularly well-suited for applications requiring reliable and safe disconnection of circuits in an inactive state.
This relay output block is ideal for controlling solenoids, contactors, indicator lamps, and other devices that demand a secure mechanical disconnect when de-energized. The IC660BBR100 supports redundancy and diagnostics, increasing the reliability of the entire control system. With high isolation and durability, it continues to be a popular choice in industries ranging from manufacturing to energy and infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC660BBR100 |
| Manufacturer | GE Fanuc |
| Module Type | Relay Output Block |
| Output Configuration | Normally Closed (N.C.) Contacts |
| Number of Outputs | 16 |
| Output Voltage Range | 0 – 250 VAC / 0 – 30 VDC |
| Maximum Output Current | 2 Amps per output (resistive load) |
| Total Output Current | 8 Amps total per module |
| Isolation | Optical and relay isolation between field and logic |
| Response Time | Typically less than 10 ms |
| Diagnostics | Built-in diagnostics with LED indicators |
| Hot Insertion/Removal | Supported |
| Backplane Compatibility | Genius I/O Bus |
| Power Supply Voltage | 115/230 VAC or 125 VDC field power (varies by application) |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Weight | 1.72 kg |
| Mounting Type | Panel or DIN Rail Mounting |
| Certifications | UL, CE, CSA |
Product Applications
The IC660BBR100 module is used in a wide variety of industrial control and automation environments. It provides secure and efficient switching for:
-
Process Automation Systems
-
Power Plants
-
Water and Wastewater Treatment
-
Petrochemical Facilities
-
Automotive Manufacturing Lines
-
Packaging and Material Handling Systems
-
SCADA Systems
-
Building Management Systems
-
Pulp and Paper Industries
-
Mining and Heavy Machinery
Its use of normally closed relays ensures fail-safe behavior in case of power failure, which is essential in mission-critical environments.
Product Advantages
-
Fail-Safe Design: Normally closed relays offer reliable protection and safety by ensuring circuits are disconnected in case of power loss.
-
Industrial Durability: Built to withstand harsh environments, temperature fluctuations, and high-vibration settings.
-
Versatile Voltage Compatibility: Handles both AC and DC outputs, supporting a wide range of end devices.
-
Diagnostic Features: Built-in LED status indicators allow for quick and effective troubleshooting.
-
Redundant Safety: Compatible with redundant system configurations for increased system uptime.
-
Hot Swappable: Can be replaced without shutting down the entire system, minimizing downtime.
-
High Output Capacity: Provides up to 2 Amps per channel, suitable for both small and medium-duty industrial loads.
-
Ease of Integration: Seamlessly connects to Genius I/O systems for distributed control architectures.
-
Compact Size: Fits neatly into control panels or modular automation systems without occupying excess space.
-
Global Compliance: Certified for use across North America and Europe, meeting stringent industry standards.
Frequently Asked Questions (FAQ)
-
What is the primary use of the IC660BBR100 module?
It is used to control field devices with normally closed relay outputs in industrial automation systems. -
Can this module operate in both AC and DC circuits?
Yes, it supports up to 250 VAC and 30 VDC on its outputs. -
How many outputs does the IC660BBR100 support?
The module offers 16 relay outputs, each with normally closed contacts. -
Is hot-swapping supported?
Yes, the module can be inserted or removed without powering down the system. -
Does the module provide any status indication?
Yes, it includes LED indicators for diagnostic and operational status monitoring. -
What kind of load can it handle per output?
Each output can handle up to 2 Amps for resistive loads. -
Can I mount this module on a DIN rail?
Yes, it supports both DIN rail and panel mounting. -
Is this module certified for international use?
Yes, it carries UL, CE, and CSA certifications. -
What happens to the output in case of a power failure?
Being normally closed, the output circuit opens automatically, providing a fail-safe condition. -
What control systems is this module compatible with?
It is designed for GE’s Genius I/O system, commonly used in PLC and distributed control systems.
Related Models from the Same Series
| Model Number | Description | Output Type | No. of Outputs | Notes |
|---|---|---|---|---|
| IC660BBD100 | Relay Output Block – Normally Open | Relay (N.O.) | 16 | Companion to IC660BBR100 |
| IC660BBA100 | Analog Output Block | Analog | 8 | For analog signal control |
| IC660TSD020 | Discrete Input Block | Discrete | 16 | High-density input |
| IC660TBA100 | Analog Input Block | Analog | 8 | Ideal for sensors |
| IC660BRD025 | Relay Output Block – Isolated | Isolated Relay | 16 | For high isolation needs |
| IC660ELB912 | Bus Interface Module | Communication Module | – | Genius I/O interface |
Popular Models from GE (Same Brand)
| Model Number | Description | Function Type | Key Feature |
|---|---|---|---|
| IC693CPU364 | CPU Module – Series 90-30 | PLC CPU | Built-in Ethernet |
| IC695CPU320 | PACSystems RX3i CPU | PAC Controller | Advanced logic processing |
| IC200ALG260 | VersaMax Analog Input Module | Analog Input | 8 channels, 12-bit resolution |
| IC697CHS790 | I/O Rack – 5 Slot | Rack | For Series 90-70 system |
| IC694MDL660 | Mixed I/O Module | Mixed Digital I/O | 8 Inputs / 8 Outputs |
| IC693ALG391 | Analog Output Module | Analog Output | 2-channel, 12-bit output |
