Product Introduction

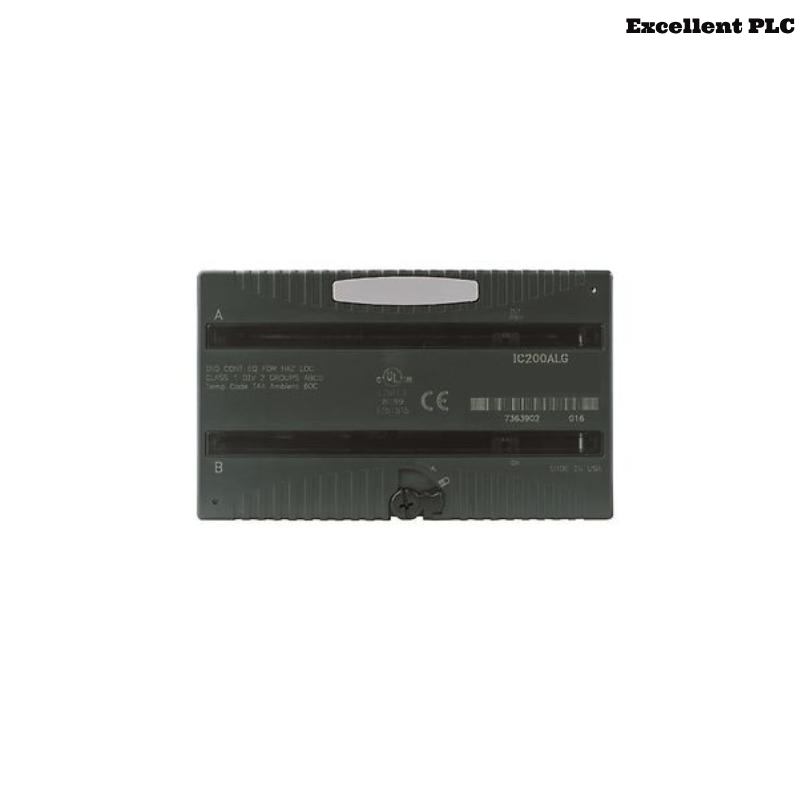

The GE IC200ALG432B is a robust and compact analog mixed module that belongs to the VersaMax™ family by GE Fanuc Automation. This module uniquely combines both analog input and output functionalities within a single unit, which helps reduce hardware footprint and wiring complexity.
The IC200ALG432B provides two analog inputs and two analog outputs, enabling efficient and cost-effective analog signal handling for industrial control applications. This dual-function capability makes it highly suitable for installations where space and modularity are critical. The inputs support voltage-type signals (±10V), while the outputs can deliver precise analog signals in the same voltage range, allowing for seamless integration with sensors and actuators in the field.
Built to meet the demands of modern automation systems, the IC200ALG432B is designed with high signal accuracy, built-in diagnostics, and reliable performance in a wide range of industrial environments.
Product Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE Fanuc |
| Model Number | IC200ALG432B |
| Product Type | Analog Mixed Module |
| Input Channels | 2 Analog Inputs |
| Input Signal Type | ±10V Voltage Input |
| Input Resolution | 12 Bits |
| Input Accuracy | ±0.3% of full scale at 25°C |
| Input Impedance | >10 MΩ |
| Output Channels | 2 Analog Outputs |
| Output Signal Type | ±10V Voltage Output |
| Output Resolution | 12 Bits |
| Output Accuracy | ±0.5% of full scale at 25°C |
| Output Load | ≥2 kΩ (minimum load resistance) |
| Power Consumption | 65 mA @ +5V, 30 mA @ +24V (typical) |
| Isolation | Inputs and outputs isolated from logic and each other |
| Diagnostics | Overrange, underrange, and fault detection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel via VersaMax base |
| Dimensions (W x H x D) | 110 x 66.8 x 50 mm |
| Weight | 0.159 kg |
| Module Type | Mixed Analog I/O Module |
| Backplane Compatibility | VersaMax I/O base |
| Certifications | CE, UL, cUL, Class I Div 2 compliant |
Applications
The IC200ALG432B is a highly versatile module that serves well in a variety of industrial automation sectors. Key applications include:
-
Process Control – Capturing process signals from temperature and pressure transmitters while outputting analog control signals to valves or actuators.
-
Industrial Automation Systems – Ideal for integrating compact analog I/O in control cabinets.
-
Water Treatment Plants – Monitoring chemical concentrations and controlling dosing pumps.
-
HVAC Control – Reading temperature inputs and adjusting analog control signals to VFDs or dampers.
-
Machine Automation – Input and output of analog signals for servo control, position sensors, and other dynamic equipment.
-
Energy Management Systems – Reading voltage signals from power sensors and controlling load banks or relays.
Product Advantages
-
Dual Functionality in One Module: Saves space and reduces cost by combining both analog inputs and outputs.
-
High Signal Precision: 12-bit resolution provides accurate voltage readings and control output.
-
Built-In Diagnostics: Supports open-circuit and overrange/underrange detection for better fault identification.
-
Compact and Lightweight: Fits easily into tight control panel spaces without compromising performance.
-
Flexible Mounting: Easily integrates with VersaMax racks for modular system design.
-
Electrically Isolated Channels: Enhances signal integrity and prevents ground loop issues.
-
Industrial Certifications: Suitable for use in hazardous areas and demanding industrial environments.
Frequently Asked Questions (FAQ)
-
What types of signals does the IC200ALG432B support?
The module supports ±10V analog voltage inputs and outputs. -
Can this module be used in systems requiring both input and output analog signals?
Yes, it has 2 inputs and 2 outputs in a single module, making it perfect for such systems. -
Is this module compatible with VersaMax CPUs?
Yes, it is fully compatible with VersaMax CPUs and NIUs. -
What is the input resolution of the IC200ALG432B?
It offers 12-bit resolution for both input and output channels. -
Is isolation provided between channels?
Yes, inputs and outputs are isolated from the backplane logic and from each other. -
How is the module mounted in a control cabinet?
It is mounted on a VersaMax base, which can be DIN-rail or panel-mounted. -
What software is used for configuration?
Configuration is typically performed using GE’s Proficy Machine Edition software. -
Is this module suitable for outdoor use?
While not weatherproof, it operates reliably in industrial environments within the -20°C to +60°C range. -
What’s the minimum load resistance on the output channels?
The minimum load resistance for the voltage outputs is 2 kΩ. -
Does it support hot swapping?
Yes, like other VersaMax I/O modules, it supports hot swapping when used with appropriate system components.
Related Models (Same Series or Functionality)
| Model | Description | Type | Channels | Signal Range |
|---|---|---|---|---|
| IC200ALG320 | Analog Voltage Output Module | Output Only | 4 | 0–10V |
| IC200ALG331 | Analog Voltage Input Module | Input Only | 8 | ±10V |
| IC200ALG620 | Analog Current Output Module | Output Only | 2 | 4–20 mA |
| IC200ALG630 | Analog Current Input Module | Input Only | 2 | 4–20 mA |
| IC200ALG264L | Isolated Analog Current Input Module | Input Only | 8 | 4–20 mA |
| IC200ALG432A | Earlier version of mixed analog module | Mixed (I/O) | 2/2 | ±10V |
