Product Overview

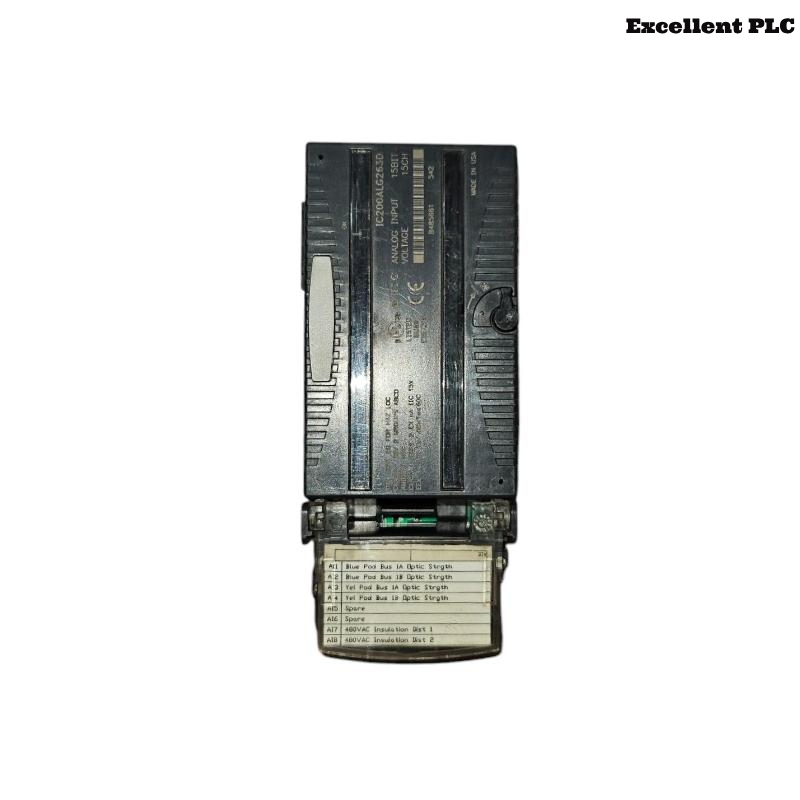

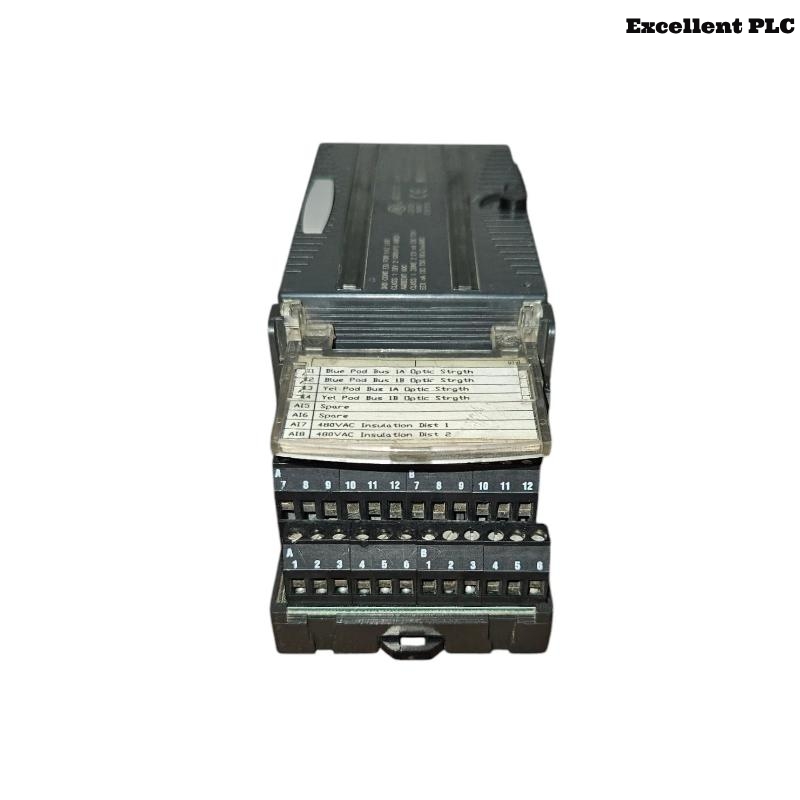

The GE IC200ALG263D is a 15-channel, 15-bit analog input module designed for use with GE Fanuc VersaMax PLC systems. This module provides a reliable interface for acquiring analog voltage signals from various field devices, converting them into digital data for processing by the PLC. It is engineered to offer high accuracy and fast response times, making it suitable for a wide range of industrial automation applications.
The module receives power from the PLC backplane, eliminating the need for an external power supply. It supports single-ended voltage inputs and features built-in isolation to protect against electrical noise and transients. The IC200ALG263D is ideal for applications requiring precise analog signal acquisition, such as process control, monitoring systems, and data acquisition tasks.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | IC200ALG263D |
| Product Type | Analog Input Module |
| Manufacturer | GE Fanuc |
| Input Channels | 15 single-ended channels |
| Input Range | ±10 VDC |
| Resolution | 15 bits |
| Update Rate | 7.5 ms |
| Accuracy at 25°C | ±0.3% of full scale (typical) |
| Input Impedance | 100 kΩ minimum |
| Isolation | 250 V AC continuous; 1500 V AC for 1 minute |
| Backplane Current Draw | 5 VDC at 150 mA maximum |
| Dimensions (W x H x D) | 120 x 30 x 110 mm |
| Weight | 0.454 kg |
| LED Indicators | OK LED, INT PWR LED |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Applications
The IC200ALG263D Analog Input Module is suitable for various industrial applications, including:
-
Process Control Systems: Acquiring analog signals from sensors to monitor and control process variables.
-
Data Acquisition Systems: Collecting analog data for analysis and reporting.
-
Monitoring Systems: Continuously monitoring equipment and environmental conditions.
-
Automation Systems: Integrating with PLCs to automate industrial processes.
-
Test and Measurement Systems: Providing precise analog signal acquisition for testing purposes.
Product Advantages
-
High Accuracy: Offers 15-bit resolution with ±0.3% typical accuracy at 25°C.
-
Fast Response Time: Provides a 7.5 ms update rate for real-time data acquisition.
-
Built-in Isolation: Protects against electrical noise and transients, ensuring reliable operation.
-
Compact Design: Space-saving module that fits into standard PLC racks.
-
Easy Integration: Compatible with GE Fanuc VersaMax PLC systems for seamless integration.
-
No External Power Supply Needed: Powered directly from the PLC backplane, simplifying installation.
Frequently Asked Questions (FAQ)
-
What is the input range of the IC200ALG263D module?
-
The module supports a ±10 VDC input range.
-
-
How many input channels does the module have?
-
It has 15 single-ended input channels.
-
-
What is the resolution of the module?
-
The module provides 15-bit resolution.
-
-
What is the update rate of the module?
-
The module has a 7.5 ms update rate.
-
-
What is the accuracy of the module at 25°C?
-
The typical accuracy is ±0.3% of full scale.
-
-
Does the module require an external power supply?
-
No, it is powered by the PLC backplane.
-
-
What is the isolation rating of the module?
-
It offers 250 V AC continuous isolation and 1500 V AC for 1 minute.
-
-
What is the backplane current draw of the module?
-
The module draws 150 mA maximum at 5 VDC.
-
-
What are the dimensions of the module?
-
The module measures 120 x 30 x 110 mm.
-
-
What is the weight of the module?
-
The module weighs 0.454 kg.
-
