Product Introduction

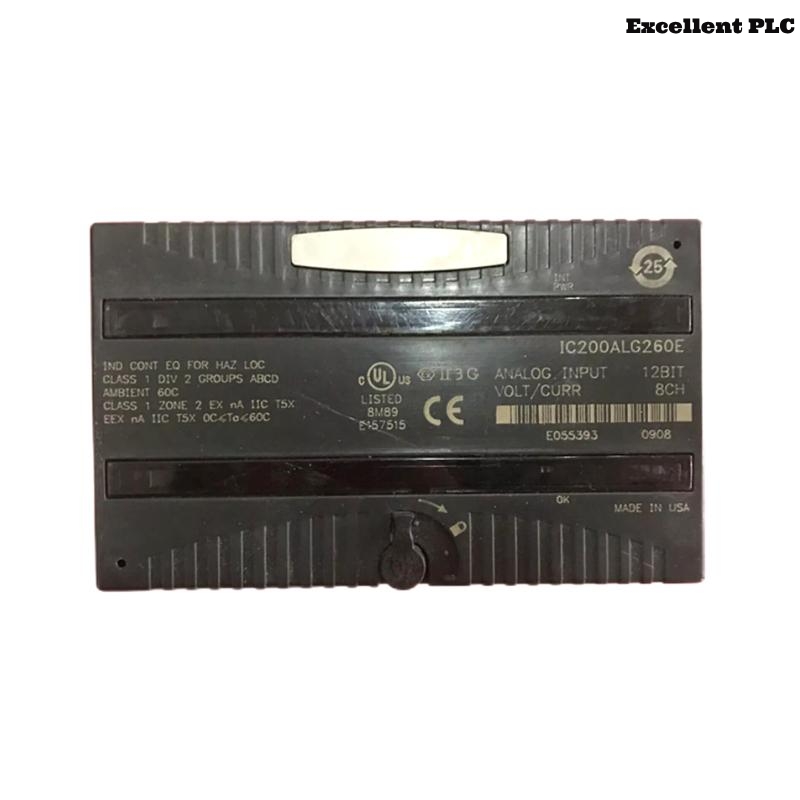

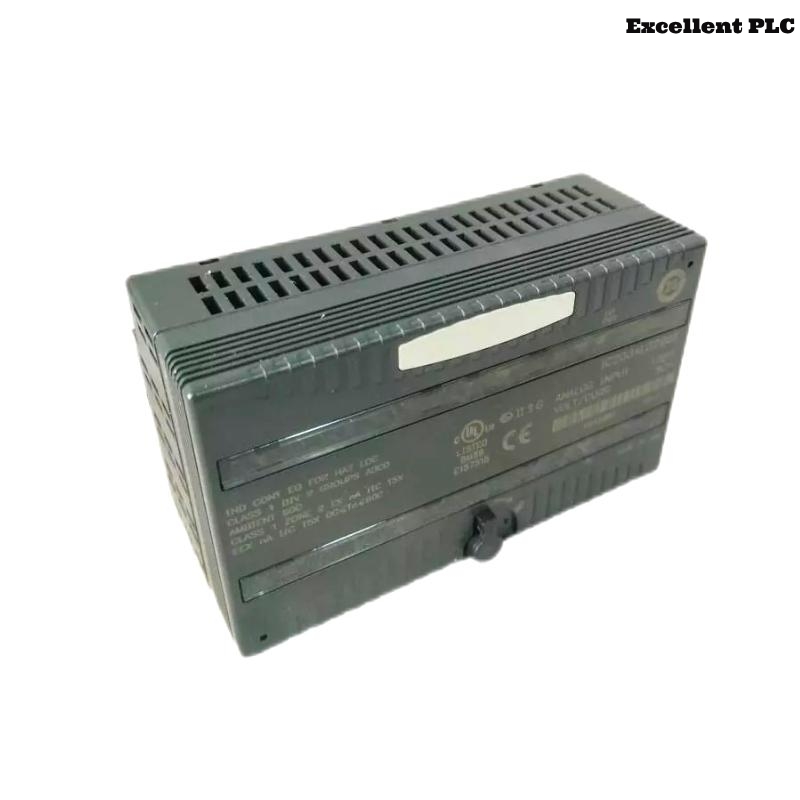

The GE IC200ALG260E is a high-performance Analog Input Module designed for use in GE Fanuc Programmable Logic Controllers (PLCs). This module is ideal for industrial automation applications where high accuracy in signal conversion is critical. The IC200ALG260E supports multiple input types such as voltage and current, making it a versatile choice for various industrial control systems. The module converts the incoming analog signals into digital data, enabling seamless integration into automated systems. It is designed to offer superior functionality, reliability, and flexibility, ensuring long-term operational efficiency in demanding industrial environments.
The IC200ALG260E is part of the GE Fanuc series of modular control systems, known for their reliability and precision. With a resolution of 12 bits, this module ensures that data is processed with minimal loss of accuracy, even in environments with fluctuating input conditions. It is engineered to meet the stringent requirements of industries such as manufacturing, energy, water treatment, and chemical processing.
Product Specifications
| Parameter | Specification |
| Model Number | IC200ALG260E |
| Input Channels | 16 analog input channels |
| Input Range | ±10 V, 0 to 20 mA, 4 to 20 mA |
| Resolution | 12-bit (per channel) |
| Input Type | Voltage or Current |
| Input Impedance | 250 kΩ (Voltage), 150 Ω (Current) |
| Power Consumption | 5 W |
| Supply Voltage | 24 V DC |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions (W × H × D) | 110 x 66.8 x 50 mm |
| Weight | 0.45 kg |
| Mounting Type | DIN Rail |
| Status Indicators | 16 LED indicators for each input |
Product Applications
The GE IC200ALG260E Analog Input Module is used in a wide variety of industries that require accurate data acquisition and control. Below are some common applications:
-
Manufacturing Automation: The module is used in monitoring and controlling parameters such as temperature, pressure, and flow rate in production lines.
-
Energy and Power Generation: It is used in power plants for measuring important parameters like pressure, temperature, and electrical current in turbines, generators, and other critical equipment.
-
Water and Wastewater Treatment: The module plays a key role in monitoring water quality, chemical concentrations, flow rates, and other environmental parameters.
-
Chemical Processing: Used in the chemical industry for precise control of reaction rates, pressure, temperature, and flow to ensure safety and efficiency.
-
Oil & Gas: In upstream and downstream operations, the module is employed to monitor wellhead pressure, flow, and temperature, optimizing extraction and processing.
-
HVAC Systems: The module can be used for controlling and monitoring temperature, humidity, and airflow in heating, ventilation, and air-conditioning systems.
Product Advantages
The GE IC200ALG260E module provides several advantages that make it an excellent choice for industrial control applications:
-
High Accuracy: With a 12-bit resolution per channel, the IC200ALG260E ensures precise analog-to-digital conversion, providing accurate data for system decision-making.
-
Versatility: The module supports both voltage (±10 V) and current (0 to 20 mA, 4 to 20 mA) inputs, making it compatible with a wide range of industrial sensors and devices.
-
Wide Operating Range: The module can operate in temperatures ranging from -20°C to 60°C, ensuring stable performance in a variety of environmental conditions.
-
Compact Design: With its small form factor (6.35 cm × 12.7 cm × 12.7 cm), it saves valuable space in control cabinets and can easily be integrated into existing systems.
-
Reliability: Designed for industrial environments, the IC200ALG260E is built to withstand harsh conditions, providing long-term operational reliability.
-
LED Status Indicators: Each of the 16 input channels is equipped with an LED indicator, making it easy to monitor the status of each input and troubleshoot if necessary.
Frequently Asked Questions (FAQ)
-
What is the purpose of the GE IC200ALG260E module?
The module is used to convert analog signals from field devices (e.g., sensors) into digital signals that can be processed by a PLC. -
How many input channels does the IC200ALG260E have?
The module features 16 analog input channels. -
What is the resolution of this module?
The module provides 12-bit resolution per input channel. -
What types of input signals are supported?
The IC200ALG260E supports both voltage (±10 V) and current (0 to 20 mA, 4 to 20 mA) inputs. -
What is the operating temperature range of the IC200ALG260E?
The module operates within the temperature range of -20°C to 60°C. -
What is the power supply requirement for this module?
The module operates with a 24 V DC supply voltage. -
How is the IC200ALG260E mounted?
It is designed to be mounted on a DIN rail, which makes installation quick and easy. -
Does this module provide status indicators?
Yes, it has 16 LED indicators, one for each input channel, to show the status of the analog signals. -
What is the weight of the IC200ALG260E module?
The module weighs 0.45 kg. -
Can the IC200ALG260E module be used in outdoor environments?
It is designed for industrial environments and should be installed in a controlled, sheltered location to protect it from environmental elements.
Recommended Models – Same Series or Related
| Model Number | Description | Input Channels | Input Type | Resolution |
| IC200ALG261A | Analog Output Module | 8 | Voltage/Current | 12-bit |
| IC200ALG262A | Advanced Analog Input Module | 16 | Voltage/Current | 12-bit |
| IC200ALG263A | Compact Analog Input Module | 8 | Voltage/Current | 10-bit |
| IC200ALG264A | High-Speed Analog Input Module | 16 | Voltage/Current | 14-bit |
| IC200ALG265A | Low Voltage Analog Input Module | 16 | Voltage/Current | 12-bit |
| IC200ALG260D | Extended Range Analog Input Module | 16 | Voltage/Current | 12-bit |
