Product Introduction

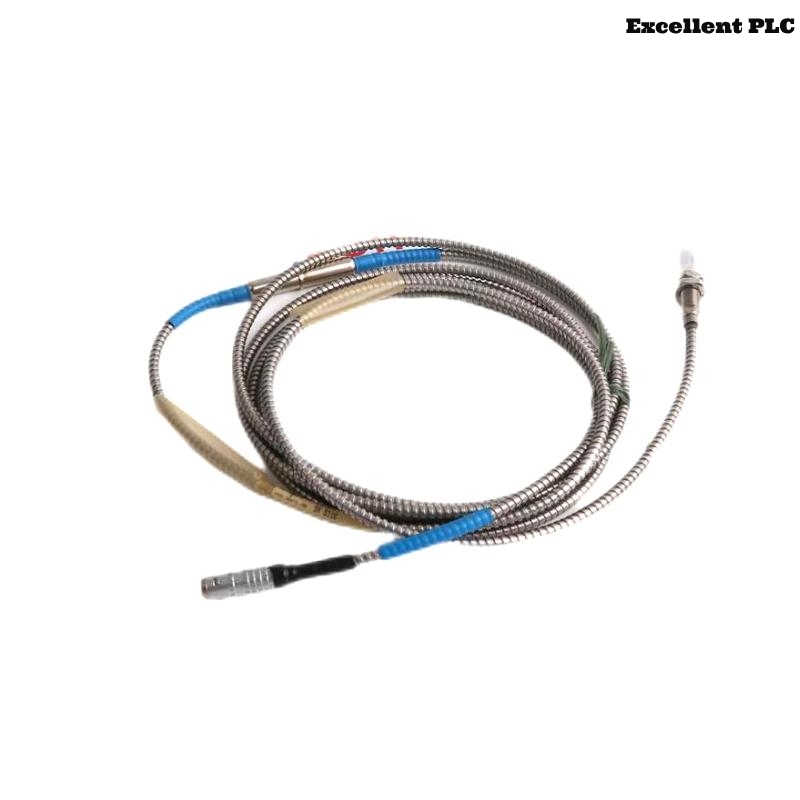

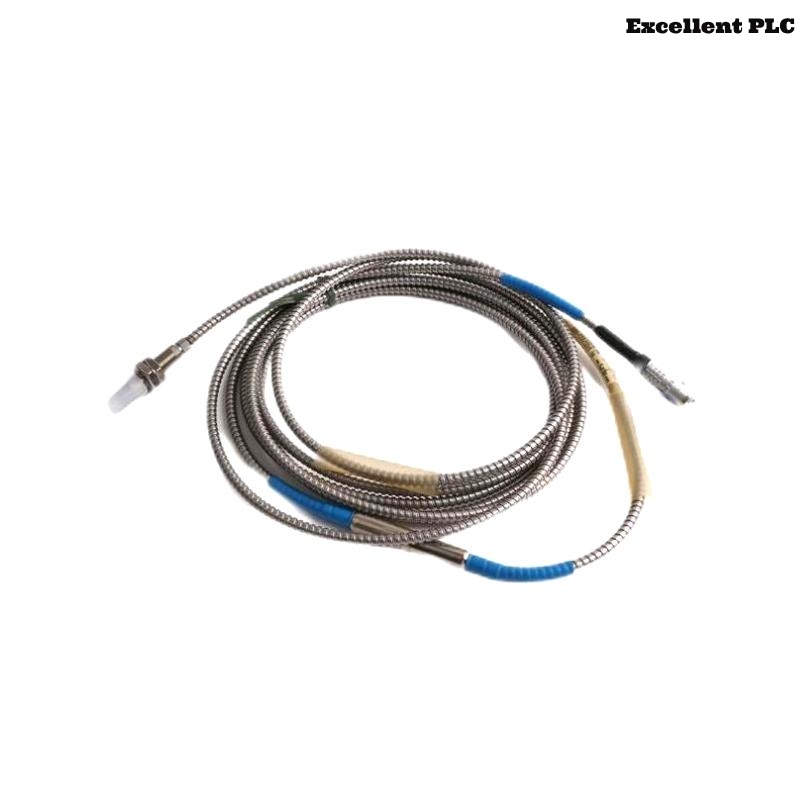

The Epro PR6423/011-000 8mm Eddy Current Sensor is a precision-engineered industrial sensor designed for non-contact measurement of shaft displacement, vibration, and relative position in rotating machinery. As part of Epro’s renowned PR6423 series, this sensor offers high sensitivity, outstanding stability, and robust performance in harsh environments.
Specifically tailored for critical applications where continuous monitoring of machine conditions is essential, the PR6423/011-000 provides reliable feedback to prevent unplanned downtime. Built to handle high vibration, extreme temperatures, and electromagnetic interference, it is a trusted solution for industries such as power generation, oil & gas, petrochemical, and heavy machinery.
With its 8mm tip diameter, this sensor is ideal for medium-sized shaft monitoring, balancing the need for installation flexibility and precise signal output. When paired with matching extension cables and proximity measurement modules (e.g., CON011 or CON021), the PR6423/011-000 delivers a complete eddy current measurement system.
Product Specifications
| Parameter | Details |
| Model | PR6423/011-000 |
| Product Type | Eddy Current Proximity Sensor |
| Sensing Principle | Non-contact eddy current displacement measurement |
| Tip Diameter | 8 mm |
| Measurement Range | Typically 0–2 mm displacement range (adjustable) |
| Frequency Response | Up to 10 kHz |
| Output Signal | Voltage signal (with CON011/CON021) |
| Recommended Target Material | Ferromagnetic metals (e.g., steel) |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +200°C |
| Pressure Resistance | Up to 10 bar (with appropriate housing) |
| Cable Connection | Integrated cable, typically armored for protection |
| Compatible Modules | CON011, CON021 |
| Housing Material | Stainless steel |
| Ingress Protection | IP65 or higher (with proper installation) |
| Certifications | CE, ATEX (with system components) |
| Weight | 0.1 kg |
| Mounting Thread | M10 x 1 or customized per order |
| Isolation Resistance | >10 MΩ |
Product Applications
The Epro PR6423/011-000 Eddy Current Sensor is designed for a wide range of critical industrial applications, including:
-
Turbomachinery Monitoring: Used extensively in gas turbines, steam turbines, compressors, and pumps to detect shaft vibrations and displacements.
-
Rotating Equipment Diagnostics: Monitors critical rotating parts such as shafts, rotors, and bearings for misalignment, imbalance, or wear.
-
Condition Monitoring Systems: Integrates into plant-wide monitoring systems to provide continuous feedback on machine health.
-
Predictive Maintenance: Helps organizations move from reactive to predictive maintenance strategies, preventing costly failures.
-
Power Generation: Ensures reliability in generators, turbines, and other high-value assets within the energy sector.
-
Oil and Gas Industry: Monitors pumps, compressors, and drilling equipment under extreme operating conditions.
In all these applications, the sensor ensures that operators have real-time data to protect assets, maximize uptime, and optimize maintenance schedules.
Product Advantages
-
High Precision Measurements: Capable of detecting minute displacements and vibrations, essential for early fault detection.
-
Wide Operating Temperature Range: Operates reliably from -35°C to +180°C, suiting it for both arctic and high-temperature environments.
-
Robust Construction: Stainless steel housing and armored cable options make it resistant to mechanical damage and environmental exposure.
-
Flexible Installation: Different probe lengths and thread types allow easy customization for various machine geometries and installation spaces.
-
Stable Output Signal: When paired with CON011/CON021 modules, ensures low-noise and stable voltage output for accurate condition monitoring.
-
Non-contact Operation: Eliminates mechanical wear, allowing for longer service life and maintenance-free operation.
-
High Frequency Response: Up to 10 kHz, enabling the sensor to capture rapid dynamic changes in machinery conditions.
-
Certified for Harsh Environments: CE and ATEX certifications (with proper system setup) make it suitable for hazardous locations.
-
Seamless Integration: Easily connects with a range of Epro monitoring systems, simplifying the overall setup process.
-
Cost-Effective Monitoring: Its durability and reliability translate to lower total cost of ownership over the machine’s lifecycle.
Frequently Asked Questions (FAQ)
-
What is the typical sensing range of the PR6423/011-000?
The sensor typically measures displacements within a 0–2 mm range, but this can be fine-tuned depending on the system setup. -
Can the PR6423/011-000 operate in high-temperature environments?
Yes, it is designed to operate in environments up to +180°C. -
Is this sensor suitable for use in hazardous locations?
Yes, when used with properly certified system components like the CON011, the overall system can be ATEX certified. -
What type of material should the target object be made of?
The PR6423/011-000 is optimized for ferromagnetic materials, primarily steel. -
Does the sensor require physical contact with the target?
No, it uses non-contact eddy current measurement, preventing wear and prolonging sensor life. -
What output does the sensor provide?
The sensor, when connected through a module like CON011, provides a proportional voltage output. -
Can I customize the probe length for special installations?
Yes, Epro offers different probe lengths and mounting threads to match customer requirements. -
What kind of cable is used with this sensor?
It comes with an integrated cable, often armored, for mechanical protection in harsh environments. -
What is the ingress protection rating of the PR6423/011-000?
It typically achieves IP65 protection or higher, depending on installation conditions. -
Can the sensor detect fast vibrations?
Yes, with a frequency response of up to 10 kHz, it can capture high-speed vibration signals effectively.
Related Models from the Same Series
| Model | Description | Tip Diameter | Notes |
|---|---|---|---|
| PR6423/010-000 | Eddy Current Sensor, short version | 5 mm | For tight installation spaces |
| PR6423/012-000 | Eddy Current Sensor, long probe | 8 mm | Extended shaft distance |
| PR6423/013-000 | Heavy-duty Eddy Current Sensor | 8 mm | Reinforced for extreme vibration |
| PR6423/015-000 | High-temperature Eddy Current Sensor | 8 mm | For applications up to +230°C |
| PR6423/016-000 | Special design for axial displacement measurement | 8 mm | Axial position monitoring |
| PR6423/017-000 | Miniature Eddy Current Sensor | 5 mm | For compact equipment |
