Product Introduction:

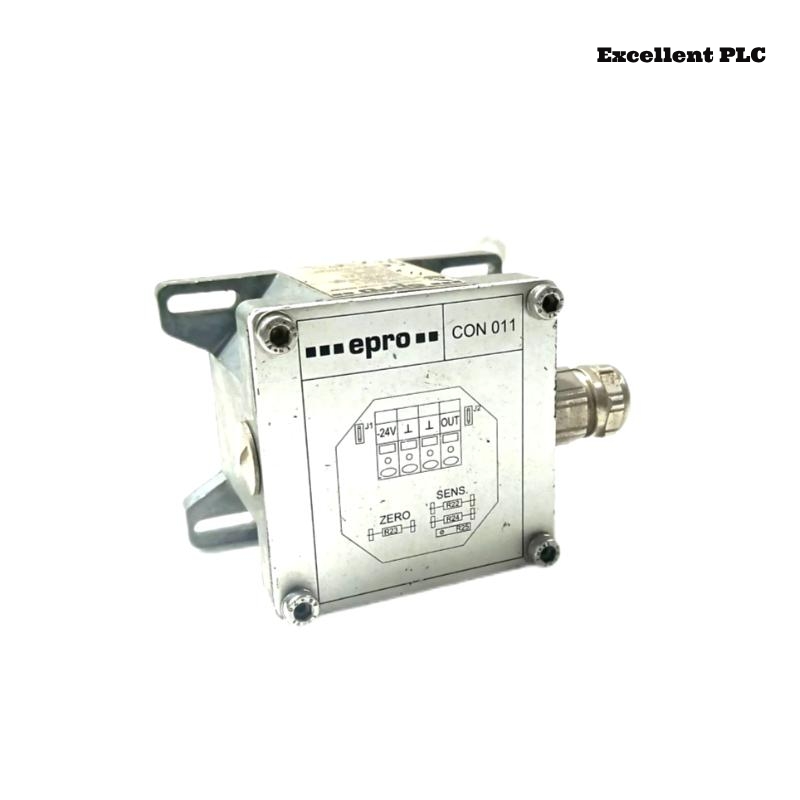

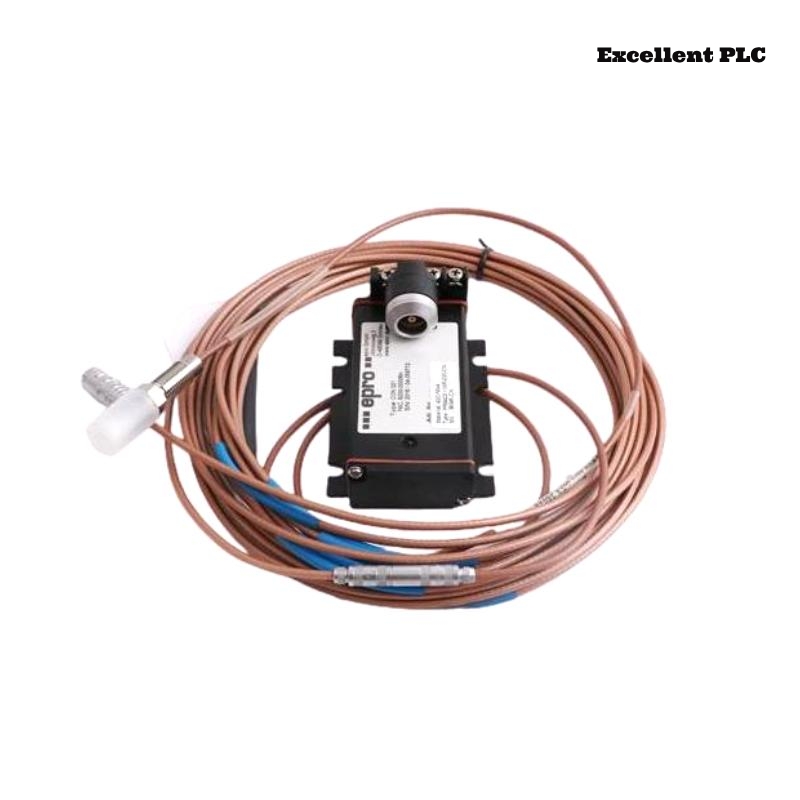

The Epro PR6423/010-140+CON011 8mm Eddy Current Sensor is designed to provide precise and reliable measurement of displacement, distance, and position in various industrial applications. This sensor is part of the Epro PR6423 series and is known for its high sensitivity and accuracy in detecting very small displacements, making it ideal for applications in machinery and process control. The sensor uses eddy current technology, which ensures that it can operate without direct physical contact with the measured surface, reducing wear and tear and increasing the lifespan of the sensor. The Epro PR6423/010-140+CON011 is designed to offer outstanding performance in high-demand environments where precise and continuous monitoring of parameters like position, vibration, or displacement is required.
The sensor operates in a wide range of industrial applications, providing reliable and repeatable measurement results in harsh conditions, such as those found in rotating machinery or production lines. Its advanced technology ensures minimal maintenance and long-term stability, making it a cost-effective solution for applications requiring precision.
Product Specifications:
The following table summarizes the detailed specifications of the Epro PR6423/010-140+CON011 8mm Eddy Current Sensor:
| Parameter | Details |
|---|---|
| Model | Epro PR6423/010-140+CON011 |
| Sensor Type | Eddy Current Sensor |
| Measurement Range | 8mm |
| Output Signal | 4-20 mA (Analog) |
| Power Supply | 24 V DC ± 10% |
| Resolution | 0.1 µm |
| Accuracy | ±1 µm |
| Response Time | <1 ms |
| Frequency Range | 0 Hz – 100 kHz |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Sensor Head Diameter | 8 mm |
| Weight | 0.7 kg |
| Housing Material | Stainless Steel |
| Mounting Type | Threaded (M18) |
| Protection Rating | IP67 (Dust-tight and water-resistant) |
| Cable Length | 3 meters (standard) |
| Certifications | CE, RoHS |
Applications:
The Epro PR6423/010-140+CON011 8mm Eddy Current Sensor is widely used in various industrial settings where accurate measurement of displacement or position is essential. Some key applications include:
-
Rotating Machinery: The sensor is ideal for monitoring the displacement or vibration of rotating machinery, such as motors, turbines, or compressors. It helps in early detection of faults such as imbalance or misalignment.
-
Manufacturing: In manufacturing processes, the sensor can be used for quality control, ensuring that components are positioned correctly during assembly or machining processes.
-
Vibration Monitoring: The sensor is highly effective in vibration analysis, where it can detect even small changes in displacement or vibration to prevent potential damage to machinery.
-
Automotive Industry: In automotive production, the sensor helps monitor the positioning of parts on assembly lines and verifies that components meet strict alignment standards.
-
Industrial Automation: The sensor is often used in industrial automation for precise position measurement, ensuring that robotic arms, conveyors, and other automated systems are functioning properly.
-
Aerospace and Defense: In the aerospace industry, the sensor can be used to monitor critical components in engines or assembly lines, ensuring high levels of accuracy and reliability.
-
Oil & Gas: The sensor can be applied to rotating equipment like pumps and compressors to monitor vibration and position, enhancing the efficiency of the equipment and preventing failures.
-
Pumps & Compressors: Monitoring the displacement of pump shafts or compressor rotors to detect misalignment or wear.
Advantages:
-
Non-Contact Measurement: The Epro PR6423/010-140+CON011 uses eddy current technology, which means there is no physical contact with the surface being measured, reducing wear and tear on both the sensor and the measured object.
-
High Accuracy: With a resolution of 0.1 µm and an accuracy of ±1 µm, this sensor provides exceptional precision for the most demanding applications.
-
Durable and Reliable: Designed for industrial use, the sensor features a rugged stainless steel housing and is rated IP67 for protection against dust and water, ensuring it operates reliably in harsh environments.
-
Fast Response Time: With a response time of less than 1 ms, the sensor can provide real-time measurements, making it suitable for high-speed applications where rapid data collection is critical.
-
Wide Measurement Range: The sensor can measure displacement up to 8mm, making it suitable for a variety of industrial applications where precise measurement is required.
-
Long Lifespan: Because the sensor is non-contact, it experiences less mechanical wear and thus offers a longer service life compared to traditional contact-based measurement devices.
-
Cost-Effective: The sensor’s advanced technology, combined with its durability, minimizes the need for maintenance and replacement, providing a cost-effective solution for industrial measurement.
-
Compact Design: The sensor’s compact size and threaded mounting allow for easy installation in confined spaces or on existing machinery without requiring major modifications.
-
Temperature Resistance: With a wide operating temperature range of -20°C to +85°C, the sensor can operate reliably in a variety of industrial environments, from cold storage areas to high-temperature machinery.
-
Certifications for Safety: The sensor is CE and RoHS certified, ensuring it meets international safety and environmental standards.
Latest News Headlines:
-
“Epro PR6423/010-140+CON011 Sensor Enhances Machinery Condition Monitoring.”
-
“Precision and Durability: Epro’s New 8mm Eddy Current Sensor Revolutionizes Industrial Applications.”
-
“Epro PR6423 Series: A New Era in Non-Contact Measurement Technologies.”
-
“How Epro’s Eddy Current Sensor Improves Vibration Monitoring and Fault Detection.”
-
“Epro’s Latest 8mm Eddy Current Sensor: Compact Design Meets High-Precision Measurement.”
-
“Epro Sensors Empower Industry 4.0 with Advanced Displacement Monitoring.”
-
“New Epro PR6423/010-140+CON011 Sensor Sets a New Standard for Quality Control in Manufacturing.”
-
“Reliable and Accurate: The Role of Epro’s Eddy Current Sensors in Aerospace Applications.”
-
“Boosting Safety and Efficiency with Epro PR6423/010-140+CON011 in the Oil & Gas Sector.”
-
“Epro PR6423/010-140+CON011 Eddy Current Sensor Optimizes Performance in Rotating Machinery.”
Frequently Asked Questions (FAQ):
-
What is the maximum displacement the Epro PR6423/010-140+CON011 sensor can measure?
-
The sensor can measure up to 8mm of displacement.
-
-
What output signal does the sensor provide?
-
The sensor provides a 4-20 mA analog output signal.
-
-
What is the operating temperature range of the sensor?
-
The sensor operates within a temperature range of -20°C to +85°C.
-
-
Is the Epro PR6423/010-140+CON011 sensor suitable for high-speed applications?
-
Yes, it has a fast response time of less than 1 ms, making it suitable for high-speed applications.
-
-
What is the resolution and accuracy of the sensor?
-
The sensor has a resolution of 0.1 µm and an accuracy of ±1 µm.
-
-
Can the Epro PR6423/010-140+CON011 sensor be used in outdoor environments?
-
Yes, the sensor is rated IP67, which provides protection against dust and water, allowing it to be used in outdoor and harsh environments.
-
-
How is the Epro PR6423/010-140+CON011 sensor mounted?
-
The sensor is mounted via a threaded M18 mounting, making it easy to install.
-
-
What is the weight of the Epro PR6423/010-140+CON011 sensor?
-
The sensor weighs 0.7 kg.
-
-
What materials is the sensor made from?
-
The sensor is housed in a durable stainless steel casing, ensuring longevity and resistance to wear.
-
-
Does the Epro PR6423/010-140+CON011 sensor require maintenance?
-
Due to its non-contact nature, the sensor requires minimal maintenance and has a long service life.
-
