Product Introduction

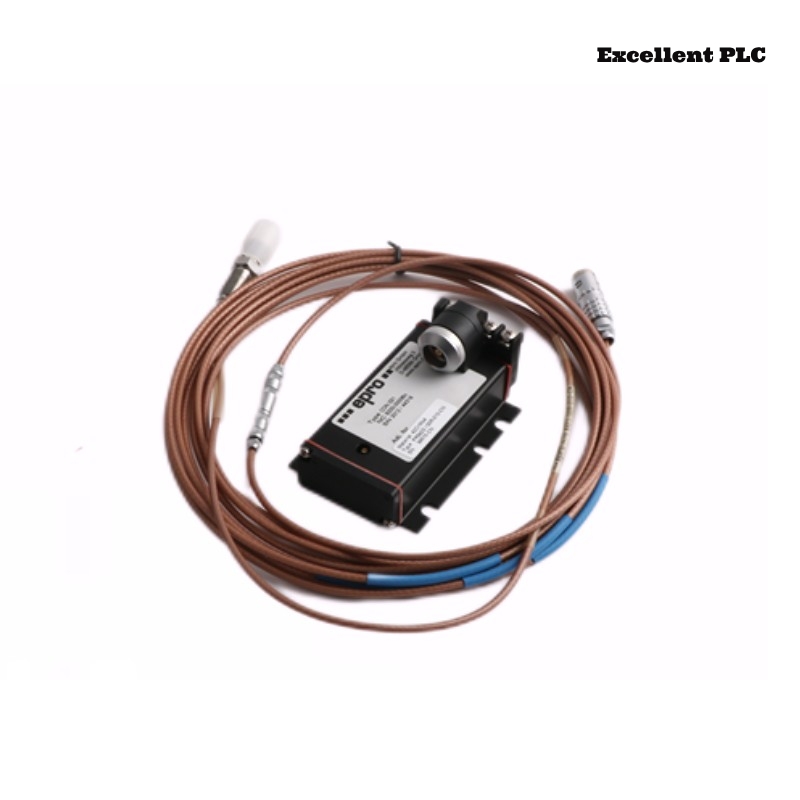

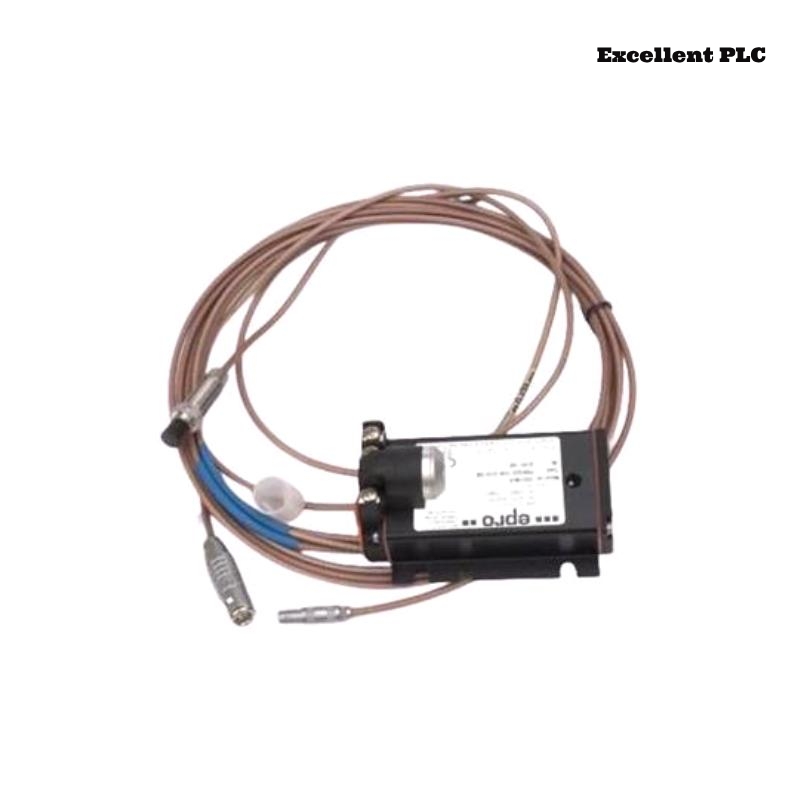

The Epro PR6423/010-140 8mm Eddy Current Sensor is designed to provide high-precision, non-contact measurement for displacement, position, and speed monitoring of metallic objects in industrial environments. Utilizing advanced eddy current technology, this sensor offers accurate and reliable performance even in challenging conditions such as high vibration, high temperatures, and limited space. With a measurement range of 0 to 8 mm and exceptional resolution, it is ideally suited for applications in manufacturing, automotive, aerospace, and rotating machinery industries.
This sensor is especially beneficial in cases where physical contact with the target is not desirable, providing a maintenance-free solution with long-term durability. The PR6423/010-140 model is engineered to withstand harsh environments, offering robust housing and superior protection against environmental factors such as dust and moisture.
Product Specifications
| Specification | Details |
|---|---|
| Model | PR6423/010-140 8mm Eddy Current Sensor |
| Measurement Principle | Eddy Current |
| Measurement Range | 0 – 8 mm |
| Resolution | 0.1 µm |
| Accuracy | ±0.5% of Full Scale |
| Output Signal | Analog (0-10V, 4-20mA), Digital |
| Supply Voltage | 10-30V DC |
| Frequency Response | 20 kHz |
| Operating Temperature | -20°C to +85°C |
| Storage Temperature | -40°C to +100°C |
| Protection Class | IP67 (Dust-tight, Waterproof) |
| Housing Material | Stainless Steel |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
| Connector Type | M12 Connector |
| Mounting Type | Flush Mount |
Product Applications
The Epro PR6423/010-140 8mm Eddy Current Sensor is widely used in a variety of industrial applications, particularly where precision displacement or speed measurements are critical. Its non-contact measurement principle makes it ideal for delicate applications where physical contact with the target would be detrimental. Key applications include:
-
CNC Machines: Used for precise position control and monitoring of moving machine components.
-
Automotive Industry: Essential in monitoring displacement, speed, and vibration of rotating engine components or assembly lines.
-
Aerospace: Monitoring turbine blades and other high-precision aerospace components.
-
Manufacturing: Used in automated production lines for quality control and positioning feedback.
-
Rotating Machinery: Measuring rotor displacement and vibration in motors and turbines.
-
Gearbox Monitoring: Monitoring gear meshing and backlash for maintenance optimization.
-
Vibration Monitoring: Used in vibration testing and monitoring of machinery for predictive maintenance.
-
Test and Measurement: Used in research laboratories and testing applications where high precision is required.
Product Advantages
The Epro PR6423/010-140 8mm Eddy Current Sensor offers several key advantages that make it a preferred choice in many industrial settings:
-
Non-contact Measurement: Prevents wear and tear on the sensor and the target, ensuring longer service life for both.
-
High Precision: With a resolution of 0.1 µm, this sensor provides highly accurate measurements, which is essential for critical monitoring applications.
-
Wide Temperature Range: It operates effectively in environments ranging from -20°C to +85°C, making it suitable for diverse industrial conditions.
-
Durable and Robust: The stainless steel housing and IP67 rating protect the sensor against dust, moisture, and mechanical damage, ensuring long-term reliability.
-
Versatile Output Options: The sensor offers both analog (0-10V, 4-20mA) and digital outputs, making it easy to integrate into existing systems.
-
Fast Response Time: The 20 kHz frequency response ensures real-time measurement feedback, even in high-speed applications.
-
Compact Design: Its small dimensions allow for installation in tight spaces, ideal for use in crowded machinery.
-
Energy Efficient: Operating at a supply voltage of 10-30V DC, the sensor consumes minimal power, contributing to energy savings.
-
Easy Installation: With its flush mounting design and M12 connector, installation is straightforward, ensuring minimal downtime.
-
Maintenance-Free: The non-contact principle means no physical wear on the sensor or the target, reducing maintenance requirements and extending the lifespan of the equipment.
Latest News Titles
-
“Introducing the Epro PR6423/010-140: A Breakthrough in Non-contact Measurement Technology”
-
“Epro PR6423/010-140 8mm Eddy Current Sensor: Perfect for Precision Monitoring in Automotive Applications”
-
“Why Epro PR6423/010-140 is the Ideal Solution for Aerospace Displacement Measurements”
-
“Epro PR6423/010-140: A Key Player in Improving Manufacturing Efficiency and Quality Control”
-
“Enhancing CNC Precision with Epro PR6423/010-140 Eddy Current Sensor”
-
“Epro’s 8mm Eddy Current Sensor Revolutionizes Gearbox Monitoring and Vibration Analysis”
-
“Durability and Precision: Epro PR6423/010-140 Takes Vibration Testing to New Heights”
-
“The Role of the Epro PR6423/010-140 in Predictive Maintenance for Rotating Machinery”
-
“How Epro PR6423/010-140 is Supporting Advanced Research in Displacement Measurement”
-
“Epro’s PR6423/010-140: The Ultimate Non-contact Solution for High-Speed Applications”
FAQ (Frequently Asked Questions)
-
What is the Epro PR6423/010-140 Eddy Current Sensor used for?
-
It is used for non-contact measurement of displacement, position, and speed in various industrial applications.
-
-
What is the measurement range of this sensor?
-
The measurement range is from 0 to 8 mm.
-
-
How accurate is the Epro PR6423/010-140 sensor?
-
The sensor offers an accuracy of ±0.5% of full scale.
-
-
What output signals does the Epro PR6423/010-140 provide?
-
The sensor provides both analog (0-10V, 4-20mA) and digital outputs.
-
-
What is the operating temperature range for this sensor?
-
The sensor operates between -20°C to +85°C.
-
-
What is the protection class of the Epro PR6423/010-140 sensor?
-
The sensor has an IP67 protection rating, meaning it is dust-tight and waterproof.
-
-
What is the housing material of this sensor?
-
The housing is made of durable stainless steel.
-
-
What is the cable length for this sensor?
-
The sensor comes with a standard 2-meter cable.
-
-
Can the Epro PR6423/010-140 be used in high-speed applications?
-
Yes, with a frequency response of 20 kHz, it is well-suited for high-speed measurement applications.
-
-
How is the Epro PR6423/010-140 sensor mounted?
-
It features a flush mount design, making it easy to install in a variety of setups.
-
Related Models (Same Series or Category)
| Model | Measurement Range | Output Signal | Frequency Response | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| PR6423/010-130 | 0 – 12 mm | Analog (0-10V, 4-20mA) | 20 kHz | 160 mm x 45 mm x 35 mm | 0.6 kg |
| PR6423/010-120 | 0 – 10 mm | Analog (0-10V, 4-20mA) | 20 kHz | 150 mm x 40 mm x 30 mm | 0.5 kg |
| PR6423/010-110 | 0 – 5 mm | Analog (0-10V, 4-20mA) | 20 kHz | 140 mm x 38 mm x 28 mm | 0.45 kg |
| PR6423/010-150 | 0 – 20 mm | Analog (0-10V, 4-20mA) | 20 kHz | 180 mm x 50 mm x 45 mm | 0.75 kg |
| PR6423/010-160 | 0 – 25 mm | Analog (0-10V, 4-20mA) | 20 kHz | 190 mm x 60 mm x 50 mm | 0.85 kg |
| PR6423/010-170 | 0 – 30 mm | Analog (0-10V, 4-20mA) | 20 kHz | 200 mm x 65 mm x 55 mm | 1.0 kg |
| PR6423/010-180 | 0 – 40 mm | Analog (0-10V, 4-20mA) | 20 kHz | 210 mm x 70 mm x 60 mm | 1.1 kg |
| PR6423/010-190 | 0 – 50 mm | Analog (0-10V, 4-20mA) | 20 kHz | 220 mm x 75 mm x 65 mm | 1.2 kg |
Popular Models from Epro Brand
| Model | Measurement Range | Output Signal | Frequency Response | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|---|
| MMS3120/022-100 | 0 – 5 mm | Analog (0-10V, 4-20mA) | 10 kHz | 140 mm x 30 mm x 20 mm | 0.4 kg |
| MMS3125/022-120 | 0 – 10 mm | Analog (0-10V, 4-20mA) | 15 kHz | 150 mm x 40 mm x 25 mm | 0.5 kg |
| MMS3140/022-130 | 0 – 15 mm | Analog (0-10V, 4-20mA) | 20 kHz | 160 mm x 50 mm x 30 mm | 0.55 kg |
| MMS3150/022-140 | 0 – 20 mm | Analog (0-10V, 4-20mA) | 20 kHz | 170 mm x 55 mm x 35 mm | 0.6 kg |
| MMS3160/022-150 | 0 – 25 mm | Analog (0-10V, 4-20mA) | 20 kHz | 180 mm x 60 mm x 40 mm | 0.65 kg |
| MMS3180/022-160 | 0 – 30 mm | Analog (0-10V, 4-20mA) | 20 kHz | 190 mm x 65 mm x 45 mm | 0.7 kg |
| MMS3200/022-170 | 0 – 40 mm | Analog (0-10V, 4-20mA) | 20 kHz | 200 mm x 70 mm x 50 mm | 0.8 kg |
| MMS3220/022-180 | 0 – 50 mm | Analog (0-10V, 4-20mA) | 20 kHz | 210 mm x 75 mm x 55 mm | 0.9 kg |
