Product Introduction

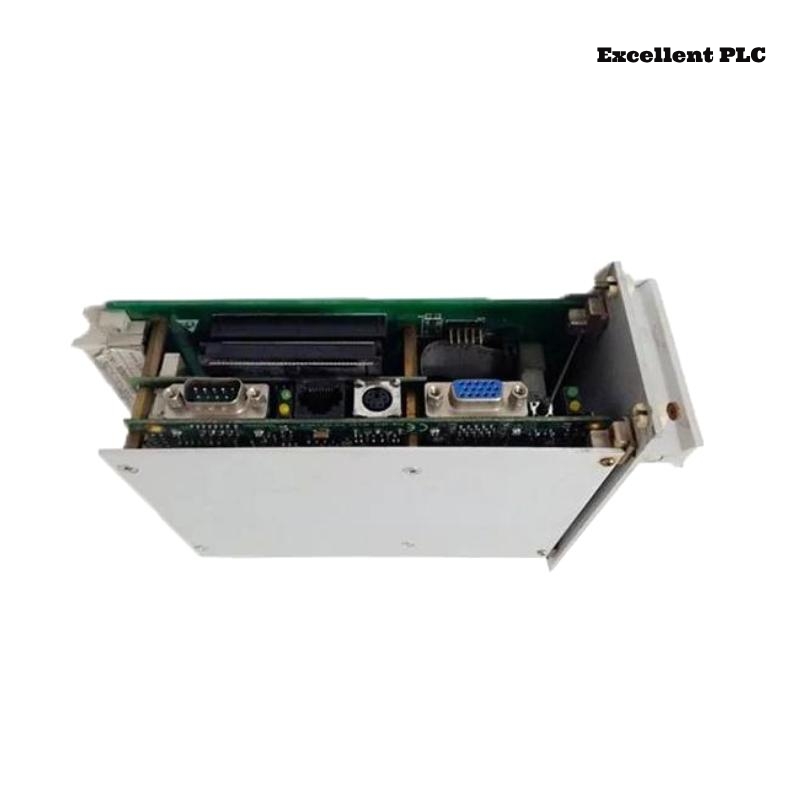

The Epro MMS6823 9100-00001-05 Displacement Monitor is a precision instrument used for the continuous measurement and monitoring of linear displacement in industrial settings. It is designed to provide high accuracy and reliability for dynamic applications, ensuring that machinery and equipment are functioning optimally. The MMS6823 is ideal for applications in various industries such as power generation, manufacturing, and automation, where monitoring displacement is crucial for the smooth operation of machinery and systems.
This displacement monitor integrates advanced technologies to offer precise data, which is essential for preventive maintenance and reducing downtime. It features a robust design to withstand harsh industrial environments and provides a user-friendly interface for easy integration and operation.
Product Specifications
| Feature | Specification |
|---|---|
| Model | MMS6823 9100-00001-05 |
| Type | Displacement Monitor |
| Measurement Range | 0 to 10 mm |
| Resolution | 0.001 mm |
| Output Signal | 4-20 mA / 0-10V DC |
| Input Voltage | 24 V DC |
| Power Consumption | ≤ 5W |
| Display | LED indicators |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Enclosure | IP65 |
| Dimensions | 300 x 210 x 100 mm |
| Weight | 0.6 kg |
| Mounting | DIN rail |
| Connection Type | Screw terminal block |
| Signal Output | 4-20 mA / 0-10V DC |
| Certifications | CE, UL, RoHS |
Product Applications
The Epro MMS6823 9100-00001-05 Displacement Monitor is widely used across various sectors for applications where precise measurement of displacement is necessary:
- Power Generation: Monitoring displacement in turbines, generators, and pumps to ensure optimal performance and avoid failure.
- Automotive Industry: Monitoring displacement in machinery used in automotive manufacturing lines.
- Aerospace: Ensuring the displacement of critical components in aerospace systems is within safe operating limits.
- Manufacturing: Monitoring the displacement of parts in automated manufacturing processes to maintain quality control.
- Hydraulics & Pneumatics: Monitoring the movement of hydraulic and pneumatic cylinders to prevent operational issues.
- Heavy Industry: Used in cranes, hoists, and other heavy equipment to monitor displacement and avoid mechanical failure.
Advantages of the Epro MMS6823 9100-00001-05
- High Precision: With a measurement resolution of 0.001 mm, the MMS6823 offers unmatched precision, which is critical for accurate displacement measurement.
- Durable and Robust Design: The module is housed in an IP65-rated enclosure, making it suitable for use in harsh industrial environments.
- Wide Temperature Range: The MMS6823 operates in temperatures from -10°C to +60°C, ensuring reliable operation in a variety of environments.
- Flexible Output Options: It supports both 4-20 mA and 0-10V DC output signals, making it compatible with most control systems.
- Easy Integration: The module features screw terminal block connections for easy wiring, making installation and integration straightforward.
- Compact Size: Its compact design (160 mm x 120 mm x 60 mm) allows for easy installation in control panels or machinery with limited space.
- Low Power Consumption: The module’s low power consumption (≤ 5W) contributes to energy efficiency in industrial settings.
- Reliable Performance: Built with high-quality components, the MMS6823 ensures stable performance over extended periods.
- Cost-Effective: Offering advanced features at a competitive price point, this module is an affordable solution for high-precision displacement monitoring.
- Certified for Safety: It is CE, UL, and RoHS certified, ensuring it meets safety and environmental standards.
Latest News
-
“Epro MMS6823 Displacement Monitor Enhances Machine Monitoring Capabilities in Power Generation”
Published on: January 2025
The MMS6823 displacement monitor has been integrated into several power plants to enhance predictive maintenance capabilities. Its precise measurement and rugged design allow it to function in challenging environments, reducing downtime and improving overall equipment effectiveness (OEE). -
“New Epro MMS6823 Displacement Monitor Aids in Aerospace Systems Monitoring”
Published on: February 2025
The MMS6823 is being used to monitor key components in aerospace applications, where precise displacement measurements are critical for ensuring the integrity and safety of parts under high stress.
FAQ
1.What type of displacement can the MMS6823 monitor?
The MMS6823 is designed to monitor linear displacement, making it ideal for applications that involve the movement of components in a straight line.
2.How accurate is the MMS6823 Displacement Monitor?
The MMS6823 offers a high level of accuracy, with a resolution of 0.001 mm, ensuring precise displacement measurements even in demanding industrial applications.
3.What are the output signal options for the MMS6823?
The MMS6823 provides two output signal options: 4-20 mA and 0-10V DC, giving you flexibility in integrating the device with different control systems.
4.Can the MMS6823 be used in hazardous environments?
While the MMS6823 is built to withstand tough industrial conditions, it is not intrinsically safe for use in explosive atmospheres. However, it can be used in non-hazardous environments.
5.What is the power supply requirement for the MMS6823?
The MMS6823 requires a 24V DC power supply with a maximum power consumption of 5W, making it energy efficient for continuous operation.
6.What is the temperature range for the MMS6823 to operate?
The MMS6823 can operate in temperatures ranging from -10°C to +60°C, making it suitable for a wide range of industrial environments.
7.How is the MMS6823 mounted?
The MMS6823 can be easily mounted on a DIN rail, allowing for quick installation in control panels or other machinery.
8.What is the weight of the MMS6823?
The MMS6823 weighs approximately 0.6 kg, making it lightweight and easy to handle during installation.
9.What industries can benefit from the MMS6823?
Industries such as power generation, manufacturing, automotive, aerospace, and hydraulics/pneumatics can benefit from the precise displacement measurements provided by the MMS6823.
10.Does the MMS6823 require regular calibration?
While the MMS6823 is highly accurate, regular calibration may be recommended depending on the application and environmental conditions to ensure long-term reliability.
