Product Introduction:

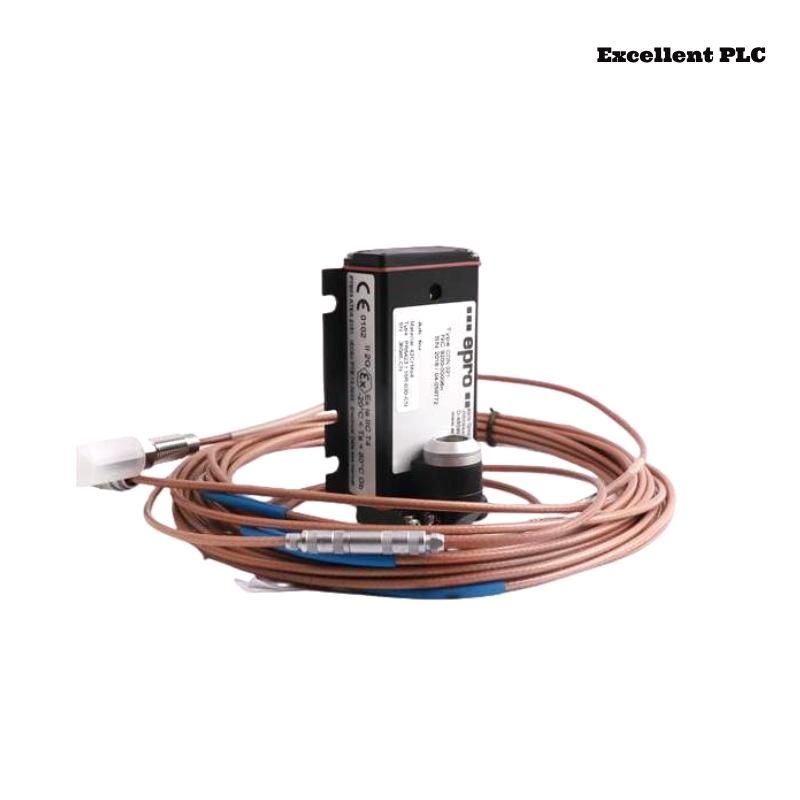

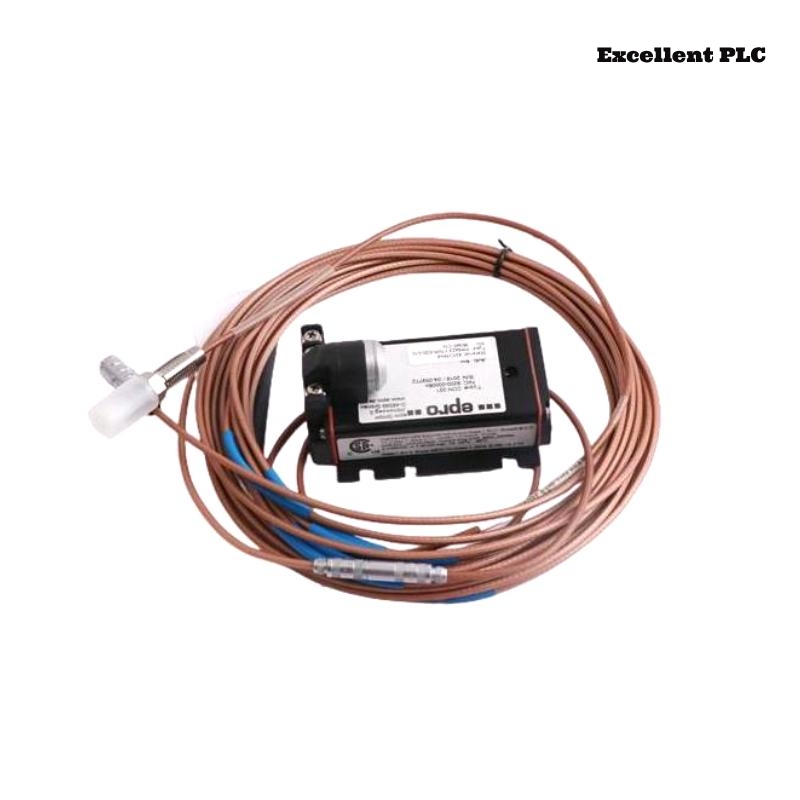

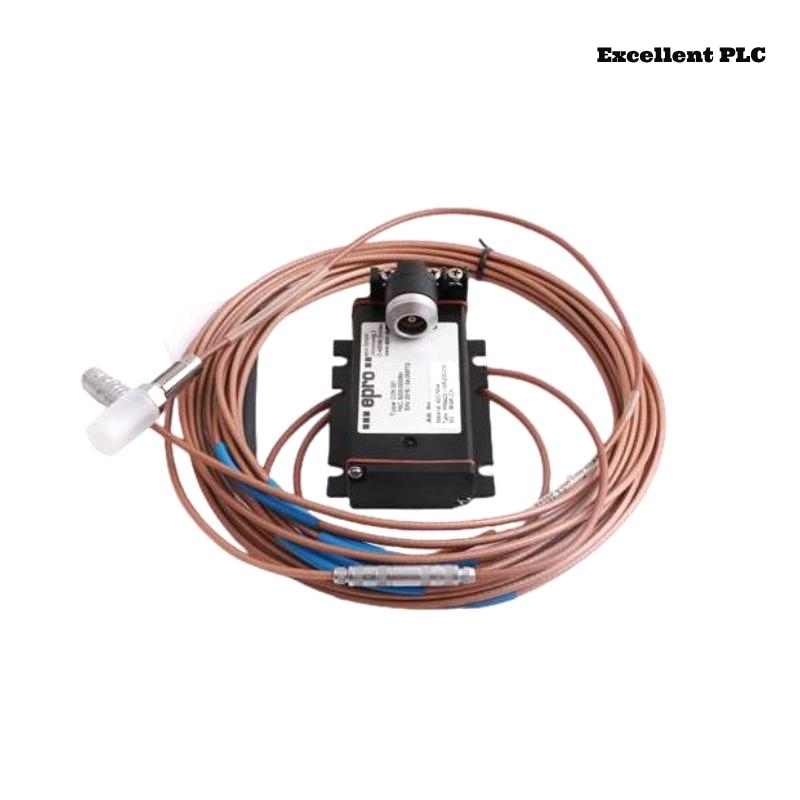

The Epro PR6423/002-030+CON021 8mm Eddy Current Sensor is an advanced and high-performance displacement and position measurement sensor designed for industrial applications that require high precision and reliability. The sensor utilizes the principles of eddy current technology, which allows it to detect and measure the displacement of metallic objects without direct contact, making it ideal for applications that demand non-contact measurement in harsh environments.
With its compact size and robust design, the Epro PR6423/002-030+CON021 sensor is highly suitable for applications in automotive, aerospace, and manufacturing industries, as well as for process monitoring and control in industrial machinery. The sensor is equipped with a 8mm measurement range, ensuring precise detection of displacement changes even in dynamic environments.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | Epro PR6423/002-030+CON021 |
| Sensor Type | Eddy current sensor |
| Measurement Range | 8 mm |
| Sensor Type | Non-contact displacement and position measurement |
| Operating Temperature Range | -40°C to +85°C |
| Output Signal Type | Analog (4-20 mA) or Digital (CANopen, Profibus, etc.) |
| Resolution | 0.1 µm |
| Accuracy | ±0.1% of full-scale |
| Power Supply | 24 V DC |
| Housing Material | Stainless steel |
| Sensor Head Diameter | 8 mm |
| Weight | 0.22 kg |
| Protection Class | IP65 (Protected against dust and water) |
| Cable Length | 3 meters |
| Mounting Type | Direct mounting or with mounting bracket |
| Shock Resistance | 30 g for 11 ms |
| Vibration Resistance | 20 g from 10 Hz to 2 kHz |
Product Applications:
The Epro PR6423/002-030+CON021 8mm Eddy Current Sensor is designed for high-precision, non-contact displacement and position measurement. Its key applications include:
- Motor Shaft Monitoring: The sensor is used to monitor the displacement and vibrations of motor shafts in industrial machinery, preventing malfunction by offering real-time feedback.
- Position Measurement in Automotive Manufacturing: It provides precise position feedback for robotic arms or assembly lines in automotive manufacturing, ensuring accuracy and efficiency in production.
- Aerospace: Used in the aerospace industry for monitoring the displacement of critical components such as turbine blades or landing gear, where precision and reliability are crucial.
- Precision Manufacturing: The sensor is ideal for controlling the position of tools or workpieces in precision manufacturing, offering high accuracy even in dynamic environments.
- Vibration Measurement: It is used for vibration monitoring in industrial equipment such as pumps, motors, and compressors, where vibration levels can indicate potential wear or failure.
- Automation Systems: The sensor is utilized in automation systems for accurate control of moving parts or machinery, ensuring optimized performance and safety.
- Condition Monitoring in Power Plants: Employed in power generation plants to monitor the condition of turbines, compressors, and other critical machinery.
- Machine Tool Monitoring: Used for displacement measurement and monitoring in CNC machines and other automated machining systems.
- Process Control in Heavy Machinery: Provides reliable measurement in heavy machinery for monitoring displacement or position during operation, ensuring stability and safety.
- Non-contact Measurement in Harsh Environments: The sensor is ideal for applications where contact-based sensors would be unreliable due to high temperatures, dust, or vibrations.
Product Advantages:
- Non-contact Measurement: The sensor uses eddy current technology, allowing it to measure displacement without direct contact, reducing wear and tear on the sensor and the measured object.
- High Precision and Resolution: The Epro PR6423/002-030+CON021 offers a high resolution of 0.1 µm, ensuring precise and accurate measurement even in challenging conditions.
- Wide Operating Temperature Range: With an operating temperature range from -40°C to +85°C, the sensor is capable of functioning in extreme environments, making it versatile for various applications.
- Compact Design: Its compact size allows for easy integration into existing systems without taking up much space, making it ideal for applications with limited space.
- Durability: The sensor is designed to withstand harsh industrial conditions, with an IP65 rating for protection against dust and water, ensuring long-lasting performance.
- Multiple Output Options: The sensor supports both analog and digital outputs, such as 4-20 mA and communication protocols like CANopen and Profibus, offering flexibility in integration with different systems.
- Shock and Vibration Resistance: The sensor is resistant to shocks and vibrations, making it reliable for use in machines that experience dynamic movements.
- Stainless Steel Housing: The sensor is housed in durable stainless steel, ensuring robustness and resistance to environmental factors like moisture, dirt, and chemical exposure.
- Versatile Mounting Options: The sensor can be directly mounted or used with mounting brackets, offering flexibility in installation.
- Low Power Consumption: The sensor operates on 24V DC, making it energy-efficient and suitable for systems with low power requirements.
Latest News Titles:
- “Epro PR6423/002-030+CON021: Revolutionizing Displacement Measurement in Industrial Automation”
- “Introducing the Epro PR6423/002-030+CON021: The Perfect Non-contact Solution for Precision Positioning”
- “Epro PR6423/002-030+CON021 Sensor: The Next Step in High-Precision Displacement Measurement”
- “Reliable and Durable: Epro PR6423/002-030+CON021 Sensor Sets New Standards in Industrial Monitoring”
- “Epro PR6423/002-030+CON021: Enhancing Automation with High-Accuracy Displacement Monitoring”
- “Advanced 8mm Eddy Current Sensor for Industrial Applications: Epro PR6423/002-030+CON021”
- “Epro PR6423/002-030+CON021: Non-contact Measurement for the Harshest Industrial Environments”
- “Epro’s Eddy Current Sensor for Aerospace: PR6423/002-030+CON021 Delivers Precision in Flight”
- “Boosting Automotive Manufacturing Efficiency with Epro PR6423/002-030+CON021 Eddy Current Sensor”
- “Epro PR6423/002-030+CON021: A Game-Changer for Machine Tool Monitoring”
Frequently Asked Questions (FAQ):
-
What is the primary function of the Epro PR6423/002-030+CON021?
- The Epro PR6423/002-030+CON021 is an eddy current sensor designed to measure displacement and position in industrial applications with high precision.
-
What is the measurement range of the Epro PR6423/002-030+CON021?
- The sensor has an 8mm measurement range, providing precise displacement detection within this range.
-
How does the Epro PR6423/002-030+CON021 work?
- It uses eddy current technology, which involves generating magnetic fields that induce currents in conductive materials. These currents are then measured to determine displacement.
-
What is the output signal type for this sensor?
- The sensor provides both analog (4-20 mA) and digital outputs (CANopen, Profibus, etc.), offering flexibility for integration into various systems.
-
What are the key advantages of using an eddy current sensor like the Epro PR6423/002-030+CON021?
- Non-contact measurement, high precision, high durability, resistance to environmental factors, and suitability for harsh industrial conditions.
-
What is the operating temperature range of the sensor?
- The sensor operates within a temperature range of -40°C to +85°C, allowing it to function in extreme environments.
-
What are the mounting options for the Epro PR6423/002-030+CON021?
- It can be directly mounted or installed using a mounting bracket, offering flexibility in installation.
-
What industries benefit from the Epro PR6423/002-030+CON021 sensor?
- The sensor is used in industries such as automotive, aerospace, power generation, machine tools, and industrial automation.
-
What is the protection class of the Epro PR6423/002-030+CON021?
- The sensor has an IP65 protection rating, meaning it is protected against dust and water.
-
What is the weight of the Epro PR6423/002-030+CON021 sensor?
- The sensor weighs 0.22 kg, making it lightweight and easy to handle during installation.
Related Models
| Model | Description | Key Features | Application |
|---|---|---|---|
| PR6423/002-000 | Standard eddy current sensor | High accuracy, durable stainless steel | Machinery monitoring |
| PR6423/003-010 | High-precision vibration sensor | Robust design, high-temperature operation | Aerospace applications |
| PR6423/004-010 | Wide-range displacement sensor | Extended measurement range | Power generation systems |
| PR6423/005-010 | High-resolution vibration sensor | Shock-resistant, reliable data output | Automotive sector |
| PR6424/014-040 | Advanced eddy current sensor | Enhanced sensitivity, IP65 protection | Robotics and automation |
| PR6424/01CS | Customizable eddy current sensor | Multiple output options, compact design | CNC machine monitoring |
| PR6425/000-030 | High-precision displacement sensor | Extended temperature range, robust design | Industrial machine condition monitoring |
| PR6426/000-010 | Ultra-high resolution eddy current sensor | Enhanced accuracy, stable signal output | Turbine and compressor applications |
| PR6423/006-030 | High-precision vibration and displacement sensor | Optimized for extreme environments | Heavy industrial machinery |
| CON021 | Converter module for eddy current sensors | Signal conditioning, improved accuracy | Integration with monitoring systems |
