Product Introduction

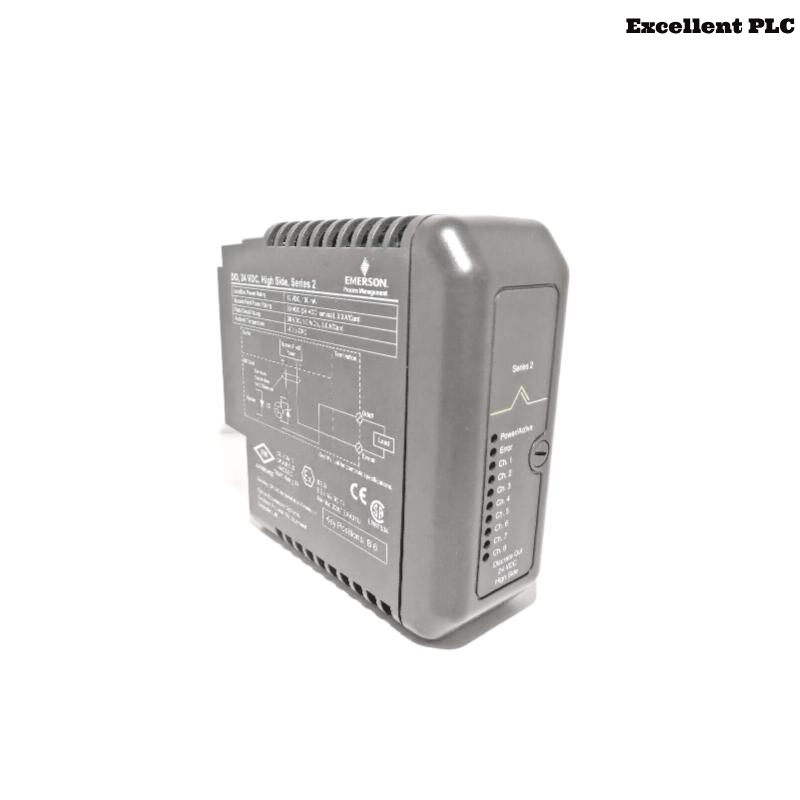

The Emerson VE4002S1T2B4, also known by its part numbers KJ3202X1-BA1 and 12P2536X042, is a high-performance Discrete Output Module designed for use within Emerson’s DeltaV™ distributed control system (DCS). This module provides reliable and precise control of digital output signals, making it ideal for various industrial automation applications. Engineered for robustness and efficiency, it ensures seamless integration with the DeltaV™ system, offering enhanced operational reliability and system scalability.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Discrete Output Module |
| Model Number | VE4002S1T2B4 |
| Alternate Part Numbers | KJ3202X1-BA1, 12P2536X042 |
| System Compatibility | Emerson DeltaV™ DCS |
| Number of Output Channels | 16 |
| Output Type | Digital (Discrete) |
| Output Voltage Range | 24 VDC nominal |
| Output Current per Channel | 0.5 A max |
| Isolation | Channel-to-bus and channel-to-channel isolation |
| Diagnostics | Built-in diagnostics with LED indicators |
| Mounting | Plug-in module for DeltaV™ I/O carriers |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 107 x 41 x 105 mm |
| Weight | 0.2 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Product Applications
The VE4002S1T2B4 module is suitable for a wide range of industrial applications, including:
-
Chemical and Petrochemical Plants: Controlling actuators, valves, and alarms.
-
Oil and Gas Industry: Managing drilling operations and safety systems.
-
Power Generation Facilities: Operating circuit breakers and turbine controls.
-
Water and Wastewater Treatment: Automating pumps and filtration systems.
-
Pharmaceutical Manufacturing: Ensuring precise control in production lines.
-
Food and Beverage Industry: Managing packaging and processing equipment.
Product Advantages
-
High Reliability: Designed for continuous operation in demanding industrial environments.
-
Integrated Diagnostics: Onboard diagnostics facilitate quick troubleshooting and maintenance.
-
Scalability: Easily integrates into existing DeltaV™ systems, allowing for system expansion.
-
Safety Compliance: Meets international safety and quality standards, ensuring safe operation.
-
Ease of Installation: Plug-and-play design simplifies installation and reduces downtime.
-
Energy Efficiency: Optimized for low power consumption without compromising performance.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the VE4002S1T2B4 module?
A: It serves as a discrete output module, controlling digital signals to field devices within the DeltaV™ system. -
Q: How many output channels does this module have?
A: It features 16 discrete output channels. -
Q: Is this module compatible with other Emerson systems?
A: It is specifically designed for the DeltaV™ distributed control system. -
Q: What type of output does it provide?
A: The module provides digital (discrete) outputs, typically at 24 VDC. -
Q: Does the module include diagnostic features?
A: Yes, it has built-in diagnostics with LED indicators for each channel. -
Q: Can this module operate in hazardous environments?
A: Yes, it is certified for use in hazardous areas, complying with ATEX and IECEx standards. -
Q: What is the maximum current per output channel?
A: Each channel can handle up to 0.5 A. -
Q: How is the module installed?
A: It is a plug-in module designed for DeltaV™ I/O carriers, facilitating easy installation. -
Q: What are the operating temperature limits?
A: The module operates within a temperature range of 0°C to 60°C. -
Q: Is the module hot-swappable?
A: Yes, it supports hot-swapping, allowing replacement without shutting down the system.
Related Models in the Same Series
| Model Number | Description | Type | Channels | Voltage |
|---|---|---|---|---|
| VE4002S1T1B1 | Discrete Output Module | Digital Output | 16 | 24 VDC |
| VE4003S2B1 | Analog Input Module | Analog Input | 8 | – |
| VE4005S2B2 | Analog Output Module | Analog Output | 8 | – |
| VE4006P2B1 | Power Supply Module | Power Supply | – | – |
| VE4007P2B2 | Redundant Power Supply Module | Power Supply | – | – |
| VE4008S2B3 | Thermocouple Input Module | Temperature Input | 8 | – |
