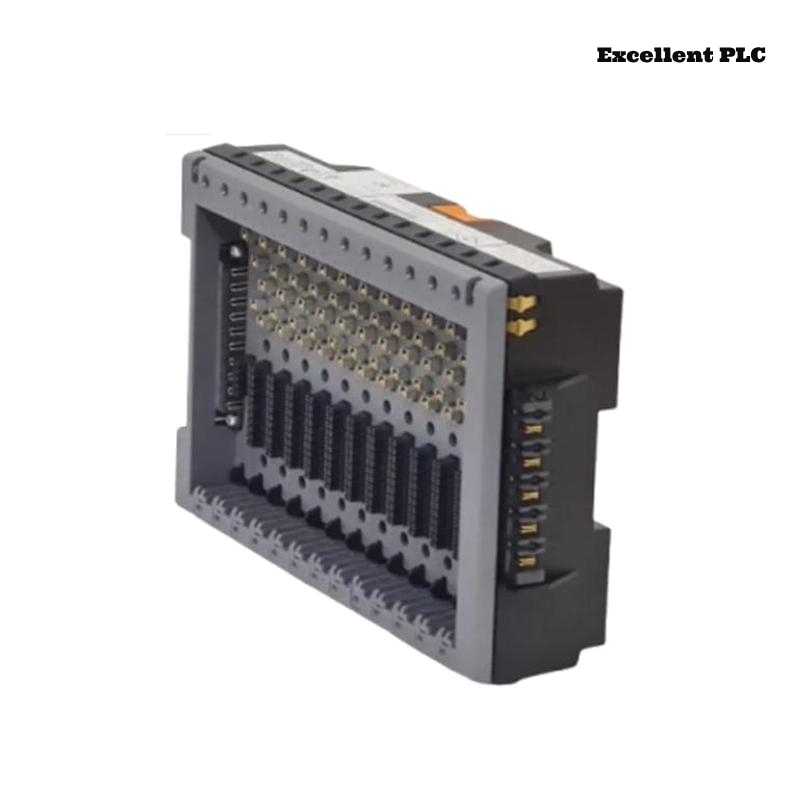

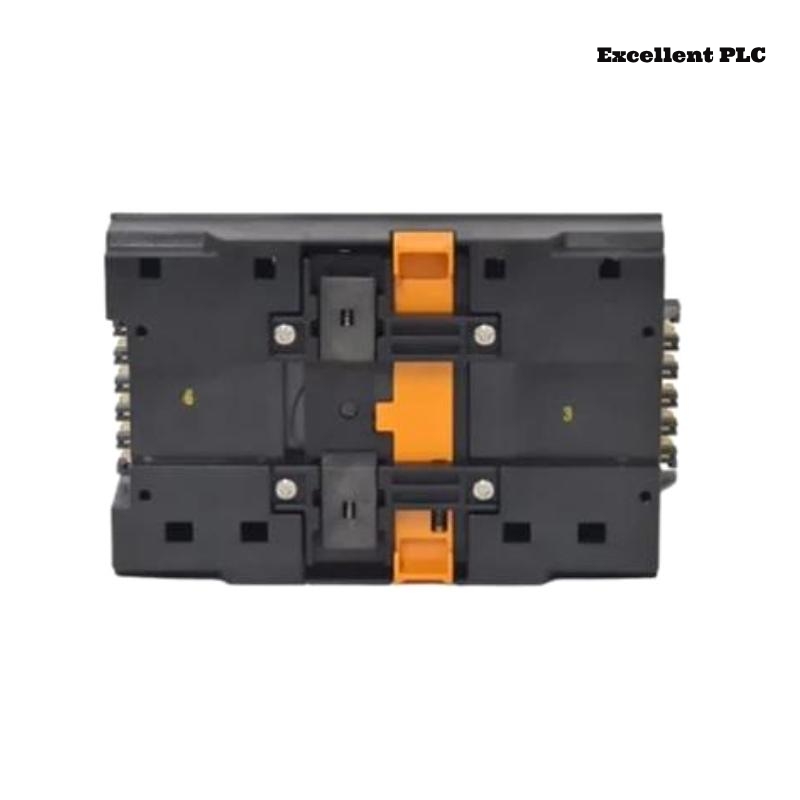

Emerson KL4201X1-BA1 CHARM Baseplate

Emerson/

Emerson KL4201X1-BA1 CHARM Baseplate

Manufacturer:Emerson

Product Number:KL4201X1-BA1

Product Type:CHARM Baseplate

Origin:USA

Dimensions:200 x 120 x 60 mm

Weight:0.499 kg

Views:29

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

  • Product Details
  • FAQs
  • Related
  • Contact Us
  • Packing & Delivery
Company Information
E-mail [email protected]
Mobile +8613666084105
Whatsapp +8613666084105
WeChat 13666084105
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Emerson KL4201X1-BA1 CHARM Baseplate is an integral component of the DeltaV™ Electronic Marshalling system, designed to streamline the integration of field devices into the DeltaV control system. This baseplate facilitates the connection of up to 12 CHARM (Characterization Module) I/O cards, enabling flexible and efficient field wiring without the need for traditional marshalling panels.



Product Specifications

The following table outlines the key specifications of the KL4201X1-BA1 CHARM Baseplate:

Specification Details
Model Number KL4201X1-BA1
Manufacturer Emerson Process Management
Product Type CHARM Baseplate
CHARM Bus Power Rating +6.3 VDC at 4 A
Field Circuit Power +24 VDC at 10 A
Input Voltage Range 18 to 32 VDC
Power Consumption 50 W
Isolation Voltage 1500 V AC
Ambient Temperature -40 °C to +70 °C
Shock 10 g ½ Sinewave for 11 msec
Vibration 1 mm Peak to Peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Airborne Contaminants ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing
Dimensions (H x W x D) 200 x 120 x 60 mm
Weight 0.499 kg



Product Applications

The KL4201X1-BA1 CHARM Baseplate is utilized across various industries for:

  • Process Automation: Facilitating seamless integration of field instruments into the DeltaV control system, enhancing process efficiency.
  • Hazardous Environments: Certified for use in Zone 2 hazardous areas, making it suitable for industries like oil and gas, chemical processing, and pharmaceuticals.
  • Flexible I/O Management: Allowing for late-stage design changes and expansions without extensive re-wiring, thereby reducing project risks and costs.

Product Advantages

The KL4201X1-BA1 offers several benefits:

  • Simplified Wiring: Eliminates the need for traditional marshalling, reducing wiring complexity and potential for errors.
  • Scalability: Supports up to 12 CHARM I/O cards, providing flexibility to scale I/O as needed.
  • Enhanced Safety: Designed for use in hazardous areas, ensuring reliable operation under challenging conditions.
  • Cost Efficiency: Reduces installation and maintenance costs through streamlined design and easy integration.

Recent News

As of the latest available information, there are no specific news articles or reports exclusively covering the KL4201X1-BA1 CHARM Baseplate. For the most recent updates and developments, it is advisable to consult Emerson’s official website or contact their authorized distributors.

Frequently Asked Questions (FAQs)

  1. What is the primary function of the KL4201X1-BA1 CHARM Baseplate?

    • It serves as a mounting platform for CHARM I/O cards, facilitating the integration of field devices into the DeltaV control system.
  2. How many CHARM I/O cards can the baseplate accommodate?

    • It can accommodate up to 12 CHARM I/O cards.
  3. Is the KL4201X1-BA1 suitable for hazardous environments?

    • Yes, it is certified for use in Zone 2 hazardous areas.
  4. What are the power requirements for the baseplate?

    • CHARM Bus Power: +6.3 VDC at 4 A; Field Circuit Power: +24 VDC at 10 A.
  5. What is the operating temperature range?

    • The baseplate operates within a temperature range of -40 °C to +70 °C.
  6. Does it support redundant configurations?

    • Yes, the DeltaV Electronic Marshalling system supports fully redundant architectures.
  7. What are the dimensions and weight of the baseplate?

    • Dimensions: 200 x 120 x 60 mm; Weight: 0.499 kg.
  8. Can the baseplate be used in field-mounted installations?

    • Yes, it is designed to be field-mounted, reducing system design and installation costs.
  9. What type of field devices can be connected?

    • Various field instruments, including sensors and actuators, can be connected through appropriate CHARM modules.
  10. Is the KL4201X1-BA1 compatible with all CHARM I/O modules?

    • Yes, it is designed to support a wide range of CHARM I/O modules, ensuring flexible configuration and seamless integration with DeltaV systems.

Related Models (Same Series or Similar Functionality)

Model Number Description
KL4210X1-BA1 I.S. CHARM Baseplate for Intrinsically Safe (IS) Systems
KL4221X1-BA1 Redundant CHARM Baseplate for Increased Reliability
KL4231X1-BA1 CHARM Baseplate with Integrated Relay Output
KL4241X1-BA1 High-Density CHARM Baseplate for More I/O Connections
KL4251X1-BA1 Field-Mountable CHARM Baseplate for Remote Installations
KL4261X1-BA1 CHARM Baseplate with Advanced Diagnostics
KL4271X1-BA1 Extended Temperature CHARM Baseplate for Harsh Environments
KL4281X1-BA1 CHARM Baseplate with Enhanced Isolation for High-Voltage Applications
KL4291X1-BA1 CHARM Baseplate with High-Speed Communication Capabilities
KL4301X1-BA1 Modular CHARM Baseplate for Custom System Configurations

Popular Emerson Models (Same Brand, Different Functionality)

Model Number Description
VE4006P2 Redundant Serial Interface Card for DeltaV Systems
VE5009 Power Supply Module for DeltaV Control Systems
KJ3241X1-BA1 Serial Interface Card for High-Speed Data Communication
KJ3002X1-BG1 DeltaV Controller Module for Process Automation
KJ4001X1-CA1 Redundant Controller Module for DeltaV Distributed Control System (DCS)
SE4008T1B1 DeltaV Network Switch for System Communication
VE4050 Input/Output (I/O) Module for DeltaV Systems
KJ2005X1-MQ1 CHARM I/O Module for Flexible Process Automation
VE4022 Controller Interface for DeltaV Systems
VE3008 Redundant Power Supply for DeltaV Systems
