Product Introduction

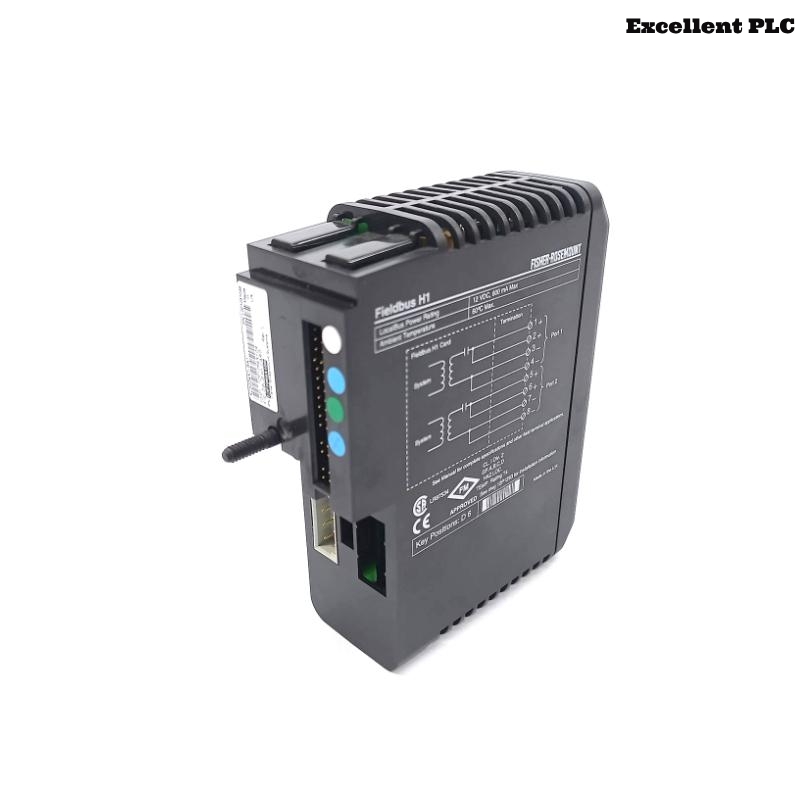

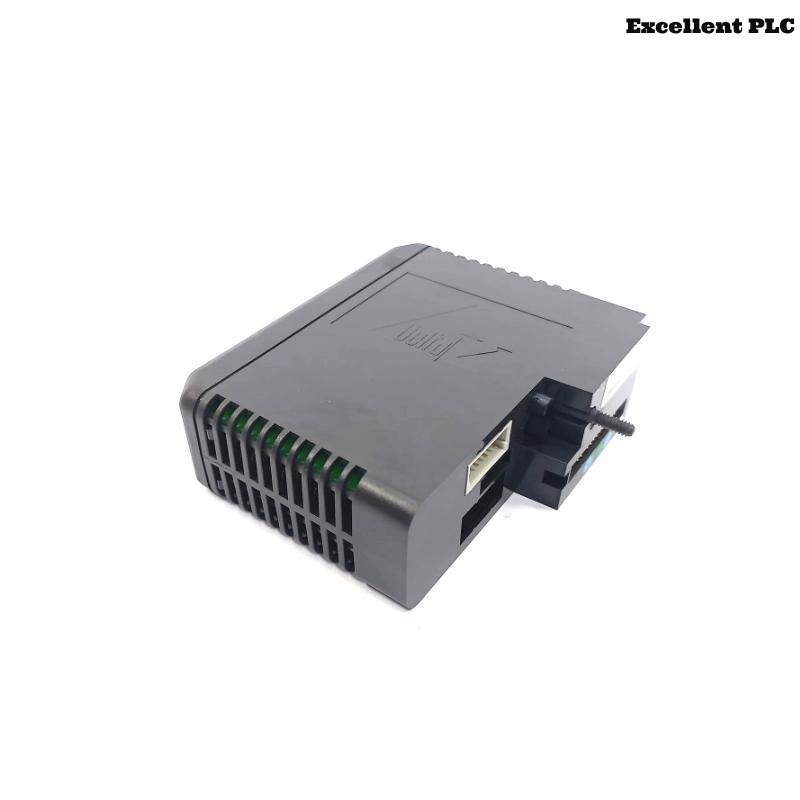

The Emerson KJ3004X1-BA1 is a robust and reliable Fieldbus H1 Card Module designed for integration within Emerson’s DeltaV Distributed Control System (DCS). This module facilitates seamless communication between the DeltaV system and field devices using the Fieldbus H1 protocol, ensuring efficient data exchange and control in complex industrial environments.
Engineered for high-performance and durability, the KJ3004X1-BA1 module supports up to two H1 Fieldbus segments, each capable of handling multiple field devices. Its compact design and rugged construction make it suitable for deployment in harsh industrial settings, including hazardous areas, where reliable communication is critical for process automation and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ3004X1-BA1 |
| Manufacturer | Emerson |
| Product Type | Fieldbus H1 Card Module |
| System Compatibility | Emerson DeltaV Distributed Control System (DCS) |
| Communication Protocol | Fieldbus H1 |
| Number of H1 Ports | 2 |
| Input Voltage | 12 VDC |
| Maximum Current per Channel | 600 mA |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Dimensions (H x W x D) | 138 x 102 x 25 mm |
| Weight | 0.272 kg |
| Mounting Type | DIN Rail Mounting |
| Certifications | CE, UL, CSA |
| Warranty | 12 months |
Product Applications
The Emerson KJ3004X1-BA1 Fieldbus H1 Card Module is widely utilized across various industries for its reliable communication capabilities. Typical applications include:
-
Oil and Gas Industry: Facilitates real-time data exchange between control systems and field devices in upstream and downstream operations.
-
Chemical Processing Plants: Ensures precise control and monitoring of chemical reactions and processes.
-
Power Generation Facilities: Enables efficient communication between control systems and field instruments in power plants.
-
Pharmaceutical Manufacturing: Supports stringent process control requirements for drug production and quality assurance.
-
Water and Wastewater Treatment: Provides reliable communication for monitoring and controlling treatment processes.
-
Food and Beverage Industry: Assists in maintaining consistent product quality through precise process control.
Product Advantages
-
Reliable Communication: Supports the Fieldbus H1 protocol, ensuring consistent and accurate data exchange between the DeltaV system and field devices.
-
Dual H1 Ports: Offers two H1 ports, allowing connection to multiple field devices, enhancing system scalability.
-
Robust Design: Built to withstand harsh industrial environments, including extreme temperatures, vibrations, and airborne contaminants.
-
Compact Form Factor: Its small size allows for easy integration into existing control cabinets without requiring significant space.
-
Energy Efficient: Operates on a low 12 VDC input voltage, reducing power consumption and operational costs.
-
Easy Installation: Designed for DIN rail mounting, facilitating quick and secure installation.
-
Certified for Safety: Holds CE, UL, and CSA certifications, ensuring compliance with international safety standards.
-
Extended Temperature Range: Capable of operating in a wide temperature range, making it suitable for various industrial settings.
-
High Current Capacity: Each channel supports up to 600 mA, accommodating a range of field devices.
-
Long-Term Warranty: Comes with a 12-month warranty, providing assurance of product quality and reliability.
Frequently Asked Questions (FAQ)
-
What is the primary function of the KJ3004X1-BA1 module?
-
It facilitates communication between the Emerson DeltaV DCS and field devices using the Fieldbus H1 protocol.
-
-
How many Fieldbus H1 ports does the module have?
-
The module features two H1 ports, allowing connection to multiple field devices.
-
-
What is the input voltage requirement for the module?
-
The module operates on a 12 VDC input voltage.
-
-
What is the maximum current supported per channel?
-
Each channel supports a maximum current of 600 mA.
-
-
Can the module operate in extreme temperatures?
-
Yes, it operates within a temperature range of -40°C to +70°C.
-
-
Is the module suitable for hazardous environments?
-
Yes, its robust design and certifications make it suitable for deployment in hazardous industrial settings.
-
-
What mounting options are available for the module?
-
The module is designed for DIN rail mounting.
-
-
Does the module comply with international safety standards?
-
Yes, it holds CE, UL, and CSA certifications.
-
-
What is the weight of the module?
-
The module weighs 0.272 kg.
-
-
What warranty is provided with the module?
-
We provide one year warranty.
-
Related Models from the Same Series / Function Group
| Model Number | Description | Module Type | Key Features |
|---|---|---|---|
| KJ3002X1-BG1 | Analog Input Module | AI Module | 8 channels, 16-bit resolution, HART support |
| KJ3001X1-BB1 | Analog Output Module | AO Module | 8 channels, 12-bit resolution, HART support |
| KJ3005X1-BA1 | Digital Input Module | DI Module | 32-channel, high-density, supports dry/wet contact inputs |
| KJ3006X1-BA1 | Digital Output Module | DO Module | 32-channel, high-speed switching, isolated outputs |
| KJ3221X1-BA1 | Pulse Input Module | PI Module | 8 channels, ideal for turbine and rotating machinery |
| KJ4010X1-BG1 | HART Interface Module | Communication Module | Connects up to 16 HART devices, advanced diagnostics |
