Introduction:

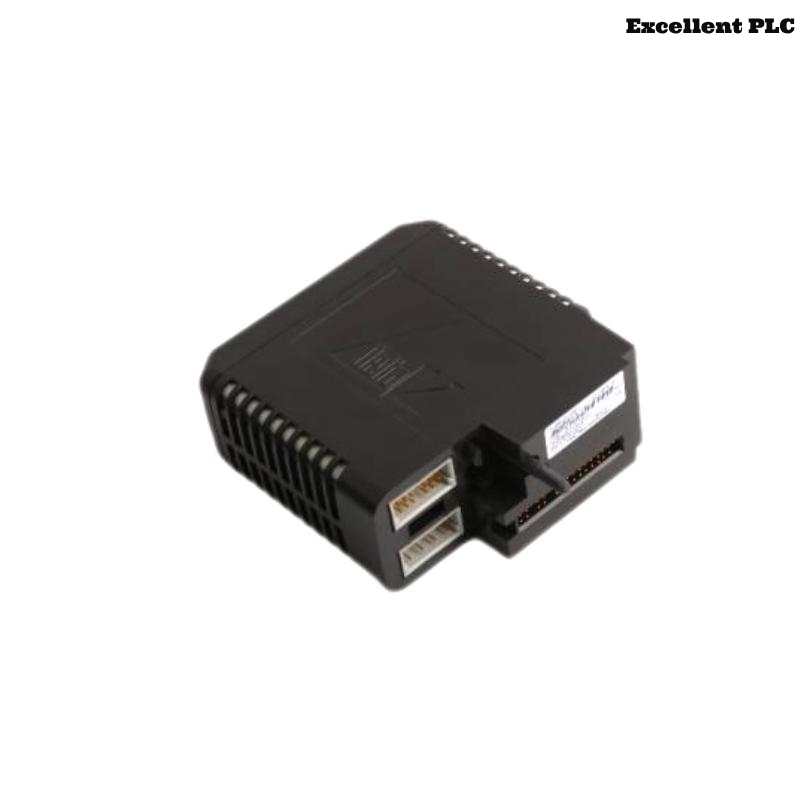

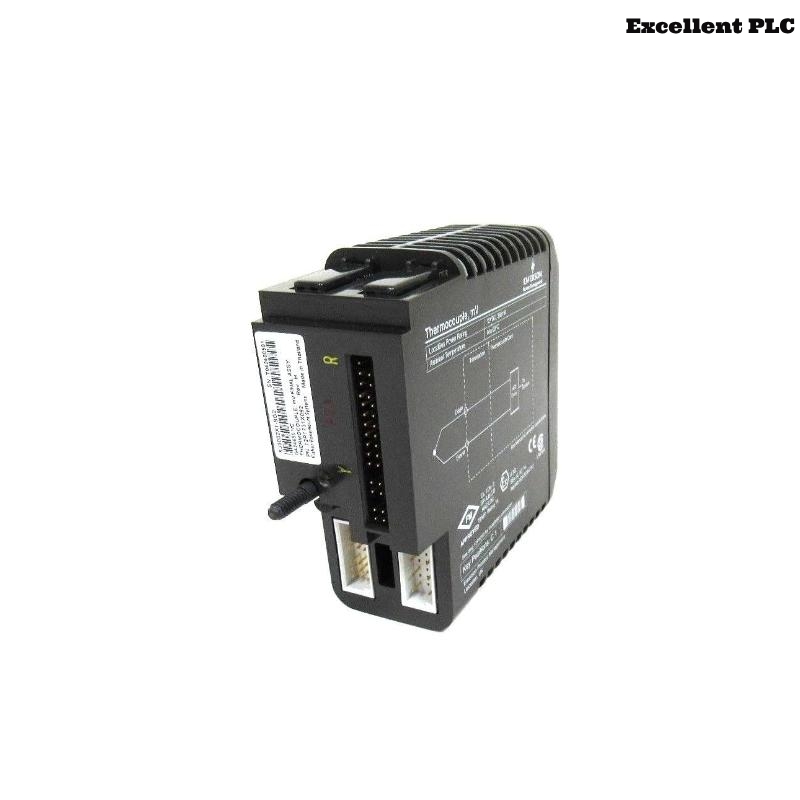

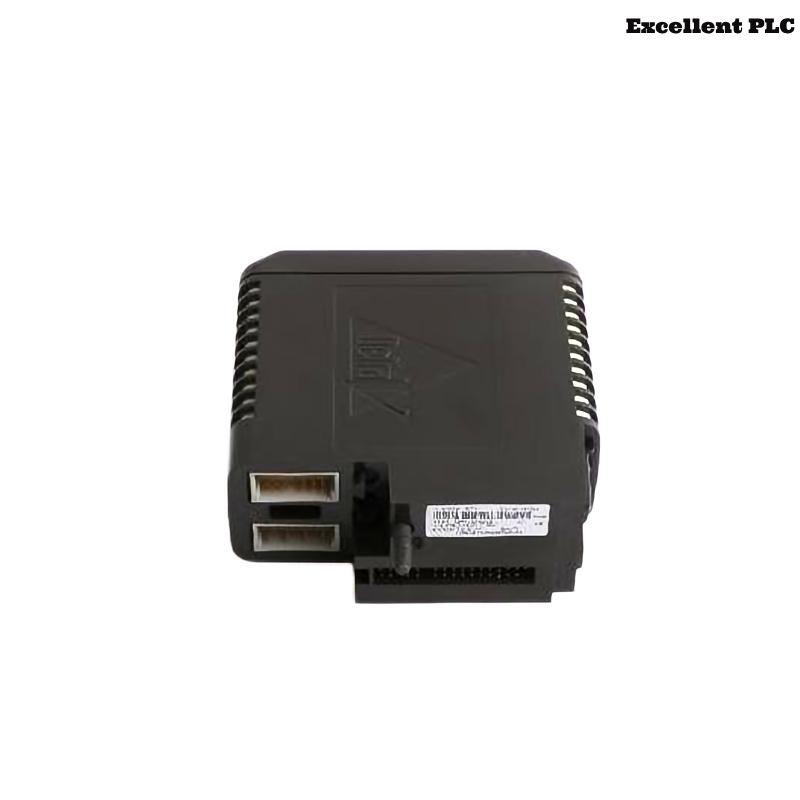

The Emerson KJ3002X1-BG2 Thermocouple Analog Input Module is a high-precision input module designed to interface with various types of thermocouples in critical industrial environments. As part of the DeltaV™ digital automation system by Emerson, this module provides accurate temperature measurement and reliable analog input signal conditioning for process control applications.
Built with durability and performance in mind, the KJ3002X1-BG2 allows seamless integration with process automation systems in sectors such as petrochemical, power generation, and manufacturing. It supports multiple thermocouple types, features cold junction compensation, and is engineered to ensure data accuracy, stability, and minimal maintenance over time.
Specifications:
| Parameter | Details |
|---|---|
| Model | KJ3002X1-BG2 12P1731X062 |
| Product Type | Thermocouple Analog Input Module |
| Channels | 8 isolated channels |
| Supported Thermocouple Types | B, E, J, K, N, R, S, T |
| Cold Junction Compensation | Yes (integrated) |
| Resolution | 16-bit |
| Update Rate | 100 ms (per channel) |
| Isolation | Channel-to-channel and channel-to-bus |
| Power Supply Voltage | 24 VDC (supplied from backplane) |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Shock & Vibration | Meets IEC 60068 standards |
| Mounting | Standard DIN rail |
| Dimensions (L x W x H) | 107 x 41 x 105 mm |
| Weight | 0.281 kg |
| Certifications | CE, ATEX, CSA, UL, FM |
Applications:
The KJ3002X1-BG2 module is extensively utilized across a variety of industries that require accurate temperature monitoring and process control:
-
Oil & Gas: For monitoring reactor temperatures, refining processes, and pipeline heat tracing systems.
-
Power Generation: Measuring temperatures in turbines, boilers, and heat exchangers for safety and efficiency.
-
Chemical Processing: Ensuring accurate heat management in reactors and distillation columns.
-
Pharmaceuticals: Monitoring cleanroom and equipment temperatures with strict compliance requirements.
-
Food & Beverage: Maintaining specific cooking, sterilization, and storage temperatures.
-
Metals and Mining: Temperature control for furnaces, smelters, and other high-heat operations.
Advantages:
-
High Accuracy: With 16-bit resolution and advanced signal filtering, the KJ3002X1-BG2 ensures precise and stable temperature readings.
-
Wide Compatibility: Supports multiple thermocouple types, making it flexible for use in diverse temperature sensing scenarios.
-
Integrated Cold Junction Compensation: Minimizes error caused by ambient temperature variations, ensuring consistent readings.
-
Channel-to-Channel Isolation: Prevents signal interference between channels, enhancing data integrity.
-
Rugged Design: Built to endure extreme environments and industrial wear, reducing the risk of failure.
-
Seamless DeltaV Integration: Easily configured and maintained within Emerson’s DeltaV system, reducing engineering and commissioning time.
-
Hot Swappable: The module can be replaced without shutting down the system, minimizing process interruption.
-
Regulatory Compliance: Certified to meet global safety and performance standards including CE, UL, ATEX, and CSA.
-
Reduced Wiring Complexity: DIN rail mount and modular design simplify installation and maintenance.
-
Field-Proven Reliability: Widely used in high-demand sectors with proven long-term performance in harsh environments.
FAQ (Frequently Asked Questions):
-
What thermocouple types are supported by the KJ3002X1-BG2 module?
It supports B, E, J, K, N, R, S, and T thermocouple types. -
Is the module hot-swappable?
Yes, it can be replaced while the system is running without interruption. -
Does it support cold junction compensation?
Yes, it has built-in cold junction compensation. -
How many channels does the KJ3002X1-BG2 have?
It supports 8 isolated analog input channels. -
Can it be integrated with systems other than DeltaV?
It is optimized for DeltaV but can work with other systems with proper interface modules. -
What is the resolution of the input signals?
The module provides 16-bit resolution for accurate measurements. -
Is channel isolation supported?
Yes, the module provides isolation both between channels and from the system bus. -
What is the power supply requirement?
It requires 24 VDC power from the backplane. -
Is the module suitable for outdoor installation?
While rugged, it is recommended to install within protected enclosures for outdoor use. -
What are the certifications for this module?
The module is CE, UL, CSA, FM, and ATEX certified, making it suitable for global applications.
Related Models from the Same Series:
| Model | Description | Channels | Input Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| KJ3002X1-BG1 | Thermocouple Analog Input Module | 4 | Thermocouple | 140 x 50 x 130 | 0.48 |
| KJ3001X1-BB1 | Analog Input Module | 8 | 4-20mA, Voltage | 140 x 50 x 130 | 0.50 |
| KJ3002X1-BA1 | RTD Input Module | 8 | RTD | 140 x 50 x 130 | 0.52 |
| KJ3002X1-BD1 | Mixed Analog Input Module | 8 | TC & mV | 140 x 50 x 130 | 0.52 |
| KJ4001X1-NA1 | High-density Analog Input Module | 16 | mA | 150 x 55 x 135 | 0.55 |
| KJ2002X1-BB1 | Low Channel Count Thermocouple Module | 2 | Thermocouple | 120 x 45 x 110 | 0.40 |
