Product Introduction

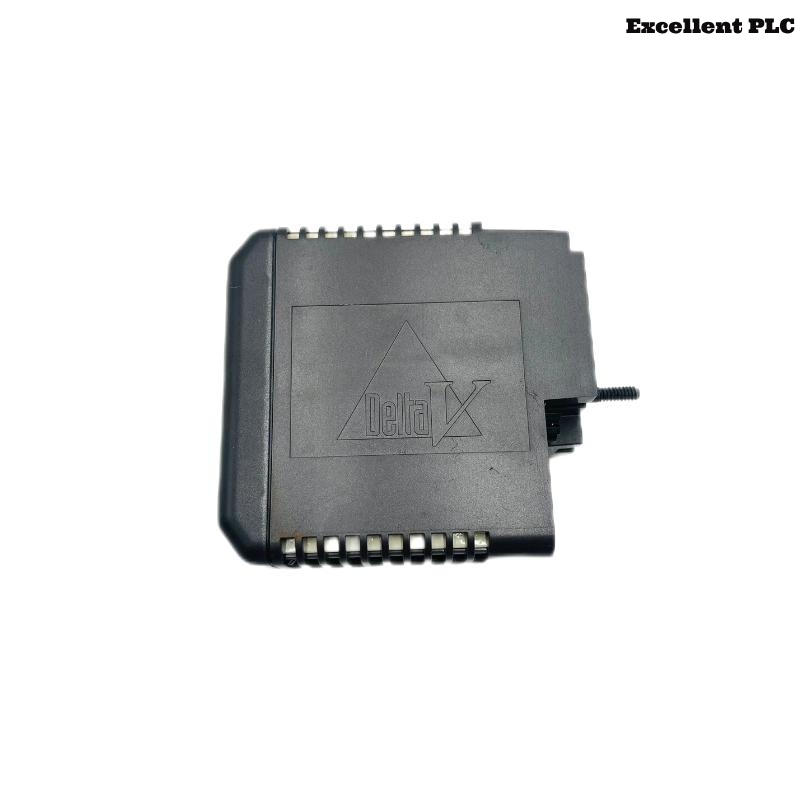

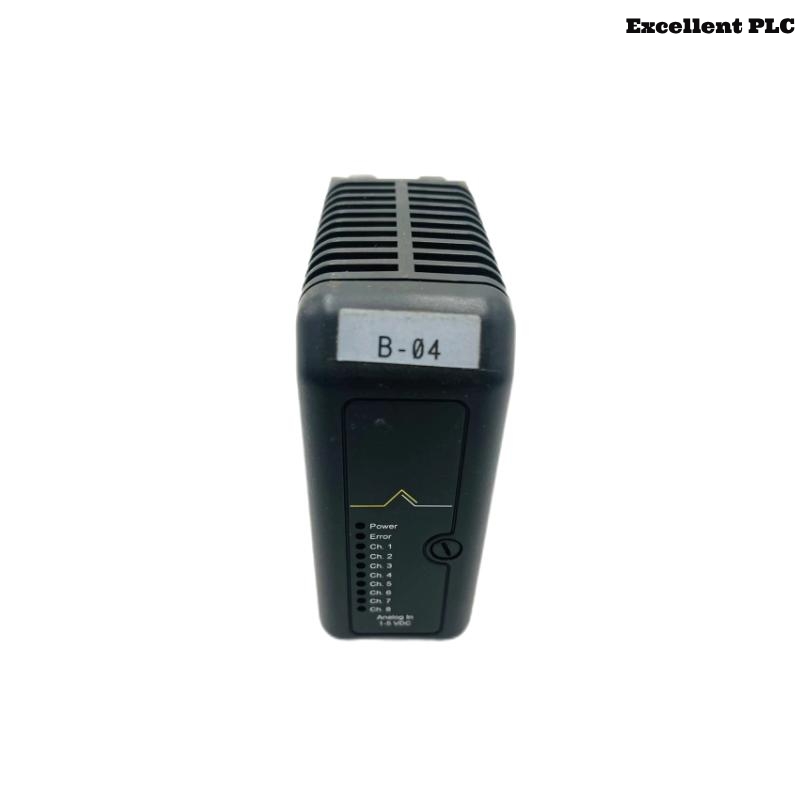

The Emerson KJ3002X1-BD1 12P1033X102 Analog Input Module is a high-performance device used in industrial process control systems. Designed to interface with a wide range of field devices, this analog input module offers precision and reliability for applications requiring the conversion of analog signals into a digital form. The module is an essential component in the Emerson DeltaV™ control system, which is widely used in industries such as chemical processing, oil and gas, pharmaceuticals, and power generation.
This module accepts input signals from various sensors and transducers, which measure physical parameters like temperature, pressure, flow, and level. The converted data is then processed and used to control processes with high accuracy, making the module vital in maintaining operational efficiency and safety in automated environments.
With robust construction, high-speed processing capabilities, and flexible configuration options, the Emerson KJ3002X1-BD1 module is designed for seamless integration into complex control systems. Whether used in existing systems or new installations, the module ensures precise signal acquisition and efficient control.
Product Specifications
| Parameter | Details |
|---|---|
| Model | KJ3002X1-BD1 12P1033X102 |
| Input Type | Analog (Current/Voltage) |
| Input Range | 0-20 mA, 4-20 mA, 0-10 V, 1-5 V |
| Number of Channels | 4 |
| Resolution | 16-bit |
| Accuracy | ±0.1% of Full Scale |
| Input Impedance | 250 Ω (for voltage inputs) |
| Power Supply | 24 V DC ± 20% |
| Dimensions (H x W x D) | 120 x 80 x 40 mm |
| Weight | 0.5 kg |
| Temperature Range | -40°C to 70°C |
| Mounting Type | DIN Rail |
| Communication Protocol | Modbus, HART |
| Protection Features | Overvoltage, Overcurrent, Reverse Polarity |
Applications of KJ3002X1-BD1 12P1033X102
The KJ3002X1-BD1 12P1033X102 Analog Input Module is used in a wide variety of industrial applications where precise analog signal acquisition and control are required. Some key applications include:
-
Chemical Processing: The module helps monitor and control critical variables like temperature, pressure, and flow within chemical reactors, ensuring safe and efficient operations.
-
Oil and Gas: In the oil and gas industry, the module is used to measure the pressure, temperature, and flow in pipelines and drilling rigs, enabling precise monitoring of production processes.
-
Pharmaceuticals: The accurate measurement and control of process parameters are essential for ensuring product quality and regulatory compliance in pharmaceutical manufacturing.
-
Power Generation: The module plays a critical role in monitoring and controlling variables in power plants, including steam pressure, temperature, and water flow, which are essential for safe and efficient power generation.
-
Water and Wastewater Treatment: It is used to monitor the quality of water, chemical dosages, and flow rates, contributing to effective treatment and waste management.
-
Food and Beverage: The module enables accurate monitoring of process variables such as temperature, pressure, and pH in food production processes, which helps maintain product quality.
Advantages of KJ3002X1-BD1 12P1033X102
-
High Accuracy: The module offers exceptional accuracy (±0.1% of Full Scale), ensuring precise measurements, which is critical for processes that require tight control over operating conditions.
-
Wide Input Range: The module supports a broad range of analog inputs, including 0-20 mA, 4-20 mA, 0-10 V, and 1-5 V, making it versatile for use in various types of field devices.
-
Reliability: Built with robust construction and protection features such as overvoltage and overcurrent protection, the module is designed for reliable performance in harsh industrial environments.
-
Easy Integration: It is designed for seamless integration into the DeltaV™ system, ensuring compatibility with other Emerson products and reducing setup complexity.
-
Compact Design: The small form factor (130 mm x 90 mm x 130 mm) makes the module easy to install in control panels or cabinets, saving space in tight environments.
-
Flexible Mounting: The DIN rail mounting option provides flexibility and ease of installation, enabling quick and secure integration into the existing control system.
-
Temperature Range: With an operating temperature range of -40°C to 70°C, the module can operate in a wide variety of environmental conditions, making it suitable for diverse industrial applications.
-
Modbus and HART Communication: The module supports both Modbus and HART communication protocols, enabling easy integration into modern control systems while providing flexibility for communication with other devices.
FAQ (Frequently Asked Questions)
-
What is the input voltage range of the Emerson KJ3002X1-BD1 module?
-
The module supports input voltages of 0-10 V and 1-5 V, along with current inputs of 0-20 mA and 4-20 mA.
-
-
How many channels does the KJ3002X1-BD1 module have?
-
The module has 4 input channels, allowing the measurement of multiple analog signals simultaneously.
-
-
What is the accuracy of the module?
-
The module offers an accuracy of ±0.1% of full scale.
-
-
What is the power supply requirement for this module?
-
The module operates with a 24 V DC power supply, with a tolerance of ±20%.
-
-
Can the KJ3002X1-BD1 module be used in extreme temperatures?
-
Yes, the module has an operating temperature range of -40°C to 70°C, making it suitable for a wide range of environments.
-
-
How is the KJ3002X1-BD1 mounted?
-
The module is designed for DIN rail mounting, making it easy to install in control panels.
-
-
What protection features are built into the KJ3002X1-BD1 module?
-
The module includes overvoltage, overcurrent, and reverse polarity protection to ensure reliable operation and protection against electrical faults.
-
-
What communication protocols does the module support?
-
The KJ3002X1-BD1 supports Modbus and HART communication protocols for easy integration into control systems.
-
-
What is the weight of the module?
-
The module weighs 0.5 kg.
-
-
Can the module handle both voltage and current inputs?
-
Yes, the module can accept both current and voltage inputs, providing flexibility for a wide variety of field devices.
-
Recommended Models (Same Series or Related)
| Model | Input Range | Channels | Accuracy | Weight | Dimensions |
|---|---|---|---|---|---|
| KJ3003X1-BD1 12P1033X103 | 0-20 mA, 4-20 mA | 8 | ±0.05% of Full Scale | 0.6 kg | 130 mm x 90 mm x 130 mm |
| KJ3001X1-BD1 12P1033X101 | 0-10 V, 1-5 V | 4 | ±0.1% of Full Scale | 0.4 kg | 120 mm x 90 mm x 130 mm |
| KJ3012X1-BD1 12P1033X104 | 0-20 mA, 4-20 mA | 4 | ±0.1% of Full Scale | 0.55 kg | 130 mm x 90 mm x 140 mm |
| KJ3004X1-BD1 12P1033X105 | 0-10 V, 1-5 V | 8 | ±0.05% of Full Scale | 0.7 kg | 140 mm x 90 mm x 150 mm |
| KJ3020X1-BD1 12P1033X106 | 0-10 V, 4-20 mA | 4 | ±0.1% of Full Scale | 0.6 kg | 130 mm x 90 mm x 130 mm |
| KJ3030X1-BD1 12P1033X107 | 0-20 mA, 1-5 V | 8 | ±0.1% of Full Scale | 0.65 kg | 130 mm x 90 mm x 140 mm |
