Product Overview

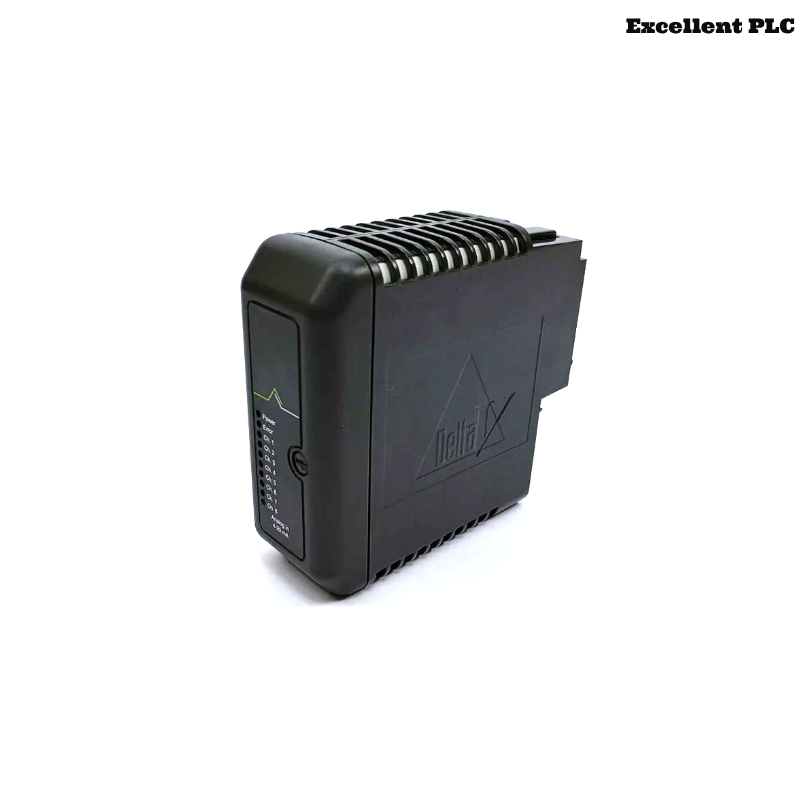

The Emerson KJ3002X1-BC1 12P0681X092 is an 8-channel analog input module designed for the DeltaV Distributed Control System (DCS). It interfaces with analog sensors, converting their signals into digital data for process automation and safety systems.
Technical Specifications
| Parameter | Specification |
| Model Number | KJ3002X1-BC1 |
| Part Number | 12P0681X092 |
| Input Type | 4-wire Analog Input |
| Number of Channels | 8 |
| Input Signal | 4–20 mA |
| Local Bus Power | 12 VDC at 150 mA |
| Field Circuit Rating | 24 VDC at 32 mA |
| Dimensions (H x W x D) | 51 x 102 x 102 mm |
| Weight | 0.181 kg |
| Operating Temperature | 0°C to 60°C |
| Shock | 10g ½ Sinewave for 11 msec |
| Vibration | 1mm Peak to Peak (5–16Hz); 0.5g (16–150Hz) |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE |
| Country of Origin | USA |
Applications
The Emerson KJ3002X1-BC1 module is widely used in various industries for process automation and control:
-
Chemical and Petrochemical Plants: Monitoring temperature, pressure, and flow rates.
-
Power Generation Facilities: Measuring voltage, current, and other electrical parameters.
-
Oil and Gas Industry: Tracking levels, densities, and compositions.
-
Water and Wastewater Treatment Plants: Assessing pH, conductivity, and turbidity.
Advantages
-
High Accuracy: Provides precise measurement of analog signals, ensuring reliable data for control systems.
-
Compact Design: Small footprint allows for efficient use of cabinet space.
-
Robust Construction: Designed to withstand harsh industrial environments with shock and vibration resistance.
-
Easy Integration: Seamlessly integrates with the DeltaV DCS, simplifying system configuration.
-
Certified Quality: Meets CE standards for safety and performance.
Latest News Headlines
-
“Emerson Introduces Advanced Analog Input Module for Enhanced Process Control”
-
“KJ3002X1-BC1 Module Gains Traction in Industrial Automation Applications”
-
“DeltaV System Upgrades with Emerson’s New Analog Input Solutions”
Frequently Asked Questions (FAQs)
-
What is the primary function of the KJ3002X1-BC1 module?
-
It serves as an analog input module, converting 4–20 mA signals from field devices into digital data for the DeltaV DCS.
-
-
How many input channels does this module support?
-
The module supports 8 analog input channels.
-
-
What type of input signals are compatible with this module?
-
It is designed for 4–20 mA analog input signals.
-
-
Can this module operate in extreme temperatures?
-
Yes, it operates within a temperature range of 0°C to 60°C.
-
-
Is the KJ3002X1-BC1 compatible with other DeltaV modules?
-
Yes, it integrates seamlessly with other modules in the DeltaV system.
-
-
What are the dimensions and weight of the module?
-
The module measures 51 x 102 x 102 mm and weighs 0.181 kg.
-
-
Does the module have any certifications?
-
Yes, it is CE-certified, ensuring compliance with safety and performance standards.
-
-
What is the power requirement for this module?
-
It requires 12 VDC at 150 mA for local bus power and 24 VDC at 32 mA for the field circuit.
-
-
Can the module withstand industrial environmental conditions?
-
Yes, it is designed to resist shock (10g ½ Sinewave for 11 msec) and vibration (1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz).
-
-
Is there any special installation requirement for this module?
-
The module should be installed in accordance with DeltaV system guidelines to ensure proper operation and integration.
-
Related Models (Same Series or Closely Related)
| Model Number | Description | Channels | Signal Type | Application Area |
| KJ3002X1-BE1 | Analog Output Module | 8 | 4–20 mA | Analog Control Outputs |
| KJ3002X1-BG1 | Thermocouple Input Module | 8 | Thermocouple Types | Temperature Monitoring |
| KJ3002X1-BH1 | RTD Input Module | 8 | RTD (PT100, etc.) | Precision Temperature Input |
| KJ3002X1-BJ1 | Discrete Input Module | 8 | Dry Contact | Digital Input from Sensors |
| KJ3002X1-BK1 | Discrete Output Module | 8 | Relay/TTL | Digital Output to Actuators |
| KJ3002X1-BL1 | High-Density Analog Input Module | 16 | 4–20 mA | High I/O Density Applications |
| KJ3002X1-BM1 | High-Density Analog Output Module | 16 | 4–20 mA | Batch or Continuous Control |
| KJ3001X1-BA1 | Fieldbus Interface Module | N/A | Foundation Fieldbus | Field Device Communication |
