Product Introduction

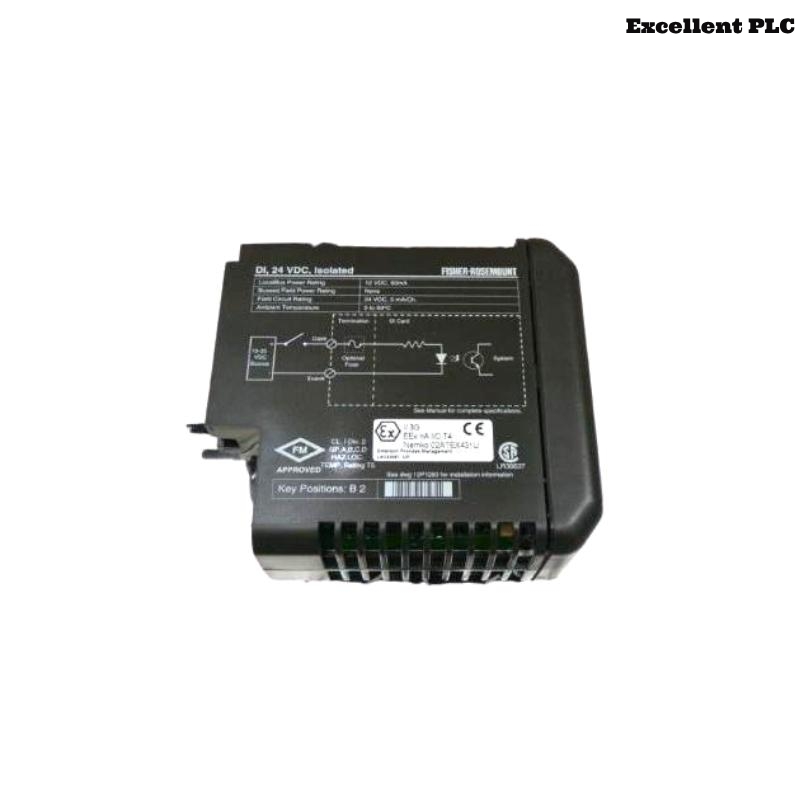

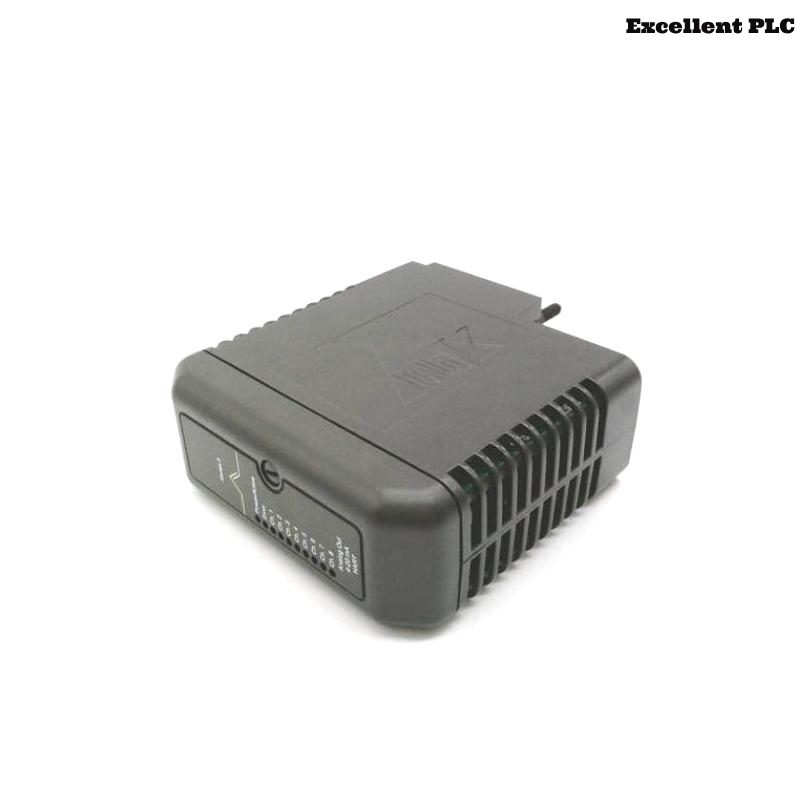

The Emerson KJ3001X1-BA1 12P0549X152 is a discrete input module designed for integration within Emerson’s DeltaV™ distributed control systems. This module facilitates the reliable detection and processing of binary signals from field devices such as switches, sensors, and pushbuttons. Its isolated input channels ensure signal integrity and protection against electrical noise, making it suitable for various industrial automation applications.
Technical Specifications
| Parameter | Details |
| Model Number | KJ3001X1-BA1 |
| Part Number | 12P0549X152 |
| Product Type | Discrete Input Module |
| Manufacturer | Emerson |
| Product Line | DeltaV™ Series |
| Input Channels | 16 isolated channels |
| Input Voltage | 24 VDC |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Dimensions (H x W x D) | 120 × 80 × 30 mm |
| Weight | 0.2 kg |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | DIN rail or panel mount |
| Certifications | CE, ATEX, IECEx, FM (Class I, Div 2, Groups A-D) |
Product Applications
The Emerson KJ3001X1-BA1 module is utilized across various industries due to its versatility and robust design:
-
Oil & Gas: Facilitates integration of field instruments in upstream and downstream processes.
-
Chemical Processing: Supports safe and efficient control in hazardous environments.
-
Power Generation: Enables reliable monitoring and control of power plant operations.
-
Pharmaceuticals: Assists in maintaining stringent process control and compliance standards.
-
Water & Wastewater Treatment: Enhances automation and monitoring of treatment facilities.
-
Food & Beverage: Supports precise control systems for production and packaging lines.
Product Advantages
-
High Channel Density: Offers 16 isolated input channels, optimizing space and reducing hardware requirements.
-
Robust Isolation: Ensures signal integrity and protects against electrical noise and transients.
-
Wide Operating Range: Designed to operate reliably in extreme temperatures and humidity conditions.
-
Flexible Mounting: Supports both DIN rail and panel mounting, accommodating various installation preferences.
-
Compliance with Standards: Certified for use in hazardous locations, ensuring safety and regulatory compliance.
-
Seamless Integration: Fully compatible with Emerson’s DeltaV™ systems, facilitating easy system expansion and maintenance.
Frequently Asked Questions (FAQ)
-
What is the primary function of the KJ3001X1-BA1 module?
-
It serves as a discrete input module, detecting and processing binary signals from field devices within DeltaV™ systems.
-
-
How many input channels does this module provide?
-
The module offers 16 isolated input channels.
-
-
What is the input voltage specification?
-
It operates at 24 VDC input voltage.
-
-
Is the module suitable for hazardous environments?
-
Yes, it holds certifications such as ATEX and IECEx for use in hazardous locations.
-
-
What are the mounting options available?
-
The module can be mounted on a DIN rail or directly onto a panel.
-
-
What are the dimensions and weight of the module?
-
Dimensions: 120 × 80 × 30 mm; Weight: 0.2 kg.
-
-
What is the operating temperature range?
-
It operates reliably between -40°C and +70°C.
-
-
Does the module provide channel-to-channel isolation?
-
Yes, each input channel is isolated from the others and from the system ground.
-
-
Is the module compatible with other DeltaV™ components?
-
Yes, it seamlessly integrates with other components within the DeltaV™ system.
-
-
What is the typical application of this module?
-
It’s commonly used in industries requiring reliable detection of discrete signals, such as oil & gas, power generation, and chemical processing.
-
Related or Same-Series Models (DeltaV or Discrete I/O Modules)
| Model Number | Description | Key Features |
| KJ3001X1-BB1 | 32-Channel Discrete Input Module | High-density input module, 24V DC input, individually isolated channels. |
| KJ3002X1-BG1 | 16-Channel Discrete Output Module | Discrete output with per-channel isolation and diagnostics. |
| KJ3221X1-BA1 | 8-Channel Analog Input Module | Designed for accurate analog signal monitoring in DeltaV systems. |
| KJ4001X1-CA1 | HART Analog Input Module | Supports HART communication for smart instrumentation integration. |
| VE4002S1T2B2 | 32-Channel Discrete I/O Card | Compact high-channel card used in CHARMs-based DeltaV I/O architecture. |
| KJ3001X1-BJ1 | Discrete Input with Diagnostics | Extended diagnostics for increased reliability and troubleshooting. |
Popular Emerson Models from the Same Brand
| Model Number | Description | Key Features |
| KJ2003X1-BB1 | DeltaV Controller Module | Controls I/O communication, logic execution, and system coordination. |
| KJ3002X1-BG1 | 16-Channel Discrete Output Module | Widely used in discrete control applications with robust output handling. |
| KJ4001X1-CA1 | HART AI Module | Enables communication with HART-enabled field devices for advanced diagnostics. |
| VE4001S2T2B2 | CHARMs Backplane | Used in Electronic Marshalling solutions, supports hot-swap and redundancy. |
| KJ4010X1-BG1 | Relay Output Module | Designed for switching high-current loads in industrial environments. |
| SE4002S1T2B1 | CHARM I/O Baseplate | Core component of DeltaV Electronic Marshalling, supports plug-and-play CHARMs. |
